Hot Spring 73791 No Fault Heater - 4 kW Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your Hot Spring 73791 No Fault PDR Titanium 4kW heater. This heater is designed for use with Hot Spring, Tiger River, and Limelight spa models manufactured from 2003 to current that utilize 4kW heating systems. The heater is supplied in excellent condition, ready for integration into your spa system.

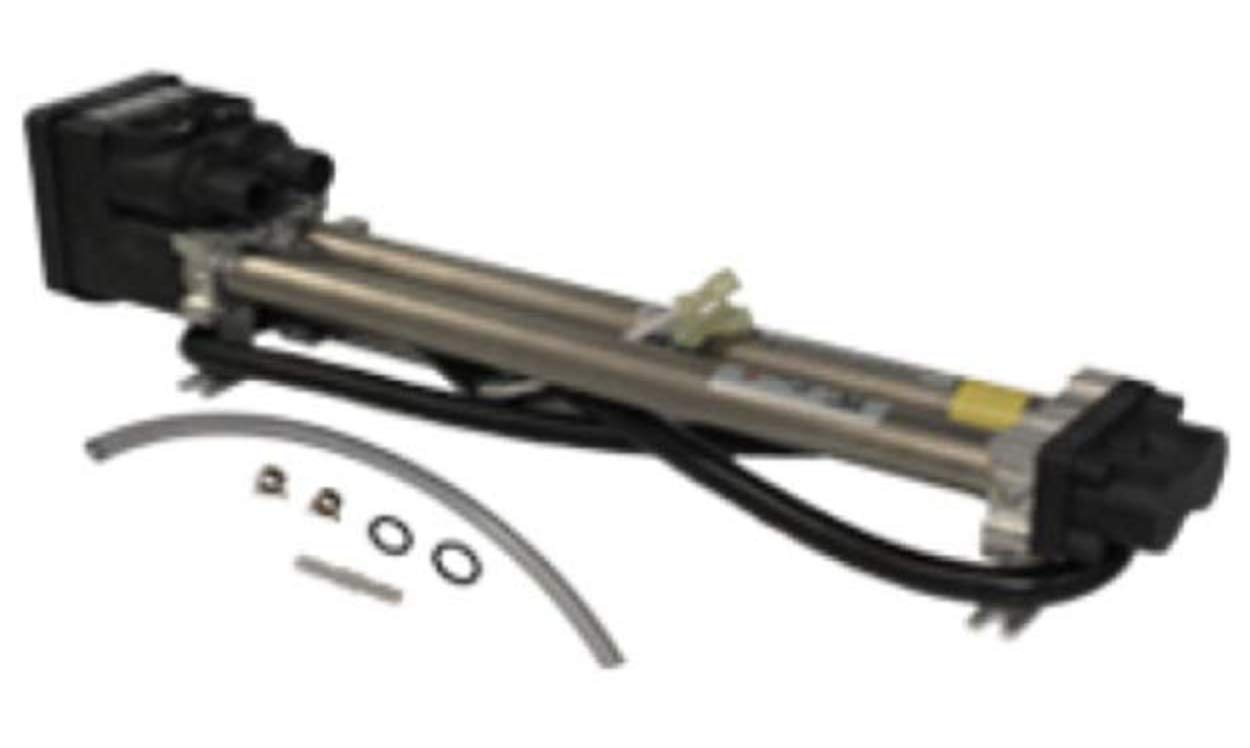

Image of the Hot Spring 73791 No Fault PDR Titanium 4kW heater, showing its compact design and electrical connections.

2. Safety Information

Please read and understand all safety instructions before attempting installation or operation. Failure to follow these instructions could result in serious injury, death, or property damage.

• Electrical Hazard: Installation must be performed by a qualified electrician or spa technician in accordance with all local and national electrical codes. Ensure the spa's power supply is disconnected at the circuit breaker before any service.
• Water Hazard: Always ensure the spa is drained and disconnected from power before working on plumbing or electrical components.
• Burn Hazard: Hot water can cause burns. Allow the spa to cool down before performing maintenance.
• Compatibility: Use this heater only with compatible Hot Spring, Tiger River, and Limelight spa models (2003-current) that require a 4kW heater. Using an incompatible heater may damage your spa or create a safety risk.

3. Package Contents

Verify that all components are present and undamaged upon receipt.

• 1 x Hot Spring 73791 No Fault PDR Titanium 4kW Heater

Note: Additional installation hardware (e.g., gaskets, clamps) may be required and are typically not included with the heater unit itself. Consult your spa's original manual for specific requirements.

4. Setup and Installation

Installation of this heater should only be performed by a qualified spa technician or licensed electrician due to the electrical and plumbing complexities involved. Incorrect installation can lead to equipment failure, electrical shock, or fire.

General Installation Steps (for qualified personnel):

1. Disconnect Power: Turn off all power to the spa at the main circuit breaker. Verify power is off using a voltage tester.
2. Drain Spa: Completely drain the spa water.
3. Access Heater Compartment: Locate and open the spa's equipment compartment.
4. Disconnect Old Heater: Carefully disconnect the electrical wiring and plumbing connections from the existing heater. Note the orientation and connections for proper reinstallation.
5. Remove Old Heater: Remove the old heater unit from the spa system.
6. Install New Heater: Position the new Hot Spring 73791 heater in the same location as the old unit. Ensure proper alignment with plumbing connections.
7. Reconnect Plumbing: Securely attach all plumbing connections to the new heater, ensuring no leaks. Use new gaskets if necessary.
8. Reconnect Electrical: Connect the electrical wiring to the new heater, matching the connections from the old unit. Ensure all connections are tight and secure.
9. Refill Spa: Close all drain valves and refill the spa with water to the recommended level.
10. Inspect for Leaks: Before restoring power, carefully inspect all plumbing connections for any signs of leaks. Tighten as needed.
11. Restore Power: Once confident there are no leaks and all connections are secure, restore power to the spa at the circuit breaker.
12. Test Operation: Follow the spa's main control system instructions to test the heater's operation.

5. Operating Instructions

The Hot Spring 73791 No Fault Heater operates automatically in conjunction with your spa's control system. There are no direct user controls on the heater itself.

• Temperature Setting: Adjust your desired spa water temperature using the main control panel of your Hot Spring, Tiger River, or Limelight spa. The heater will activate as needed to maintain this set temperature.
• Flow Requirement: Ensure proper water flow through the heater. The spa's circulation pump must be operating correctly for the heater to function safely and efficiently. Low flow can cause the heater to shut off as a safety measure.
• Indicator Lights: Refer to your spa's main control panel or equipment pack for any heater status or error indicator lights.

6. Maintenance

Regular maintenance of your spa system is crucial for the longevity and efficient operation of your heater.

• Water Chemistry: Maintain proper spa water chemistry (pH, alkalinity, sanitizer levels) as recommended by your spa manufacturer. Imbalanced water can lead to scale buildup on the heater element, reducing efficiency and lifespan.
• Filter Cleaning: Regularly clean or replace your spa filters to ensure adequate water flow through the heater. Clogged filters restrict flow, which can cause the heater to cycle off or fail prematurely.
• Visual Inspection: Periodically inspect the heater and its connections for any signs of leaks, corrosion, or damage. Address any issues promptly.
• Winterization: If winterizing your spa, ensure the heater is completely drained of water to prevent freezing and damage.

7. Troubleshooting

If you experience issues with your heater, consider the following common troubleshooting steps. For complex problems, contact a qualified spa technician.

• Heater Not Heating:
  • Check if the spa has power at the circuit breaker.
  • Ensure the spa's control panel is set to a temperature higher than the current water temperature.
  • Verify that the circulation pump is running and there is adequate water flow. Clean filters if necessary.
  • Check for any error codes displayed on the spa's control panel and refer to your spa's main manual for their meaning.
• Leaking Heater:
  • Immediately disconnect power to the spa.
  • Inspect all plumbing connections to the heater for looseness or damaged gaskets. Tighten or replace as needed.
  • If the leak is from the heater body itself, the unit may need replacement.
• Frequent Heater Cycling:
  • This can indicate low water flow. Check filters and pump operation.
  • Ensure water levels are correct.

8. Specifications

9. Warranty and Support

Specific warranty information for this product is not provided in the available data. For details regarding warranty coverage, please refer to your purchase documentation or contact the original seller or Hot Spring directly.

For technical support, installation assistance, or troubleshooting beyond the scope of this manual, it is recommended to contact a certified Hot Spring dealer or a qualified spa service technician.

You can often find contact information for Hot Spring support or authorized dealers on their official website or through your local spa retailer.
