User Manual for DIGI WR11-M400-DE1-XB Cellular Router

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of the DIGI WR11-M400-DE1-XB Cellular Router. This device is designed to provide reliable 4G LTE cellular connectivity and Ethernet networking for various applications. Please read this manual thoroughly before using the product to ensure proper setup and functionality.

2. Safety Information

Observe the following safety precautions to prevent damage to the device or injury to personnel:

• Ensure the power supply voltage matches the device's requirements.
• Do not expose the device to water or excessive humidity.
• Avoid placing the device near heat sources or in direct sunlight.
• Do not open the device casing; refer all servicing to qualified personnel.
• Use only approved accessories and antennas with the router.

3. Package Contents

Verify that all items are present in the package:

• DIGI WR11-M400-DE1-XB Cellular Router
• Power Adapter (may vary by region)
• Quick Start Guide
• Mounting Hardware (if applicable)

Note: Antennas are not included with this model and must be purchased separately.

4. Product Overview

The DIGI WR11-M400-DE1-XB is a compact and robust cellular router designed for reliable connectivity. Below is an image of the device with key features highlighted.

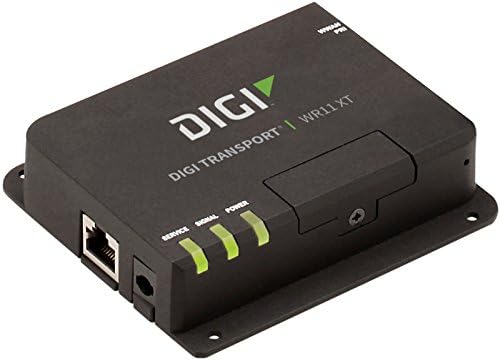

Image: Front view of the DIGI WR11-M400-DE1-XB Cellular Router, showing the Ethernet port, power input, and three LED indicators for Service, Signal, and Power. The device is black with the "DIGI TRANSPORT WR11 XT" logo.

Front Panel Indicators

• Service LED: Indicates cellular service status. (e.g., Solid Green: Connected, Blinking: Attempting connection, Off: No service)
• Signal LED: Indicates cellular signal strength. (e.g., Green: Strong, Amber: Medium, Red: Weak)
• Power LED: Indicates power status. (e.g., Solid Green: Power on, Off: Power off)

Ports and Connectors

• Ethernet Port (LAN): One RJ45 port for wired network connection.
• Power Input: Connector for the DC power adapter.
• Antenna Connectors: (Not visible in image, but typically present on cellular routers for external antennas, though this model states "NO Antenna" in description, implying internal or separate purchase). Note: This model does not include antennas. External antennas must be connected to the appropriate ports (if available) for cellular connectivity.

5. Setup

Initial Setup

1. Positioning: Place the router in a central location, away from obstructions and other electronic devices that may cause interference. Ensure good cellular signal reception.
2. SIM Card Installation: If applicable, insert your activated 4G LTE SIM card into the designated SIM card slot. Ensure it is inserted correctly according to the diagram on the device or in the Quick Start Guide.
3. Antenna Connection: If using external antennas (recommended for optimal performance, and necessary for this model as it ships without antennas), connect them securely to the antenna ports.
4. Power Connection: Connect the power adapter to the router's power input port, then plug the adapter into a power outlet. The Power LED should illuminate.

Network Connection

1. Wired Connection: Connect an Ethernet cable from the router's LAN port to your computer or network switch.
2. Verify Connectivity: Once powered on, the router will attempt to establish a cellular connection. Monitor the Service and Signal LEDs. The Service LED should turn solid green, and the Signal LED should indicate good signal strength.

6. Operating Instructions

Basic Operation

Once the router is powered on and has established a cellular connection (indicated by the Service and Signal LEDs), devices connected to its Ethernet port will be able to access the internet via the 4G LTE network.

Accessing the Web Interface

For advanced configuration and monitoring, you can access the router's web-based management interface:

1. Ensure your computer is connected to the router via Ethernet.
2. Open a web browser (e.g., Chrome, Firefox, Edge).
3. In the address bar, type the router's default IP address (commonly 192.168.1.1 or 192.168.0.1, refer to the Quick Start Guide or device label for the exact address) and press Enter.
4. Enter the default username and password when prompted (typically admin for both, or as specified in the Quick Start Guide).
5. You can now configure network settings, security, and monitor device status.

7. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your router:

• Cleaning: Use a soft, dry cloth to clean the exterior of the router. Do not use liquid cleaners or aerosols.
• Firmware Updates: Periodically check the manufacturer's website for firmware updates. Keeping the firmware updated can improve performance, add features, and enhance security.
• Ventilation: Ensure the router is placed in a well-ventilated area to prevent overheating. Do not block ventilation openings.
• Power Cycle: If the router experiences issues, try power cycling it by disconnecting the power adapter for 10 seconds and then reconnecting it.

8. Troubleshooting

This section addresses common issues you might encounter with the DIGI WR11-M400-DE1-XB Cellular Router.

9. Specifications

Key technical specifications for the DIGI WR11-M400-DE1-XB Cellular Router:

10. Warranty and Support

For information regarding product warranty, technical support, or service, please refer to the warranty card included with your product or visit the official Digi International website. Support resources, including FAQs, documentation, and contact information, are typically available online.

Please retain your proof of purchase for warranty claims.
