Staples Tarance Mesh and Fabric Task Chair User Manual

Introduction

Thank you for choosing the Staples Tarance Mesh and Fabric Task Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read these instructions carefully before use and retain them for future reference.

Image: The Staples Tarance Mesh and Fabric Task Chair positioned in a modern office environment.

Safety Information

• Ensure all components are securely fastened before use. Regularly check for loose screws or parts.
• Do not stand on the chair. Use it only for seating purposes.
• Avoid placing heavy objects on the chair that exceed its weight capacity (150 kg / 275 lbs).
• Keep hands and fingers clear of moving parts during adjustment.
• Use the chair on a level surface to prevent tipping.

Package Contents

Verify that all parts are present before beginning assembly:

• Chair Base with Casters
• Gas Lift Cylinder
• Seat Assembly
• Backrest Assembly
• Arm Pads (2)
• Hardware Pack (screws, washers, Allen wrench)

Setup and Assembly

Follow these steps to assemble your Staples Tarance Task Chair:

1. Attach Casters to Base: Insert the five casters into the holes at the end of each leg of the chair base. Push firmly until they click into place.
2. Insert Gas Lift: Place the gas lift cylinder into the center hole of the assembled chair base.
3. Attach Seat to Mechanism: Secure the seat assembly to the chair mechanism using the provided screws. Ensure the front of the seat is correctly oriented.
4. Attach Backrest: Connect the backrest assembly to the seat mechanism using the designated screws.
5. Attach Armrests: Secure the armrests to the seat assembly using the provided screws. Ensure they are firmly attached.
6. Connect Seat to Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring it is centered and stable.

Image: Detailed diagram showing the dimensions of the Staples Tarance Mesh and Fabric Task Chair from front and side views.

Operating Instructions

Your Staples Tarance Task Chair offers several adjustments for personalized comfort:

• Seat Height Adjustment: Locate the lever on the right side beneath the seat. Pull the lever up to raise the seat; release it at the desired height. To lower, pull the lever up while seated.
• Lumbar Support: The chair features height-adjustable lumbar support. Gently slide the lumbar support pad up or down on the backrest to find your preferred position.
• Tilt Tension: The round knob located under the front of the seat controls the tilt tension. Turn clockwise to increase tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline).
• Tilt Lock: Use the lever on the left side beneath the seat to lock the chair in an upright position or allow it to recline. Push the lever in to lock, pull out to unlock.
• Armrest Adjustment: The armrests are height adjustable. Press the button on the side of each armrest and slide them up or down to your desired height.
• Swivel Function: The chair is equipped with 360-degree swivel casters for easy movement.

Image: Close-up view of the chair's breathable mesh back and height-adjustable lumbar support.

Image: Close-up of the height-adjustable armrests with soft arm pads designed for forearm and shoulder support.

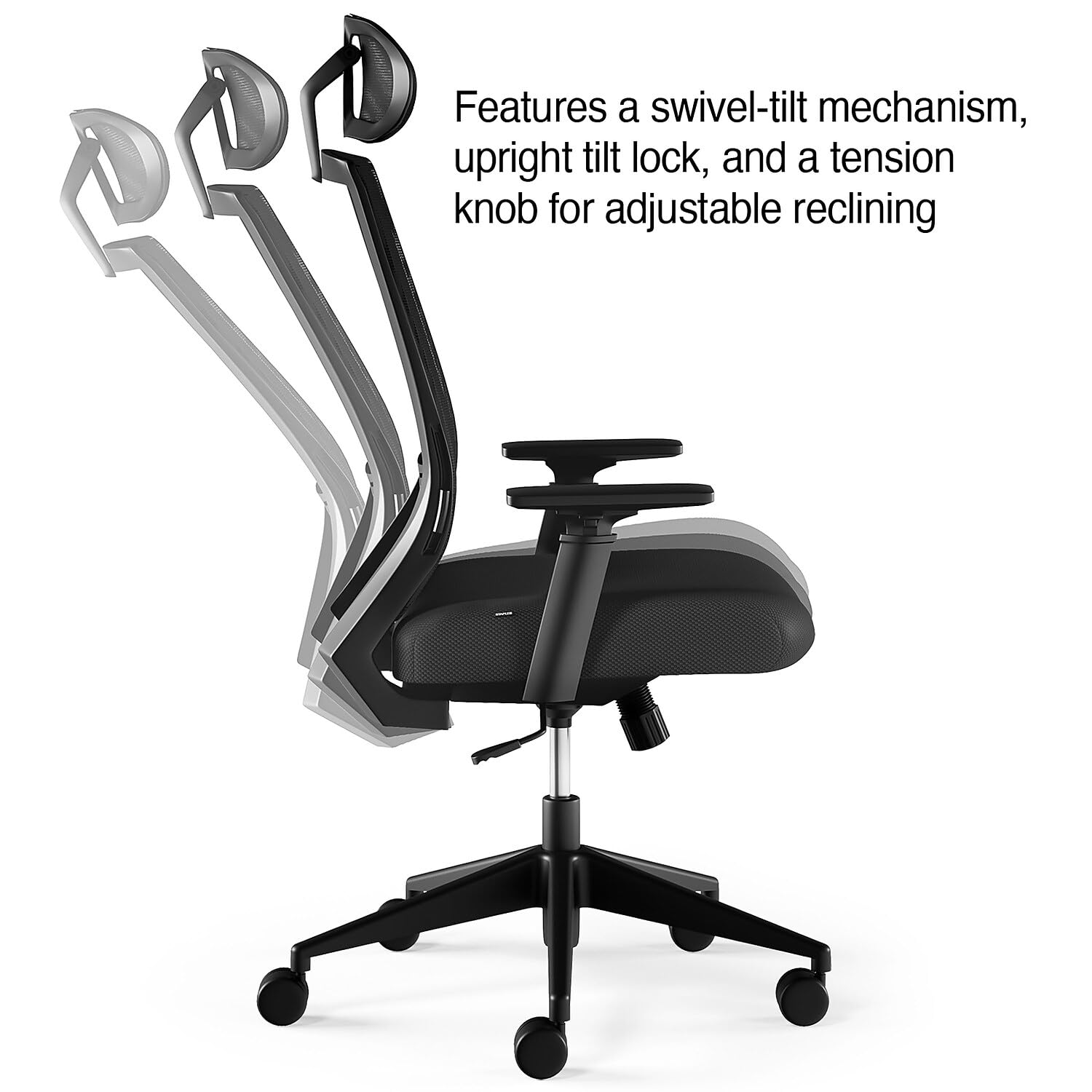

Image: An illustration demonstrating the chair's swivel-tilt mechanism, upright tilt lock, and tension knob for adjustable reclining.

Image: A view of the durable five-star base and 360-degree swivel casters, designed to support up to 275 lbs.

Maintenance

• Cleaning: Wipe clean with a damp cloth. For fabric parts, use a mild fabric cleaner as needed. Avoid harsh chemicals.
• Inspection: Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary.
• Casters: Keep casters free of debris (hair, dust) to ensure smooth movement.

Troubleshooting

• Chair Squeaks: Check all bolts and screws for tightness. A small amount of silicone lubricant can be applied to moving parts if necessary.
• Height Adjustment Not Working: Ensure the gas lift lever is fully engaged. If the issue persists, the gas lift cylinder may need replacement.
• Chair Wobbles: Verify that all connections are secure and the chair is on a level surface.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the point of purchase or contact Staples customer service. Keep your purchase receipt for warranty claims.
