Introduction
The Modern Forms Hydra Smart Indoor and Outdoor 8-Blade Ceiling Fan is designed to provide efficient air circulation and integrated lighting for both indoor and outdoor environments. This smart fan seamlessly integrates with popular smart home systems, offering convenient control and energy-saving features.

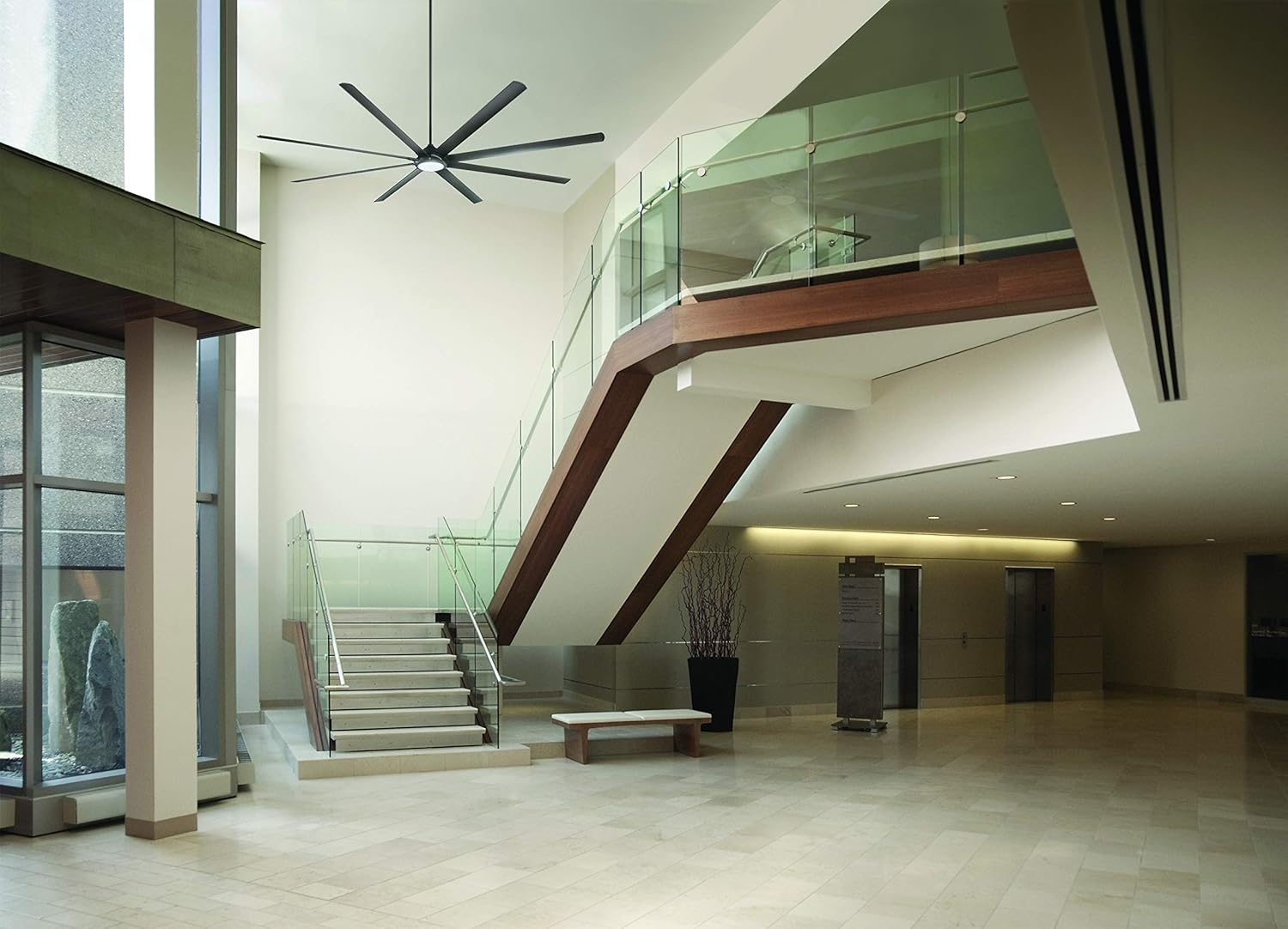

Figure 1: Modern Forms Hydra Smart Indoor and Outdoor Ceiling Fan.
Setup and Installation
Proper installation is crucial for optimal performance and safety. It is recommended to have two people for installation due to the size and weight of the fan. Ensure all power is disconnected before beginning installation.
Included Components:
- Complete Ceiling Fan (Fan Blades, Motor, Smart Receiver)
- Installation Instructions & Setup Manual
- Light Kit
- Mounting Hardware and 6-inch downrod
- Wall Control
Room Sizing and Downrod Selection:
Select the appropriate fan size and downrod length based on your room dimensions to ensure effective air circulation. The fan includes a 6-inch downrod. Additional downrods are sold separately for longer lengths to accommodate higher ceilings.
Figure 2: Guide for selecting appropriate fan blade span based on room size.
Figure 3: Guide for choosing the right downrod height.
Initial Power-On and Calibration:
Upon initial power-on, the fan will automatically calibrate itself. This process helps to detect and correct any potential wobbling, ensuring smooth and silent operation.
Operating Instructions
The Hydra fan offers multiple control options for your convenience.
Control Methods:
- Wall Control: A Bluetooth hardwired wall control (Part# F-WCBT-WT) is included for direct control of fan speed and light brightness. Additional switches are available for 3 or 4-way setups.
- Mobile App: Download the exclusive Modern Forms app (available on iOS and Android) to control fan speed, light brightness, utilize smart features like breeze mode and adaptive learning, create groups, and monitor energy costs.
- Remote Control: A battery-operated Bluetooth remote control with a wall cradle (Part # F-RCBT-WT) is sold separately.
Figure 4: Control options for the Hydra Smart Fan, including wall control, remote, and mobile app.
Smart Home Integration:
The Hydra fan is designed to integrate with leading smart home platforms, enhancing your connected living experience.
- Amazon Alexa: Control your fan and light with voice commands.
- Google Assistant: Use voice commands to adjust fan settings and lighting.
- Samsung SmartThings: Integrate the fan into your SmartThings ecosystem for centralized control.
- Ecobee: Utilize Assist Mode to conserve energy based on your comfort settings.
- Control4 and Josh AI: Compatible with these advanced home automation systems.
Figure 5: The Modern Forms app synchronizes with smart home devices like Ecobee.
Figure 6: The fan is compatible with Google Assistant and Samsung SmartThings.
Maintenance
The Hydra fan features incredibly efficient and completely silent DC motors, which are up to 70% more efficient than traditional AC fans. Each fan is factory-balanced and sound-tested to prevent wobbling, rattling, or clicking.
Cleaning:
Regularly wipe down the fan blades and motor housing with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
LED Luminaire:
The replaceable LED luminaire, powered by WAC Lighting, offers smooth and continuous brightness control. It is available in 2700K, 3000K, and 3500K options. An optional cover is included to conceal the luminaire if desired.
Troubleshooting
For detailed troubleshooting steps and solutions to common issues, please refer to the official Troubleshooting Guide PDF.
Specifications
Figure 7: Energy Star Most Efficient 2020 certification.
| Feature | Detail |
|---|---|
| Brand | Modern Forms |
| Model Name | Hydra |
| Model Number | FR-W1805-120L-BZ |
| Color | Bronze |
| Style | 3000K Warm White LED |
| Product Dimensions | 120"D x 120"W x 17.25"H |
| Number of Blades | 8 |
| Blade Length | 120 Inches |
| Air Flow Capacity | 13300 Cubic Feet Per Minute |
| Noise Level | 15 dB |
| Wattage | 67.5 watts |
| Voltage | 120 Volts |
| Luminous Flux | 2041 Lumen |
| Indoor/Outdoor Usage | Indoor, Outdoor (Wet Location Listed) |
| Control Method | Remote, App, Wall Control |
| Efficiency | High (70% more efficient than AC styles) |
| Certifications | EPA, Energy Star, FCC, UL, cUL |
Warranty Information
Modern Forms provides the following warranty for the Hydra Smart Ceiling Fan:
- LED: 5-year warranty
- Motor: Lifetime warranty
- All Other Parts: 1-year warranty
Support and Contact
For further assistance, product inquiries, or to explore other Modern Forms products, please visit the official Modern Forms Store.
