1. Product Overview
The Tefal Easy Fry Healthy Fryer EY2018 is a versatile air fryer designed for healthy cooking with little to no oil. It utilizes Air Pulse technology to circulate hot air, ensuring a crispy finish for a variety of foods. This compact appliance offers an XL capacity, suitable for preparing meals for up to 6 portions.
Key Features:
- Healthy Cooking: Prepares food with little to no added oil.
- Large Capacity: 4.2L total capacity, equivalent to 1.2kg of food, serving up to 6 portions.
- Powerful Performance: 1500W power with 3D Air Pulse technology for efficient and optimized heating.
- High Precision Temperature: Adjustable temperature control from 80°C to 200°C.
- Easy to Use: Features a convenient 60-minute timer with an auto shut-off function.
- Versatile Use: Capable of frying, roasting, grilling, and baking a wide variety of dishes including fries, cutlets, shrimp, cakes, pizza, and fish.
- Patented Basket System: Removable grid helps to capture oil from the bottom for healthier results.
Figure 1.1: Front view of the Tefal Easy Fry Healthy Fryer EY2018.
2. Important Safety Instructions
READ ALL INSTRUCTIONS BEFORE USE.
- Always ensure the appliance is placed on a stable, heat-resistant surface, away from walls or other appliances, to allow for proper air circulation.
- Do not immerse the main unit, cord, or plug in water or any other liquid.
- Keep children and pets away from the appliance during operation. The exterior surfaces can become hot.
- Do not block the air intake or air outlet vents during operation.
- Unplug the appliance from the outlet when not in use and before cleaning. Allow it to cool completely before handling.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Do not use accessories or attachments not recommended by the manufacturer, as this may cause injuries.
- Exercise extreme caution when moving an appliance containing hot oil or other hot liquids.
- This appliance is for household use only. Do not use outdoors.
- Ensure the voltage indicated on the appliance matches your local supply voltage (220V, 50Hz).
3. Product Components
Familiarize yourself with the main parts of your Tefal Easy Fryer:
- Main Unit: Houses the heating element and fan.
- Control Panel: Includes the temperature dial and timer dial.
- Removable Basket: The cooking basket where food is placed.
- Removable Grid: Sits at the bottom of the basket to separate food from excess oil.
- Handle: For safely pulling out and inserting the basket.
- Air Intake Vent: Located at the top or rear of the unit.
- Air Outlet Vent: Located at the rear of the unit.
Figure 3.1: Dimensions of the Tefal Easy Fryer EY2018 (27.8 cm x 33.8 cm x 33.3 cm).
Figure 3.2: The Tefal Easy Fryer EY2018 showcasing its XL capacity, capable of preparing a whole chicken, fries, and muffins.
4. Setup and First Use
Before First Use:
- Remove all packaging materials, stickers, and labels from the appliance.
- Clean the basket and the removable grid thoroughly with hot water, dish soap, and a non-abrasive sponge.
- Wipe the inside and outside of the appliance with a damp cloth.
- Ensure all parts are completely dry before use.
Placement:
- Place the appliance on a stable, horizontal, and heat-resistant surface.
- Ensure there is at least 10 cm of free space on the back and sides of the appliance, and 10 cm above it, to allow for proper air circulation.
- Do not place the appliance against a wall or other appliances.
5. Operating Instructions
General Operation:
- Plug the power cord into a grounded wall outlet (220V, 50Hz).
- Carefully pull the basket out of the air fryer.
- Place your ingredients into the basket. Do not exceed the MAX fill line or the recommended capacity (1.2kg / 4.2L).
- Slide the basket back into the air fryer. Ensure it clicks securely into place.
- Turn the temperature control dial to your desired temperature (80°C to 200°C).
- Turn the timer dial to the desired cooking time (up to 60 minutes). The appliance will start heating.
- During the cooking process, some ingredients may require shaking or turning halfway through. To do this, pull the basket out, shake/turn the food, and then slide the basket back in. The appliance will resume cooking automatically.
- When the timer reaches zero, a bell will ring, and the appliance will automatically shut off.
- Carefully pull out the basket and check if the food is cooked to your preference.
- Empty the food into a serving dish. Use tongs to remove larger items.
- Unplug the appliance after use.
Cooking Tips:
- For best results with frozen fries, add a tablespoon of oil and mix well before air frying.
- Smaller ingredients usually require a shorter cooking time than larger ingredients.
- A larger amount of ingredients only requires a slightly longer cooking time.
- You can reheat food in the air fryer. Set the temperature to 150°C for approximately 10 minutes.

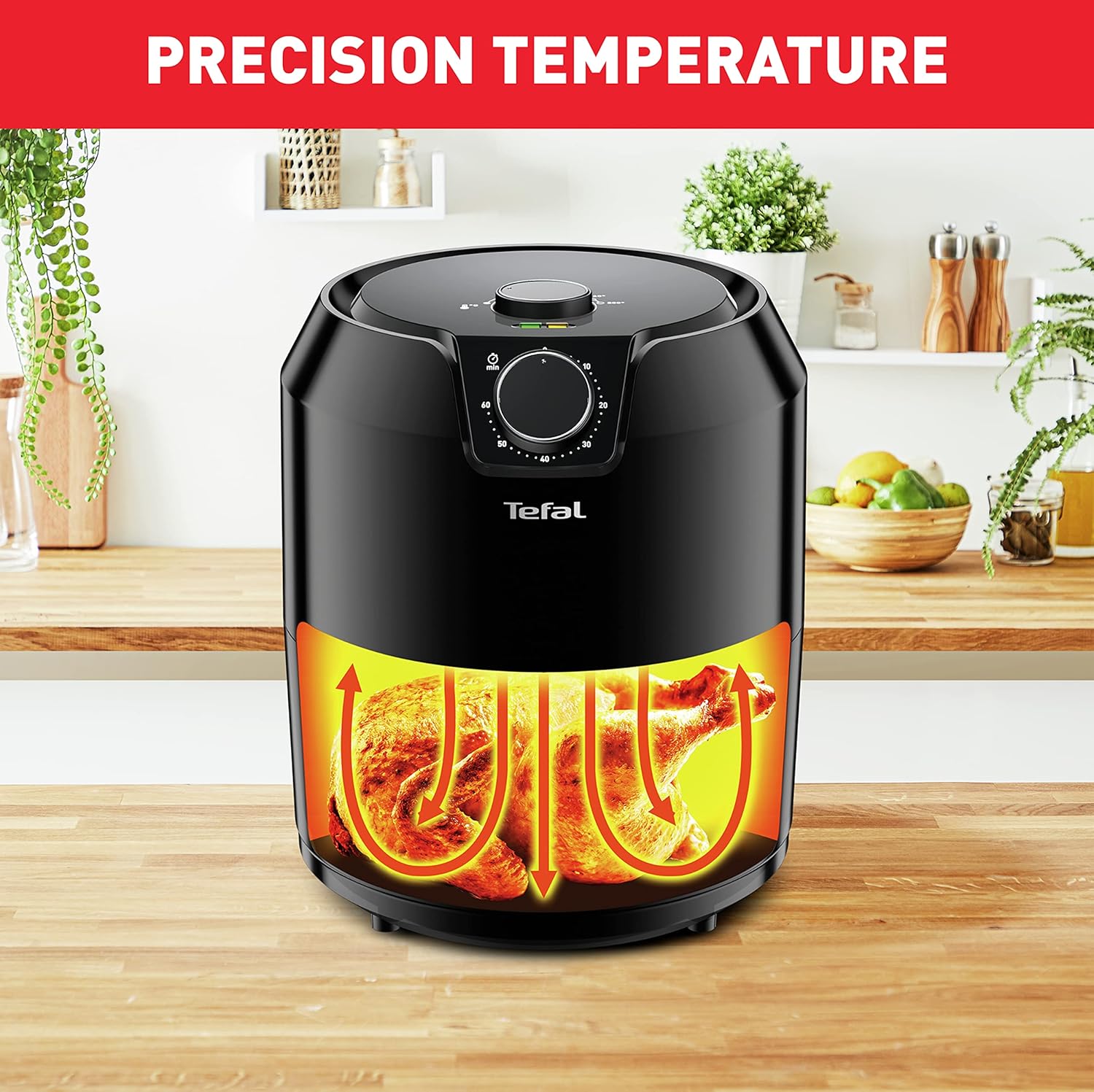

Figure 5.1: Illustration of the Air Pulse Technology for precise temperature and even cooking.
Figure 5.2: The Tefal Easy Fryer preparing various dishes including fries, spring rolls, and muffins.
6. Maintenance and Cleaning
Clean the appliance after every use.
WARNING: Do not immerse the main unit in water or any other liquid.
- Unplug the appliance from the wall outlet and allow it to cool down completely before cleaning.
- Wipe the outside of the appliance with a damp cloth.
- Clean the basket and the removable grid with hot water, dish soap, and a non-abrasive sponge. For stubborn residue, soak the basket and grid in hot water with dish soap for about 10 minutes.
- The basket and grid are dishwasher safe.
- Clean the inside of the appliance with a non-abrasive sponge or cloth.
- Clean the heating element with a cleaning brush to remove any food residue.
- Ensure all parts are completely dry before storing the appliance.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| The air fryer does not work. | The appliance is not plugged in. The timer is not set. | Plug the main plug into a grounded wall socket. Turn the timer dial to the desired cooking time. |
| Food is not cooked evenly. | Too much food in the basket. Temperature too low. Food not shaken/turned. | Reduce the amount of food per batch. Increase the temperature. Shake or turn food halfway through cooking. |
| Fried snacks are not crispy. | Not enough oil used (for fresh ingredients). Temperature too low. | Add a little oil to fresh ingredients. Increase the temperature. |
| White smoke comes out of the appliance. | Fat residues from previous use. Basket not properly cleaned. | Clean the basket and grid thoroughly after each use. Ensure no fat residue remains. |
| The appliance smells like burning plastic. | New appliance smell (normal for first few uses). Overheating. | This is normal for the first few uses. If it persists or is strong, unplug and contact support. Ensure proper ventilation. |
8. Product Specifications
- Brand: Tefal
- Model Number: EY2018
- Color: Black
- Product Dimensions: 27.8 x 33.8 x 33.3 cm
- Capacity: 4.2 Liters
- Power / Wattage: 1500 Watts
- Voltage: 220V
- Material: Stainless Steel, Aluminum
- Noise Level: 44 dB
- Special Features: Temperature Control, 60-minute Timer, Auto Shut-off
- Item Weight: 4 Kilograms
9. Warranty and Support
This Tefal Easy Fry Healthy Fryer EY2018 comes with an International Warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the duration and coverage details.
For technical assistance, spare parts, or warranty claims, please contact Tefal customer support in your region. Contact information can typically be found on the Tefal official website or in the warranty documentation.
Important: Keep your proof of purchase (receipt or invoice) as it will be required for any warranty service.
