Zoeller 17-0411 Polyethylene Sewage Basin Cover User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Zoeller 17-0411 Polyethylene Sewage Basin Cover. Please read these instructions thoroughly before proceeding with installation or use to ensure safety and optimal performance of the product.

2. Safety Information

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

• Always disconnect power to any associated pump or electrical components before installing or servicing the basin cover.
• Wear appropriate personal protective equipment (PPE), including gloves and eye protection, when handling sewage basin components.
• Ensure all connections are sealed properly to prevent gas leaks and odors.
• Do not modify the cover or use it for purposes other than its intended design.
• Keep children and unauthorized personnel away from the sewage basin area.

3. Product Overview

The Zoeller 17-0411 is a durable polyethylene sewage basin cover designed to securely seal a sewage basin, providing access for maintenance while containing odors and preventing debris from entering. It features pre-drilled openings for vent pipes and discharge lines, and includes a hardware pack for installation.

Figure 1: Angled view of the Zoeller 17-0411 Polyethylene Sewage Basin Cover, showing its overall shape and pre-drilled holes.

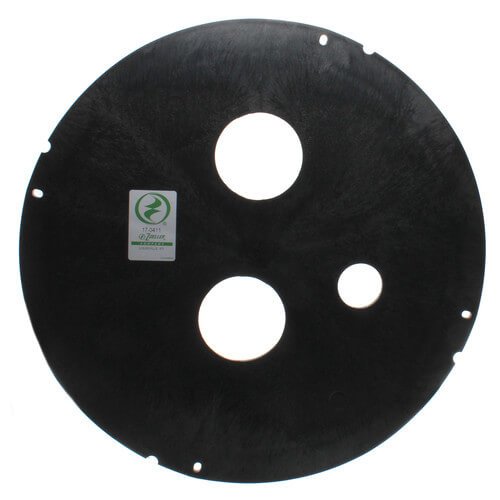

Figure 2: Top-down view of the Zoeller 17-0411 Polyethylene Sewage Basin Cover, highlighting the placement of the vent and discharge openings.

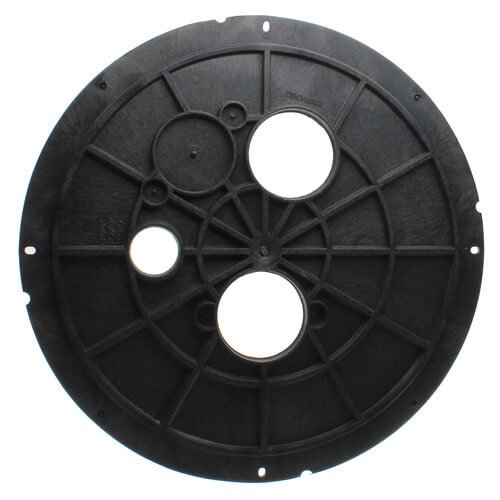

Figure 3: Bottom view of the Zoeller 17-0411 Polyethylene Sewage Basin Cover, illustrating the structural foam ribs for added rigidity.

4. Setup and Installation

The Zoeller 17-0411 Sewage Basin Cover is designed for straightforward installation. A hardware pack is included to facilitate secure attachment.

4.1 Required Tools (Not Included)

• Screwdriver or drill for fasteners
• Sealant (plumber's putty or silicone, if required for specific applications)
• Measuring tape

4.2 Installation Steps

1. Prepare the Basin: Ensure the top rim of the sewage basin is clean and free of debris.
2. Position the Cover: Carefully place the 17-0411 cover onto the basin. Align the pre-drilled holes on the cover with the corresponding holes or mounting points on your sewage basin. The cover is designed to accommodate 2-inch or 3-inch vent pipes and a 2-inch outlet.
3. Install Hardware: Use the provided hardware (screws, bolts, etc.) to secure the cover firmly to the basin. Tighten fasteners evenly to create a secure seal. Do not overtighten.
4. Connect Pipes: Insert the vent pipe(s) and discharge pipe through their respective openings in the cover. Ensure proper sealing around these pipe penetrations to prevent gas escape and water ingress.
5. Cord Access: Utilize the designated cord access point for any electrical cords, ensuring a tight seal around the cord to maintain system integrity.
6. Final Check: Verify that the cover is securely fastened, all pipes are properly connected and sealed, and there are no visible gaps that could compromise the system.

5. Operating Instructions

The Zoeller 17-0411 Sewage Basin Cover is a passive component designed to maintain a sealed environment for your sewage basin. Once properly installed, no active operation is required from the cover itself.

• Ensure the cover remains securely fastened at all times.
• Periodically inspect the vent and discharge pipe connections to confirm they remain sealed and free of obstructions.
• The cover's primary function is to contain odors and prevent foreign objects from entering the basin, while allowing necessary ventilation and discharge.

6. Maintenance

Regular maintenance helps ensure the longevity and effectiveness of your sewage basin cover.

• Visual Inspection: Annually inspect the cover for any signs of damage, cracks, or warping. Check the integrity of the seals around pipe penetrations and the basin rim.
• Cleaning: Clean the exterior of the cover as needed with mild soap and water. Avoid harsh chemicals that could degrade the polyethylene material.
• Fastener Check: Periodically check that all fasteners securing the cover are tight. Retighten if necessary, but do not overtighten.
• Ventilation: Ensure the vent pipe opening remains clear and unobstructed to allow for proper air exchange and prevent vacuum lock or pressure buildup.

7. Troubleshooting

Most issues related to the basin cover are minor and can be resolved with simple checks.

7.1 Odor Emission

• Cause: Improper seal around the basin rim or pipe penetrations.
• Solution: Inspect all fastening points and pipe connections. Ensure fasteners are tight and apply appropriate sealant if gaps are present. Check for cracks in the cover itself.

7.2 Water Leakage

• Cause: Loose fasteners, damaged seal, or improper pipe connections.
• Solution: Tighten all fasteners. Inspect and replace any damaged seals. Ensure pipe connections are watertight.

7.3 Cover Does Not Sit Flush

• Cause: Debris on the basin rim, warped basin, or incorrect cover size.
• Solution: Clean the basin rim thoroughly. If the basin is warped, it may need repair or replacement. Verify that the cover diameter matches your basin (this cover is 20-1/2 inches in diameter).

8. Specifications

9. Warranty and Support

The Zoeller 17-0411 Polyethylene Sewage Basin Cover comes with a manufacturer's warranty of 1 Year from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service.

For warranty claims, technical assistance, or further inquiries, please contact Zoeller customer support. Keep your proof of purchase for warranty validation.

Note: Warranty terms and conditions may vary. Refer to the official Zoeller website or product packaging for the most current warranty information.
