1. Important Safety Instructions
Please read and understand all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.
General Safety Warnings:
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
- Electrical Safety: Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Personal Safety: Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
- Power Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
2. What's Included
Your TECCPO Cordless Grass Trimmer package includes the following components:
- Electric Grass Trimmer (x1)
- 20V Battery Pack (x1)
- Charger (x1)
- Trimmer Spools (x2)
- Screwdriver (x1)
- User Manual (x1)

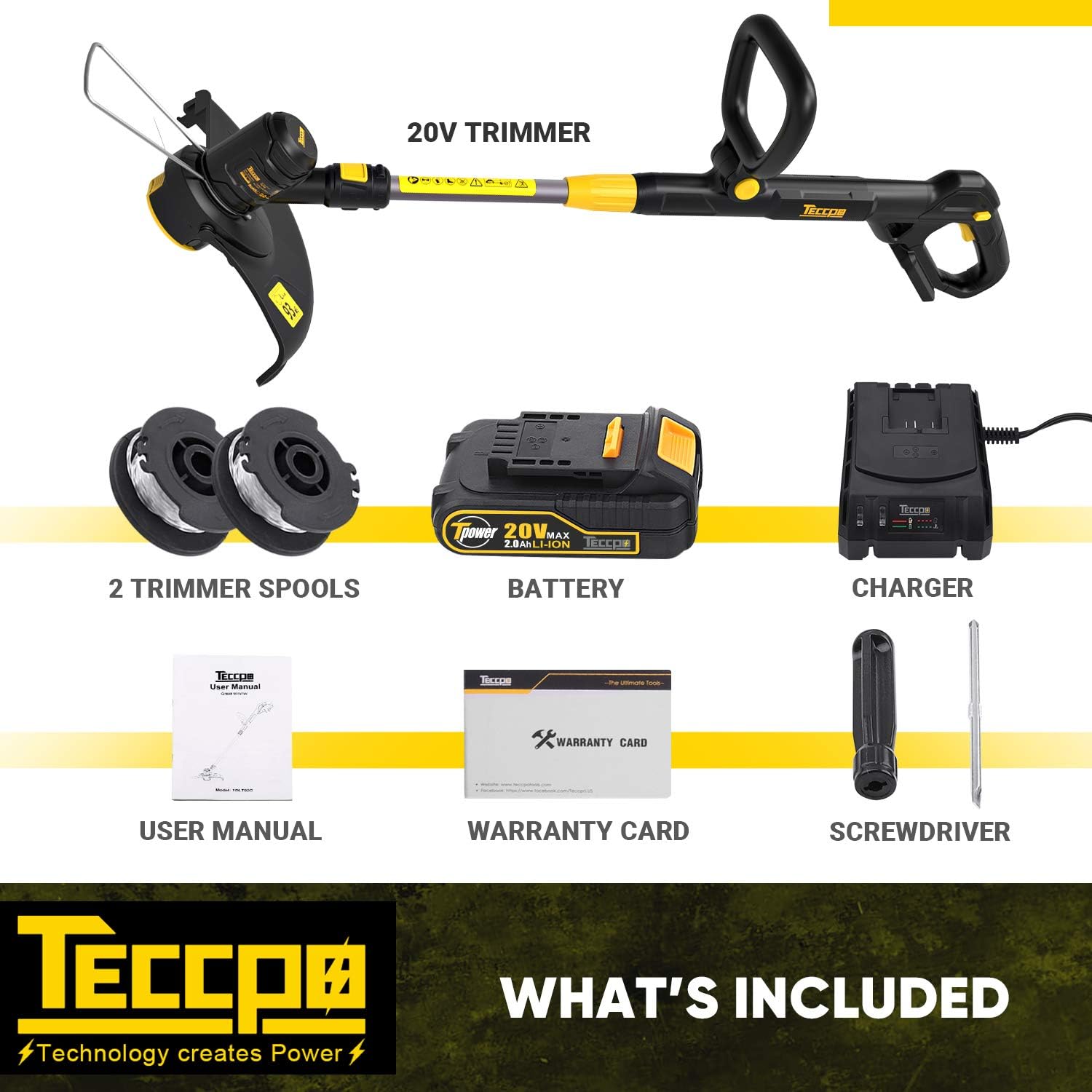

Image: All components included in the TECCPO Cordless Grass Trimmer package, laid out on a surface. This includes the main trimmer unit, battery, charger, two spools of trimmer line, and a screwdriver.
3. Assembly
3.1 Attaching the Grass Guard
The protective grass guard must be securely attached before operating the trimmer to prevent debris from splashing and to ensure user safety. Use the provided screwdriver to fasten the guard to the trimmer head.
3.2 Adjusting the Handle and Length
The TECCPO grass trimmer features a 5-position rubberized handle and a telescoping pole for ergonomic use and to accommodate different user heights. Adjust these components to a comfortable working position to reduce fatigue during extended use.
Image: Close-up view illustrating the ergonomic design of the trimmer, highlighting the 5-position adjustable handle and the telescoping pole for length adjustment.
3.3 Converting from Trimmer to Edger
This tool can quickly switch between trimming and edging modes. The 180° rotatable head allows for easy conversion. For edging, the head can also tilt 90° for precise work along lawn edges.
- Trimmer Mode: Hold the tool in the standard trimming position.
- Press Edge Shift Button: Locate and press the button designed for mode conversion.
- Rotate Telescopic Shaft: Rotate the shaft to align the trimmer head for edging.
- Adjust Flower Guard: Position the flower guard as needed to protect delicate plants.
- Edge Mode: Begin cutting along sidewalks or other edges.
Image: A four-panel image demonstrating the conversion process from trimmer mode to edger mode, showing the user pressing a button, rotating the shaft, adjusting the flower guard, and finally using it in edge mode.
4. Operation
4.1 Battery Installation and Charging
Ensure the 20V battery pack is fully charged before use. Insert the charged battery pack into the designated slot on the trimmer handle until it clicks securely into place. To charge, remove the battery and connect it to the provided charger.
Image: A hand inserting a TECCPO 20V Lithium-ion battery into the trimmer handle, illustrating the battery's compatibility with the TECCPO 20V power share platform.
4.2 Starting and Stopping the Trimmer
The trimmer is equipped with a double safety switch to prevent accidental startup. To start, engage the safety switch and then press the power trigger. Release the power trigger to stop the trimmer.
4.3 Trimming and Edging
The 12-inch cutting width and 8100 RPM no-load speed provide efficient trimming. For trimming, hold the tool comfortably and sweep it across the grass. For edging, convert the tool to edger mode as described in Section 3.3 and guide it along the desired edge. The flower guard helps protect plants from accidental cutting.
Image: The TECCPO Cordless Grass Trimmer being used to trim grass around a garden bed with flowers, demonstrating its application in a typical yard setting.
4.4 Automatic Feed Spool (AFS) System
The Automatic Feed Spool (AFS) system automatically extends the grass line every time you press the start button, eliminating the need to manually bump the tool. This ensures continuous cutting without interruption. The blade on one side of the machine head can be set to adjust the trimming diameter.
Image: An overview of the TECCPO Cordless Grass Trimmer highlighting key features such as the 8100 RPM no-load speed, 12-inch cutting width, 26 ft nylon thread length, 180° adjustable head, plant guard, adjustable handle, dual start protection switch, and the AFS System.
5. Maintenance
5.1 Replacing the Trimmer Line
When the trimmer line runs out, replace it with a new spool of 26.2 ft nylon thread. Ensure the trimmer is disconnected from the battery before attempting any line replacement. Follow the instructions provided with the replacement spool for proper installation.
5.2 Cleaning and Storage
After each use, clean the trimmer head and guard to remove grass clippings and debris. Use a dry cloth; do not use water or cleaning agents that could damage the tool. Store the trimmer in a dry, secure location, out of reach of children. Remove the battery pack before storing for extended periods.
6. Troubleshooting
This section provides solutions to common issues you might encounter with your TECCPO Cordless Grass Trimmer.
| Problem | Possible Cause | Solution |
|---|---|---|
| Trimmer does not start | Battery not charged or improperly installed; Safety switch not engaged; Power trigger not pressed. | Ensure battery is fully charged and correctly inserted. Engage the safety switch before pressing the power trigger. |
| Trimmer line does not feed automatically | Line is tangled or empty; Spool is incorrectly installed. | Check the line spool for tangles or if it needs replacement. Reinstall the spool correctly. |
| Reduced cutting performance | Trimmer line is too short or worn; Battery charge is low. | Replace the trimmer line. Recharge the battery. |
| Excessive vibration | Trimmer line is unevenly wound or damaged; Debris caught in the head. | Inspect and adjust or replace the trimmer line. Clean any debris from the trimmer head. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | TDLT02G |
| Power Source | 20V Lithium-ion Battery |
| No-Load Speed | 8100 RPM |
| Cutting Width | 12 inches |
| Nylon Thread Length | 26.2 ft (per spool) |
| Product Dimensions | 40.94 x 13.39 x 13.78 inches |
| Item Weight | 3.92 pounds |
| Manufacturer | TECCPO |
8. Warranty and Support
The TECCPO Cordless Grass Trimmer TDLT02G is covered by a 2-year warranty. For any questions, technical assistance, or warranty claims, please contact TECCPO customer support. Lifetime after-sale guidance is also provided.
For further information or support, please visit the official TECCPO website or refer to the contact details provided in your warranty card.
