1. Introduction
The MLAY T1 IPL Hair Removal System (Model MLAY-M3) is designed for home use to reduce unwanted hair on the face and body. This device utilizes Intense Pulsed Light (IPL) technology to target hair follicles, aiming to inhibit hair regrowth over time. Please read this manual thoroughly before first use to ensure safe and effective operation.
2. Important Safety Information
Always prioritize safety. Failure to follow these instructions may result in injury or device damage.
- This device is intended for hair removal only. Do not use for any other purpose.
- Read all instructions before use.
- Do not use on irritated, sunburned, or broken skin.
- Avoid direct eye exposure to the IPL light. Always wear the provided protective eyewear during treatment.
- Keep the device dry. Do not use in wet environments or near water.
- Keep out of reach of children.
- Consult a physician before use if you have any medical conditions, are pregnant, or are taking medications that may increase light sensitivity.
- Perform a skin patch test on a small area 24 hours before full treatment to check for adverse reactions.
- The device is FDA cleared for home use.

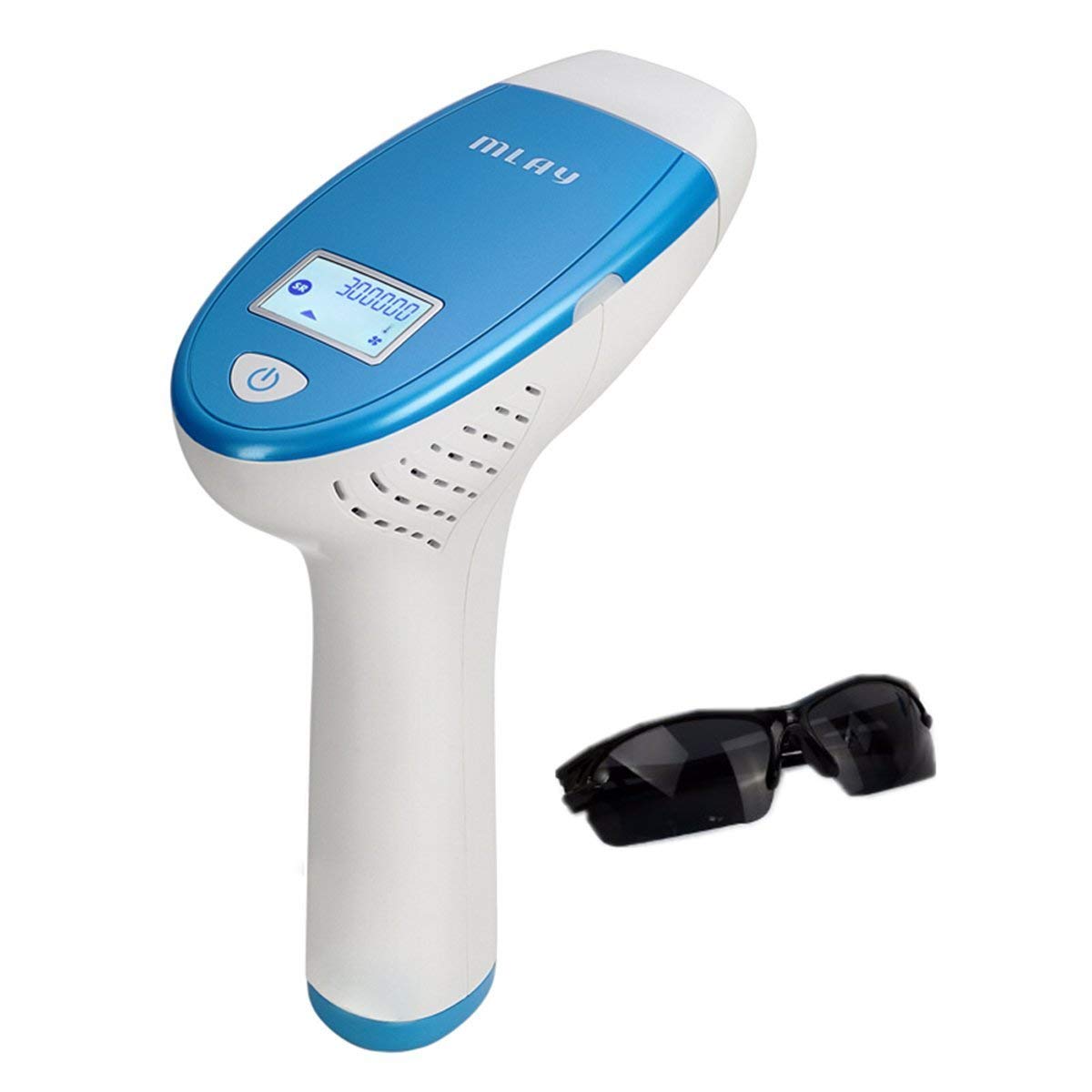

3. Package Contents
Verify that all items are present in your package:
- MLAY T1 IPL Hair Removal Device (MLAY-M3)
- Power Adapter
- Protective Eyewear
- User Manual
- Warranty Card
- Instruction CD (may vary by package)
Image: Contents of the MLAY T1 IPL Hair Removal System package.
4. Product Overview
Familiarize yourself with the components of your MLAY T1 IPL Hair Removal System:
Image: Labeled components of the MLAY T1 IPL Hair Removal System.
- Lamp Box: The light emission window. Ensure it is clean before each use.
- Status Indicator: Provides visual feedback on device status.
- LED Screen: Displays information such as function mode, remaining pulses, temperature, fan status, and energy level.
- On/Off, Energy Level Adjustment Key: Press and hold to power on/off. Short press to cycle through energy levels.
- Power Port: Connects the device to the power adapter.
- Irradiation Button: Press to emit an IPL pulse when the device is correctly positioned on the skin.
- Function Display (HR/SR/AC): Indicates the current operating mode (Hair Removal, Skin Rejuvenation, Acne Clearance - specific functions may vary by model).
- Pulses Left: Shows the remaining flashes available for the lamp.
- Temperature Status: Indicates the device's internal temperature.
- Fan Status: Shows if the cooling fan is active.
- Energy Level: Displays the selected intensity level (1-5).
Image: Detachable lamp box of the MLAY T1 IPL Hair Removal System.
5. Setup
Before using your MLAY T1 IPL Hair Removal System, follow these steps:
- Prepare Skin: Ensure the treatment area is clean, dry, and free of any lotions, gels, or deodorants. Shave the hair in the treatment area. Do not wax or pluck, as the IPL needs the hair follicle to be present.
- Connect Power: Plug the power adapter into the device's power port, then plug the adapter into a wall outlet.
- Power On: Press and hold the On/Off button for a few seconds until the LED screen illuminates.
- Wear Protective Eyewear: Always put on the provided protective glasses before starting treatment to shield your eyes from the intense light.
6. Operating Instructions
6.1. Selecting Energy Level
After powering on, the device will default to the lowest energy level. Short press the On/Off button to cycle through the 5 available energy levels. Start with Level 1 and gradually increase as your skin tolerates it. Higher energy levels generally yield better results but require careful skin assessment.
6.2. Skin Tone and Hair Color Compatibility
IPL technology is most effective on lighter skin tones with darker hair. It is not suitable for very dark skin tones or very light (blonde, red, grey, white) hair. Refer to the skin tone chart in your detailed manual for guidance. Using the device on unsuitable skin or hair types may result in skin irritation or ineffective treatment.
6.3. Treatment Procedure
- Place Device: Firmly place the lamp box window against the skin in the desired treatment area. Ensure full contact. The device will detect skin contact and be ready to flash.
- Emit Pulse: Press the Irradiation Button to emit a single flash. You will see a bright flash of light.
- Move to Next Area: Lift the device slightly and move it to the next adjacent area, overlapping slightly to ensure full coverage. Do not treat the same spot multiple times in one session.
- Continue Treatment: Repeat the process until the entire desired area has been treated.
- Power Off: After completing your session, press and hold the On/Off button to power off the device. Unplug the power adapter.
Image: Proper usage of the MLAY T1 IPL Hair Removal System on the arm.
Image: Proper usage of the MLAY T1 IPL Hair Removal System on the face.
6.4. Treatment Schedule
For optimal results, follow a consistent treatment schedule:
- Initial Phase: Use the device twice a week for the first 4-6 weeks.
- Maintenance Phase: After the initial phase, reduce treatments to once every 2-4 weeks or as needed to maintain results.
Individual results may vary based on hair type, skin tone, and adherence to the treatment schedule.
7. Maintenance and Care
Proper maintenance ensures the longevity and effectiveness of your device:
- Cleaning: After each use, ensure the device is powered off and unplugged. Use a soft, dry cloth to gently wipe the lamp window and the device body. Do not use abrasive cleaners or immerse the device in water.
- Storage: Store the device in a cool, dry place, away from direct sunlight and moisture. Keep it in its original packaging or a protective case to prevent damage.
- Lamp Life: The LED screen displays the remaining pulses. Replace the lamp box when the pulse count is low or depleted (if replaceable).
8. Troubleshooting
If you encounter issues with your MLAY T1 IPL Hair Removal System, refer to the following table:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on. | Not properly plugged in; Power outlet issue; Device malfunction. | Ensure power adapter is securely connected to both device and outlet. Try a different outlet. If issue persists, contact customer support. |
| Device flashes but no light is emitted. | Lamp box not making full skin contact; Lamp life depleted. | Ensure the lamp window is pressed firmly against the skin. Check the 'Pulses Left' on the LED screen. If depleted, replace the lamp box (if applicable). |
| Skin feels too hot or irritated. | Energy level too high; Skin is too sensitive; Improper skin preparation. | Reduce the energy level. Ensure skin is clean and dry. Perform a patch test before full treatment. Discontinue use if irritation persists. |
| No hair reduction after several treatments. | Inconsistent use; Incorrect energy level; Unsuitable skin/hair type. | Ensure consistent treatment schedule. Increase energy level if tolerated. Verify skin tone and hair color compatibility. |
If the problem persists after attempting these solutions, please contact MLAY customer support.
9. Specifications
Key technical details for the MLAY T1 IPL Hair Removal System (MLAY-M3):
- Model Number: MLAY-M3
- Product Dimensions: 11.02 x 7.87 x 3.54 inches
- Weight: 2.65 Pounds
- UPC: 604213123046
- Manufacturer: Shenzhen Mareal Technology Co., Ltd.
- Technology: Intense Pulsed Light (IPL)
- Energy Levels: 5 adjustable levels
Image: Dimensions of the MLAY T1 IPL Hair Removal System.
10. Warranty and Support
Your MLAY T1 IPL Hair Removal System (MLAY-M3) comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use conditions.
For warranty claims, technical support, or any questions regarding the operation of your device, please refer to the contact information provided on your warranty card or visit the official MLAY website.
Please retain your proof of purchase for warranty validation.
