1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your Northern Lights Group Balboa BP501 Spa Pack. The BP501 is a digital spa pack designed for hot tubs with multiple pumps, featuring advanced heating modes, self-diagnostics, and optional Wi-Fi connectivity.
Image 1.1: Front view of the Northern Lights Group Balboa BP501 Spa Pack.
2. Features
The Balboa BP501 Spa Pack incorporates several features designed for efficient and reliable hot tub operation:
- Digital control for hot tubs with multiple pumps.
- Integrated freeze protection.
- Multiple heating modes: Ready and Rest.
- Dual temperature ranges: High and Low.
- Self-diagnostic capabilities.
- Optional Wi-Fi connectivity (requires BWA wireless transceiver).
- M7 Smart Sensor Technology for precise temperature and flow sensing.
- Compatible with Balboa TP series and spaTouch series top-side controllers.
- Supports 6-pin AX series auxiliary panels.
- 5.5 kW heater with M7 technology (3 kW option available for lower flow requirements).
- Manufactured in the USA.

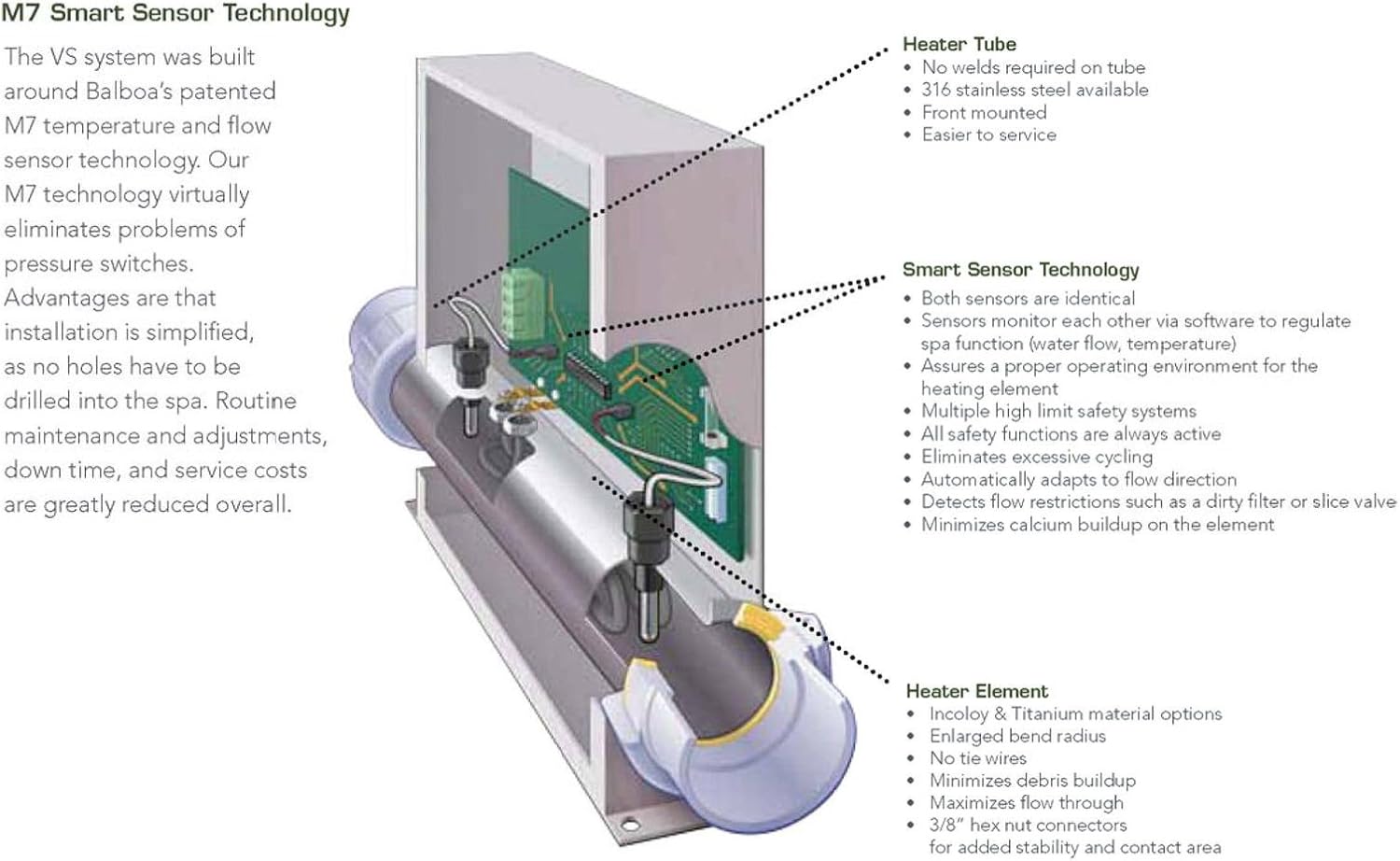

Image 2.1: Diagram illustrating Balboa's M7 Smart Sensor Technology, which uses dual sensors to monitor water flow and temperature, eliminating the need for pressure switches.
3. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your Balboa BP501 Spa Pack. Installation should be performed by a qualified technician.
3.1. Compatibility Requirements
- Top-Side Controller: Requires a 4-pin Balboa TP series or spaTouch series top-side controller.
- Auxiliary Panels: Can utilize 6-pin AX series auxiliary panels.
- Wi-Fi Module: An optional Wi-Fi module is available for control via iPhone, iPad, iPod, or Android devices (requires BWA Wi-Fi transceiver).
3.2. Electrical Connections
- Power Supply: Operates on 240VAC @ 60 Hz or 50 Hz, requiring a 30-60 Amp, 3-wire connection (a neutral wire is needed).
- Ozone Support: Supports 120 or 230 VAC ozone generators. Ensure the ozone generator voltage matches the heater pump voltage.
- Maximum Load Ratings:
- Pump 1: Maximum 16 Amps
- Pump 2/Blower: Maximum 12 Amps
- Ozonator: Maximum 1 Amp
- A/V: Maximum 5 Amps
- Light: 12V @ 1 Amp
3.3. Plumbing Requirements
- Heater Flow Rate: A minimum flow rate of 20 USGPM (U.S. Gallons Per Minute) through the heater tube is required for the standard 5.5 kW heater. If your spa uses a small circulation pump with 1-inch piping, this flow rate may not be achieved.
- Alternative Heater: A 3 kW heater element is available, which reduces the flow requirement to 13 USGPM. Consult your supplier for this option.
- Pump Configuration: The system can accommodate two jet pumps: Pump One (1 or 2-speed) and Pump Two (blower or 1-speed pump).

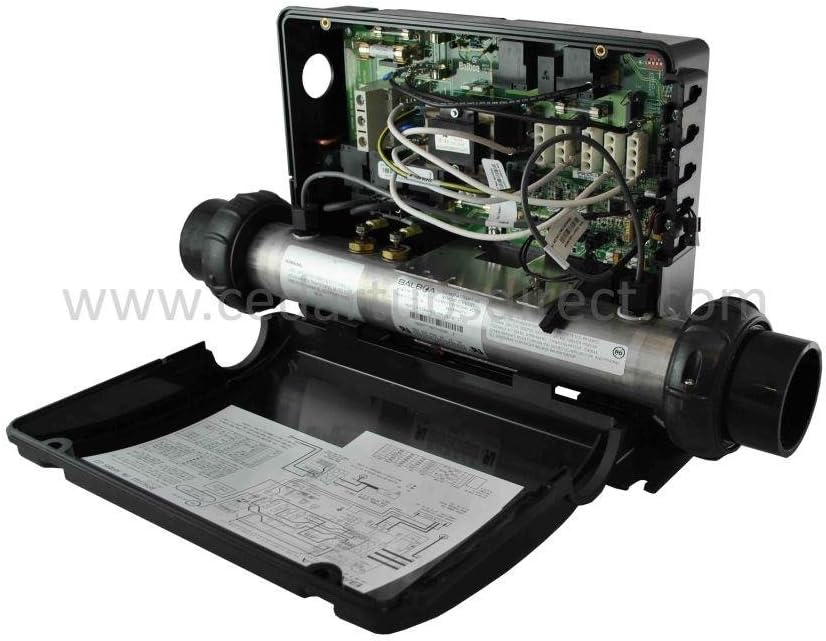

Image 3.1: Internal view of the Balboa BP501 Spa Pack, showing the circuit board, heater tube, and wiring connections.
Image 3.2: Rear view of the Balboa BP501 Spa Pack, illustrating the connection points and included accessory bags.
4. Operating Instructions
The Balboa BP501 Spa Pack offers various modes and settings for optimal hot tub operation. Refer to your specific top-side controller manual for detailed instructions on navigating menus and adjusting settings.
4.1. Heating Modes
- Ready Mode: In this mode, the spa water is continuously maintained at the set temperature.
- Rest Mode: To conserve energy, the spa will only heat during filter cycles and will maintain a lower temperature than the set point.
4.2. Temperature Control
The system supports two temperature ranges: High and Low. Consult your top-side controller manual for specific procedures on adjusting the desired water temperature.
4.3. Wi-Fi Control (Optional)
If your spa pack is equipped with the optional BWA Wi-Fi transceiver, you can control your spa using a compatible mobile device. Download the Balboa Worldwide App (BWA) from your device's app store and follow the in-app instructions for setup and remote operation.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your spa pack.
- Self-Diagnostics: The system includes self-diagnostics to monitor its operation. Pay attention to any error codes displayed on your top-side controller and refer to the troubleshooting section or your controller's manual for guidance.
- Flow Rate: Periodically check the water flow through the heater tube, especially if using a small circulation pump, to ensure it meets the minimum requirements (20 USGPM for 5.5 kW heater, 13 USGPM for 3 kW heater). Insufficient flow can lead to heating issues.
- Calcium Buildup: The M7 Smart Sensor Technology helps minimize calcium buildup on the heater element. However, consistent water chemistry maintenance is essential to prevent scale formation and ensure efficient heating.
6. Troubleshooting
The Balboa BP501 Spa Pack features self-diagnostic capabilities to assist in identifying operational issues. For complex problems, it is recommended to contact a certified spa technician.
- Error Codes: If an error code appears on your top-side controller, consult the specific troubleshooting guide provided with your controller or the Balboa documentation for detailed explanations and solutions.
- No Heat/Low Heat:
- Verify the power supply to the unit.
- Check the water flow rate; insufficient flow can prevent the heater from activating.
- Ensure the heating mode is set to "Ready."
- Inspect for dirty filters or closed slice valves that could restrict water flow.
- Pump Malfunction:
- Check electrical connections to the pumps.
- Ensure pump settings on the controller are correct.
- Wi-Fi Connectivity Issues:
- Confirm the BWA Wi-Fi transceiver is properly installed and powered.
- Check your home Wi-Fi network status.
- Refer to the BWA app's help section for connection troubleshooting.
7. Specifications
| Feature | Detail |
|---|---|
| Model | Balboa BP501 (PN 56485-05) |
| Dimensions (H x L x D) | 10.56 inches x 17 inches x 4.8 inches |
| Item Weight | 10 pounds |
| Heater Power | 5.5 kW (standard), 3 kW (optional) |
| Heater Flow Rate (5.5 kW) | Minimum 20 USGPM |
| Heater Flow Rate (3 kW) | Minimum 13 USGPM |
| Electrical Input | 240VAC @ 60 Hz or 50 Hz, 30-60 Amp, 3-wire (with neutral) |
| Pump 1 Max Load | 16 Amps |
| Pump 2/Blower Max Load | 12 Amps |
| Ozonator Max Load | 1 Amp |
| A/V Max Load | 5 Amps |
| Light Max Load | 12V @ 1 Amp |
| Certifications | UL/CSA |
Image 7.1: Technical drawing showing the precise dimensions of the Balboa BP501 Spa Pack in inches and millimeters.
8. Warranty and Support
8.1. Warranty Information
The Balboa BP501 Spa Pack, including the heater and serial top-side panel, comes with a 2-year warranty from the date of purchase. Please retain your proof of purchase for all warranty claims.
8.2. Customer Support
For technical assistance, warranty inquiries, or to purchase replacement parts, please contact Northern Lights Group customer support or your authorized dealer. Contact information can typically be found on the manufacturer's website or your purchase documentation.
