1. Product Overview
This manual provides detailed instructions for the installation, operation, and maintenance of your Fricosmos 061462 Lavamanos. This unit is a compact, electronic handwash basin designed for hygiene and convenience in various settings. It features a rounded basin, an integrated mixer for temperature control, and an electronic sensor for hands-free operation.

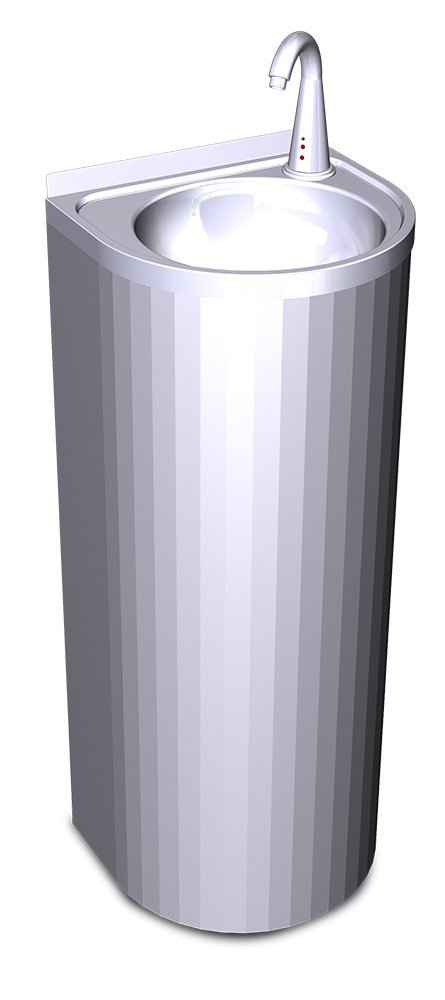

Image 1.1: The Fricosmos 061462 Lavamanos, a stainless steel electronic handwash basin with a reinforced column design.
2. Important Safety Information
- Read all instructions thoroughly before attempting installation or operation.
- Ensure that the unit is installed by a qualified professional, especially for electrical and plumbing connections.
- Always disconnect the power supply before performing any maintenance, cleaning, or troubleshooting.
- Do not modify the unit or use non-original replacement parts.
- Keep the unit and its electrical components away from excessive moisture or direct water spray, except for the designated basin area.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Package Contents
Please verify that all components listed below are present and undamaged before proceeding with installation.
- 1 x Fricosmos 061462 Reinforced Electronic Column Stainless Steel Handwash Basin
- Integrated Mixer Tap with Temperature Regulation
- All Necessary Installation Accessories (e.g., mounting hardware, connection hoses)
4. Setup and Installation
The Fricosmos 061462 Lavamanos requires connections to a water supply (hot and cold) and a drainage system. Professional installation is highly recommended to ensure proper function and compliance with local codes.
4.1 Unpacking
Carefully remove all components from the packaging. Inspect the unit and all accessories for any signs of damage. Retain packaging materials for potential future transport or return.
4.2 Positioning
Select a suitable location for the handwash basin. Ensure the chosen area has easy access to both water supply lines (hot and cold) and a drainage point. The floor or mounting surface must be level and capable of supporting the unit's weight (approximately 7 kg) when filled with water.
4.3 Water Connections
- Connect the hot and cold water inlet hoses from the unit to the corresponding hot and cold water supply lines in the wall. Ensure all connections are tight and leak-free.
- Connect the drainage pipe from the basin to the building's waste system. Ensure a proper seal to prevent leaks and odors.
4.4 Electrical Connection
Connect the electronic sensor system to a suitable power source. Follow all local electrical codes and safety regulations. Ensure the power supply is stable and correctly grounded. While the product description states no batteries are required, the electronic sensor needs a power connection.
4.5 Securing the Unit
Using the provided mounting hardware, securely fasten the handwash basin to the floor or wall as per its design. Ensure the unit is stable and does not wobble. Check for proper alignment and levelness.
5. Operating Instructions
The Fricosmos 061462 Lavamanos is designed for user-friendly, hands-free operation via its electronic presence sensor.
5.1 Activating Water Flow
To activate the water flow, simply place your hands within the detection range of the electronic sensor, typically located near the tap. The sensor will detect your presence and automatically initiate water flow.
5.2 Adjusting Water Temperature
The unit is equipped with an integrated mixer tap that allows for temperature regulation. Adjust the mixer lever (usually located on the side or top of the tap) to achieve your desired water temperature. Turn towards 'H' for hotter water and 'C' for colder water.
5.3 Deactivating Water Flow
Once you remove your hands from the sensor's detection area, the water flow will automatically cease after a brief delay. This feature helps conserve water.
6. Maintenance
Regular cleaning and maintenance will ensure the longevity, hygienic operation, and optimal performance of your Fricosmos 061462 Lavamanos.
6.1 Daily Cleaning
- Wipe down all stainless steel surfaces with a soft, damp cloth and a mild, non-abrasive cleaning solution.
- Avoid using harsh chemicals, abrasive cleaners, steel wool, or scouring pads, as these can scratch or damage the polished finish.
- Dry the surfaces thoroughly with a clean, soft cloth to prevent water spots and maintain shine.
6.2 Sensor and Tap Cleaning
Gently clean the electronic sensor window and the tap spout with a soft, damp cloth. Do not spray water directly onto the sensor or electrical components. Ensure the sensor window is free from dirt or residue that could interfere with its operation.
6.3 Drainage Maintenance
Periodically check the basin's drain and overflow for any debris or blockages. Clean the drain trap as needed to ensure efficient water drainage and prevent odors.
7. Troubleshooting
This section addresses common issues you might encounter with your Fricosmos 061462 Lavamanos.
| Problem | Possible Cause | Solution |
|---|---|---|
| No water flow when hands are detected | No power to sensor; Water supply valves closed; Sensor obstructed or faulty | Check electrical connection and power supply; Ensure hot and cold water supply valves are open; Clean sensor window; If problem persists, contact support. |
| Water flow does not stop | Sensor continuously detecting presence; Sensor malfunction; Debris near sensor | Ensure nothing is in the sensor's detection range; Clean sensor window; If problem persists, contact support. |
| Water temperature is inconsistent or incorrect | Mixer tap setting incorrect; Issues with hot or cold water supply | Adjust the mixer tap lever to the desired temperature; Check hot and cold water supply pressure and temperature. |
| Slow or poor drainage | Drain blockage; Improper drainage pipe installation | Clear any debris from the basin drain and overflow; Clean the drain trap; Consult a plumber if the issue persists. |
8. Specifications
- Model: Fricosmos 061462
- Material: Stainless Steel
- Finish: Polished
- Shape: Round basin
- Dimensions (L x W x H): 35 x 30 x 85 cm
- Weight: 7 kg
- Features: Rounded basin, small size, overflow, electronic hand presence sensor, integrated mixer with temperature regulation.
- Components Included: 1 reinforced electronic column stainless steel handwash basin.
- Power Requirement: Electronic sensor requires power (check local specifications for voltage).
9. Warranty and Support
Fricosmos products are manufactured to high-quality standards and undergo rigorous inspection. For specific warranty details, terms, and conditions, please refer to the warranty card included with your purchase or visit the official Fricosmos website. Keep your purchase receipt as proof of purchase for any warranty claims.
For technical assistance, spare parts inquiries, or further support, please contact Fricosmos customer service or your authorized retailer. Provide your model number (061462) and a detailed description of the issue when seeking support.
