Kufatec Wiring Harness for Swiveling Tow Bar (AHK) - Central Electrical System for VW Passat B7

1. Introduction

This manual provides essential information for the installation and proper use of the Kufatec Wiring Harness for the original swiveling tow bar (AHK) in the VW Passat B7. This specific wiring harness facilitates the integration of the tow bar's central electrical system, ensuring all factory-installed functions are available. Please read these instructions carefully before proceeding with installation or use.

2. Product Overview

The Kufatec Wiring Harness (Model 34340) is a specialized cable set designed for the retrofit of an original swiveling tow bar in a VW Passat B7. It includes all necessary wires and connectors to interface with the vehicle's central electrical system.

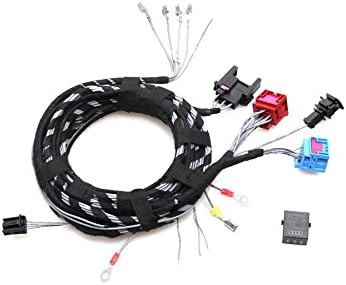

Figure 1: Kufatec Wiring Harness. This image displays the Kufatec wiring harness, neatly bundled with electrical tape. Various connectors, including multi-pin plugs in red, blue, and black, are visible at the ends of the wires, along with smaller terminals. A small black module is also shown separately.

2.1 Package Contents

• 1x Kufatec Wiring Harness (Model 34340)

3. Setup and Installation

Installation of this wiring harness requires specialized knowledge of automotive electrical systems and vehicle diagnostics. It is strongly recommended that installation be performed by a qualified professional.

3.1 Prerequisites

• Vehicle Compatibility: Designed specifically for VW Passat B7.
• Additional Components Required: This wiring harness is part of a larger retrofit. The following components are not included and must be acquired separately:
  • Original Swiveling Tow Bar (AHK)
  • Tow Bar Control Unit
  • Control Button for the Tow Bar
  • Wiring Harness for the Bumper (if not already present or integrated with the tow bar)
• Diagnostic Tool: A suitable diagnostic tool is required for vehicle coding after installation.

3.2 Installation Steps (Overview)

1. Vehicle Preparation: Disconnect the vehicle's battery before starting any electrical work.
2. Routing the Harness: Carefully route the Kufatec wiring harness according to the vehicle's existing wiring paths, connecting it to the central electrical system and the tow bar components.
3. Component Connection: Connect the harness to the tow bar control unit, the control button, and other relevant electrical points as per the specific installation guide provided with the original tow bar or by Kufatec.
4. Battery Reconnection: Once all physical connections are secure, reconnect the vehicle battery.
5. Diagnostic Coding: After installation, the vehicle's control units must be coded using a diagnostic tool to recognize and enable the new tow bar functions. Failure to perform this step will result in the tow bar not functioning correctly.

For detailed, step-by-step installation instructions, please refer to the specific installation guide provided by Kufatec or the manufacturer of the original tow bar.

4. Operating Instructions

This wiring harness itself does not have operational controls. Its function is to enable the operation of the original swiveling tow bar. Once correctly installed and coded, the tow bar will operate via its dedicated control button or vehicle infotainment system, as designed by the vehicle manufacturer.

• Refer to your VW Passat B7 owner's manual for instructions on how to operate the swiveling tow bar.
• Ensure the tow bar is fully extended and locked before attaching a trailer, and fully retracted and locked when not in use.

5. Maintenance

The Kufatec Wiring Harness is designed for long-term reliability and typically requires no specific maintenance. However, general care for automotive electrical components is recommended:

• Regular Inspection: Periodically inspect visible parts of the wiring harness for any signs of wear, damage, or corrosion, especially after driving in harsh conditions.
• Cleanliness: Keep the area around electrical connections clean and free from dirt, moisture, and debris.
• Avoid Stress: Ensure the wiring is not subjected to excessive pulling, bending, or pinching, which could damage the insulation or internal conductors.

6. Troubleshooting

If the swiveling tow bar does not function correctly after installation, consider the following troubleshooting steps:

• Check Connections: Verify that all connections of the Kufatec wiring harness are securely seated and free from corrosion.
• Diagnostic Scan: Perform a diagnostic scan of the vehicle's control units. Error codes can indicate specific issues with the tow bar system or its integration.
• Coding Verification: Confirm that the vehicle's control units have been correctly coded for the tow bar. Incorrect coding is a common cause of malfunction.
• Fuse Check: Check relevant fuses in the vehicle's fuse box that supply power to the tow bar system.
• Professional Assistance: If issues persist, it is highly recommended to seek assistance from a qualified automotive technician or Kufatec support.

7. Specifications

8. Warranty and Support

For information regarding warranty coverage and technical support for your Kufatec Wiring Harness, please refer to the documentation provided with your purchase or contact Kufatec directly through their official website or customer service channels.

Kufatec Contact Information:
Please visit the official Kufatec website for the most current contact details and support options.
