Introduction
Thank you for choosing the Ingco VC14301 Wet and Dry Vacuum Cleaner. This powerful 1400 Watt, 30-liter capacity vacuum is designed for efficient cleaning of both wet and dry spills, dirt, and debris. To ensure safe and optimal performance, please read this instruction manual thoroughly before operating the appliance. Keep this manual for future reference.
Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.
- Read all instructions carefully before use.
- Do not leave the appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
- Do not use outdoors or on wet surfaces.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual. Use only manufacturer’s recommended attachments.
- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or appliance with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up toxic material, such as chlorine bleach, ammonia, or drain cleaner.
- Do not use without dust bag and/or filters in place.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs.
Product Overview
Components
Main Vacuum Unit: The complete Ingco VC14301 wet and dry vacuum cleaner, featuring a stainless steel tank, yellow motor head with controls, and a sturdy base with wheels for mobility.

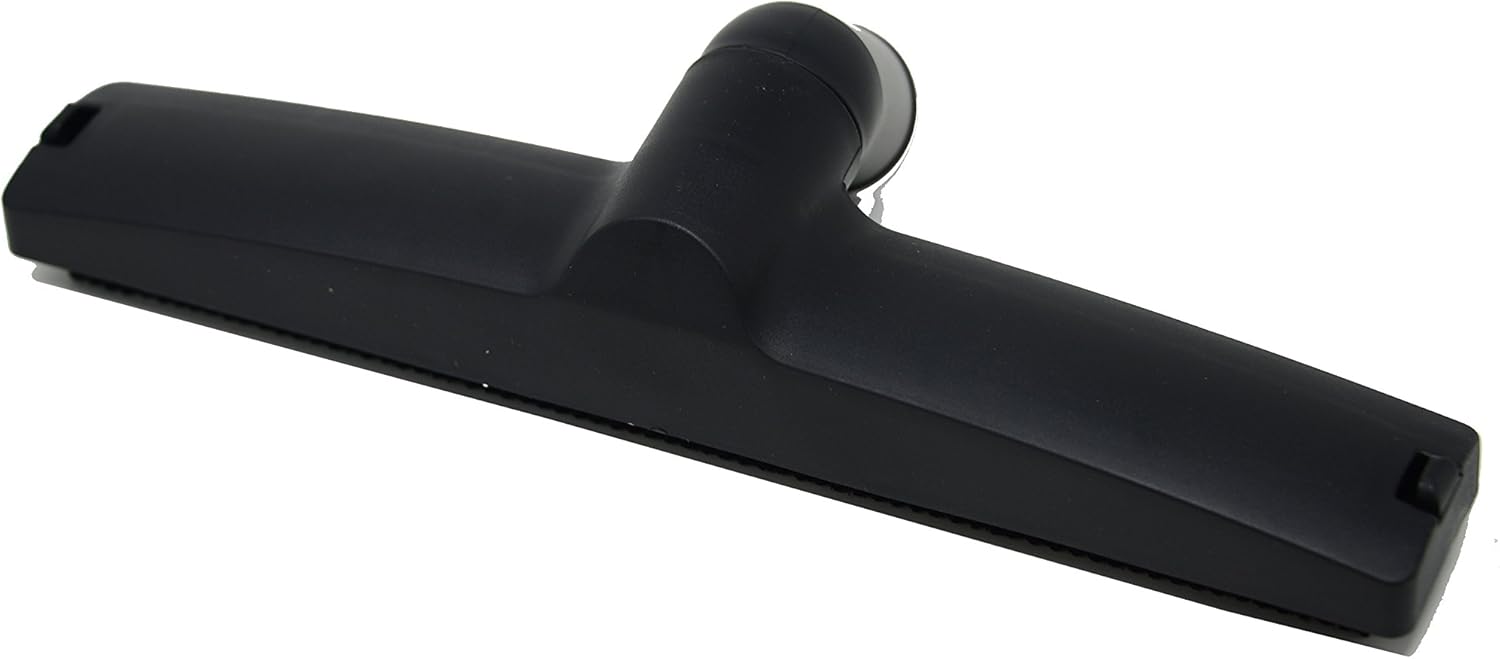

Floor Nozzle: This attachment is designed for general cleaning of various floor types, including carpets and hard surfaces. It features a wide suction path for efficient debris collection.
Extension Wands: Two black extension wands that connect to the hose, providing extended reach for cleaning floors, ceilings, and other hard-to-reach areas without bending.

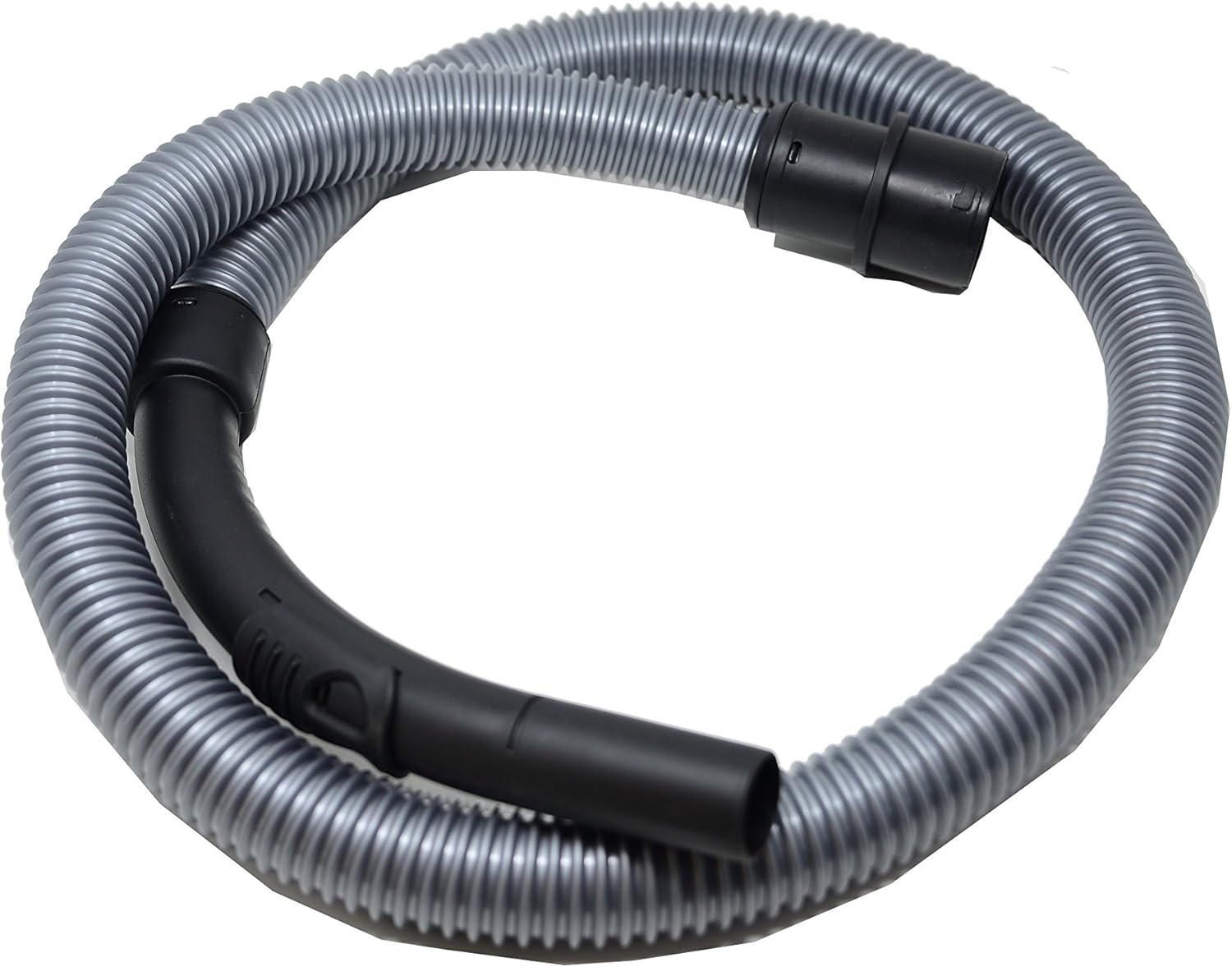

Flexible Hose: The main flexible hose, typically grey, which connects the accessories to the vacuum cleaner's suction inlet. It allows for versatile movement during cleaning.
Hose Handle: The ergonomic handle attached to the end of the flexible hose, designed for comfortable grip and control when maneuvering the vacuum attachments.
Setup
Follow these steps to assemble your vacuum cleaner before first use:
- Unpack Components: Carefully remove all parts from the packaging and ensure all components listed in the product overview are present.
- Attach Wheels: Insert the caster wheels into the designated slots on the vacuum cleaner base until they click securely into place.
- Install Filters: For dry vacuuming, ensure the dry filter (e.g., HEPA filter or dust bag) is correctly installed. For wet vacuuming, remove the dry filter and ensure the foam filter is in place. Refer to the filter section for details.
- Connect Hose: Insert the larger end of the flexible hose into the suction inlet on the vacuum cleaner's motor head. Twist or push firmly until it locks.
- Assemble Accessories: Connect the extension wands to the hose handle, then attach the desired cleaning nozzle (e.g., floor nozzle) to the end of the wands.
- Power Connection: Ensure the power switch is in the 'OFF' position before plugging the power cord into a suitable electrical outlet (220 Volts).
Operating Instructions
Dry Vacuuming
- Ensure the dry filter (e.g., HEPA filter or dust bag) is properly installed.
- Connect the hose and desired dry cleaning attachment (e.g., floor nozzle, crevice tool).
- Plug the vacuum cleaner into a power outlet.
- Turn the power switch to the 'ON' position.
- Begin vacuuming the dry surface.
- After use, turn off the power, unplug the unit, and empty the tank.
Wet Vacuuming
- Important: Remove the dry filter/dust bag before wet vacuuming. Install the foam filter if provided.
- Connect the hose and a suitable wet cleaning attachment.
- Plug the vacuum cleaner into a power outlet.
- Turn the power switch to the 'ON' position.
- Begin vacuuming liquids. The vacuum will automatically shut off when the tank is full.
- After use, turn off the power, unplug the unit, and empty the liquid from the tank. Clean and dry the tank thoroughly.
Blower Function
The Ingco VC14301 also features a blower function for clearing debris from hard-to-reach areas or blowing leaves.
- Locate the blower port on the vacuum cleaner (usually opposite the suction inlet).
- Connect the hose to the blower port.
- Plug the vacuum cleaner into a power outlet.
- Turn the power switch to the 'ON' position to activate the blower.
- Direct the hose to blow away debris.
- After use, turn off the power and unplug the unit.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your vacuum cleaner.
Cleaning the Tank
- After each use, especially after wet vacuuming, empty the tank.
- Rinse the inside of the tank with water and mild detergent if necessary.
- Wipe the tank dry before reassembling or storing to prevent mold and odors.
Filter Maintenance
- Dry Filter (HEPA Filter): For dry vacuuming, regularly check and clean the HEPA filter. Tap off loose dust or use a brush. Replace the filter when it becomes heavily soiled or suction power decreases significantly.
- Foam Filter (Wet Vacuuming): After wet vacuuming, remove the foam filter, rinse it with water, and allow it to air dry completely before reinstallation or storage.
Accessory Care
- Clean all accessories (hoses, wands, nozzles) regularly to prevent blockages and maintain airflow.
- Check the hose for any blockages or damage. Clear any obstructions carefully.
Troubleshooting
If you encounter issues with your vacuum cleaner, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | No power supply Power switch off Damaged cord/plug | Check power outlet and circuit breaker Ensure switch is ON Contact service center |
| Low suction power | Full tank Clogged filter Hose/attachment blockage Improperly sealed lid | Empty tank Clean/replace filter Clear blockage Ensure lid is securely latched |
| Motor overheats/shuts off | Overuse Blocked airflow Full tank | Allow unit to cool down Check for blockages in hose/filter Empty tank |
| Water leaking (wet vacuuming) | Tank too full Improperly installed foam filter Damaged tank seal | Empty tank Reinstall foam filter correctly Contact service center |
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Ingco |
| Model Number | VC14301 |
| Power / Wattage | 1400 watts |
| Capacity | 30 Liters |
| Voltage | 220 Volts |
| Noise Level | 80 dB |
| Item Weight | 9 Kilograms |
| Product Dimensions | 41.4 x 48.4 x 64.8 cm |
| Special Features | Wheels, Blower Function |
| Filter Type | HEPA Filter (for dry use) |
| Surface Recommendation | All floors |
Warranty and Support
Your Ingco VC14301 Wet and Dry Vacuum Cleaner is designed for durability and performance. For information regarding product warranty, please refer to the warranty card included with your purchase or contact your retailer. Extended warranty options may also be available from third-party providers.
For technical support, spare parts, or service inquiries, please contact the authorized Ingco service center in your region. Keep your purchase receipt as proof of purchase for any warranty claims.
