Important Safety Information
WARNING: Always wear appropriate personal protective equipment (PPE) including eye protection, gloves, and a respirator when operating this high-pressure spray gun. Ensure adequate ventilation. Follow all local and national safety regulations for handling and disposing of paints and solvents. Never point the spray gun at yourself or others. Always engage the trigger lock before performing any maintenance or changing tips.
This product operates under high pressure. Improper use can cause serious injury. Read and understand all instructions before operation.
Product Overview
The Dent-de-lion 3600 PSI Airless Spray Gun is designed for efficient application of varnishing and dispersion paints. It features a durable stainless steel construction, an ergonomic handle, and an integrated filter system to prevent nozzle clogging. This spray gun is suitable for various applications, including large-scale industrial anti-corrosion projects and general construction painting.
Key Features:
- High Pressure Capability: Operates with a maximum pressure of 248 bar (3600 PSI).
- Durable Construction: Made of high-quality stainless steel for rust resistance and longevity.
- Integrated Filter System: Designed with filters to prevent nozzle clogging and ensure smooth paint flow.
- Ergonomic Design: Handle designed to reduce user fatigue during extended use.
- Versatile Connections: Works with G 1/4 or G 7/8 male connection types.
Setup
Unpacking and Inspection:
Carefully remove all components from the packaging. Inspect the spray gun and accessories for any signs of damage during transit. If any damage is found, do not proceed with setup and contact customer support.
Component Identification:
- Spray Gun Body: The main housing of the spray gun.
- Trigger: Activates paint flow.
- Trigger Lock: Safety mechanism to prevent accidental spraying.
- Nozzle Seat: Holds the spray tip in place.
- Spray Tip: Determines the spray pattern and flow rate (e.g., 517 or 525).
- Paint Filter: Located in the handle, filters paint to prevent clogs.
- Hose Connection: Connects the spray gun to the airless paint sprayer hose (G 1/4 or G 7/8 male).
Assembly:
- Install the Spray Tip: Insert the desired spray tip (e.g., 517 or 525) into the nozzle seat. Ensure it is seated correctly.
- Attach the Nozzle Seat: Screw the nozzle seat assembly onto the front of the spray gun until hand-tight. Do not overtighten.
- Insert the Paint Filter: Unscrew the handle cap and insert one of the provided airless paint spray gun filters (60 mesh) into the handle. Replace the cap securely.
- Connect to Airless Sprayer: Attach your airless paint sprayer hose to the hose connection at the bottom of the spray gun. Ensure a secure, leak-free connection.
Operating Instructions
Before You Start:
- Ensure all safety precautions are understood and followed.
- Prepare your work area, ensuring it is well-ventilated and free from obstructions.
- Mix and prepare your paint according to the paint manufacturer's instructions.
- Prime your airless paint sprayer system as per its manual before connecting the spray gun.
Spraying Procedure:
- Connect the Gun: Once the sprayer is primed, connect the spray gun to the high-pressure hose.
- Unlock Trigger: Disengage the trigger lock.
- Test Spray: Point the gun at a scrap surface or cardboard. Hold the gun approximately 10-12 inches (25-30 cm) from the surface. Press the trigger fully to begin spraying. Release the trigger to stop.
- Adjust Pressure: Adjust the pressure on your airless sprayer unit to achieve the desired spray pattern. A consistent, even fan pattern indicates proper pressure.
- Maintain Distance: Keep a consistent distance from the surface being painted for uniform coverage.
- Overlap Passes: Overlap each spray pass by approximately 50% to ensure complete coverage without streaks.
- Engage Trigger Lock: Always engage the trigger lock when not actively spraying or when moving the gun.
Maintenance
Regular cleaning and maintenance are crucial for the longevity and optimal performance of your airless spray gun.
Cleaning After Use:
- Depressurize System: Always follow your airless sprayer's manual to safely depressurize the system before disconnecting the spray gun.
- Disconnect Gun: Disconnect the spray gun from the high-pressure hose.
- Remove Tip and Guard: Remove the spray tip and nozzle seat. Clean them thoroughly with appropriate solvent or water, depending on the paint type.
- Clean Filter: Unscrew the handle cap and remove the paint filter. Clean it thoroughly. Replace if damaged or excessively clogged.
- Flush Gun: Connect the gun to a low-pressure water source or a bucket of cleaning solution (compatible with your paint type). Trigger the gun to flush out any remaining paint. Repeat until the water/solution runs clear.
- Wipe Down: Wipe the exterior of the gun with a damp cloth.
- Lubricate (Optional): Apply a small amount of pump armor or lubricant to the internal components as recommended by your airless sprayer manufacturer.
Storage:
Store the clean and dry spray gun in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the trigger lock is engaged during storage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No spray or weak spray | Clogged spray tip; Clogged filter; Insufficient pressure from sprayer; Air in system. | Clean or replace spray tip; Clean or replace filter; Increase pressure on sprayer; Prime sprayer system. |
| Uneven spray pattern or streaks | Worn spray tip; Partially clogged tip; Incorrect pressure setting. | Replace spray tip; Clean spray tip; Adjust pressure. |
| Paint leaking from gun | Loose connections; Damaged seals/O-rings; Worn packing. | Tighten connections; Inspect and replace damaged seals/O-rings; Consult a professional for packing replacement. |
| Trigger stuck or difficult to pull | Dried paint inside gun; Damaged trigger mechanism. | Thoroughly clean the gun; If problem persists, professional repair may be needed. |
For issues not listed here, please contact Dent-de-lion customer support.

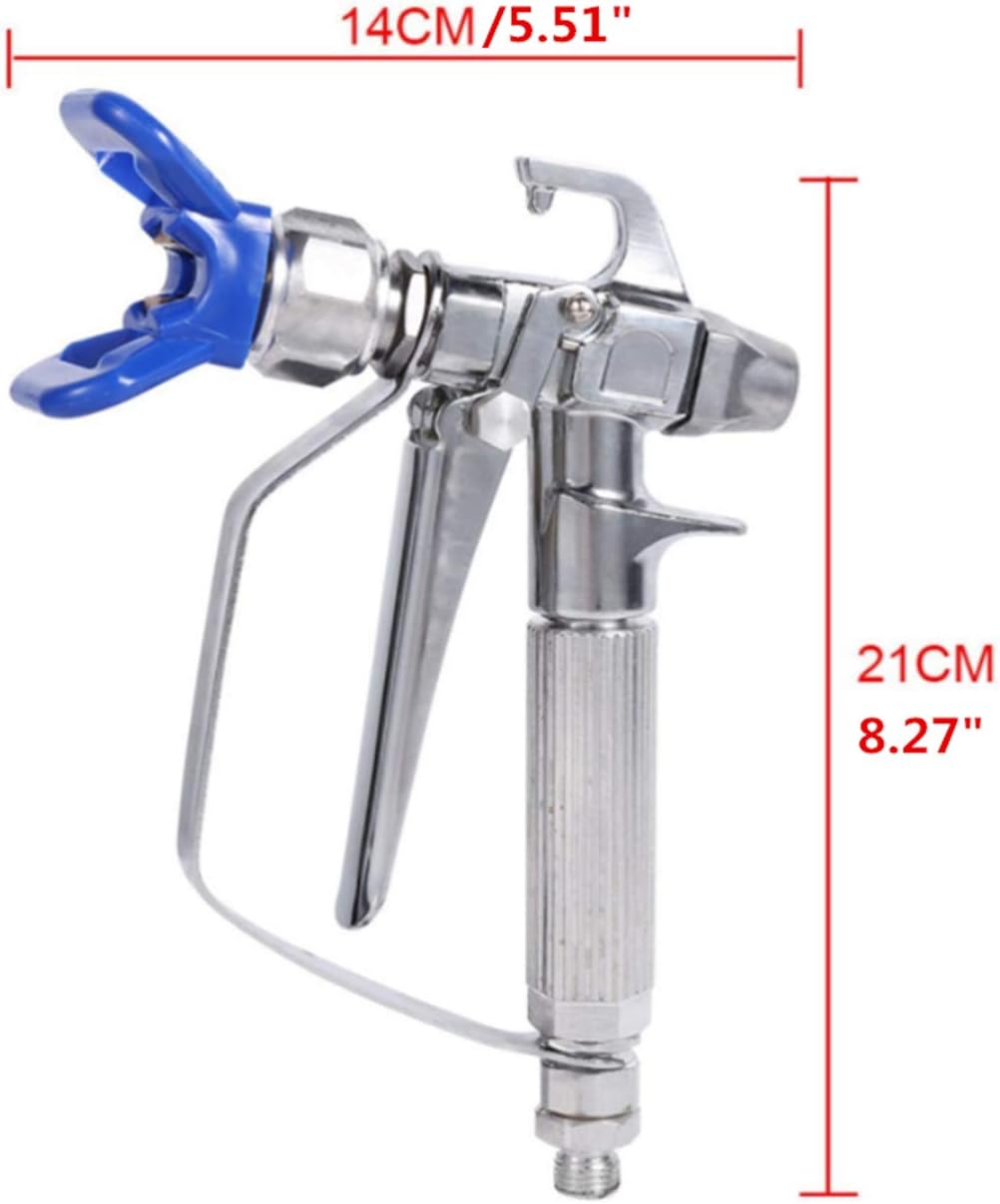

Specifications
- Model: 3600
- Brand: Dent-de-lion
- Maximum Operating Pressure: 248 bar (3600 PSI)
- Material: Stainless Steel
- Connection Type: G 1/4 or G 7/8 male
- Spray Distance: 300 mm (approx. 11.8 inches)
- Pressure Output: 20.7 MPA
- Included Components: Spray gun (with base), 517 or 525 random airless spray tip (with seal), 5 x Airless Paint Spray Gun Filter (60 mesh)
- Item Weight: 0.61 Kilograms (1.34 pounds)
- Package Dimensions: 10.48 x 6.64 x 2.34 inches
- UPC: 614024866612
- ASIN: B07C2PBMM3
Warranty and Support
For warranty information and technical support, please contact Dent-de-lion customer service through their official channels. Keep your purchase receipt as proof of purchase.
