Linsoul KZ ZS10 5-Driver In-Ear Monitors Instruction Manual

Introduction

The Linsoul KZ ZS10 in-ear monitors are high-resolution earphones engineered for superior audio performance. Featuring a 5-driver hybrid technology, these earphones deliver a balanced and clear sound experience. This manual provides essential information for the proper setup, operation, and maintenance of your KZ ZS10 earphones.

What's in the Box

• 1 x KZ ZS10 Earphones
• 3 x Earbud tips (S, M, L)
• 1 x User manual

Product Features

• 5-Driver Hybrid Technology: Each earphone features 1 dynamic driver and 4 balanced armature drivers for high-intensity resolution and rich sound quality.
• Detachable Cable: Equipped with a high-purity OFC (Oxygen-Free Copper) cable that is detachable, allowing for easy replacement or upgrade.
• Ergonomic Design: Designed with an ear hook shape that conforms to the ear for a comfortable and secure fit, enhancing noise reduction.
• Sound Isolation: Provides effective noise control for an immersive listening experience.
• Wired Connectivity: Utilizes a standard 3.5mm audio jack for reliable wired connection to various devices.

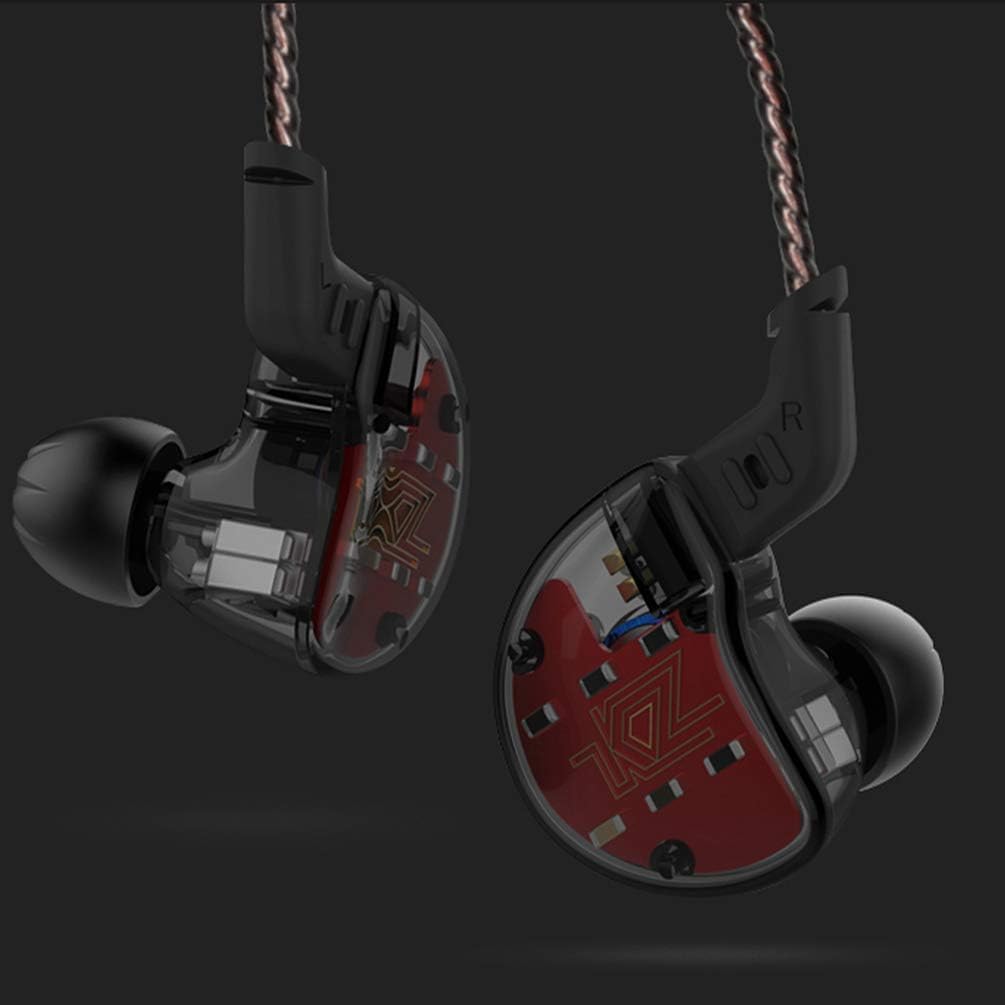

Image: Internal view of the KZ ZS10 earphones, highlighting the dynamic and balanced armature drivers.

Setup

1. Select Earbud Tips: Choose from the provided S, M, and L earbud tips. Select the size that provides the most comfortable and secure fit, ensuring good sound isolation. A proper seal is crucial for optimal audio quality, especially bass response.
2. Attach Cable: Connect the detachable cable to each earphone unit. Ensure the connectors are firmly seated. The cable is designed to be worn over the ear.
3. Wearing the Earphones: Place the earphone units into your ears. Guide the cable over the top of your ears, utilizing the ergonomic ear hook design for a stable and comfortable fit. The pre-formed ear hooks help the cable conform to your ear shape.

Image: KZ ZS10 earphones with the detachable cable connected, ready for use.

Image: Side view of a person wearing the KZ ZS10 earphones, demonstrating the over-ear fit and ergonomic design.

Operating Instructions

1. Connect to Audio Source: Plug the 3.5mm audio jack into your compatible device (e.g., smartphone, tablet, computer, audio player).
2. Adjust Volume: Control the audio volume directly from your connected device.
3. Playback: Begin audio playback from your device.

Maintenance

• Cleaning Earbud Tips: Regularly remove and clean the earbud tips with a soft, damp cloth. Ensure they are completely dry before reattaching.
• Cable Care: Avoid sharp bends or excessive pulling on the cable. When storing, coil the cable loosely to prevent tangling and damage.
• General Cleaning: Wipe the earphone units with a dry, soft cloth to remove any dust or debris. Avoid using harsh chemicals or abrasive materials.

Troubleshooting

• No Sound:
  • Ensure the 3.5mm jack is fully inserted into your audio source.
  • Check that the detachable cable is securely connected to both earphone units.
  • Verify the volume on your audio source is turned up and not muted.
  • Test with a different audio source or device to rule out device issues.
• Poor Sound Quality (e.g., weak bass, distorted audio):
  • Ensure the earbud tips create a tight seal in your ear canal. Try different sized tips for a better fit.
  • Check for any debris or earwax buildup in the earphone nozzles or tips.
  • Inspect the cable for any visible damage or kinks.
• Cable Disconnection:
  • If the cable frequently disconnects, ensure it is properly aligned and pushed firmly into the earphone unit connectors.
  • Consider replacing the detachable cable if connections remain loose or intermittent.

Specifications

Warranty and Support

The Linsoul KZ ZS10 In-Ear Monitors come with a 1-year warranty from the date of purchase. For any product-related inquiries, technical assistance, or warranty claims, please contact Linsoul customer service. They offer 24-hour easy-to-reach customer service to assist you.
