IBO Nemo 000976 Submersible Pump User Manual

1. Introduction

This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of the IBO Nemo 000976 submersible pump. This pump is designed for clean water applications, such as supplying water to small holiday homes and for garden watering. Its compact dimensions and lightweight design make it a popular choice for various uses. The pump is equipped with a 10-meter power cable and utilizes a diaphragm pump mechanism based on electromagnets, allowing it to generate high pressure despite its small size.

2. Safety Instructions

Read all safety warnings and instructions carefully before installing or operating the pump. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage. Keep this manual for future reference.

• Always disconnect the pump from the power supply before performing any maintenance, cleaning, or when not in use.
• Ensure the power supply voltage matches the pump's specifications (230V/50Hz).
• Do not operate the pump with a damaged power cord or plug. If damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• The pump is designed for clean water only. Do not use it for pumping flammable, corrosive, or explosive liquids, or water containing abrasive particles.
• Do not run the pump dry. Ensure the pump is fully submerged in water during operation to prevent overheating and damage.
• Keep children and unauthorized persons away from the pump during operation.
• The pump motor is equipped with overload protection. If the pump stops unexpectedly, disconnect it from power and allow it to cool down before inspecting.
• Ensure proper grounding of the electrical connection.

3. Product Features

• High Performance: Maximum flow rate up to 1020 liters per hour, with a maximum head of 80 meters.
• Compact Design: Small diameter (designed for 110 mm openings) and lightweight (approx. 4 kg) for easy handling and installation.
• Durable Construction: Case made of aluminum, and motor components from AISI304 steel to prevent corrosion.
• Overload Protection: Motor equipped with protection against overheating.
• Long Power Cable: Includes a 10-meter power cable for extended reach.
• Versatile Application: Suitable for clean water supply in small homes and garden irrigation.

4. Package Contents

Verify that all items are present in the package:

• IBO Nemo 000976 Submersible Pump
• 10-meter Power Cable with Plug
• Hose Clamp (likely included for hose connection)
• Rope (for lowering and retrieving the pump)
• User Manual (this document)

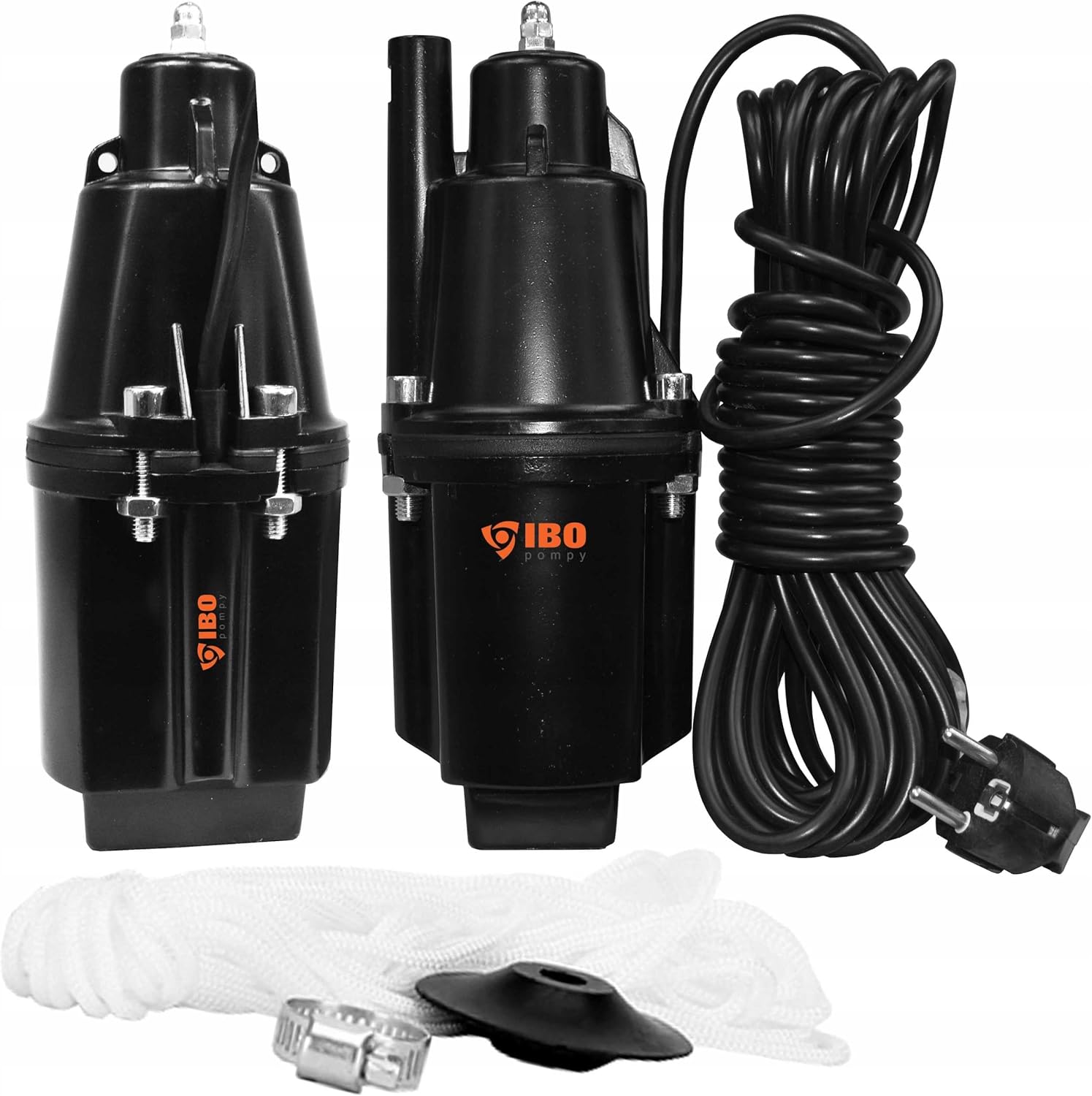

Image 1: The IBO Nemo 000976 submersible pump shown with its power cable, rope, and hose clamp.

5. Setup

1. Inspect the Pump: Before installation, visually inspect the pump for any signs of damage during transit. Ensure the power cable and plug are intact.
2. Connect the Discharge Hose: Attach a suitable discharge hose (1/2 inch recommended) to the pump's outlet. Secure it firmly with a hose clamp to prevent leaks.


   Image 2: Bottom view of the pump, illustrating the water outlet connection point.

3. Attach the Rope: Securely fasten a strong rope to the designated attachment point on the pump. This rope will be used to lower and retrieve the pump from the water source.


   Image 3: Top view of the pump, showing the attachment point for the lowering rope.
4. Position the Pump: Carefully lower the pump into the water source (well, tank, pond) using the rope. Ensure the pump is fully submerged and rests on a stable, level surface, away from any sediment or debris that could clog the intake. The maximum submersion depth is 20 meters.
5. Electrical Connection: Connect the pump's power plug to a properly grounded electrical outlet (230V/50Hz). Ensure the outlet is protected by a Residual Current Device (RCD) for safety.

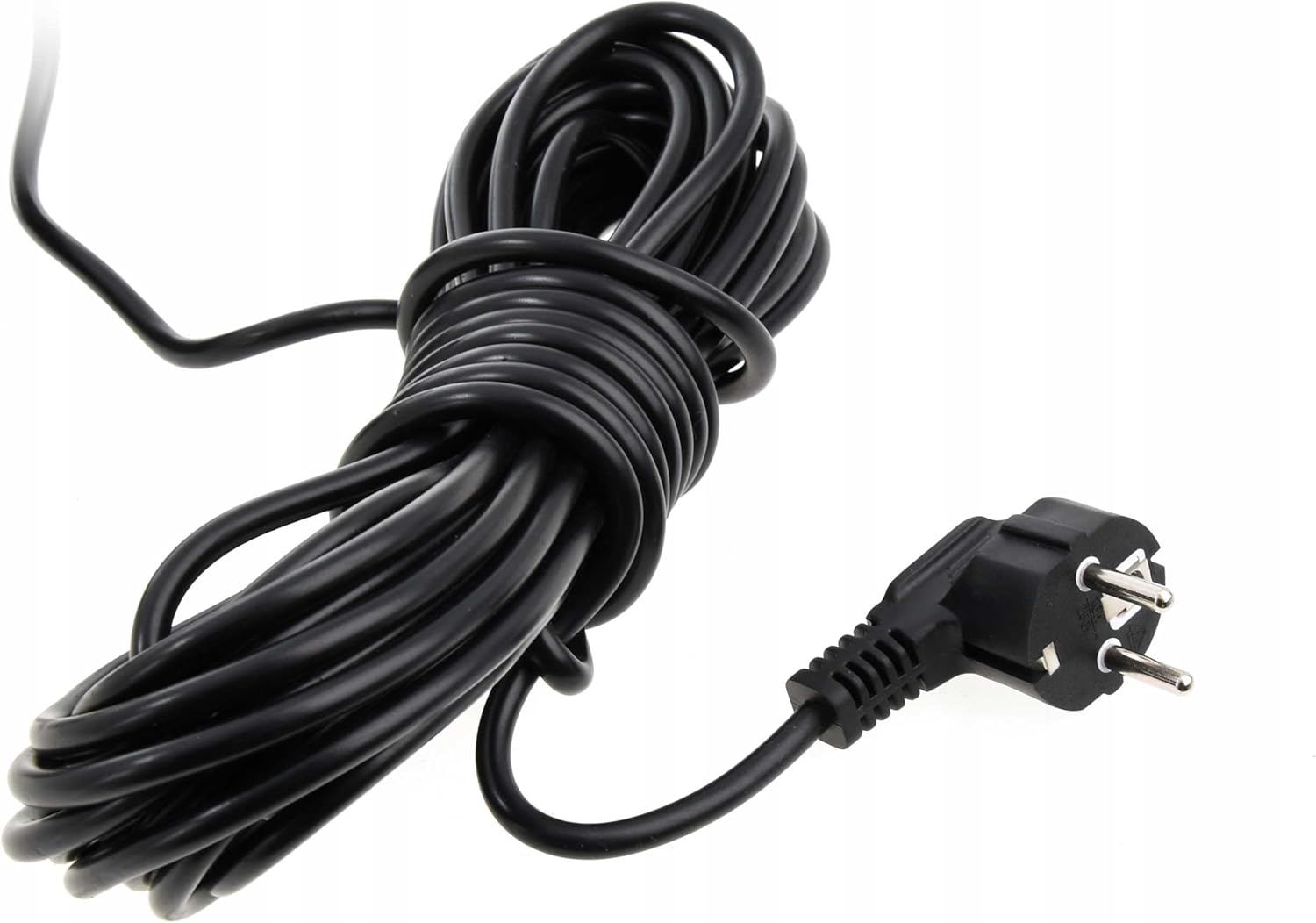

   Image 4: The 10-meter power cable and European plug for the IBO Nemo pump.

6. Operating Instructions

1. Start-up: Once the pump is fully submerged and all connections are secure, plug the pump into the power outlet. The pump will start operating immediately.
2. Monitoring: Observe the water flow from the discharge hose. Ensure there are no unusual noises or vibrations from the pump.
3. Shut-down: To stop the pump, simply unplug it from the power outlet.
4. Continuous Operation: The pump is designed for intermittent use. Avoid prolonged continuous operation without monitoring.

7. Maintenance

Regular maintenance ensures optimal performance and extends the pump's lifespan. Always disconnect the pump from the power supply before any maintenance.

• Cleaning: Periodically remove the pump from the water source and clean its exterior, especially the intake area, to remove any accumulated debris or sediment.
• Inspection: Regularly inspect the power cable and plug for any signs of wear, cuts, or damage. Check the hose connection for leaks.
• Storage: If the pump will not be used for an extended period, especially during freezing temperatures, remove it from the water, clean it thoroughly, drain all water, and store it in a dry, frost-free location.

8. Troubleshooting

9. Specifications

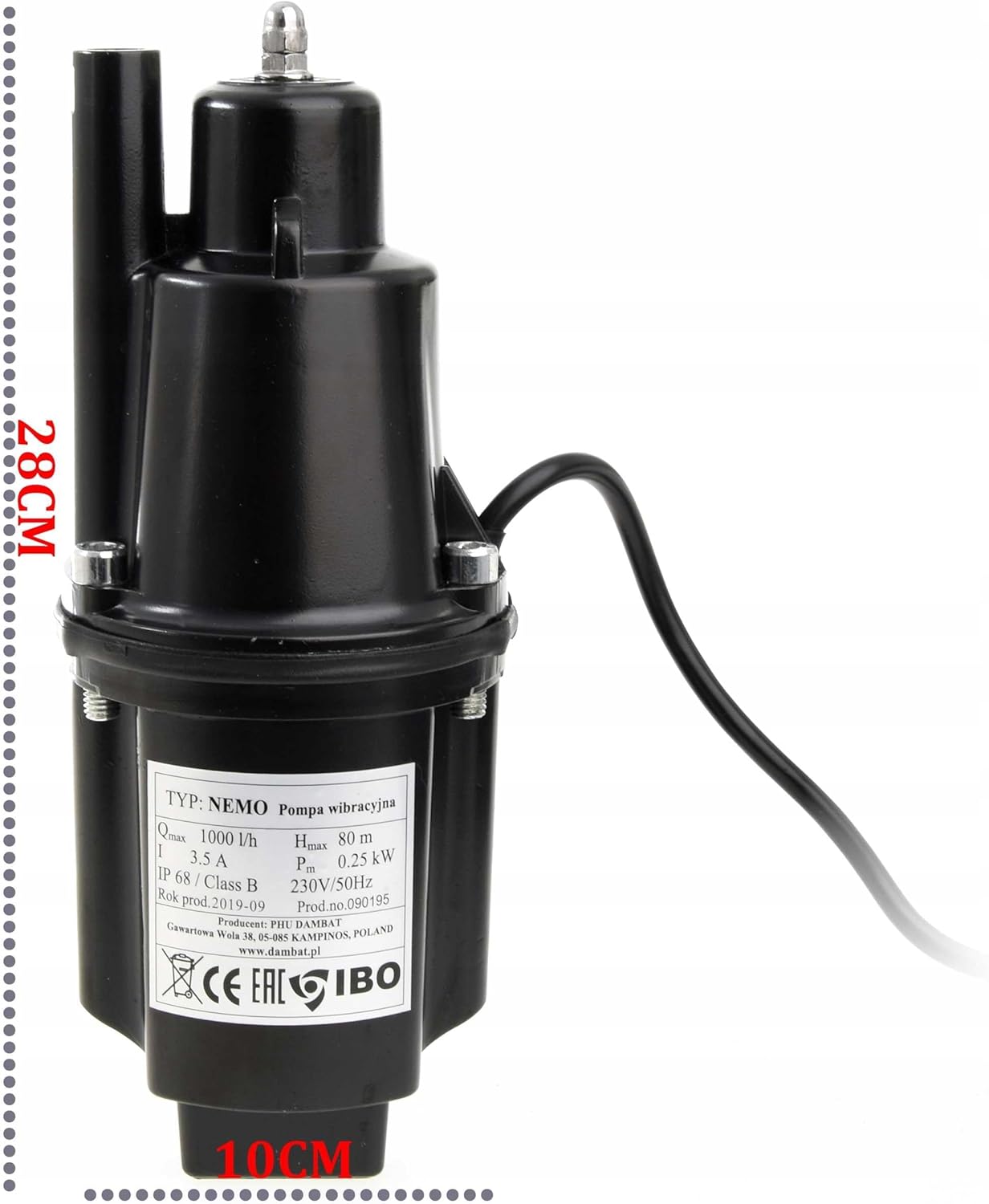

Image 5: Technical label on the pump, detailing specifications and dimensions (10cm width, 28cm height).

10. Warranty and Support

For warranty information, technical support, or service inquiries, please contact your retailer or the manufacturer, Dambat. Keep your proof of purchase for warranty claims.

Manufacturer: Dambat

Model Number: 000976
