Fridja f1900 Cold Press Juicer User Manual

Important Safety Information

Please read all instructions carefully before using the Fridja f1900 Cold Press Juicer. Retain this manual for future reference.

• Always ensure the juicer is correctly assembled before operation.
• Do not immerse the motor base in water or other liquids.
• Keep hands and utensils out of the feeding chute during operation to prevent injury. Use the food pusher provided.
• Unplug the juicer from the power outlet before cleaning, disassembling, or assembling parts.
• Do not operate the juicer if the power cord or plug is damaged, or if the appliance malfunctions or has been dropped.
• This appliance is for household use only.
• Ensure the anti-drip tap is closed when changing juice containers or to prevent spills.

Product Components

Familiarize yourself with the parts of your Fridja f1900 Cold Press Juicer for proper assembly and operation.

Figure 1: Overview of Fridja f1900 Juicer Components.

• Motor Base: Contains the powerful 240W motor and control buttons.
• Feeding Chute: Wide 75mm opening for inserting fruits and vegetables, designed with a slight tilt for ease of use.
• Food Pusher: Used to guide ingredients down the feeding chute.
• Auger (Squeezing Screw): Masticates and presses ingredients to extract juice.
• Filter Basket: Houses the filter screen, separating pulp from juice. Includes two types: one for juice and one for sorbet/ice cream.
• Juice Bowl: Collects the extracted juice and pulp. Features an anti-drip tap.
• Pulp Outlet: Discharges dry pulp.
• Juice Outlet with Anti-Drip Tap: Dispenses juice into a container.
• Juice Jug: For collecting extracted juice (1-litre capacity).
• Pulp Container: For collecting discarded pulp.
• Cleaning Brush: For easy cleaning of components.
• Stainless Steel Sieve: An additional sieve for extra fine juice consistency.

Setup and Assembly

Initial Cleaning

Before first use, wash all detachable parts (juice bowl, auger, filter basket, feeding chute, juice jug, pulp container, and cleaning brush) with warm, soapy water. Rinse thoroughly and dry completely. The motor base should only be wiped with a damp cloth.

Assembly Steps

Follow these steps to assemble your juicer:

1. Place the motor base on a stable, flat surface.
2. Align the juice bowl with the motor base and rotate it clockwise until it locks securely into place. Ensure the pulp and juice outlets are correctly positioned.
3. Insert the filter basket into the juice bowl, ensuring it sits firmly. Choose the appropriate filter for your desired output (juice or sorbet).
4. Place the auger into the center of the filter basket, pushing it down gently until it clicks into place.
5. Attach the feeding chute assembly onto the top of the juice bowl, aligning the arrows and rotating clockwise until it locks.
6. Place the juice jug under the juice outlet and the pulp container under the pulp outlet.
7. Ensure the anti-drip tap is closed before adding ingredients.

Figure 2: Fully assembled Fridja f1900 Juicer ready for use.

Operating Your Juicer

Preparing Ingredients

Wash all fruits and vegetables thoroughly. For the 75mm wide feeding chute, most whole fruits and vegetables can be inserted without extensive chopping. However, for very fibrous ingredients like celery or leafy greens, it is recommended to cut them into smaller pieces (approx. 1-2 inches) to prevent clogging and ensure optimal juice extraction. Remove large seeds, pits, and hard skins (e.g., pineapple, citrus peels).

Figure 3: The wide feeding chute minimizes preparation time.

Juicing Process

1. Ensure the juicer is properly assembled and the juice jug and pulp container are in place.
2. Plug the power cord into a suitable electrical outlet.
3. Press the "ON" button to start the juicer. The auger will begin to rotate at a slow speed of 60 RPM, preserving nutrients and minimizing oxidation.
4. Slowly feed prepared ingredients into the feeding chute. Use the food pusher only when necessary to gently guide ingredients. Do not force ingredients down.
5. The juicer will extract juice, which will flow into the juice jug, while the dry pulp will be expelled into the pulp container.
6. For a finer juice consistency, use the included stainless steel sieve over your juice jug.
7. When finished, press the "OFF" button and unplug the juicer.

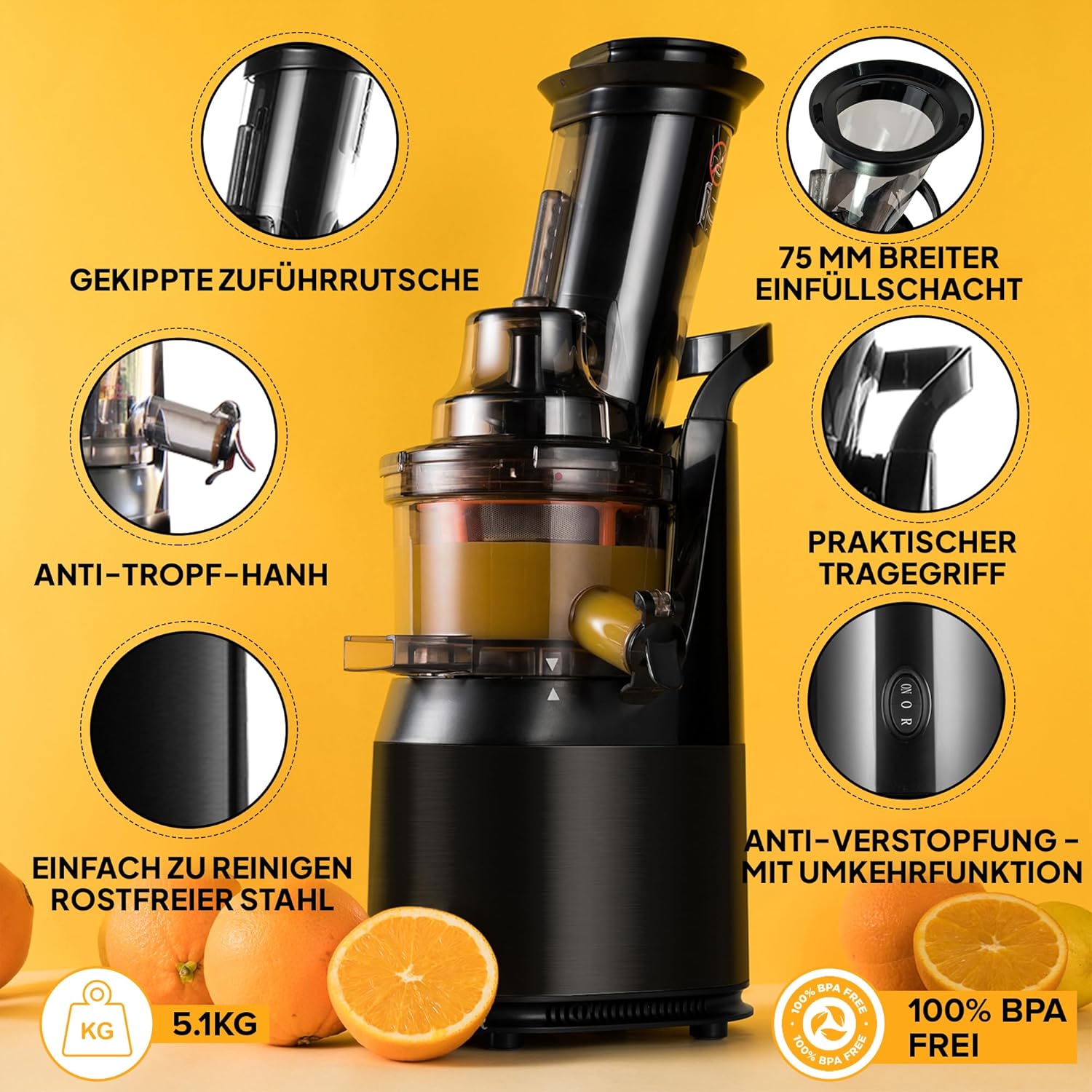

Figure 4: Key operational features of the Fridja f1900.

Making Nut Milks, Sorbets, and Ice Cream

The Fridja f1900 is versatile and can create more than just juice. Use the specific filter for sorbet/ice cream for these preparations.

• Nut Milks: Soak nuts (e.g., almonds, cashews) overnight. Rinse thoroughly. Process the soaked nuts with water through the juicer. You may need to pass the pulp through a second time or use a nut milk bag for extra smoothness.
• Sorbets/Ice Cream: Use frozen fruits (e.g., bananas, berries). Ensure the fruits are slightly thawed for a few minutes to prevent damage to the auger. Feed them slowly through the juicer using the sorbet filter.

Figure 5: The juicer's capability to produce a variety of healthy options.

Reverse Function

If ingredients become clogged or the juicer stops during operation, press and hold the "REV" (Reverse) button for a few seconds. This will reverse the auger's rotation to dislodge any blockages. Release the button, wait a few seconds, and then press "ON" to resume juicing. Do not continuously use the reverse function for extended periods.

Care and Maintenance

Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your Fridja f1900 Juicer.

Disassembly for Cleaning

Always unplug the juicer before disassembling. Reverse the assembly steps:

1. Remove the juice jug and pulp container.
2. Rotate the feeding chute assembly counter-clockwise and lift it off.
3. Remove the auger.
4. Lift out the filter basket.
5. Rotate the juice bowl counter-clockwise and lift it off the motor base.

Cleaning Steps

• Rinse all detachable parts under running water immediately after use to prevent pulp from drying and sticking.
• Use the provided cleaning brush to remove any stubborn pulp from the filter basket and other intricate areas, especially the pulp outlet.
• Wash all detachable parts with warm, soapy water. All BPA-free Tritan parts are safe for washing.
• Rinse thoroughly and allow all parts to air dry completely before reassembling or storing.
• Wipe the motor base with a damp cloth. Never submerge the motor base in water.

Figure 6: The included sieve filter assists in achieving a smooth juice.

Storage

Store the assembled or disassembled juicer in a clean, dry place away from direct sunlight and heat. Ensure all parts are completely dry before storage to prevent mold or odors.

Troubleshooting

If you encounter any issues with your Fridja f1900 Juicer, refer to the table below for common problems and their solutions.

If the problem persists after trying these solutions, please contact customer support.

Technical Specifications

Figure 7: Dimensions of the Fridja f1900 Cold Press Juicer.

Warranty and Customer Support

Your Fridja f1900 Cold Press Juicer comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.

For any questions, technical assistance, or warranty claims, please contact Fridja customer support. Contact information can typically be found on the Fridja official website or on the product packaging.

When contacting support, please have your model number (f1900) and purchase details ready.
