TAMIYA 1:14 ACU-01 Drive Set Rear Tipper Instruction Manual

1. Introduction

This manual provides essential information for the assembly, operation, and maintenance of your TAMIYA 1:14 ACU-01 Drive Set for Rear Tipper models. The ACU-01 Drive Set is designed to provide realistic lifting and lowering functionality for compatible 1:14 scale RC rear tipper trucks, such as the M-B Arocs Rear Tipper (model 300056357).

The set includes a lifting mechanism, gear motor, control electronics, and a switch-off device, along with detailed instructions for integration into your model.

Warning: This product is not suitable for children under the age of 14. Adult supervision is recommended during assembly and operation.

2. Setup and Assembly

Carefully unpack all components and verify against the parts list provided in the included paper instructions. Refer to the detailed assembly guide supplied with your ACU-01 Drive Set for step-by-step instructions specific to your model.

2.1 Component Identification

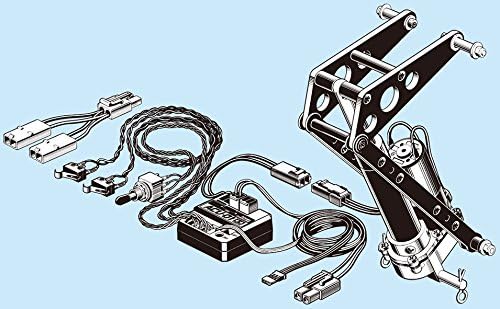

Figure 2.1: Overview of the ACU-01 Drive Set components. This diagram illustrates the main parts such as the lifting mechanism, the ACU-01 control unit, the gear motor, and associated wiring harnesses.

Figure 2.2: The ACU-01 Drive Set as packaged, displaying the main components and the included instruction manual. Ensure all items shown are present before beginning assembly.

Figure 2.3: Detailed view of the ACU-01 control unit and its associated wiring. This includes connectors for the gear motor, power input, and switch-off devices.

2.2 Initial Steps

1. Unpacking: Carefully remove the lifting mechanism, gear motor, control electronics, and switch-off device from their packaging.
2. Review Instructions: Thoroughly read the dedicated assembly instructions provided in the box before starting. These instructions contain critical model-specific details.
3. Tool Preparation: Gather all necessary tools as specified in the assembly manual (e.g., screwdrivers, pliers, cutters).
4. Component Integration: Follow the step-by-step guide to integrate the drive set components into your 1:14 scale RC tipper truck chassis. Pay close attention to wiring diagrams for correct electrical connections.

3. Operating Instructions

The ACU-01 Drive Set enables remote control of your tipper truck's bed motion via your RC transmitter. Ensure all connections are secure and your RC system is properly calibrated before operation.

3.1 Basic Operation

1. Power On: Connect the ACU-01 control unit to your model's power source (battery) as per the assembly instructions. Power on your RC transmitter, then your model.
2. Control Input: Use the designated channel on your RC transmitter to control the lifting and lowering of the tipper bed. The specific stick or switch assignment will depend on your RC system's configuration.
3. Limit Switches: The integrated switch-off device prevents over-extension or over-retraction of the lifting mechanism. The tipper bed will automatically stop when it reaches its maximum upward or downward position.
4. Smooth Movement: Operate the controls smoothly to ensure realistic and controlled movement of the tipper bed.

3.2 Operational Examples

Figure 3.1: The tipper bed in a partially raised position, demonstrating the initial phase of the lifting operation controlled by the ACU-01 Drive Set.

Figure 3.2: The tipper bed in its fully raised position, indicating the maximum extension achieved by the lifting mechanism.

Figure 3.3: A complete view of the RC tipper truck with the bed fully elevated, demonstrating the operational range of the ACU-01 Drive Set.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your ACU-01 Drive Set.

• Cleaning: Keep the lifting mechanism and gear motor free from dust, dirt, and debris. Use a soft brush or compressed air for cleaning.
• Lubrication: Periodically apply a small amount of appropriate lubricant to moving parts of the lifting mechanism as recommended in the main model's manual. Avoid over-lubrication.
• Wiring Inspection: Regularly check all wiring and connectors for signs of wear, damage, or loose connections. Secure any loose wires.
• Storage: When not in use, store the model in a clean, dry environment away from extreme temperatures and direct sunlight.

5. Troubleshooting

If you encounter issues with your ACU-01 Drive Set, refer to the following common troubleshooting steps:

• No Movement:
  • Check battery connections and ensure the battery is charged.
  • Verify all wiring connections to the ACU-01 control unit and gear motor are secure.
  • Ensure your RC transmitter is powered on and correctly bound to the receiver.
  • Confirm the correct channel is selected on your transmitter for tipper operation.
• Erratic Movement:
  • Inspect for any obstructions in the lifting mechanism.
  • Check for loose gears or damaged components within the gear motor.
  • Ensure the limit switches are functioning correctly and not obstructed.
• Partial Movement:
  • This could indicate a weak battery or an obstruction.
  • Check the limit switches for proper engagement and disengagement.

If problems persist after following these steps, consult the comprehensive manual provided with your model or contact TAMIYA customer support.

6. Specifications

7. Warranty and Support

For warranty information, technical support, or replacement parts, please refer to the documentation included with your original purchase or contact TAMIYA customer service directly. Contact details can typically be found on the official TAMIYA website or on the product packaging.
