1. Introduction
Thank you for choosing the Arzum AR2017 Panetti Bread Maker. This appliance is designed to simplify the process of baking fresh, homemade bread. With its 13 versatile programs, you can prepare a wide variety of breads, from classic white to gluten-free options. Please read this manual carefully before first use to ensure safe and optimal operation.
2. Important Safety Instructions
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use oven mitts when handling hot parts.
- To protect against electric shock, do not immerse cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
3. Product Overview
Familiarize yourself with the components of your Arzum Panetti Bread Maker.

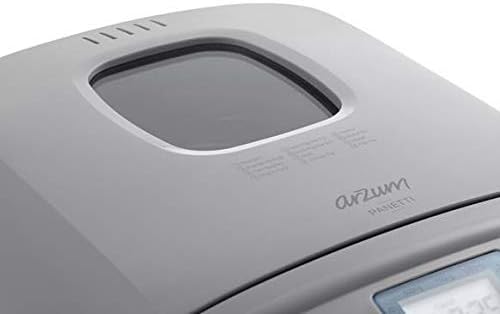

Image: Top view of the Arzum Panetti Bread Maker, showing the lid and the transparent viewing window. This window allows you to monitor the baking process without opening the lid.
Image: Close-up of the Arzum Panetti Bread Maker lid, displaying the numbered program labels (Standard, French Bread, Whole Wheat, Low Carb, Fast Bake, etc.) for easy reference during program selection.
Image: The control panel and LCD screen of the Arzum Panetti Bread Maker. The screen shows "MENU" and "TIMER" with a time display, along with icons for loaf size (500g, 750g, 1000g) and crust color. Buttons for menu selection, timer, start/stop, and crust color are visible.
Image: A hand is shown inserting the bread pan with its handle into the Arzum Panetti Bread Maker. The kneading paddle is visible at the bottom of the pan. This illustrates the process of placing the pan correctly before adding ingredients.
Components:
- Main Unit: The body of the bread maker.
- Lid with Viewing Window: Allows monitoring of the baking process.
- Control Panel: Features an LCD display and buttons for program selection, timer, crust color, and start/stop.
- Bread Pan: Removable non-stick pan for baking.
- Kneading Paddle: Detachable paddle located inside the bread pan for mixing ingredients.
- Measuring Cup and Spoon: For accurate ingredient measurement (may vary by package).
4. Setup and First Use
- Unpacking: Carefully unpack the bread maker and all its accessories. Remove any packaging materials.
- Cleaning: Wipe the exterior of the appliance with a damp cloth. Wash the bread pan and kneading paddle with warm, soapy water, then rinse and dry thoroughly.
- Placement: Place the bread maker on a stable, flat, heat-resistant surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the appliance.
- First Bake Cycle (Empty): Before baking bread, it is recommended to run an empty bake cycle to burn off any manufacturing residues.
- Insert the empty bread pan with the kneading paddle attached into the main unit.
- Close the lid.
- Plug in the appliance.
- Select the "Bake" program (Program 13).
- Press the Start/Stop button. Allow it to run for about 10 minutes, then press Start/Stop again to cancel.
- Unplug the appliance and let it cool completely.
5. Operating Instructions
Basic Operation Steps:
- Insert Kneading Paddle: Ensure the kneading paddle is securely attached to the shaft inside the bread pan.
- Add Ingredients: Add ingredients to the bread pan in the order specified by your recipe (typically liquids first, then dry ingredients, with yeast last). Do not exceed the maximum capacity.
- Place Bread Pan: Insert the bread pan into the bread maker, pressing down firmly until it clicks into place. Close the lid.
- Plug In: Connect the power cord to a grounded electrical outlet. The display will show the default program.
- Select Program: Press the "MENU" button repeatedly to cycle through the 13 available programs until your desired program number is displayed.
- Select Loaf Size: Press the "LOAF SIZE" button to choose between 500g, 750g, or 1000g, according to your recipe.
- Select Crust Color: Press the "CRUST" button to select light, medium, or dark crust.
- Start Baking: Press the "START/STOP" button to begin the baking cycle. The colon in the time display will flash, indicating operation.
- During Operation: You can monitor the process through the viewing window. Some programs may have an audible signal for adding extra ingredients (e.g., nuts, fruits).
- End of Cycle: Once the program is complete, the bread maker will beep. It will then automatically switch to a 1-hour "Keep Warm" function.
- Remove Bread: Press "START/STOP" to end the "Keep Warm" function. Unplug the appliance. Using oven mitts, carefully remove the bread pan by lifting its handle. Invert the pan onto a cooling rack and shake gently until the bread slides out. Remove the kneading paddle from the bread if it remains embedded.
- Cooling: Allow the bread to cool on a wire rack for at least 30 minutes before slicing.
Delay Timer Function:
The delay timer allows you to set the bread maker to finish baking at a later time, up to 13 hours. This is useful for having fresh bread ready in the morning.
- Add ingredients, select program, loaf size, and crust color as usual.
- Press the "TIMER" buttons (+ or -) to set the desired delay time. The displayed time includes the baking cycle duration. For example, if the baking cycle is 3 hours and you want bread ready in 8 hours, set the timer to 8:00.
- Press "START/STOP". The timer will count down, and the bread maker will start automatically when the set time is reached.
Important: Do not use the delay timer with recipes containing highly perishable ingredients like milk, eggs, or fresh fruit, as they may spoil.
6. Baking Programs
The Arzum AR2017 Panetti Bread Maker offers 13 pre-set programs for various bread types and functions. Refer to the image of the lid for program numbers.
Image: Close-up of the Arzum Panetti Bread Maker lid, displaying the numbered program labels for easy reference.
| Program No. | Program Name | Description |
|---|---|---|
| 1 | Standard | For basic white and mixed breads. |
| 2 | French Bread | For light breads made from fine flour, typically with a crispier crust. |
| 3 | Whole Wheat | For breads made with whole wheat flour, which requires a longer kneading and rising time. |
| 4 | Low Carb | Designed for recipes with reduced carbohydrate content. |
| 5 | Fast Bake 1.5 | A quicker cycle for smaller loaves or when time is limited. |
| 6 | Fast Bake 2.0 | A quicker cycle for larger loaves or when time is limited. |
| 7 | Fast | For very quick bread preparation. |
| 8 | European Type Dough | For preparing doughs common in European baking, such as pizza or pasta dough. |
| 9 | Dough | Prepares dough for rolls, pizza, or other baked goods that will be shaped and baked in a conventional oven. |
| 10 | Gluten-Free | Specifically designed for gluten-free flours and recipes, which require different kneading and rising conditions. |
| 11 | Jam | For making homemade jams and marmalades. |
| 12 | Yogurt | For preparing homemade yogurt. |
| 13 | Bake | A bake-only cycle for additional baking or browning. |
7. Maintenance and Cleaning
Proper cleaning and maintenance will extend the life of your bread maker.
- Before Cleaning: Always unplug the appliance and allow it to cool completely before cleaning.
- Bread Pan and Kneading Paddle:
- Remove the bread pan from the main unit.
- If the kneading paddle is stuck in the bread, use the provided hook tool (if available) to carefully remove it.
- Wash the bread pan and kneading paddle with warm, soapy water. Do not use abrasive cleaners or metal scouring pads, as these can damage the non-stick coating.
- Rinse thoroughly and dry completely before storing or next use.
- Do not wash these parts in a dishwasher.
- Exterior: Wipe the exterior of the bread maker with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Interior: Wipe the interior of the baking chamber with a damp cloth. Remove any crumbs or flour residue.
- Lid: Clean the lid and viewing window with a damp cloth.
- Storage: Ensure all parts are clean and dry before storing the bread maker in a cool, dry place.
8. Troubleshooting Guide
If you encounter issues with your bread maker, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bread does not rise. | Expired or inactive yeast; too much or too little liquid; incorrect water temperature; too much salt or sugar. | Check yeast expiration date. Use fresh yeast. Adjust liquid amount according to recipe. Use lukewarm water (38-43°C). Ensure correct salt and sugar measurements. |
| Bread is too dense or heavy. | Too much flour; not enough liquid; yeast not active; wrong program selected. | Measure flour accurately. Increase liquid slightly. Check yeast activity. Select appropriate program for the bread type. |
| Bread collapses during baking. | Too much liquid; too much yeast; high humidity; too much sugar. | Reduce liquid slightly. Reduce yeast amount. Adjust recipe for high humidity. Reduce sugar. |
| Kneading paddle stuck in bread. | Normal occurrence. | After removing bread from pan, use the provided hook tool to carefully extract the paddle. |
| Bread pan sticks to the unit. | Food residue or crumbs under the pan. | Ensure the area under the bread pan is clean before inserting. |
| Appliance does not start. | Not plugged in; lid not closed properly; program not selected. | Check power connection. Ensure lid is fully closed. Select a program and press START/STOP. |
9. Technical Specifications
- Model: AR2017
- Brand: Arzum
- Power: 650 Watts
- Capacity: 500g, 750g, 1000g loaf sizes
- Programs: 13 pre-set programs
- Dimensions (L x W x H): 31 cm x 25 cm x 30 cm (approximately)
- Weight: Approximately 4.92 Kilograms
- Display: LCD Screen
- Keep Warm Function: 1 hour automatic
- Delay Timer: Up to 13 hours
- Origin: China

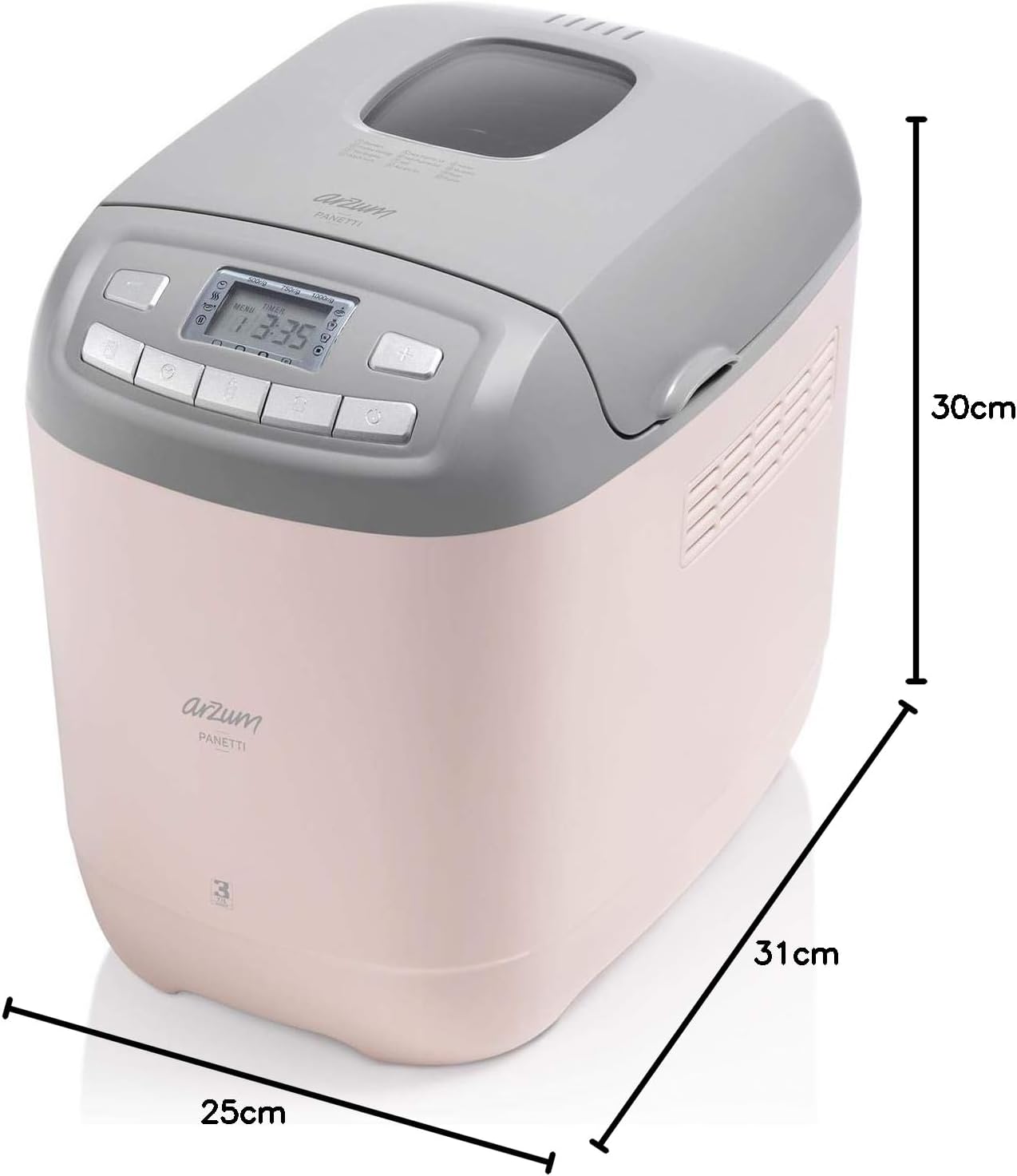

Image: Diagram showing the dimensions of the Arzum Panetti Bread Maker: 31cm (depth), 25cm (width), and 30cm (height).
10. Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your product or contact Arzum customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
Manufacturer: Arzum
Contact Information: Please visit the official Arzum website or refer to your product packaging for the most up-to-date customer service contact details in your region.
