Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Complete Tractor 3013-1613 Red Drawbar. Please read this manual thoroughly before using the product to ensure safe and efficient operation. This drawbar is designed for agricultural and construction machinery applications, specifically compatible with various Massey Ferguson MF Tractor Models.

The Complete Tractor Red Drawbar is a robust component used to connect implements to the rear of a tractor. Its durable construction ensures reliable performance in demanding environments.

2. Safety Information

WARNING: Always prioritize safety when working with heavy machinery and components. Failure to follow safety instructions can result in serious injury or death.

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling or installing the drawbar.
• Ensure the tractor is turned off, in neutral, and the parking brake is engaged before attempting any installation or maintenance.
• Never work under a raised tractor or implement without proper support stands.
• Verify that all pins, bolts, and fasteners are securely tightened before operating the tractor with an attached implement.
• Regularly inspect the drawbar for signs of wear, damage, or corrosion. Replace damaged components immediately.
• Keep children and bystanders away from the work area.

3. Product Specifications

The Complete Tractor 3013-1613 Red Drawbar is engineered to meet specific requirements for tractor implement attachment. Refer to the table below for detailed dimensions and characteristics.

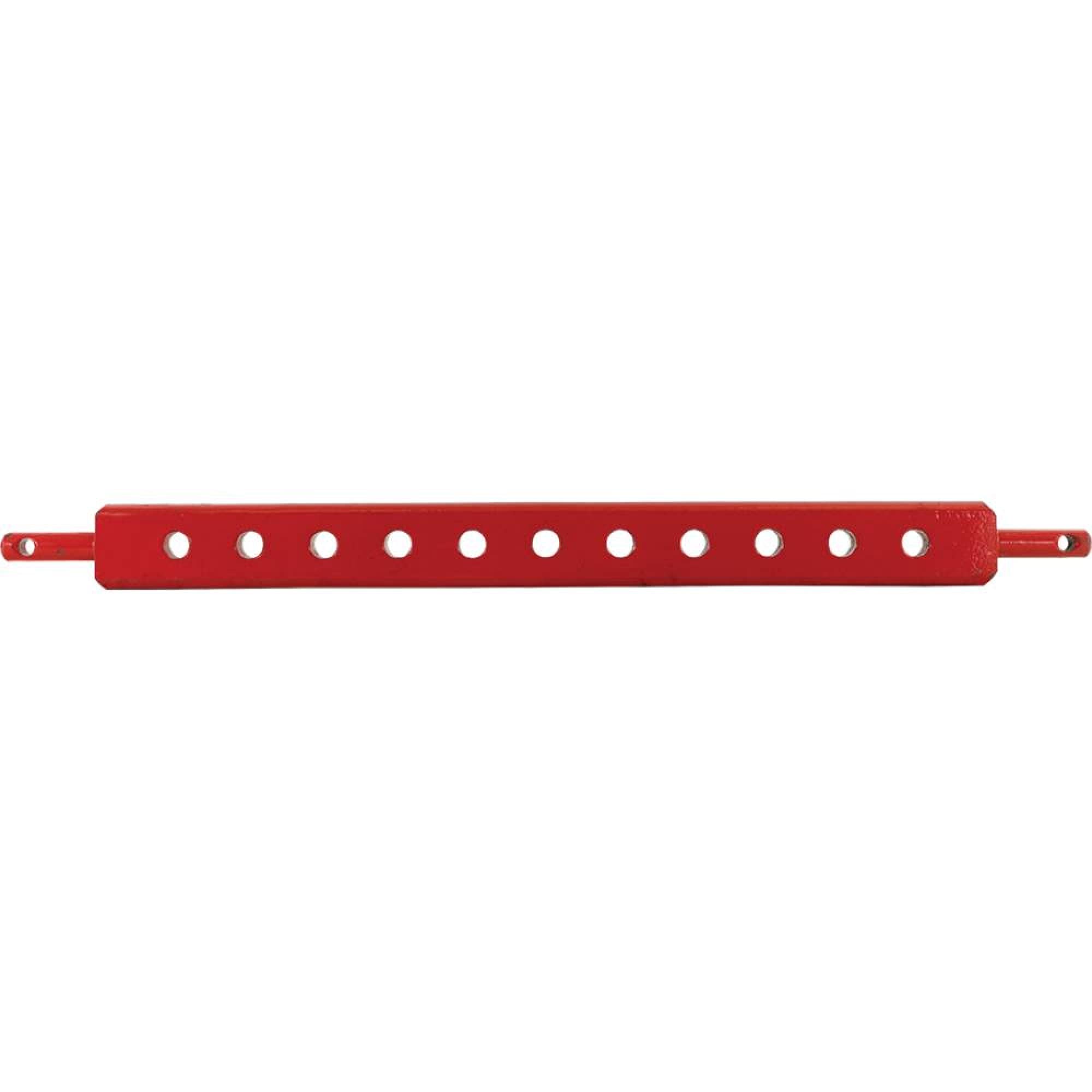

Figure 1: Complete Tractor 3013-1613 Red Drawbar. This image shows the full length of the red drawbar, highlighting its robust construction and multiple pin holes.

4. Compatibility

This drawbar is designed as a compatible replacement for original equipment part number 9N5182A and 180485M1. It is suitable for several Massey Ferguson MF Tractor Models. Always confirm the part number and specifications against your equipment's requirements to ensure proper fit and performance.

This product is ideal for service shops, technicians, and DIY users performing maintenance, repair, or equipment servicing tasks on compatible tractors.

5. Installation

Proper installation of the drawbar is crucial for safe and effective operation. Follow these general guidelines:

1. Prepare the Tractor: Park the tractor on a level surface, engage the parking brake, lower all implements to the ground, and shut off the engine. Remove the ignition key.
2. Remove Old Drawbar (if applicable): If replacing an existing drawbar, carefully remove any pins, bolts, or retaining clips securing it to the tractor's hitch assembly.
3. Position the New Drawbar: Align the Complete Tractor 3013-1613 Red Drawbar with the tractor's drawbar support or hitch assembly. Ensure the drawbar is oriented correctly for your intended use.
4. Secure the Drawbar: Insert appropriate hitch pins or bolts through the designated holes in the drawbar and the tractor's hitch. Use cotter pins or other retaining devices to secure the hitch pins. Ensure there is no excessive play.
5. Verify Connection: Double-check all connections to ensure they are tight and secure. Gently attempt to move the drawbar to confirm it is firmly attached.

Figure 2: Detailed view of a drawbar component. This image provides a closer look at the construction and finish of the drawbar, useful for identifying key features during installation.

6. Operation

The drawbar serves as a critical link between your tractor and various towed implements. Proper operation involves selecting the correct hitch point and ensuring secure attachment.

• Attaching Implements: Align the implement's tongue or hitch with the desired hole on the drawbar. Insert a suitable hitch pin and secure it with a cotter pin or retaining clip.
• Load Distribution: Ensure the weight of the implement is distributed evenly and within the tractor's towing capacity. Overloading can lead to instability and damage.
• Regular Checks: During operation, periodically check the drawbar and implement connection for any signs of loosening or wear.

7. Maintenance and Care

To ensure the longevity and reliable performance of your drawbar, follow these maintenance guidelines:

• Regular Inspection: Before each use, inspect the drawbar for cracks, bends, excessive wear in the pin holes, or any other damage. Pay close attention to the areas around the pin holes and mounting points.
• Cleaning: Keep the drawbar clean from dirt, mud, and debris. A clean surface allows for easier inspection and prevents corrosion.
• Corrosion Protection: While the drawbar is painted for protection, consider applying a rust-inhibiting coating or grease to exposed metal surfaces, especially if stored outdoors or in humid conditions.
• Pin Hole Wear: If pin holes become excessively elongated or worn, the drawbar should be replaced to prevent unsafe connections.

8. Storage

When not in use, store the drawbar in a dry, protected area to prevent rust and damage. If it must be stored outdoors, cover it to shield it from the elements.

9. Troubleshooting

While the drawbar is a simple component, issues can arise. Here are some common concerns:

• Drawbar Does Not Fit:
  • Verify the model number of your tractor and compare it with the compatibility information provided.
  • Ensure you have the correct part number (3013-1613, 9N5182A, 180485M1).
  • Check for any obstructions on the tractor's hitch assembly.
• Excessive Play After Installation:
  • Ensure all pins and bolts are correctly sized and fully inserted.
  • Verify that all retaining clips or cotter pins are securely in place.
  • Inspect the tractor's drawbar support for wear or damage that might cause looseness.

10. Support Information

For further assistance, technical support, or warranty inquiries regarding your Complete Tractor 3013-1613 Red Drawbar, please contact Complete Tractor customer service. Refer to your purchase documentation or the Complete Tractor official website for current contact details.

Website: Complete Tractor Store on Amazon
