1. Product Overview
The BERG Buddy Cross Pedal Go Kart is a durable and versatile ride-on toy designed for children aged 3 to 8 years. It features a robust steel frame and an adjustable seat, allowing it to grow with your child. This go-kart is engineered for both fun and safety, incorporating a unique BFR system for easy control and a swing axle for enhanced stability on various terrains.
Image: The BERG Buddy Cross Pedal Go Kart, showcasing its yellow and black design with sturdy wheels.
Key Features:
- Durable Construction: Built with a sturdy steel frame and high-quality plastic materials for long-lasting use.
- Adjustable Seat: The seat can be adjusted to accommodate children as they grow, suitable for ages 36 months to 8 years.
- BFR System: Allows for easy braking, freewheeling, and reversing without shifting gears.
- Enhanced Stability: Equipped with a swing axle to ensure all four wheels remain on the ground, even on uneven surfaces.
- Pneumatic Tires: Lightweight pneumatic tires provide a smooth ride and excellent grip.
2. Safety Information
Safety is paramount when operating the BERG Buddy Cross. Always ensure the rider adheres to the following guidelines to prevent injury and ensure a safe experience.
General Safety Guidelines:
- Age and Weight Limits: This go-kart is recommended for ages 36 months to 8 years. The maximum weight capacity is 110 lbs (50 kg). Do not exceed these limits.
- Supervision: Always supervise children while they are operating the go-kart.
- Protective Gear: Riders should always wear a safety helmet and appropriate protective gear (e.g., knee and elbow pads) when operating the go-kart.
- Operating Environment: Use the go-kart on flat, clear surfaces away from traffic, steep inclines, water, and other hazards. Avoid rough terrains that could cause loss of control.
- Pre-Ride Check: Before each use, inspect the go-kart for any loose parts, damaged components, or deflated tires. Ensure the steering and braking systems are functioning correctly.
Image: A child happily riding the BERG Buddy Cross Go Kart on a paved path, demonstrating safe usage.
Stability Features:
The BERG Buddy Cross is designed with features to enhance stability and safety:
- Four Wheels: Provides a wide base for stability.
- Swing Axle: This innovative design ensures that all four wheels maintain contact with the ground, even on uneven surfaces, significantly reducing the risk of tipping.
Image: A visual representation showing how the swing axle keeps all four wheels on the ground, alongside a child enjoying the ride.
3. Setup and Assembly
The BERG Buddy Cross Pedal Go Kart requires assembly. Follow the instructions provided in the separate assembly guide for detailed steps. The necessary tools for assembly are typically included with the product.
Key Assembly and Setup Points:
- Unpacking: Carefully unpack all components and verify against the parts list in the assembly guide.
- Frame Assembly: Assemble the main frame components according to the guide.
- Wheel Attachment: Securely attach all four wheels. Ensure tires are adequately inflated (refer to tire sidewall for recommended pressure).
- Steering Mechanism: Install the steering column and handlebar, ensuring smooth and responsive steering.
- Seat Adjustment: The seat is adjustable to accommodate different rider heights. Adjust the seat position to ensure the rider can comfortably reach the pedals and steer.

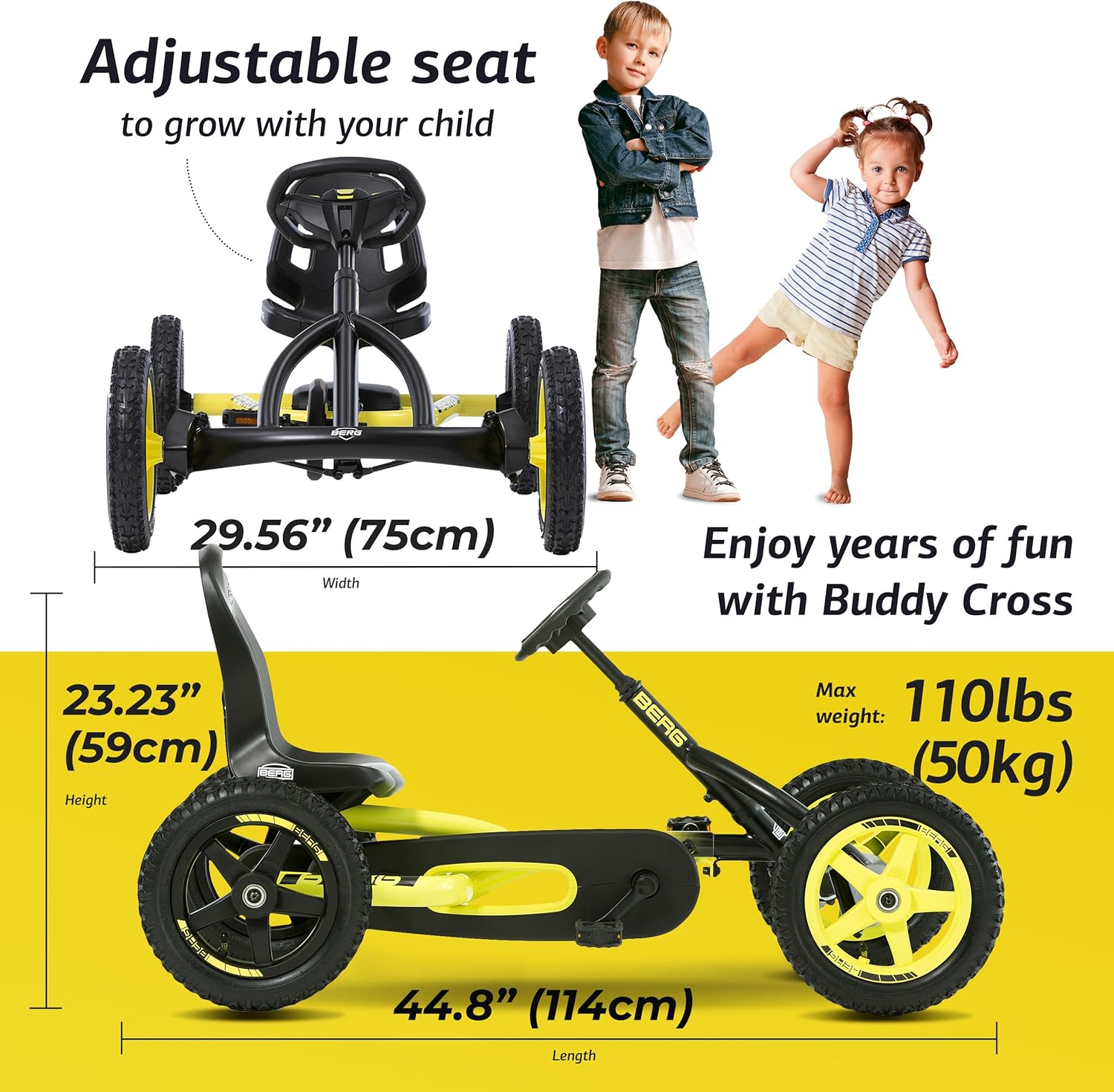

Image: A diagram illustrating the adjustable seat mechanism, highlighting how the go-kart can be adapted for growing children.
4. Operating Instructions
The BERG Buddy Cross is designed for intuitive operation, primarily utilizing the BFR system for propulsion and control.
Understanding the BFR System:
The BFR (Brake, Freewheel, Reverse) system is a unique drive system that allows for easy and safe control of the go-kart. It combines three functions into one pedal mechanism:
- Brake: To brake, simply pedal backwards. This engages the braking mechanism, slowing down and stopping the go-kart.
- Freewheel: When you stop pedaling forward, the go-kart will continue to roll without the pedals turning. This allows for coasting and maintaining momentum.
- Reverse: After braking by pedaling backwards, continue to pedal backwards to engage the reverse gear, allowing the go-kart to move in reverse.
Image: A clear diagram illustrating the three functions of the BFR system: braking by pedaling backward, freewheeling when not pedaling, and reversing by continuing to pedal backward.
Starting and Steering:
- Starting: Sit comfortably in the seat, place your feet on the pedals, and pedal forward to begin moving.
- Steering: Use the steering wheel to guide the go-kart. The responsive steering allows for easy navigation.
- Tire Pressure: Ensure pneumatic tires are properly inflated for optimal performance and a smooth ride. Refer to the tire sidewall for recommended pressure.
5. Maintenance
Regular maintenance will ensure the longevity and safe operation of your BERG Buddy Cross Pedal Go Kart.
General Care:
- Cleaning: Clean the go-kart regularly with a damp cloth and mild soap. Avoid harsh chemicals that could damage the paint or plastic components.
- Lubrication: Periodically lubricate moving parts, such as the chain and axle bearings, with a suitable lubricant to ensure smooth operation and prevent rust.
- Fasteners: Regularly check all nuts, bolts, and screws to ensure they are tight. Tighten any loose fasteners.
Tire Maintenance:
- Tire Pressure: Check tire pressure regularly and inflate to the recommended PSI (pounds per square inch) indicated on the tire sidewall. Proper inflation ensures optimal performance and prevents premature wear.
- Tire Wear: Inspect tires for signs of wear, cracks, or punctures. Replace worn or damaged tires promptly.
Storage:
- Store the go-kart in a dry, sheltered area to protect it from weather elements.
- The BERG Buddy Cross can be stored upright to save space.
6. Troubleshooting
This section addresses common issues you might encounter with your BERG Buddy Cross Pedal Go Kart.
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty pedaling or moving forward. | Low tire pressure, chain issues, or obstruction. | Check and inflate tires to recommended pressure. Inspect chain for debris or damage; lubricate if dry. Remove any obstructions from wheels or pedals. |
| Steering is loose or unresponsive. | Loose steering components. | Check and tighten all bolts and connections in the steering mechanism. |
| Go-kart pulls to one side. | Uneven tire pressure or bent axle. | Ensure all tires are inflated to the same recommended pressure. Inspect axles for any visible damage. |
| BFR system not engaging properly. | Mechanism obstruction or wear. | Inspect the BFR mechanism for any foreign objects. If issues persist, contact customer support. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact BERG customer support for assistance.
7. Specifications
Detailed technical specifications for the BERG Buddy Cross Pedal Go Kart:
- Product Dimensions (L x W x H): 44.8 x 29.56 x 23.23 inches (114 x 75 x 59 cm)
- Item Weight: 40.7 pounds (18.46 kg)
- Model Number: 24.20.65.00
- Manufacturer Recommended Age: 36 months - 8 years
- Maximum User Weight: 110 lbs (50 kg)
- Materials: High-quality steel frame, durable plastic components, pneumatic tires.
- Drive System: BFR (Brake, Freewheel, Reverse) system.
Image: A detailed diagram displaying the length, width, and height dimensions of the BERG Buddy Cross Go Kart, along with the maximum weight capacity.
8. Warranty and Support
BERG stands behind the quality of its products. Your BERG Buddy Cross Pedal Go Kart comes with a comprehensive warranty.
Warranty Information:
- The product includes a standard 2-year warranty.
- An option to extend the warranty to 5 years is available. Please refer to the warranty card included with your product or visit the official BERG website for details on warranty registration and extension.
Customer Support:
For technical assistance, spare parts, or warranty claims, please contact BERG Toys B.V. customer support. Contact information can typically be found on the official BERG website or in the product packaging.
You can visit the official BERG store for more information and product accessories: BERG Official Store
