Hakka Commercial Vegetable Cutter VGC01 Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and care of your Hakka Commercial Vegetable Cutter VGC01. This automatic electric food processor is designed for commercial use, offering versatile slicing, shredding, and grating capabilities for a wide range of vegetables, fruits, and cheeses. Please read this manual thoroughly before initial use and retain it for future reference.

2. Important Safety Instructions

To prevent injury or damage to the appliance, always observe basic safety precautions, including the following:

• Read all instructions before operating the appliance.
• Always unplug the machine from the power outlet before cleaning, maintenance, or when not in use.
• Keep hands and utensils away from moving blades during operation. Always use the provided food pushers.
• Ensure the appliance is connected to a properly grounded 110V electrical outlet.
• Do not immerse the motor unit in water or other liquids. Wipe clean with a damp cloth.
• This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• The machine features a built-in safety mechanism that stops the motor if the large pusher is opened more than 12 inches above the hopper opening, reducing the risk of injury.
• Ensure the machine is placed on a stable, non-slip surface to prevent movement during operation.

3. Product Components

The Hakka Commercial Vegetable Cutter VGC01 consists of the main motor unit, a top cover with dual feeding hoppers, food pushers, and a set of interchangeable cutting discs.

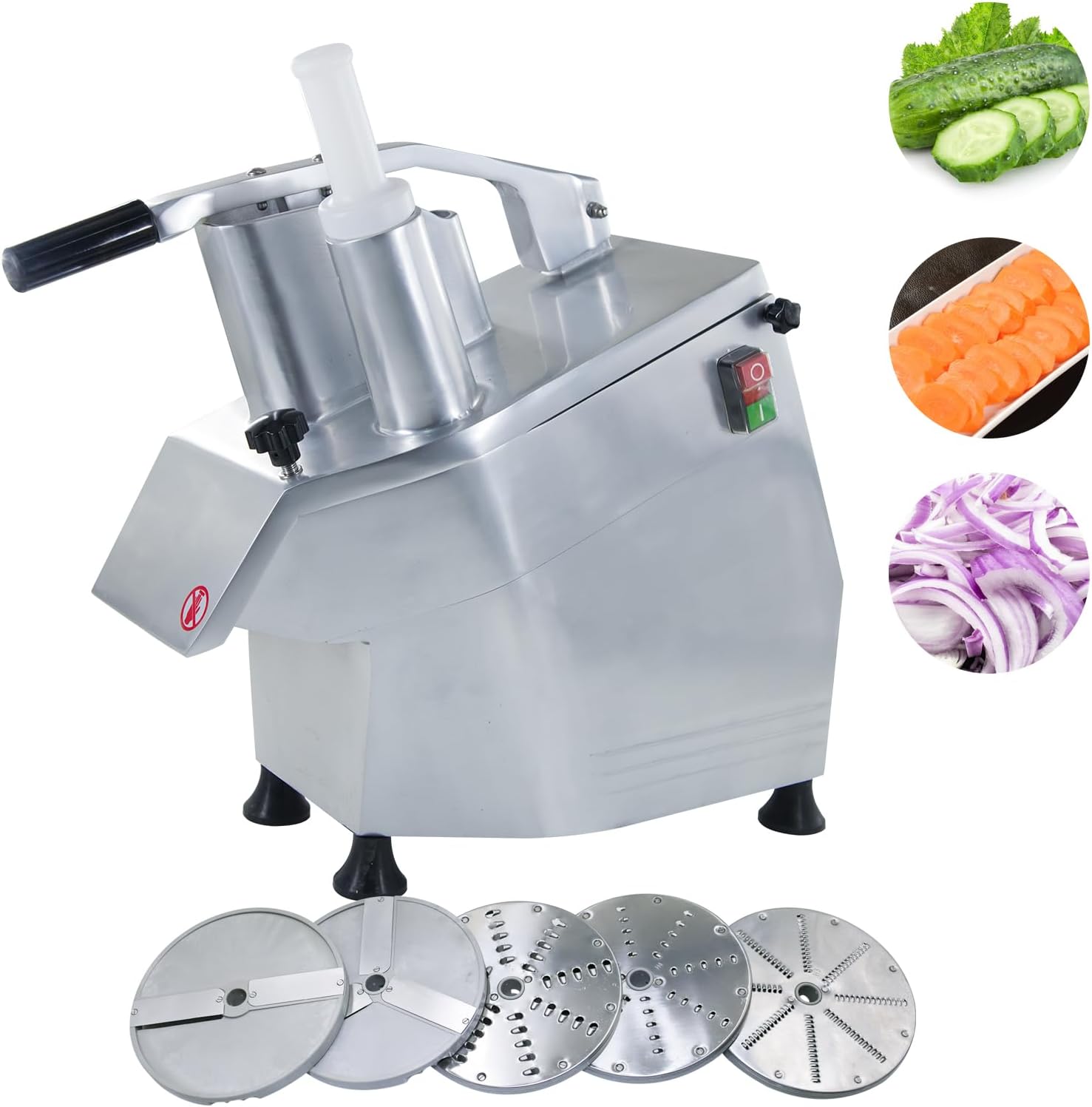

This image displays the Hakka Commercial Vegetable Cutter VGC01, showcasing its main unit, the five included interchangeable discs for various cuts, and examples of prepared vegetables like sliced cucumbers, carrots, and shredded onions.

3.1. Cutting Discs

The machine comes with five specialized discs for various cutting needs:

• Slicing Discs: 5/64" (2mm) and 5/32" (4mm) for uniform slices.
• Shredding Discs: 5/42" (7mm), 5/32" (4mm), and 1/8" (3mm) for grating and shredding.

This image provides a close-up of the five stainless steel discs included with the vegetable cutter. It highlights the two slicing discs (5/64" (2mm) and 5/32" (4mm)) and the three shredding discs (5/42" (7mm), 5/32" (4mm), and 1/8" (3mm)), each designed for specific cutting tasks.

3.2. Dual Feeding Hoppers

The machine is equipped with two feeding hoppers to accommodate different ingredient sizes.

• 2-inch Cylindrical Hopper: Ideal for processing long and thin items such as carrots, cucumbers, or celery.
• 6" x 3" Kidney-shaped Hopper: Suitable for larger, bulkier ingredients.

This image focuses on the dual feeding hoppers of the machine. It illustrates the 2-inch cylindrical hopper, suitable for long, thin vegetables, and the larger 6x3-inch kidney-shaped hopper, designed for bulkier items.

3.3. Motor and Safety Features

The VGC01 is powered by a robust motor and includes integrated safety features.

• 3/4 HP (550W) Motor: Provides sufficient power for various processing tasks.
• Safety Mechanism: Automatically stops the motor if the large pusher is lifted more than 12 inches from the hopper opening.
• Non-slip Rubber Feet: Ensures stability and prevents the unit from sliding during operation.
• Protected ON/OFF Switch: Features a cover for enhanced safety.

This diagram highlights key safety features: the feeding bar designed to prevent injury, the protected ON/OFF switch, and the non-slip rubber feet that ensure stability during operation.

4. Setup Instructions

Follow these steps for initial setup and disc installation:

1. Unpack: Carefully remove all components from the packaging.
2. Placement: Position the vegetable cutter on a clean, stable, and level countertop. Ensure adequate ventilation around the unit.
3. Disc Installation:
   • Lift the top cover of the machine.
   • Select the desired slicing or shredding disc.
   • Carefully place the disc onto the central spindle inside the machine, ensuring it sits flat and securely.
   • Close the top cover firmly until it locks into place.
4. Power Connection: Plug the power cord into a grounded 110V electrical outlet.

5. Operating Instructions

Before operating, ensure the machine is properly set up and the desired disc is installed.

1. Prepare Ingredients: Wash and peel vegetables or fruits as needed. Cut larger items into pieces that fit comfortably into the chosen feeding hopper.
2. Power On: Press the green 'ON' button on the side of the machine to start the motor.
3. Feed Ingredients:
   • For long, thin items, use the 2-inch cylindrical hopper and the corresponding food pusher.
   • For larger or bulkier items, use the 6" x 3" kidney-shaped hopper and its food pusher.
   • Always use the food pusher to guide ingredients into the cutting disc. Never use your hands.
4. Processing: Apply gentle, even pressure with the food pusher. The machine will automatically slice or shred the ingredients, which will then exit through the discharge chute. Place a container beneath the chute to collect the processed food.
5. Power Off: Once processing is complete, press the red 'OFF' button to stop the motor.

6. Maintenance and Cleaning

Regular cleaning and maintenance ensure the longevity and hygienic operation of your vegetable cutter.

1. Unplug: Always unplug the machine from the power source before cleaning.
2. Disassemble: Carefully remove the top cover, food pushers, and the cutting disc.
3. Hand Wash Components: All removable parts (cover, hoppers, pushers, and discs) should be hand washed with warm, soapy water. Rinse thoroughly and dry immediately to prevent water spots or corrosion.
4. Clean Motor Unit: Wipe the main motor unit with a damp cloth. Do not immerse the motor unit in water or spray it directly with water.
5. Dry and Store: Ensure all parts are completely dry before reassembling or storing the machine. Store in a clean, dry place.

7. Troubleshooting

If you encounter issues with your Hakka Commercial Vegetable Cutter, refer to the following common problems and solutions:

• Machine does not turn on:
  • Check if the power cord is securely plugged into a working electrical outlet.
  • Ensure the top cover is fully closed and locked. The safety mechanism prevents operation if the cover is not properly secured.
• Poor cutting or shredding performance:
  • Verify that the correct disc is installed for the desired task and that it is seated properly on the spindle.
  • Inspect the cutting disc for dullness or damage. Dull blades can significantly reduce performance. Sharpen or replace discs as needed.
  • Ensure ingredients are appropriately sized for the hopper and that you are applying consistent pressure with the food pusher.
• Motor overheats during operation:
  • Avoid continuous operation for excessively long periods. Allow the machine to rest and cool down if the motor feels hot.
  • Ensure the machine is not overloaded with ingredients.

8. Specifications

This image provides a dimensional overview of the Hakka Commercial Vegetable Cutter, indicating its length (18.9 inches / 48 cm), width (11.2 inches / 28.44 cm), and height (18 inches / 45.72 cm), along with its weight of 49 lbs (22.23 kg).

9. Warranty and Support

For warranty information, technical support, or service inquiries regarding your Hakka Commercial Vegetable Cutter VGC01, please contact the manufacturer or your authorized dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
