1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your Polini 3G Maxi-Speed 107mm Clutch. Designed for 2-stroke and 4-stroke 50cc scooter engines, this high-performance clutch features advanced adjustability and durable components for enhanced performance and longevity.
Image 1: Polini 3G Maxi-Speed 107mm Clutch. This image displays the complete clutch assembly, highlighting its robust construction and design.
2. Product Features
- Adjustable Preload: Features Allen screws for adjusting clutch spring preload without removing the clutch from the engine, allowing for fine-tuning of engagement.
- Enhanced Durability: Equipped with lightweight reinforced clutch blocks and fiber-reinforced shoes for extended life and superior heat resistance.
- Optimized Grip: Designed to provide excellent grip for efficient power transfer.
- Versatile Application: Suitable for both stock and modified 50cc 2-stroke and 4-stroke scooter engines.
3. Setup and Installation
Installation of the Polini 3G Maxi-Speed Clutch should be performed by a qualified technician or an individual with experience in scooter engine mechanics. Ensure the engine is off and cooled before beginning any work. Refer to your scooter's service manual for specific instructions on removing and installing the clutch assembly.
3.1 Clutch Spring Preload Adjustment
A key feature of the 3G Maxi-Speed clutch is its external adjustability. The clutch spring preload can be modified using Allen screws located on the clutch assembly. This allows for precise tuning of the clutch engagement RPM without requiring removal of the clutch from the engine.
- To increase engagement RPM, tighten the Allen screws to increase spring tension.
- To decrease engagement RPM, loosen the Allen screws to reduce spring tension.
- Make small, incremental adjustments and test the scooter's performance to find the optimal setting.

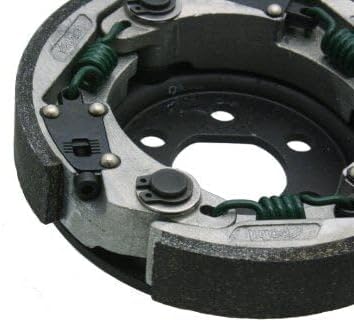

Image 2: Close-up view of the Polini 3G Maxi-Speed Clutch, showing the Allen screws used for adjusting spring preload. These screws enable fine-tuning of clutch engagement.
Optional tuning springs (such as the yellow springs shown in Image 3) may be available separately to further customize engagement characteristics. Always ensure all components are securely fastened after any adjustments.
Image 3: Optional yellow clutch springs. These springs can be used to modify the clutch's engagement characteristics, offering further tuning possibilities.
4. Operation
The Polini 3G Maxi-Speed Clutch operates centrifugally, engaging the drive system as engine RPM increases. Proper adjustment ensures smooth engagement and optimal power delivery. The fiber-reinforced shoes and robust construction are designed to handle the demands of both daily riding and performance applications.
5. Maintenance
Regular inspection and maintenance are crucial for the longevity and performance of your clutch. Periodically check the clutch shoes for wear and the springs for fatigue or damage. Clean any dust or debris from the clutch bell and clutch assembly. Replace worn components as necessary to maintain optimal performance and prevent damage to other transmission parts.

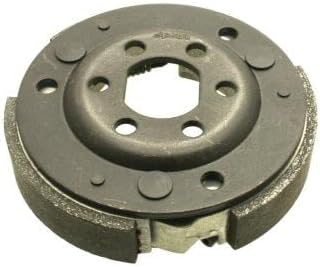

Image 4: Underside view of the Polini 3G Maxi-Speed Clutch. This perspective allows for inspection of the clutch shoe backing and overall assembly integrity.
6. Troubleshooting
If you experience issues with clutch engagement or scooter performance, consider the following:
- Slipping Clutch: May indicate worn clutch shoes, weak springs, or contamination (oil/grease). Inspect and clean/replace components.
- Harsh Engagement: Could be due to excessive spring tension (too high engagement RPM) or worn clutch bell. Adjust spring preload or inspect clutch bell.
- No Engagement: Check for broken springs, severely worn shoes, or issues with the clutch bell.
- Vibration: Can be caused by uneven clutch shoe wear or an unbalanced clutch bell.
For persistent issues, consult a professional scooter mechanic.
7. Specifications
| Specification | Detail |
|---|---|
| Brand | POLINI |
| Model Number | 146-30 |
| Clutch Diameter | 107mm |
| Engine Compatibility | 50cc 2-Stroke and 4-Stroke Engines |
| Weight | Approximately 1.6 pounds (0.73 kg) |
| Key Feature | External Spring Preload Adjustment |
8. Compatibility
The Polini 3G Maxi-Speed 107mm Clutch is compatible with a wide range of 50cc scooters. Below is a list of commonly compatible models. This list is not exhaustive; always verify fitment for your specific scooter model.
- Honda: Elite SA/SR50
- Aprilia: SR50, Scarabeo 50, Sport City 50, Mojito 50
- Genuine: Buddy 50, Roughhouse 50
- Derbi: Atlantis 50, GP1 50
- Kymco: Agility 50, People 50, Like 50, Super 8 50, Super 9 50, ZX50, Vitality 50
- Malaguti: F12 Phantom, F15 Firefox
- SYM: DD50, Fiddle 1 & 2, Jet 50
- Peugeot: Speedfight (all models)
- Piaggio: Fly 50, Zip, Zip 2, Typhoon 50
- Vespa: ET2, ET4, LX 50, Primavera 50, Modern-S 50
- Yamaha: Jog, Zuma 50, C3
9. Warranty and Support
For information regarding warranty coverage, returns, or technical support, please refer to the official Polini website or contact your authorized Polini dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
