Escape Platinum SPBT627 Bluetooth Speaker Alarm Clock User Manual

1. Introduction

This manual provides detailed instructions for the proper use and maintenance of your Escape Platinum SPBT627 Bluetooth Speaker Alarm Clock. Please read this manual thoroughly before operating the device to ensure optimal performance and safety. Keep this manual for future reference.

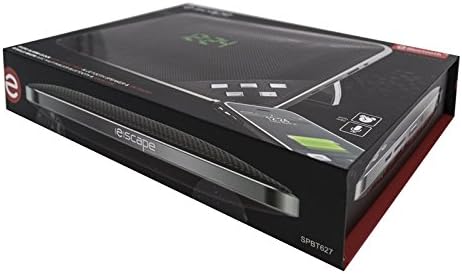

Image: The Escape Platinum SPBT627 Bluetooth Speaker Alarm Clock shown in its retail box, highlighting the product's packaging.

2. Safety Information

• Do not expose the device to water or excessive moisture.
• Avoid extreme temperatures.
• Do not disassemble or attempt to repair the device yourself. Refer to qualified service personnel.
• Keep out of reach of children.
• Use only the provided or recommended charging accessories.

3. Package Contents

Verify that all items are present in your package:

• Escape Platinum SPBT627 Bluetooth Speaker Alarm Clock
• USB Charging Cable
• Auxiliary Audio Cable
• User Manual (this document)

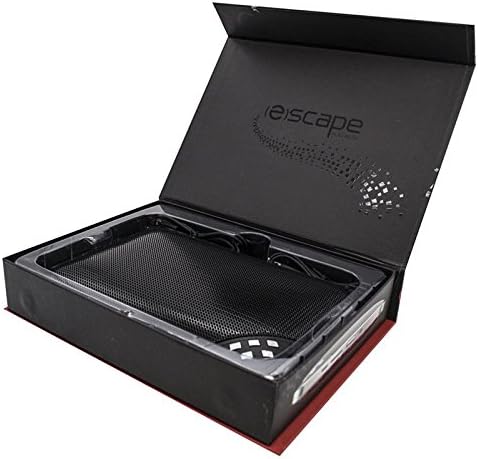

Image: The Escape Platinum SPBT627 Bluetooth Speaker Alarm Clock and its accessories neatly arranged within the open product box.

4. Product Overview

Familiarize yourself with the various parts and controls of your SPBT627 device.

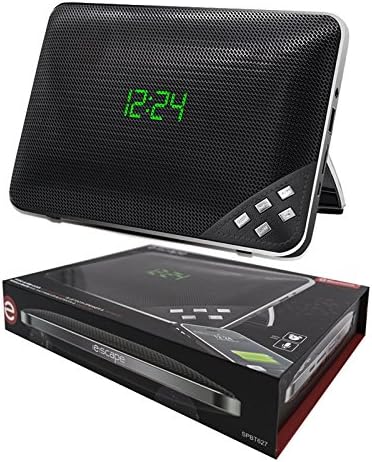

Image: Front view of the Escape Platinum SPBT627, showing the digital time display, speaker grille, and control buttons on the right side.

Controls and Ports:

• Power Button: Press and hold to turn on/off.
• Mode Button: Switch between Bluetooth, FM Radio, USB, Micro SD, and AUX modes.
• Play/Pause Button: Play or pause audio. Answer/end calls.
• Volume Up/Next Track: Short press for volume up, long press for next track.
• Volume Down/Previous Track: Short press for volume down, long press for previous track.
• Alarm Set Button: Enter alarm setting mode.
• Time Set Button: Enter time setting mode.
• USB Port: For USB flash drive playback.
• Micro SD Card Slot: For Micro SD card playback.
• AUX Input: For connecting external audio devices via 3.5mm cable.
• Charging Port: Micro USB port for charging the device.

5. Setup

5.1 Charging the Device

1. Connect the small end of the USB charging cable to the charging port on the SPBT627.
2. Connect the large end of the USB cable to a USB power adapter (not included) or a computer's USB port.
3. The charging indicator light will illuminate. Once fully charged, the light will turn off or change color.
4. A full charge typically takes 3-4 hours.

5.2 Powering On/Off

• To power on, press and hold the Power Button for approximately 3 seconds until the display lights up.
• To power off, press and hold the Power Button for approximately 3 seconds until the display turns off.

5.3 Setting Time and Date

1. Press the Time Set Button. The hour digits will flash.
2. Use the Volume Up/Next Track and Volume Down/Previous Track buttons to adjust the hour.
3. Press the Time Set Button again to confirm the hour and move to minute setting.
4. Adjust minutes using the Volume Up/Next Track and Volume Down/Previous Track buttons.
5. Press the Time Set Button one more time to save the time.
6. Note: Date setting may follow a similar procedure if available on your model. Refer to the display for prompts.

6. Operating Instructions

6.1 Bluetooth Pairing

1. Turn on the SPBT627. It will automatically enter Bluetooth pairing mode, indicated by a flashing Bluetooth icon on the display.
2. On your mobile device, enable Bluetooth and search for available devices.
3. Select "SPBT627" from the list of devices.
4. Once paired, the Bluetooth icon will stop flashing and remain solid. You can now play audio from your device.

6.2 FM Radio Operation

1. Press the Mode Button repeatedly until "FM" appears on the display.
2. To auto-scan and save stations, press and hold the Play/Pause Button. The device will scan and store available FM stations.
3. Use the Volume Up/Next Track and Volume Down/Previous Track buttons to navigate between saved stations.
4. For manual tuning, short press the Volume Up/Next Track or Volume Down/Previous Track buttons.

6.3 Alarm Clock Settings

1. Press the Alarm Set Button. The hour digits of the alarm time will flash.
2. Adjust the hour using the Volume Up/Next Track and Volume Down/Previous Track buttons.
3. Press the Alarm Set Button again to confirm the hour and move to minute setting.
4. Adjust minutes using the Volume Up/Next Track and Volume Down/Previous Track buttons.
5. Press the Alarm Set Button one more time to save the alarm time.
6. To activate/deactivate the alarm, short press the Alarm Set Button when not in setting mode. An alarm icon will appear/disappear on the display.
7. To snooze, press any button (except Power) when the alarm sounds. The alarm will sound again after 9 minutes.
8. To turn off the alarm completely, press the Power Button when the alarm sounds.

6.4 USB/Micro SD Playback

1. Insert a USB flash drive or Micro SD card (with MP3 files) into the corresponding port/slot.
2. Press the Mode Button repeatedly until "USB" or "SD" appears on the display.
3. The device will automatically begin playing music from the storage device.
4. Use the Play/Pause Button, Volume Up/Next Track, and Volume Down/Previous Track buttons to control playback.

6.5 Hands-free Calling

• When connected via Bluetooth to a smartphone, the SPBT627 can be used for hands-free calls.
• To answer an incoming call, short press the Play/Pause Button.
• To end a call, short press the Play/Pause Button again.
• To reject an incoming call, press and hold the Play/Pause Button.
• To redial the last number, double-press the Play/Pause Button.

6.6 Lighting Modes

The SPBT627 features multiple lighting modes. Press the Light Mode Button (if available, or a dedicated button for lighting) to cycle through different light effects. Refer to the product's physical buttons for the specific light control button.

7. Maintenance

• Cleaning: Use a soft, dry cloth to clean the surface of the device. Do not use abrasive cleaners or solvents.
• Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures when not in use for extended periods.
• Battery Care: To prolong battery life, charge the device fully at least once every three months if not used regularly.

8. Troubleshooting

9. Specifications

10. Warranty and Support

For warranty information and technical support, please refer to the warranty card included with your product or contact the retailer where the product was purchased. Keep your proof of purchase for warranty claims.
