Introduction
The All-Clad Gourmet Slow Cooker SD492D50 is a versatile kitchen appliance designed for various cooking methods including slow cooking, browning, rice cooking, and steaming. Its 5-quart capacity and programmable features offer convenience for preparing a wide range of meals. This manual provides essential information for safe and effective use of your appliance.
Image: All-Clad Gourmet Slow Cooker SD492D50, 5-quart capacity, silver finish with a glass lid and control panel.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions thoroughly before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse the main unit, cord, or plug in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- The removable insert is not dishwasher safe and should be hand washed.
Product Components
Your All-Clad Gourmet Slow Cooker SD492D50 includes the following components:
- Main Unit (Housing): The outer casing that houses the heating element and control panel.
- Removable Non-Stick Cast-Aluminum Insert: The primary cooking vessel with a non-stick coating. This insert can also be used directly on a stovetop for browning.
- Glass Lid: A transparent lid that allows you to monitor cooking progress without releasing heat.
- Control Panel with Digital Display: Located on the front of the main unit, featuring buttons and a dial for setting cooking modes and times.
- Rice Cup: For accurate measurement of rice.
- Steam Bucket: An accessory for steaming foods.
Image: All-Clad Gourmet Slow Cooker SD492D50 with its removable insert, glass lid, steam bucket, and rice measuring cup.
Setup and First Use
- Unpack: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
- Clean Components: Wash the removable insert, glass lid, rice cup, and steam bucket with warm, soapy water. Rinse thoroughly and dry completely.
- Clean Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
- Placement: Place the slow cooker on a flat, stable, heat-resistant surface, ensuring adequate ventilation around the appliance. Keep it away from walls, cabinets, and other heat-sensitive materials.
- Power Connection: Ensure the power cord is not obstructed or pinched. Plug the appliance into a grounded 220V electrical outlet.
Operating Instructions
Control Panel Overview

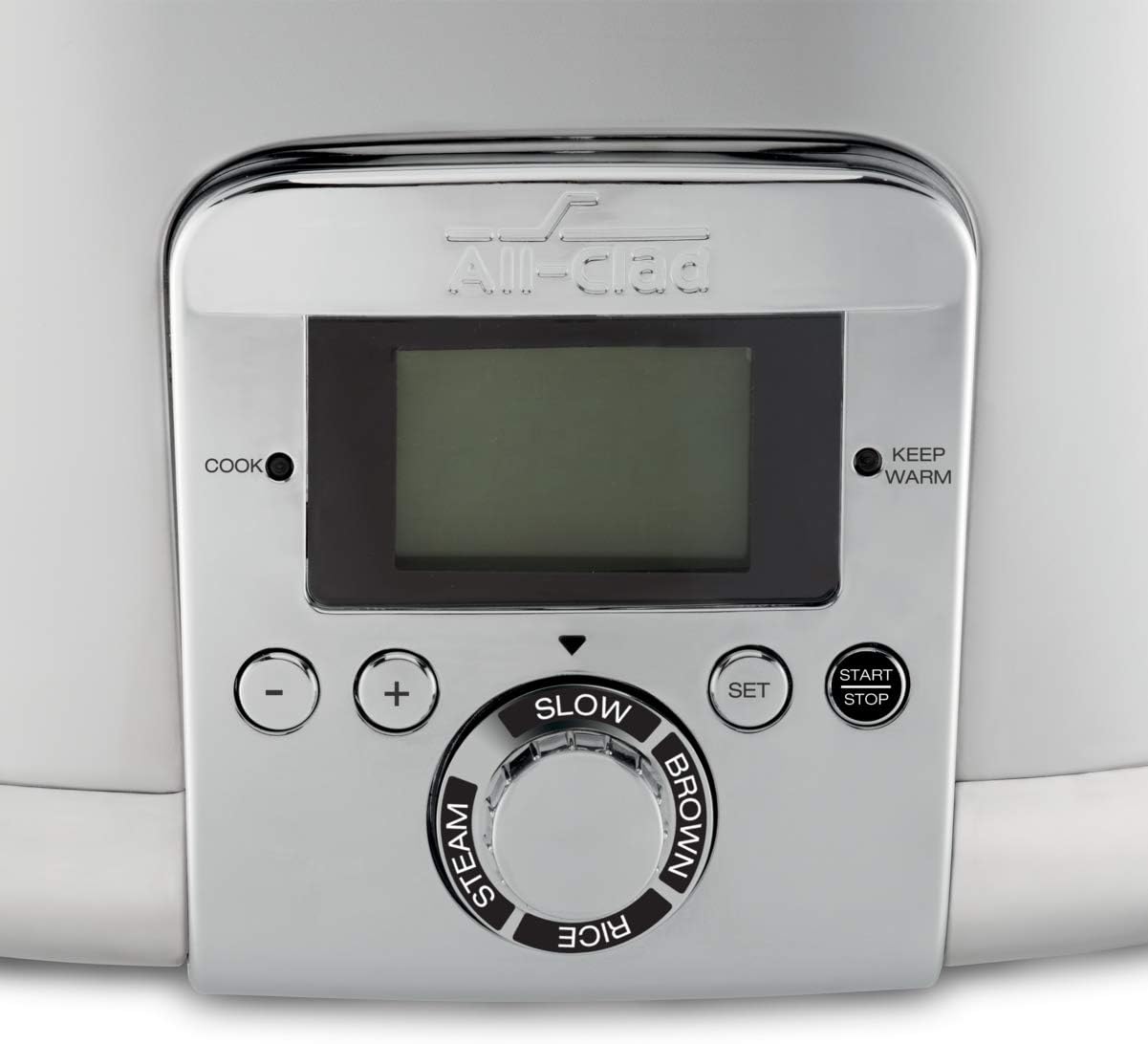

Image: Close-up view of the All-Clad slow cooker's control panel, showing the digital display, mode dial (Slow, Brown, Rice, Steam), and control buttons.
- Digital Display: Shows cooking time, temperature, and selected mode.
- Mode Dial: Rotate to select cooking functions: SLOW, BROWN, RICE, STEAM.
- “+” / “-” Buttons: Adjust cooking time or temperature settings.
- SET Button: Confirms selections or cycles through options.
- START/STOP Button: Initiates or cancels a cooking program.
General Operation
- Ensure the removable insert is properly seated in the main unit.
- Add your ingredients to the removable insert.
- Place the glass lid securely on the insert.
- Rotate the mode dial to select your desired cooking function (SLOW, BROWN, RICE, STEAM).
- Use the “+” and “-” buttons to adjust the cooking time or temperature as needed. The programmable timer allows settings up to 20 hours.
- Press the START/STOP button to begin the cooking process. The display will show the remaining cooking time.
- Once the cooking cycle is complete, the appliance will automatically switch to a Keep Warm function for up to 6 hours.
- To stop cooking at any time, press the START/STOP button.
Specific Cooking Modes
- Slow Cook: Ideal for tenderizing meats, stews, and casseroles over extended periods. Select “SLOW” and set your desired cooking time.
- Brown: Use this function to sear meats or sauté vegetables directly in the removable insert before slow cooking. The insert can also be used on a stovetop for browning.
- Rice: For cooking various types of rice. Use the provided rice cup for accurate measurements. Follow recipe guidelines for water-to-rice ratios.
- Steam: Place the steam bucket inside the removable insert with a small amount of water below it. Add food to be steamed to the bucket. Select “STEAM” and set the desired time.
Cleaning and Maintenance
Proper cleaning and maintenance ensure the longevity and performance of your slow cooker.
- Always Unplug: Before cleaning, always unplug the appliance from the electrical outlet and allow it to cool completely.
- Removable Insert, Lid, Rice Cup, and Steam Bucket: These components should be washed by hand with warm, soapy water. The non-stick coating on the insert requires the use of non-abrasive sponges or cloths to prevent damage. Rinse thoroughly and dry completely. Do not wash the removable insert in a dishwasher.
- Main Unit: Wipe the exterior of the main unit with a soft, damp cloth. Do not use abrasive cleaners or scouring pads. Never immerse the main unit in water or any other liquid.
- Storage: Ensure all parts are clean and dry before storing. Store the slow cooker in a dry place.
Troubleshooting
If you encounter issues with your All-Clad Gourmet Slow Cooker, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet malfunction; unit not properly assembled. | Check power cord connection. Test outlet with another appliance. Ensure removable insert is correctly placed. |
| Food not cooking evenly. | Lid not sealed properly; overfilling the insert. | Ensure the lid is seated correctly. Do not fill the insert beyond the maximum fill line. |
| Keep Warm function not activating. | Cooking cycle was interrupted or not completed. | Ensure the cooking cycle runs to completion. The Keep Warm function activates automatically after the set cooking time finishes. |
| Food sticking to the insert. | Non-stick coating wear; insufficient liquid. | Ensure proper care of the non-stick coating (use non-abrasive utensils). Add sufficient liquid as per recipe. |
Specifications
| Feature | Detail |
|---|---|
| Brand | All-Clad |
| Model Number | SD492D50 (10942220985) |
| Capacity | 5 Quarts |
| Color | Silver |
| Material | Aluminum, Stainless Steel |
| Wattage | 320 watts |
| Voltage | 220 Volts |
| Product Dimensions | 15.59 x 14.01 x 11.02 inches |
| Item Weight | 13.45 Pounds |
| Control Method | Touch |
| Control Type | Programmable |
| Dishwasher Safe (Insert) | No |
| Programmable Timer | Up to 20 hours |
| Automatic Keep Warm | 6 hours |
Warranty and Support
For detailed warranty information, product registration, or technical support, please visit the official All-Clad website or contact their customer service department. Keep your purchase receipt as proof of purchase for any warranty claims.
All-Clad Customer Service: Refer to your product packaging or the official All-Clad website for the most current contact information.
