Introduction
Welcome to your new Eviva Sun mirror. This manual provides essential information for the safe installation, operation, and maintenance of your mirror. Please read it thoroughly before proceeding to ensure proper use and longevity of your product.

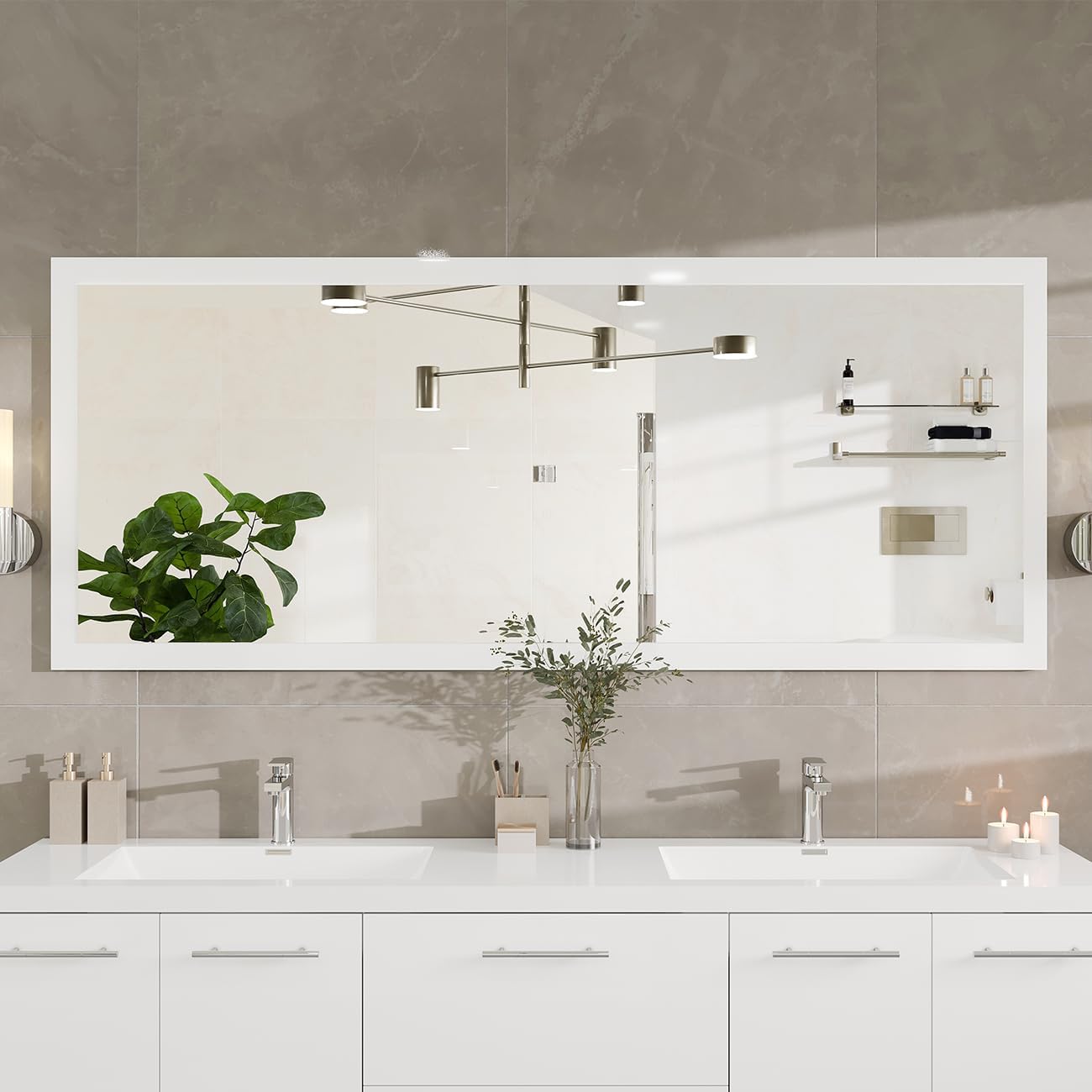

Image: The Eviva Sun 72" x 30" Rectangular White Wooden Framed Mirror, showcasing its design and size in a bathroom setting.
Safety Information
- Always handle the mirror with extreme care. Glass can break and cause severe injury.
- Due to its substantial weight (approximately 66 lbs), installation requires at least two people to prevent injury and damage to the product or property.
- Ensure the mounting surface is structurally sound and capable of safely supporting the mirror's weight. Consult a professional if unsure about wall integrity.
- Use appropriate wall anchors and screws specifically designed for your wall type (e.g., drywall, wood stud, masonry). The provided hardware is for general use; specific wall types may require specialized fasteners.
- Keep children and pets away from the installation area to avoid accidents.
- Do not hang the mirror in areas where it may be exposed to excessive moisture, direct heat sources, or extreme temperature fluctuations, as this can affect the frame and mirror backing.
Package Contents
Please verify that all components are present and undamaged before beginning installation.
- Eviva Sun 72" x 30" Rectangular White Wooden Framed Mirror (1 unit)
- Mounting brackets (pre-attached to mirror back)
- Installation hardware (screws, wall anchors)
Setup and Installation
Follow these steps carefully for secure installation. Remember, two people are required for safe handling and mounting.
Tools Required (Not Included):
- Pencil
- Measuring Tape
- Level
- Drill and appropriate drill bits
- Screwdriver (Phillips head recommended)
- Stud Finder (recommended for optimal security)
Installation Steps:
- Unpacking: Carefully remove the mirror from its packaging. Inspect the mirror and frame for any signs of damage. If damage is found, do not proceed with installation and contact customer support.
- Determine Mounting Location: Choose a suitable wall location. The mirror can be mounted horizontally (72" width) or vertically (30" width) based on your preference and available space. Ensure there are no electrical wires or plumbing pipes behind the chosen wall area.
- Marking Mounting Points: With the assistance of a second person, hold the mirror against the wall at the desired height and position. Using a pencil, accurately mark the locations of the pre-attached hanging hooks on the wall. Use a level to ensure the marks are perfectly horizontal or vertical, depending on your desired orientation.
- Drilling Pilot Holes: Based on your wall type and the marked points, drill pilot holes. If drilling into wood studs, use appropriate wood screws. If drilling into drywall without a stud, use the provided wall anchors. Ensure pilot holes are correctly sized for the anchors/screws to provide a secure fit.
- Installing Wall Anchors/Screws: Insert wall anchors into the pilot holes if necessary, following the anchor manufacturer's instructions. Drive screws into the anchors or studs, leaving a small portion of the screw head exposed (approximately 1/4 inch) to engage with the mirror's hanging hooks. Ensure screws are securely fastened and can support the mirror's weight.
- Mounting the Mirror: With assistance, carefully lift the mirror. Align the pre-attached hanging hooks on the back of the mirror with the installed screws on the wall. Gently lower the mirror onto the screws, ensuring it is securely seated and level. Caution: Do not force the mirror. If it does not sit flush, carefully remove it and re-check screw placement and wall anchors.
Image: Dimensions of the Eviva Sun mirror, illustrating its 72-inch width and 30-inch height.
Image: Rear view of the mirror, highlighting the pre-installed hanging hooks and the 9mm waterproof backing.
Operating Instructions
This mirror is designed for static wall mounting. No operational steps are required beyond proper installation. Once securely mounted, the mirror is ready for use.
Maintenance
Proper care will help maintain the appearance and integrity of your mirror.
Cleaning the Glass:
- Use a soft, lint-free cloth (e.g., microfiber) and a non-abrasive, ammonia-free glass cleaner.
- Spray the cleaner onto the cloth, not directly onto the mirror. This prevents liquid from seeping behind the frame, which could damage the mirror backing or frame finish.
- Wipe the glass gently in a circular motion until clean and streak-free.
Image: Detail of the mirror surface, demonstrating its crystal clear reflection quality.
Cleaning the Frame:
- Wipe the white wooden frame with a soft, slightly damp cloth.
- Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the glossy finish.
- Dry the frame immediately after cleaning to prevent water spots or potential moisture damage to the engineered wood.

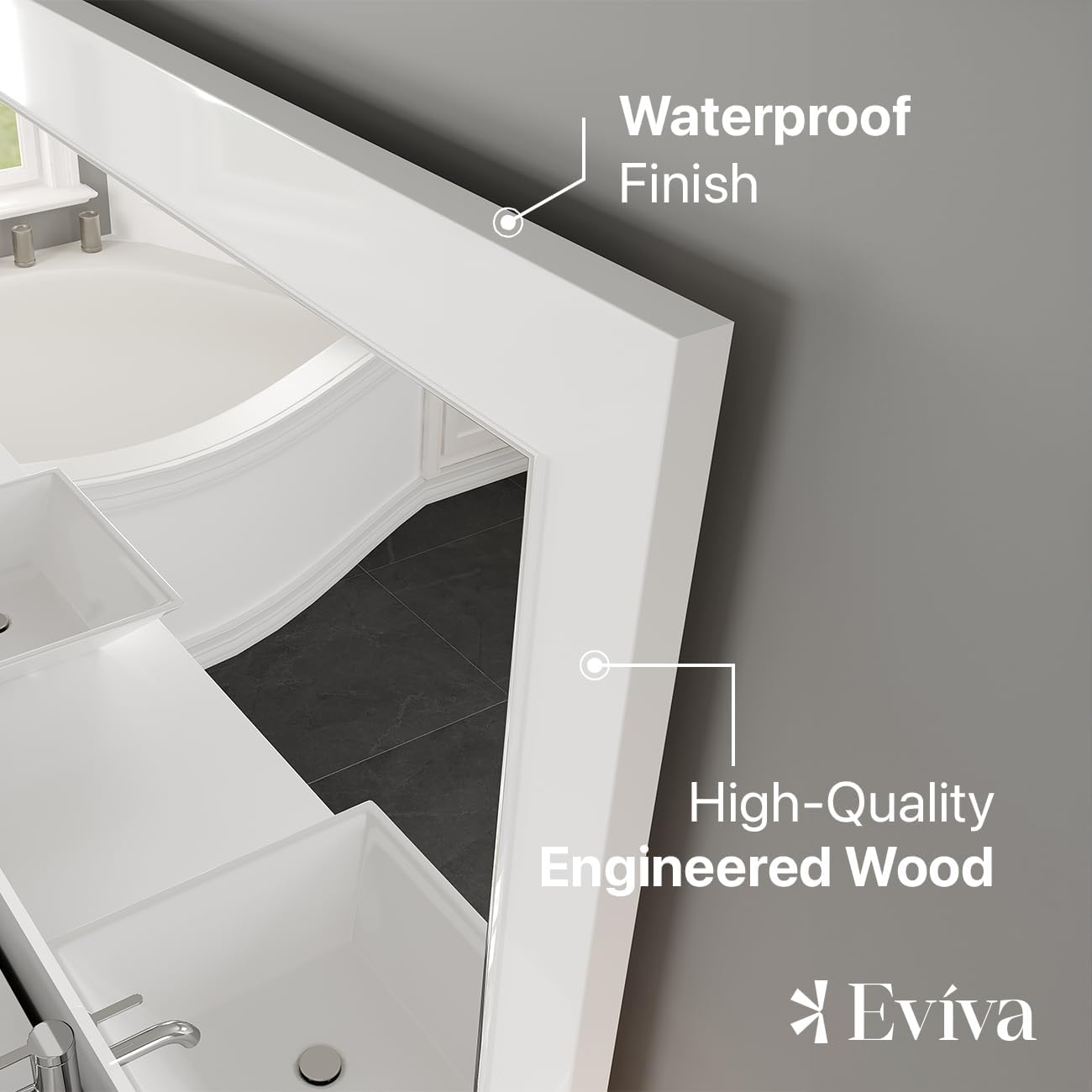

Image: Close-up of the mirror frame, emphasizing its waterproof finish and construction from high-quality engineered wood.
Periodic Inspection:
Periodically (e.g., every 6-12 months), inspect the mounting hardware to ensure the mirror remains securely attached to the wall. Tighten any loose screws if necessary.
Troubleshooting
If you encounter any issues with your mirror, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Mirror appears loose or wobbly on the wall. | Improperly installed wall anchors or screws; insufficient support for weight. | Carefully remove the mirror with assistance. Re-inspect the wall anchors and screws. Ensure they are fully tightened and correctly installed for your specific wall type. Consider using stronger anchors or locating wall studs for more secure mounting. |
| Streaks or smudges remain after cleaning the glass. | Dirty or lint-shedding cloth; incorrect cleaning technique; residue from cleaner. | Use a fresh, clean, lint-free microfiber cloth. Ensure the glass cleaner is streak-free and applied to the cloth, not directly to the mirror. Buff gently until clear. |
| Mirror is not level after installation. | Mounting points were not perfectly aligned or level. | Carefully remove the mirror with assistance. Adjust the height of the wall screws as needed, using a level to verify before re-mounting. |
Specifications
| Brand | Eviva |
| Model | EVMR-72X30-GWH |
| Dimensions (W x H x D) | 72 inches x 30 inches x 2.56 inches |
| Weight | Approximately 66 lbs |
| Frame Material | Engineered Wood |
| Frame Finish | Glossy White |
| Glass Type | Premium quality mirror glass with 9mm waterproof back |
| Mounting Type | Wall Mount (Horizontal or Vertical) |
| Assembly Required | No (installation only) |
| Included Components | Mirror, mounting hardware |
Warranty and Support
For detailed warranty information, product registration, or technical support, please refer to your purchase documentation or visit the official Eviva website. You may also contact Eviva customer service directly for assistance with any product-related inquiries.
