Youme 22 AWG Lipo Battery Balance Charger Cable User Manual (2S-6S JST-XH)

Introduction

This user manual provides essential information for the safe and effective use of your Youme 22 AWG Lipo Battery Balance Charger Cable set. These JST-XH connector cables are designed for balancing and charging 2S, 3S, 4S, 5S, and 6S lithium polymer (LiPo) batteries, commonly used in RC applications. Please read this manual thoroughly before use to ensure proper operation and longevity of your product.

Safety Precautions

Always observe the following safety guidelines when handling LiPo batteries and charging equipment:

• Never leave charging batteries unattended.
• Use only compatible balance chargers and power supplies.
• Ensure correct polarity and cell count matching when connecting cables to batteries and chargers. Incorrect connections can cause damage or fire.
• Inspect cables for damage (frayed wires, bent pins) before each use. Do not use damaged cables.
• Charge batteries in a fire-safe area, away from flammable materials.
• Keep out of reach of children.

Package Contents

Your package includes the following Youme 22 AWG Lipo Battery Balance Charger Cables:

• 2 pieces of 2S3P balance charge cables
• 2 pieces of 3S4P balance charge wires
• 2 pieces of 4S5P balance cables
• 2 pieces of 5S6P balance charging cables
• 2 pieces of 6S7P balance wires

Product Overview

The Youme 22 AWG Lipo Battery Balance Charger Cables feature JST-XH connectors, which are standard for balancing LiPo batteries. These cables allow you to connect your LiPo battery's balance port to a compatible balance charger or balance board, ensuring each cell in the battery pack is charged to the same voltage for optimal performance and safety.

This image displays the complete set of Youme 22 AWG Lipo Battery Balance Charger Cables, showing various configurations from 2S to 6S, each with its corresponding JST-XH connector.

This image shows individual balance charger cables, highlighting the red and black wires connected to the white JST-XH connectors.

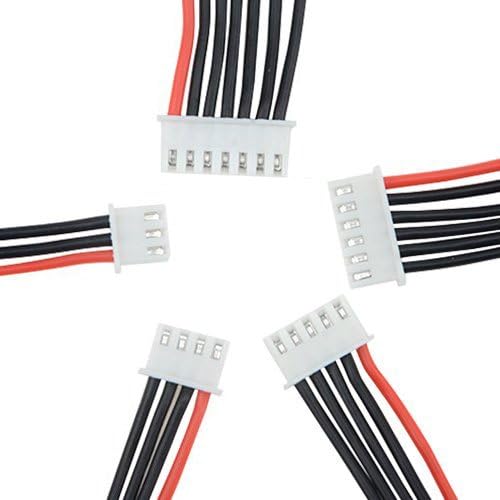

A close-up view of the JST-XH connectors on the Youme balance charger cables, illustrating the pin configuration for different cell counts.

Setup and Connection

To properly set up your Youme balance charger cables, follow these steps:

1. Identify the correct balance cable for your LiPo battery's cell count (e.g., 2S, 3S, 4S, 5S, or 6S). The number of pins on the JST-XH connector corresponds to the cell count plus one (e.g., 2S battery uses a 3-pin connector).
2. Connect the appropriate balance cable to your LiPo battery's balance port. Ensure the connector is fully seated and the polarity is correct (usually indicated by a red wire on one end).
3. Connect the other end of the balance cable to the corresponding balance port on your compatible balance charger or balance charging board. Again, ensure a secure and correct connection.
4. Connect the main power leads of your LiPo battery to the main output terminals of your balance charger, if required by your charger model.

Operating Instructions

Once the balance cables are securely connected to your battery and charger, you can proceed with charging or discharging. Always refer to your specific balance charger's manual for detailed operating instructions. The general steps are as follows:

1. Power on your balance charger.
2. Select the appropriate battery type (e.g., LiPo) and cell count (e.g., 2S, 3S, etc.) on your charger.
3. Choose the desired function: Balance Charge, Storage, or Discharge.
4. Set the charging or discharging current according to your battery's specifications. Never exceed the recommended charge rate.
5. Initiate the process. The charger will typically perform a battery check before starting.
6. Monitor the charging process. Disconnect immediately if any abnormalities (e.g., swelling, overheating) occur.

Maintenance

Proper maintenance ensures the longevity and reliability of your balance charger cables:

• Cleaning: Keep connectors clean and free from dirt or debris. Use a soft, dry brush or compressed air if necessary.
• Storage: Store cables in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid tangling the wires to prevent damage.
• Inspection: Regularly inspect the wires and connectors for any signs of wear, cuts, or corrosion. Replace any damaged cables immediately.

Troubleshooting

If you encounter issues, consider these common troubleshooting steps:

• Charger Not Recognizing Battery: Ensure all connections (main power and balance leads) are secure and correctly oriented. Check if the battery type and cell count settings on the charger match the connected battery.
• Slow or Incomplete Balance: Verify that the balance cable is fully inserted and that no pins are bent or damaged. Some chargers may take longer to balance cells with significant voltage differences.
• Overheating Cables/Connectors: Immediately disconnect the battery and charger. This could indicate a short circuit, damaged cable, or an issue with the battery or charger. Do not reuse the affected components until the cause is identified and resolved.

Specifications

Warranty and Support

For any questions, concerns, or support regarding your Youme 22 AWG Lipo Battery Balance Charger Cables, please contact Youme Power customer service. Refer to your purchase documentation for specific warranty details and contact information.
