EuropAce 5-IN-1 Air Fryer Oven (EAO103P) User Manual

1. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully before operating this appliance.

• Read all instructions: Familiarize yourself with the appliance's functions and safety warnings.
• Hot surfaces: The appliance's exterior surfaces may become hot during use. Use oven mitts or gloves when handling hot components.
• Electrical safety: Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting. Do not immerse the cord, plug, or appliance in water or other liquids.
• Children and supervision: This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Proper ventilation: Do not block any ventilation openings. Allow sufficient space around the appliance for proper air circulation.
• Unplug when not in use: Always unplug the appliance from the outlet when not in use and before cleaning. Allow it to cool before putting on or taking off parts.
• Avoid damage: Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Indoor use only: This appliance is intended for household use only. Do not use outdoors.
• Flammable materials: Do not place the appliance near flammable materials such as curtains or tablecloths.

2. Product Overview

The EuropAce 5-IN-1 Air Fryer Oven (EAO103P) is a versatile kitchen appliance designed for healthier cooking. It combines the functions of an air fryer, oven, grill, roaster, and skewer, offering an 11-liter capacity suitable for various meal preparations, including cooking a whole chicken.

Key Features:

• 11 Liters Capacity
• 5-in-1 Functions: Air Frying, Baking, Grilling, Roasting, Skewering
• Touch Control Method
• Temperature Control
• Rapid Air Circulation Technology

Components and Accessories:

Familiarize yourself with the main unit and its accompanying accessories:

This image displays the EuropAce 5-IN-1 Air Fryer Oven along with its included accessories: a mesh frying basket, a rotisserie spit, a baking pan, a mesh rack, and an oil spray bottle. These components are designed for versatile cooking functions.

• Main Unit: Houses the heating element, fan, and control panel.
• Frying Basket: For air frying smaller items like fries or chicken wings.
• Rotisserie Spit: For roasting whole chickens or larger cuts of meat.
• Baking Pan: For baking cakes, casseroles, or roasting vegetables.
• Mesh Rack: For grilling or dehydrating.
• Oil Spray Bottle: For lightly coating food with oil.

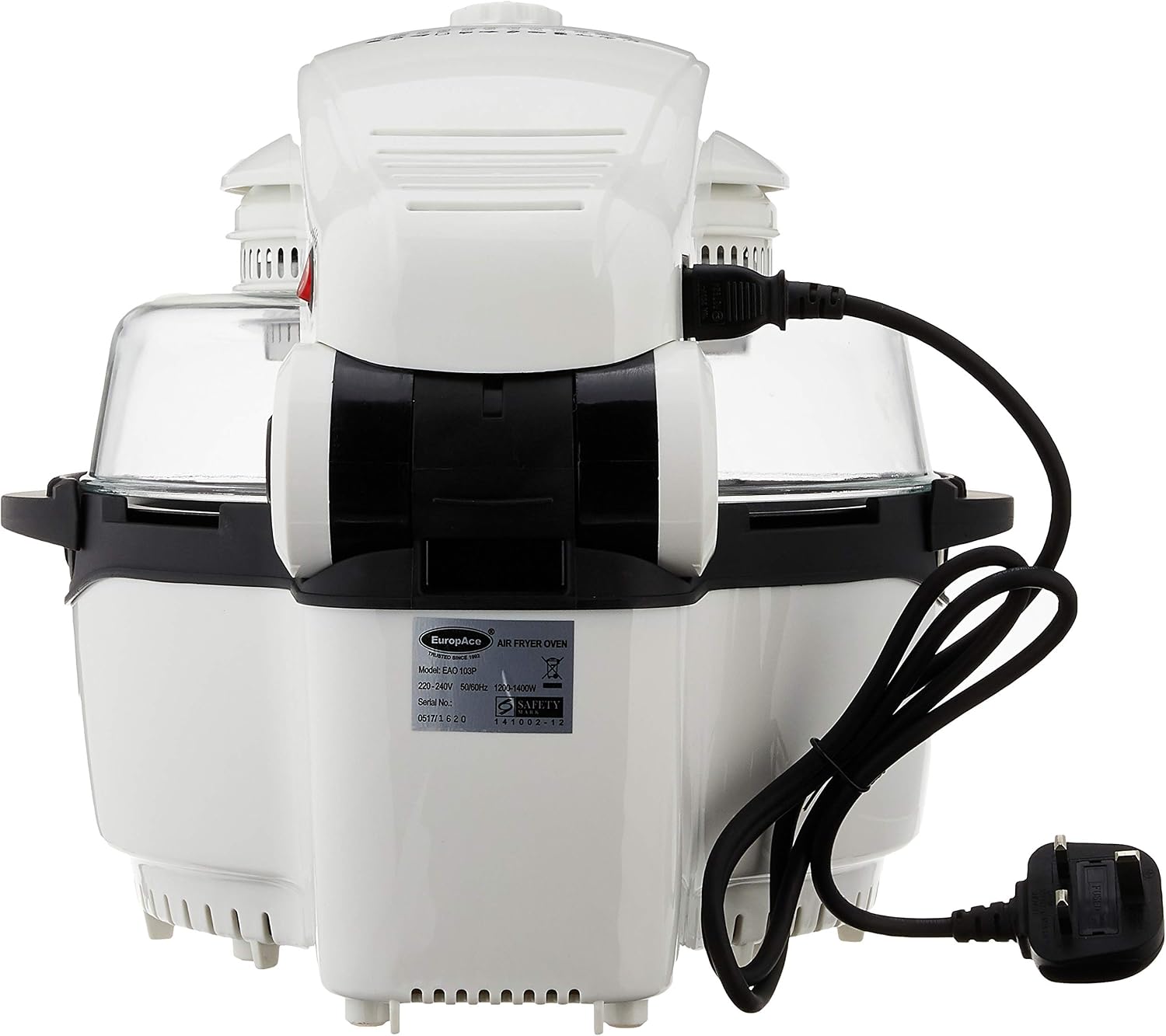

This image shows the back of the EuropAce 5-IN-1 Air Fryer Oven, highlighting the power cord and the product information label. The label includes details such as the model number EAO103P, voltage, and wattage.

This image provides a visual representation of the EuropAce 5-IN-1 Air Fryer Oven's dimensions, showing its height of 14 inches (35 cm) in comparison to an average human silhouette for scale.

3. Setup

Unpacking:

1. Carefully remove the air fryer oven and all accessories from the packaging.
2. Remove any protective films or stickers from the appliance.
3. Retain the packaging for future storage or transport.

Initial Cleaning:

1. Wipe the exterior of the appliance with a damp cloth.
2. Wash all removable accessories (frying basket, rotisserie spit, baking pan, mesh rack) with warm, soapy water. Rinse thoroughly and dry completely.
3. Do not immerse the main unit in water.

Placement:

• Place the air fryer oven on a stable, heat-resistant, and level surface.
• Ensure there is at least 10-15 cm (4-6 inches) of clear space around the back and sides of the appliance for adequate ventilation.
• Do not place the appliance directly against a wall or under cabinets that are susceptible to heat damage.
• Keep the appliance away from water sources and other heat-generating appliances.

Power Connection:

Plug the power cord into a grounded electrical outlet. The appliance is now ready for use.

4. Operating Instructions

General Operation:

1. Power On: Plug in the appliance. The control panel will illuminate.
2. Select Function: Use the touch controls to select your desired cooking function (e.g., Air Fry, Bake, Roast).
3. Set Temperature and Time: Adjust the temperature and cooking time using the dedicated controls. Refer to recipes or cooking guides for recommended settings.
4. Preheating (Optional): For best results, preheat the oven for 3-5 minutes at the desired temperature before adding food.
5. Start Cooking: Press the Start/Pause button to begin the cooking cycle.
6. Monitor Food: Periodically check food through the transparent window. You can pause the cooking cycle to flip or shake food if necessary.
7. Power Off: The appliance will beep when the cooking cycle is complete. Press the Power button or unplug the unit to turn it off.

Using Accessories:

• Frying Basket: Place food evenly in the basket. Insert the basket into the main unit.
• Rotisserie Spit: Securely attach the food (e.g., whole chicken) to the spit. Insert the spit into the rotisserie slots inside the oven and ensure it is properly engaged for rotation.
• Baking Pan/Mesh Rack: Place food on the pan or rack and slide it into the appropriate guides within the oven.

Cooking Tips:

• For crispy results, lightly spray food with oil using the provided oil spray bottle.
• Do not overcrowd the basket or pan; cook in batches if necessary to ensure even cooking.
• Shake the frying basket or flip food halfway through the cooking time for uniform browning.
• Always use oven mitts when removing hot accessories or food from the oven.

5. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your EuropAce Air Fryer Oven.

Before Cleaning:

1. Always unplug the appliance from the power outlet.
2. Allow the appliance to cool down completely before handling any parts.

Cleaning the Main Unit:

• Wipe the exterior with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads.
• Clean the interior with a soft, damp cloth. For stubborn food residue, use a non-abrasive sponge with warm, soapy water.
• Never immerse the main unit in water or any other liquid.

Cleaning Accessories:

• All removable accessories (frying basket, rotisserie spit, baking pan, mesh rack) can be washed with warm, soapy water.
• Rinse thoroughly and dry completely before storing or next use.
• Note: The item is not dishwasher safe. Hand washing is recommended for all accessories.

Storage:

Ensure the appliance and all accessories are clean and dry before storing. Store the air fryer oven in a cool, dry place.

6. Troubleshooting

If you encounter any issues with your EuropAce Air Fryer Oven, refer to the following common problems and solutions:

If the issue is not listed or persists after attempting the solutions, please contact EuropAce customer support.

7. Specifications

• Model Name: EAO103P
• Brand: EuropAce
• Capacity: 11 Liters
• Functions: 5-in-1 (Air Frying, Baking, Grilling, Roasting, Skewering)
• Control Method: Touch
• Special Features: Temperature Control
• Air Frying Technology: Rapid Air Circulation
• Material: Aluminium, Plastic
• Outer Material: Plastic
• Inner Material: Plastic
• Dishwasher Safe: No
• Recommended Product Uses: Frying healthier foods

8. Warranty and Support

Warranty Information:

This EuropAce 5-IN-1 Air Fryer Oven (EAO103P) comes with a 1 Year Local Manufacturer Warranty. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal household use. It does not cover damage resulting from misuse, accident, alteration, neglect, or unauthorized repair.

Customer Support:

For technical assistance, warranty claims, or general inquiries, please contact EuropAce customer support:

• Website: www.europace.com.sg (Please refer to the official website for the most current contact information)
• Service Centre: Refer to your warranty card or the official EuropAce website for service centre locations and operating hours.
