Moen 7082 Chrome One-Handle Kitchen Faucet User Manual
Model: 7082 | Brand: Moen
Introduction
This user manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Moen 7082 Chrome One-Handle Kitchen Faucet. Designed for ease of use and durability, this faucet features a chrome finish and a single lever handle for precise water control. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

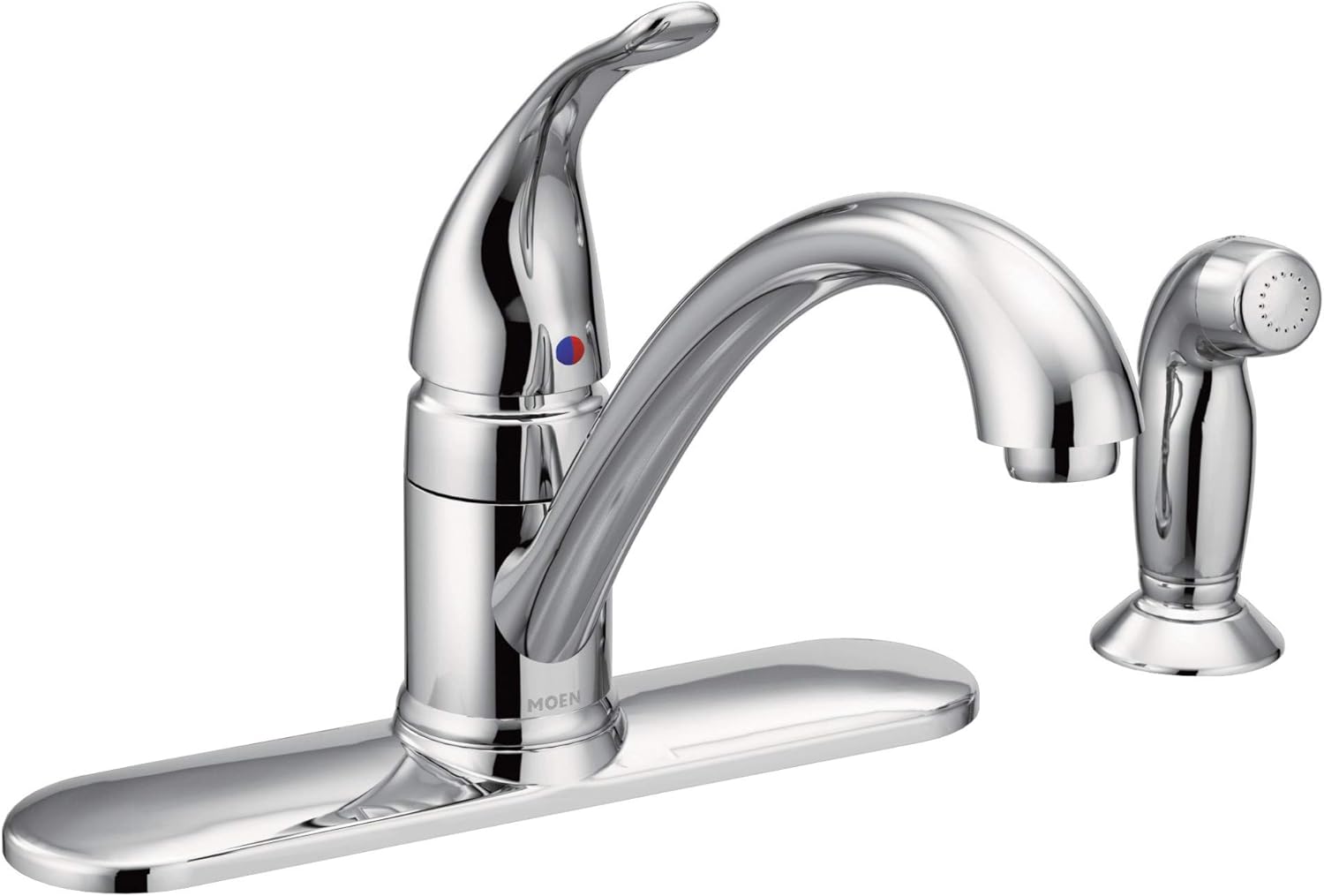

Figure 1: The Moen 7082 Chrome One-Handle Kitchen Faucet, showcasing its sleek design and integrated side spray.
Setup and Installation
Before beginning installation, ensure all necessary components are present and that your water supply is turned off. It is recommended to have basic plumbing tools available.
Components Checklist:
- Faucet body with handle
- Side spray hose and head
- Mounting hardware (nuts, washers)
- Deck plate (escutcheon)
- Hot and cold water supply lines
Installation Steps:
- Prepare the Sink: Ensure the mounting surface on your countertop or sink is clean and dry. If replacing an old faucet, remove it and clean the area thoroughly.
- Install Deck Plate: Place the deck plate (escutcheon) over the faucet holes on the sink.
- Mount the Faucet: Insert the faucet body through the center hole of the deck plate and sink. From underneath the sink, secure the faucet using the provided mounting washer and nut. Tighten firmly but do not overtighten.
- Connect Water Supply Lines: Attach the hot and cold water supply lines to the corresponding inlets on the faucet body. Connect the other ends to your hot and cold water shut-off valves. Ensure connections are hand-tight, then use a wrench for a quarter-turn to secure.
- Install Side Spray: Feed the side spray hose through the designated hole in the sink. Connect the hose to the spray port on the faucet body. Secure the side spray head in its holder.
- Test for Leaks: Slowly turn on the hot and cold water supply valves. Check all connections for leaks. If leaks are detected, tighten the connections slightly until they stop.

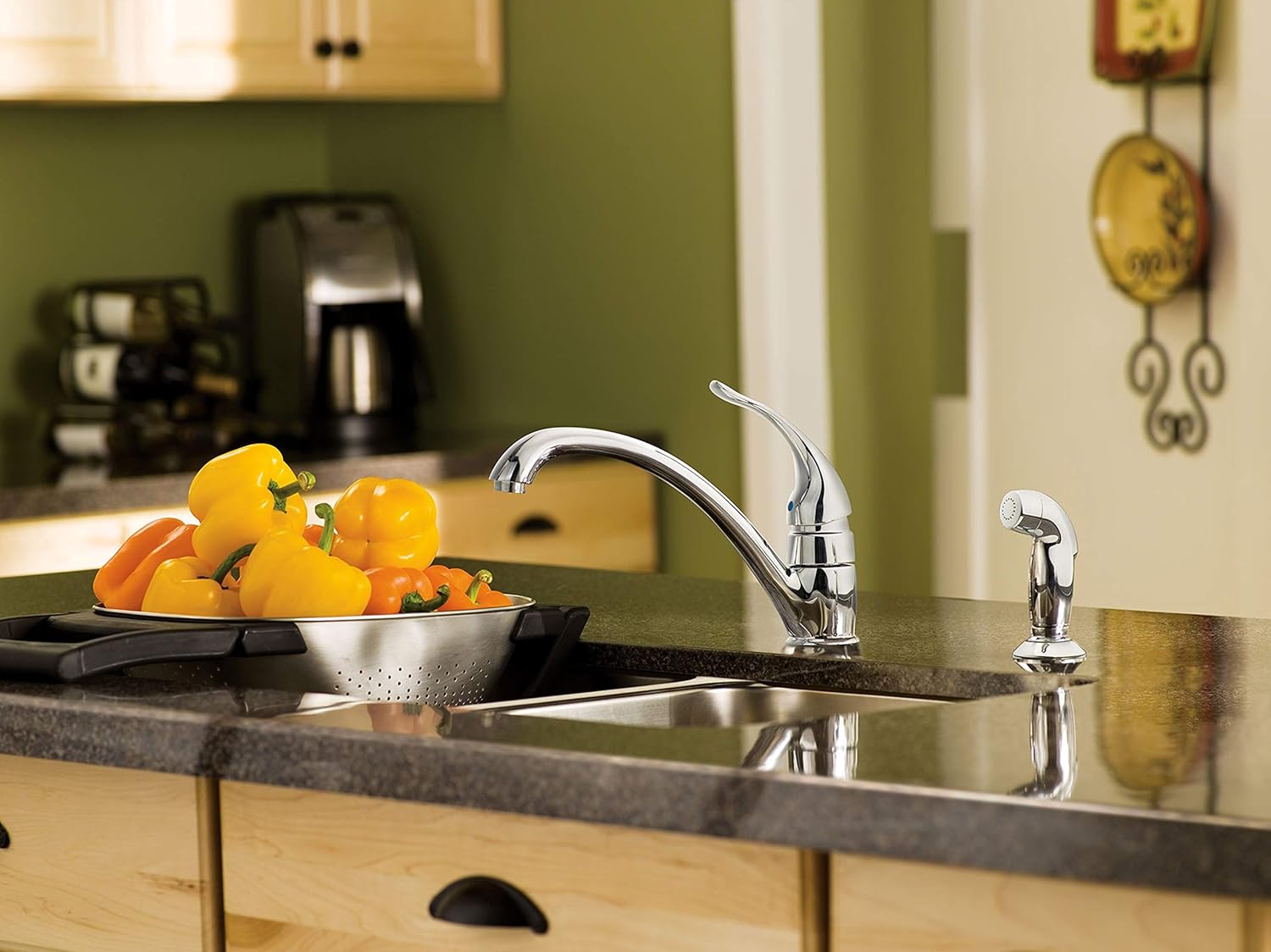

Figure 2: The Moen faucet seamlessly integrated into a kitchen environment, demonstrating its functional and aesthetic appeal.
Operating Instructions
The Moen 7082 faucet is designed for simple and intuitive operation.
- Water Flow Control: Lift the single lever handle upwards to turn on the water. The further you lift, the greater the water flow.
- Temperature Control: Move the lever handle to the left for hot water and to the right for cold water. Adjust the position between hot and cold to achieve your desired water temperature.
- Side Spray Operation: To use the side spray, simply lift the spray head from its holder and press the button on the handle. Release the button to stop the spray.
Figure 3: Close-up view of the Moen faucet and side spray positioned over a stainless steel sink, highlighting its functional design.
Maintenance and Care
Proper care will help maintain the finish and performance of your Moen faucet.
- Cleaning the Finish: Clean the chrome finish with a soft, damp cloth and mild soap. Rinse thoroughly with warm water and dry with a soft cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Aerator Cleaning: If water flow becomes restricted, the aerator may be clogged. Unscrew the aerator from the end of the spout, clean any debris, and rinse under running water. Reattach the aerator.
- Cartridge Maintenance: In case of drips or leaks from the handle, the internal cartridge may need replacement. Refer to Moen's official website or contact customer support for specific cartridge replacement instructions for model 7082.
Troubleshooting
Below are common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valves. | Clean aerator; fully open hot and cold water shut-off valves. |
| Faucet Drips/Leaks | Worn cartridge; loose connections. | Replace cartridge (consult Moen support); tighten supply line connections. |
| No Hot/Cold Water | Shut-off valve closed; supply line kinked. | Open shut-off valve; straighten supply line. |
| Side Spray Leaks | Loose connection; worn O-rings. | Tighten hose connection; replace O-rings on spray head or hose. |
If the issue persists after attempting these solutions, please contact Moen customer support for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | Moen |
| Model Name | 7082 |
| Finish Type | Chrome |
| Material | Stainless Steel |
| Number of Handles | 1 |
| Handle Type | Lever |
| Mounting Type | Countertop / Deck Mounted |
| Maximum Flow Rate | 1.5 Gallons Per Minute |
| Special Features | ADA compliant, Lead Free |
| Item Weight | 4.73 Pounds |
| Product Dimensions | 8.31"D x 10.13"W x 9"H |
Warranty and Support
The Moen 7082 Chrome One-Handle Kitchen Faucet comes with a limited warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official Moen website.
For technical support, replacement parts, or any inquiries not covered in this manual, please contact Moen Customer Service:
- Website: www.moen.com
- Phone: Refer to Moen's website for regional contact numbers.
When contacting support, please have your product model number (7082) and purchase date available.
