Magic Mill Electric Smokeless Grill and Griddle Pan

1. Introduction

Thank you for choosing the Magic Mill Electric Smokeless Grill and Griddle Pan. This appliance is designed for indoor grilling and griddling, offering a convenient way to prepare a variety of foods with minimal smoke. Please read this manual thoroughly before operation to ensure safe and efficient use of your new appliance.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the drip tray is always filled with water to the recommended level to aid in smoke reduction and cooling.

3. Product Components

Familiarize yourself with the parts of your Magic Mill Electric Smokeless Grill and Griddle Pan:

• Main Base Unit: Houses the heating element, fan, and control panel.
• Grill Plate: Non-stick surface designed for grilling meats and vegetables, creating authentic grill marks.
• Griddle Plate: Non-stick flat surface ideal for pancakes, eggs, and sandwiches.
• Drip Tray: Collects excess grease and fat, and holds water for smoke reduction.
• Control Panel: Digital display for temperature, timer, and fan controls.
• Power Cord: Detachable power supply.

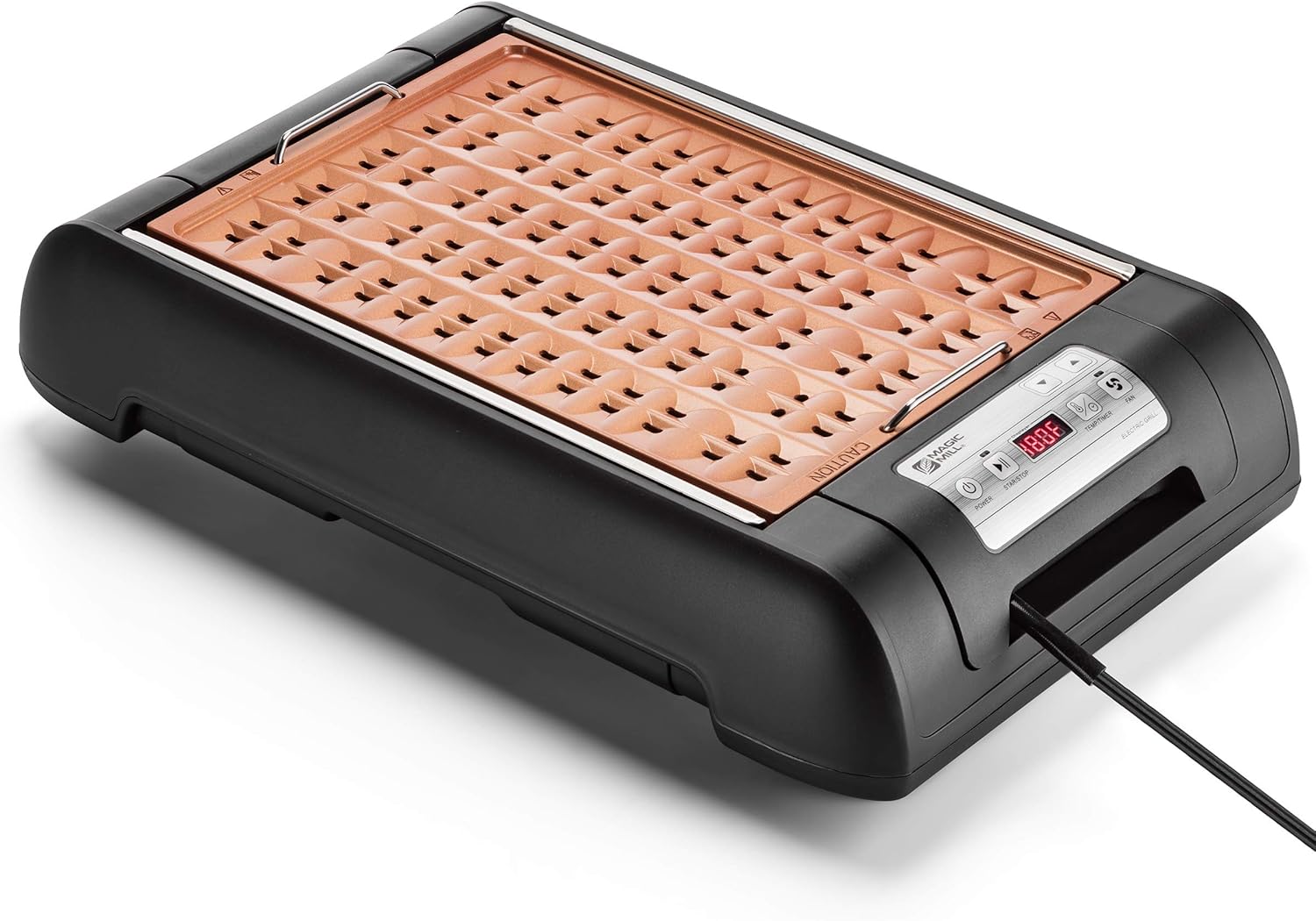

Image: The Magic Mill Electric Smokeless Grill with the grill plate in position. This shows the textured grilling surface and the overall design of the appliance.

Image: The Magic Mill Electric Smokeless Grill with the griddle plate installed. This illustrates the smooth, flat cooking surface suitable for various foods.

4. Setup

Before first use, and after each cleaning, ensure the appliance is correctly assembled.

1. Unpack: Carefully remove all packaging materials and inspect the appliance for any damage.
2. Clean Components: Wash the grill plate, griddle plate, and drip tray with warm, soapy water. Rinse thoroughly and dry completely. The main base unit should only be wiped with a damp cloth.
3. Assemble Drip Tray: Slide the drip tray into the base unit. Ensure it is properly seated.
4. Add Water: Fill the drip tray with approximately 2 cups of water. This helps reduce smoke and keeps food moist. Do not overfill.
5. Place Cooking Plate: Choose either the grill plate or the griddle plate and place it securely on top of the heating element within the base unit. Ensure it sits flat and is stable.
6. Connect Power: Plug the power cord into the appliance, then into a standard electrical outlet.

5. Operating Instructions

This section details how to use your Magic Mill Electric Smokeless Grill and Griddle Pan for optimal cooking results.

5.1. Control Panel Overview

Image: A detailed view of the digital control panel, showing buttons for power, start/stop, temperature/timer adjustment, and fan control, along with the display screen.

• Power Button: Turns the appliance on/off.
• Start/Stop Button: Initiates or pauses the cooking process.
• Temp/Timer Button: Toggles between temperature and timer settings.
• Up/Down Arrows: Adjust temperature or timer values.
• Fan Button: Activates or deactivates the built-in smoke extraction fan.
• Digital Display: Shows current temperature or remaining time.

5.2. Preheating

1. Ensure the drip tray has water and the desired cooking plate (grill or griddle) is in place.
2. Press the Power button to turn on the unit.
3. Press the Temp/Timer button until the temperature setting is displayed.
4. Use the Up/Down Arrows to set the desired cooking temperature (range: 180°F to 480°F).
5. Press the Start/Stop button to begin preheating. The display will show the current temperature rising.
6. Allow the unit to preheat for 5-10 minutes, or until the set temperature is reached.

5.3. Grilling and Griddling

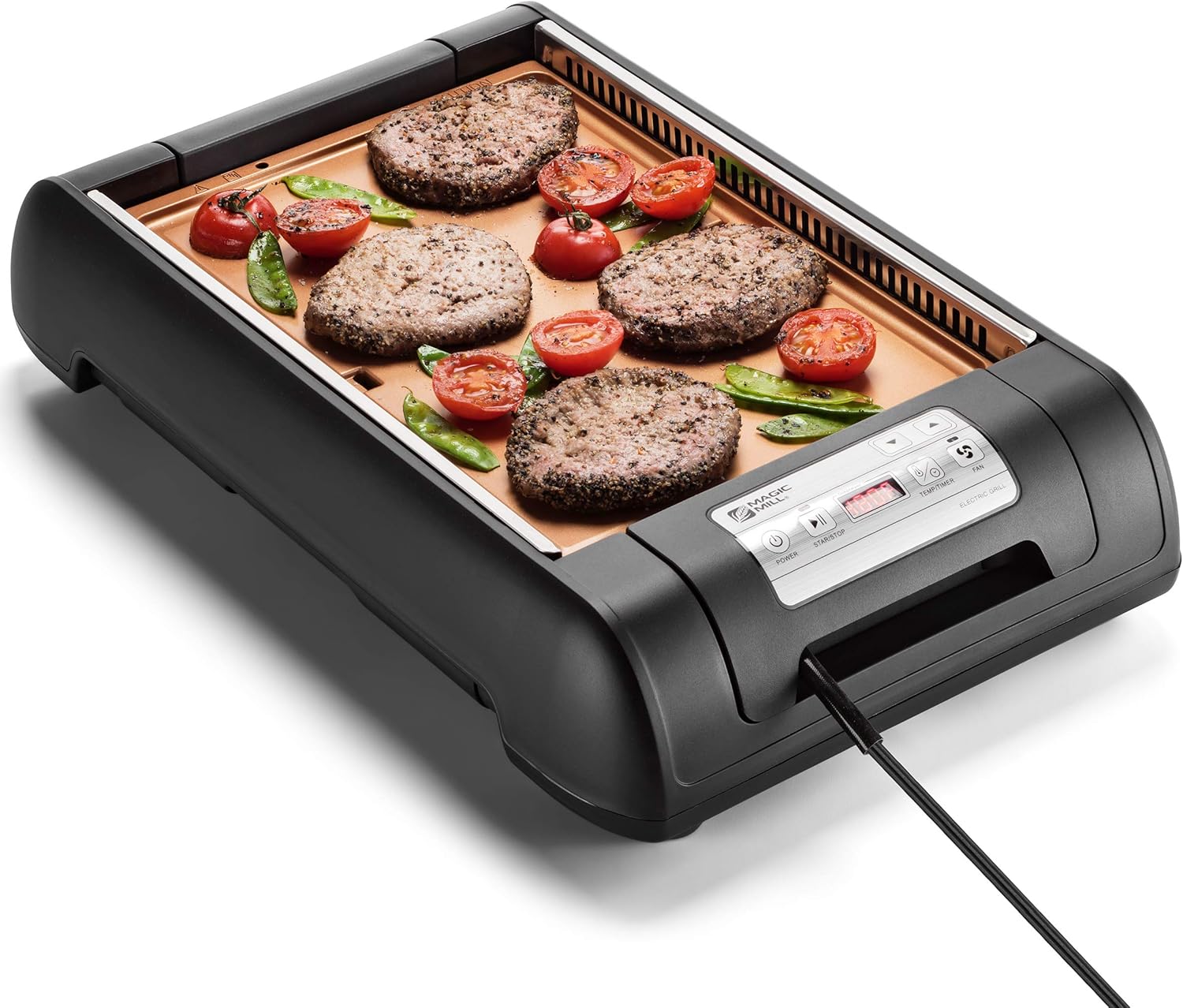

Image: The Magic Mill Electric Smokeless Grill in use, cooking burgers, cherry tomatoes, and snap peas on the grill plate, demonstrating its indoor grilling capability.

Image: The Magic Mill Electric Smokeless Grill cooking meat kebabs and asparagus spears on the grill plate, highlighting its versatility for different food types.

1. Once preheated, carefully place your food onto the hot cooking surface.
2. For best results and smoke reduction, ensure the fan is activated by pressing the Fan button. The fan icon will illuminate.
3. Monitor your food and turn as needed for even cooking.
4. The non-stick surface allows for cooking with minimal oil, promoting healthier meals. Excess fat will drain into the drip tray.

5.4. Using the Timer

The integrated timer can be set from 1 to 60 minutes.

1. After setting the temperature, press the Temp/Timer button again until the timer setting is displayed.
2. Use the Up/Down Arrows to set the desired cooking time.
3. The timer will begin counting down once the cooking process starts. The unit will automatically shut off when the timer reaches zero.

5.5. Smoke Reduction Fan

Image: An internal diagram illustrating the airflow of the built-in fan system, designed to reduce smoke during indoor grilling.

The built-in fan system is crucial for minimizing smoke during indoor grilling. It works by drawing air and smoke downwards into the water-filled drip tray.

• Always ensure the drip tray contains water when using the fan.
• Press the Fan button to activate the fan. It is recommended to keep the fan on throughout the cooking process.
• For heavily marinated or fatty foods, some smoke may still occur, but the fan significantly reduces it.

6. Cleaning and Maintenance

Proper cleaning ensures the longevity and performance of your appliance.

1. Unplug and Cool: Always unplug the grill from the power outlet and allow it to cool completely before cleaning.
2. Remove Components: Carefully remove the grill/griddle plate and the drip tray from the base unit.
3. Dishwasher Safe Parts: The grill plate, griddle plate, and drip tray are dishwasher safe. For stubborn residue, soak in warm, soapy water before washing.
4. Clean Base Unit: Wipe the main base unit and control panel with a soft, damp cloth. Do not immerse the base unit in water or any other liquid.
5. Dry Thoroughly: Ensure all parts are completely dry before reassembling or storing the appliance.
6. Empty Drip Tray: Dispose of any water and grease from the drip tray after each use.

7. Troubleshooting

If you encounter issues with your grill, refer to the following common problems and solutions:

8. Specifications

• Model: MGB-3300
• Brand: Magic Mill
• Material: Aluminum
• Color: Brown
• Product Dimensions: 4"D x 12"W x 4"H (Note: This appears to be a compact representation, actual cooking area is 13.6"x 9.5")
• Item Weight: Approximately 14.2 Pounds
• Wattage: 1500 watts
• Voltage: 12 Volts (Note: This might be a misprint in source data, typically 120V for US appliances)
• Temperature Control: Digital, 180°F to 480°F
• Timer: 1 to 60 minutes
• Special Features: Non-stick coating, Temperature Control, Built-in Fan

9. Warranty Information

This Magic Mill appliance comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration of coverage. Keep your proof of purchase for warranty claims.

10. Customer Support

For any questions, concerns, or assistance with your Magic Mill Electric Smokeless Grill and Griddle Pan, please contact Magic Mill customer support. Contact information can typically be found on the product packaging or the official Magic Mill website.
