Instruction Manual: 12 AWG 4 Conductor Portable Cord

Product Overview

The CAROL 12 AWG 4 Conductor Portable Cord is a versatile electrical cable designed for various industrial and commercial applications. This multi-strand copper cable is rated for 300 Volts and features four individual conductors, making it suitable for power and control circuits where flexibility and durability are required. Its robust construction ensures reliable performance in demanding environments.

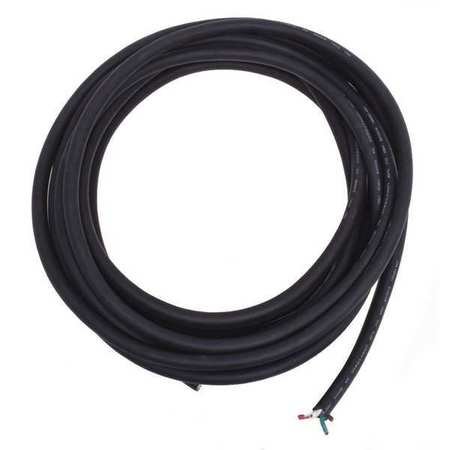

Image: A coiled length of the 12 AWG 4 Conductor Portable Cord. The cable is black, and one end shows the four internal conductors, typically color-coded for identification.

Setup and Installation

Proper setup and installation are crucial for the safe and effective use of the 12 AWG 4 Conductor Portable Cord. Always adhere to local electrical codes and safety regulations.

Safety Precautions

• Ensure power is disconnected before handling or installing the cable.
• Wear appropriate personal protective equipment (PPE), such as safety glasses and insulated gloves.
• Inspect the cable for any visible damage before use. Do not use if insulation is cut or frayed.
• Consult a qualified electrician for complex installations or if unsure about any procedure.

Preparation

1. Determine the required length of cable for your application.
2. Carefully cut the cable to length using appropriate wire cutters.
3. Strip the outer jacket of the cable to expose the four internal conductors. Use a wire stripper set to the correct gauge (12 AWG) to avoid damaging the inner insulation.
4. Strip the insulation from the ends of the individual conductors as needed for connection.

Operating Guidelines

This portable cord is designed for temporary or flexible power and control applications. Observe the following guidelines during operation:

• Ensure all connections are secure and properly insulated to prevent short circuits or electrical hazards.
• Do not exceed the cable's rated voltage of 300 Volts or its current carrying capacity. Refer to electrical tables for appropriate ampacity based on installation method and temperature.
• Avoid sharp bends or kinks in the cable, as this can damage the conductors or insulation.
• Protect the cable from physical damage, extreme temperatures, and exposure to chemicals that may degrade the insulation.
• For outdoor or wet locations, ensure the cable and all connections are rated for such environments.

Maintenance and Storage

Regular inspection and proper storage will extend the lifespan of your portable cord.

Maintenance

• Periodically inspect the entire length of the cable for cuts, abrasions, cracks, or discoloration in the outer jacket.
• Check connections for looseness or corrosion.
• Clean the cable with a damp cloth if necessary, ensuring it is dry before re-energizing.

Storage

• Store the cable in a cool, dry place away from direct sunlight and extreme temperatures.
• Coil the cable loosely to prevent kinks and stress on the conductors.
• Keep the cable away from sharp objects or heavy machinery that could cause damage.

Troubleshooting

If you encounter issues with your portable cord, consider the following common problems and solutions:

Specifications

Warranty and Support

For specific warranty information and technical support regarding your CAROL 12 AWG 4 Conductor Portable Cord, please refer to the documentation provided with your purchase or visit the official CAROL brand website.

You can also visit the CAROL Store on Amazon for more product information: CAROL Store
