1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Waterdrop WD-W00 replacement water filter. Please read this manual thoroughly before installation and keep it for future reference.

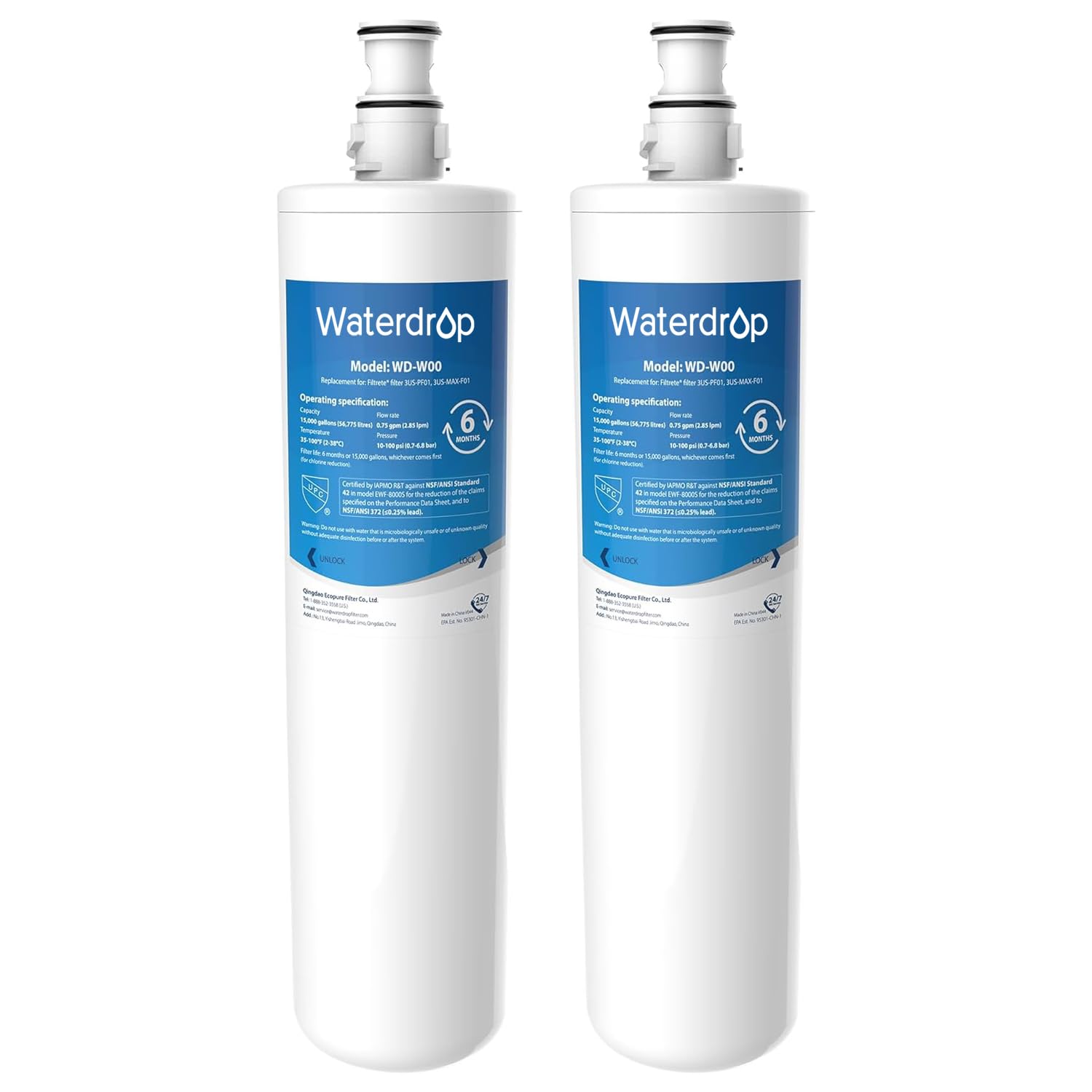

Image 1: Waterdrop WD-W00 Replacement Filter.
2. Product Features
- NSF/ANSI Certified Filtration: This filter is certified against NSF/ANSI 42 standards for the effective reduction of chlorine, taste, and odor. It utilizes an activated carbon block and other advanced filter media for filtration.
- Premium Quality Materials: Constructed with BPA-free and lead-free materials, this filter is fully certified by IAPMO against NSF/ANSI 372 standards, ensuring reliable and safe use.
- Multidimensional Purification: Designed to reduce various impurities including PFOS, PFOA, chlorine, heavy metals, large particles, odor, and sediment.
- Stable Flow Rate: The filter provides a stable flow rate of 0.75 gallons per minute (gpm). This filter does not reduce Total Dissolved Solids (TDS).
Image 2: Filter highlighting NSF/ANSI 42 & 372 certifications.
Image 3: Filter emphasizing food-grade, BPA-free, and lead-free construction.
Image 4: Filter illustrating its multidimensional purification process.
Image 5: Filter demonstrating stable and fast water flow.
3. Compatibility
The Waterdrop WD-W00 filter is compatible with various under-sink water filtration systems. It is a replacement for:
- 3M Filtrete Maximum Filtration, 3US-PS01, 3US-MAX-S01 Systems
- 3M Filtrete 3US-PF01, 3US-MAX-F01, 3US-PF01H, 3US-MAX-F01H
- 3M HF25, HF25-S, HF25-MS
- Manitowoc K-00337, K-00338, K00337, K00338
- Delta RP78702, AR10000
Video 1: Guide to confirm the correct filter model (WD-3US-AF01 vs. WD-3US-PF01).
4. Installation Guide
Follow these general steps for replacing your water filter. Refer to your specific system's manual for detailed instructions if available.
- Turn off the water supply to your filtration system.
- Locate the existing filter cartridge.
- Twist the old filter cartridge counter-clockwise to unlock and remove it. Be prepared for a small amount of water to drip.
- Insert the new Waterdrop WD-W00 filter cartridge into the filter head.
- Twist the new cartridge clockwise until it locks securely into place.
- Turn on the water supply slowly and check for leaks.
- Flush the new filter by running water through it for approximately 5 minutes to remove any carbon fines and air.
Image 6: Visual guide for fast filter installation.
5. Operating Your Filter
Once installed, the filter operates automatically with your cold water supply. Ensure the filter is connected to the cold water valve only. This filter is designed to improve the taste and odor of your water by reducing chlorine and other contaminants, but it does not reduce Total Dissolved Solids (TDS).
Video 2: Explanation of Total Dissolved Solids (TDS).
6. Maintenance and Filter Replacement
For optimal performance and to ensure continuous access to filtered water, replace your Waterdrop WD-W00 filter cartridge every 6 months or after filtering 15,000 gallons, whichever comes first. The actual lifespan may vary based on your local water quality and usage.
Image 7: Filter capacity and recommended lifespan.
7. Product Specifications
| Model Number | WD-W00 |
| Material | Activated Carbon |
| Item Weight | 3.44 pounds |
| External Testing Certification | IAPMO (NSF/ANSI 42 & 372) |
| Product Benefits | Reduces Odor, Taste, and Chlorine |
| Flow Rate | 0.75 gpm |
| Filter Lifespan | 6 months or 15,000 gallons (whichever comes first) |
8. Troubleshooting
- Reduced Water Flow: If water flow is significantly reduced before the recommended replacement interval, it may indicate high sediment levels in your water. Consider replacing the filter sooner.
- Leaks After Installation: Ensure the filter cartridge is properly seated and twisted clockwise until it locks. Check all connections for tightness. If leaks persist, turn off the water supply and re-install the filter.
- Unusual Taste or Odor: If an unusual taste or odor returns to your water, it is an indication that the filter has reached the end of its lifespan and needs to be replaced.
9. Warranty and Customer Support
For warranty information, technical assistance, or any questions regarding your Waterdrop WD-W00 replacement filter, please contact Waterdrop customer support directly. Refer to the product packaging or the official Waterdrop website for contact details.
