1. General Information
1.1 Safety Precautions
Read and understand all instructions before installing, operating, or performing maintenance on this pump. Failure to follow these instructions could result in electric shock, fire, serious injury, or death.
- Electrical Safety: Always disconnect power before servicing the pump. Ensure the pump is connected to a properly grounded outlet. Do not operate the pump with a damaged power cord.
- Water Safety: Do not use this pump for pumping flammable or corrosive liquids. This pump is designed for clear water only.
- Installation: Ensure the pump is installed in a stable, level position. Keep hands and feet clear of the pump intake and discharge during operation.
- Children: Keep children away from the pump and sump area.
1.2 Product Overview
The Acquaer 1/3 HP Pedestal Pump Model PEP033 is designed for automatic operation to remove unwanted groundwater from sump pits. It features a robust motor, an automatic vertical float switch, and a durable construction suitable for residential dewatering applications.
2. Product Features
The Acquaer PEP033 Pedestal Pump incorporates several features for reliable and efficient operation:
- Powerful Motor: 1/3 HP motor provides a maximum flow rate of 3270 Gallons per Hour (GPH) and a maximum head of 18 feet.
- Large Discharge: Equipped with a 1-1/4 inch discharge for efficient water removal.
- Extended Power Cord: Features an 8 ft power cord for flexible installation.
- Thermal Overload Protection: Built-in automatic thermal overload protector motor prevents overheating and extends motor life.
- Automatic Operation: Utilizes an automatic vertical float switch for hands-free operation, activating the pump when water levels rise.

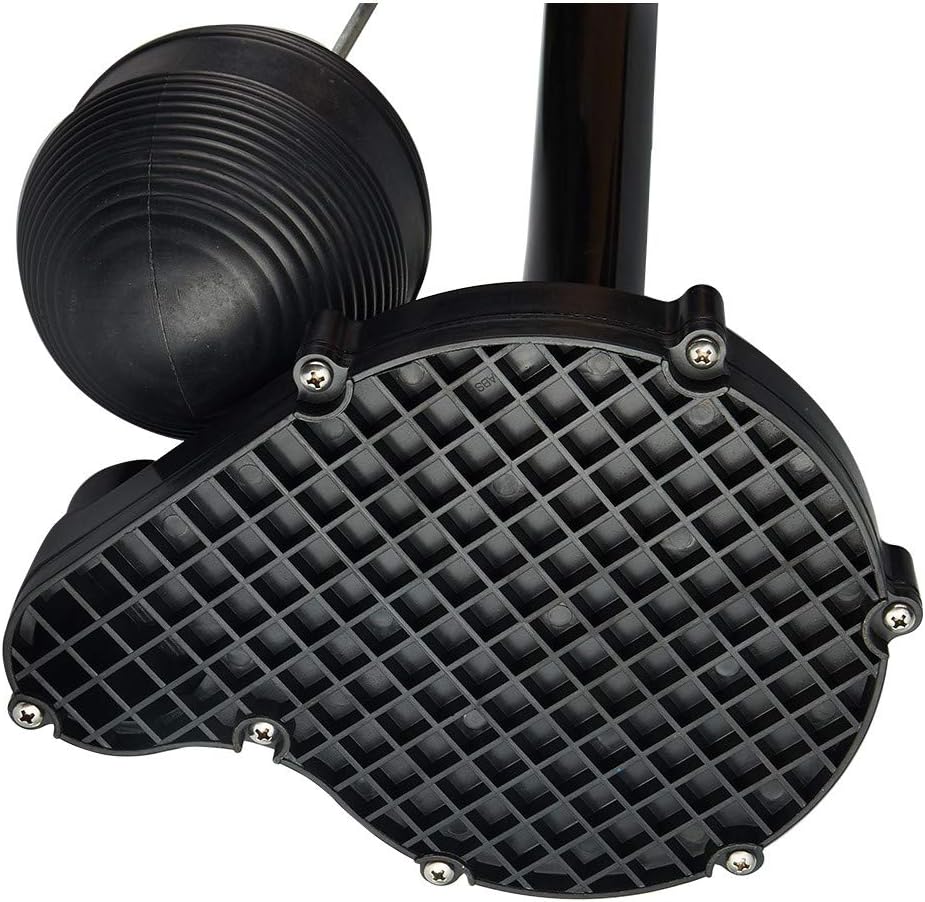

- Durable Construction: Features a corrosion-resistant polypropylene base or cast iron base, along with a corrosion-resistant vertical column and drive shaft.
- Clog Prevention: Includes a filter at the top to help prevent clogging from debris.
3. Technical Specifications
| Specification | Value |
|---|---|
| Model Number | PEP033 |
| Horsepower (HP) | 1/3 HP (0.33 HP) |
| Maximum Flow Rate | 3270 Gallons per Hour (GPH) |
| Maximum Head | 18 feet |
| Discharge Size | 1-1/4 inches |
| Power Cord Length | 8 feet |
| Material | Cast Iron |
| Color | Black |
| Item Weight | 6.85 kg |
| Product Dimensions (L x W x H) | 25.91 x 24.13 x 85.6 cm (10.2 x 9.5 x 33.7 inches) |
| Power Source | Corded Electric |
| Manufacturer | LEO Group Pump |
| UPC | 855671007076 |
4. Setup
Proper installation is crucial for the efficient and safe operation of your pedestal pump. Follow these steps carefully:
- Placement: Position the pump in the center of the sump pit, ensuring it rests on a solid, level surface. The base of the pump should be elevated slightly from the bottom of the pit to prevent sediment intake.
- Discharge Pipe Connection: Connect a 1-1/4 inch discharge pipe to the pump's outlet. Use appropriate fittings and sealants to ensure a watertight connection. It is recommended to install a check valve in the discharge line to prevent water from flowing back into the sump pit.
- Electrical Connection: Plug the 8 ft power cord into a dedicated, properly grounded 120V AC electrical outlet. Ensure the outlet is protected by a Ground Fault Circuit Interrupter (GFCI) for added safety. Do not use extension cords.
- Float Switch Adjustment: The vertical float switch controls the pump's on/off cycles. Adjust the float rod to set the desired 'on' and 'off' water levels. Ensure the float can move freely without obstruction within the sump pit. The 'on' level should be high enough to prevent frequent cycling, and the 'off' level should be low enough to adequately drain the pit.
5. Operating Instructions
The Acquaer PEP033 Pedestal Pump is designed for automatic operation once properly installed.
- Initial Test: After installation, manually fill the sump pit with water to observe the pump's operation. The pump should turn on when the water level reaches the 'on' setting of the float switch and turn off when the water level drops to the 'off' setting.
- Automatic Operation: The pump will automatically activate when the water level in the sump pit rises and lifts the float switch to its 'on' position. It will continue to pump water until the float switch drops to its 'off' position.
- Continuous Monitoring: Periodically check the sump pit and pump operation, especially during heavy rainfall, to ensure it is functioning correctly.
6. Maintenance
Regular maintenance ensures the longevity and reliable performance of your pump.
- Disconnect Power: Always disconnect the pump from the power source before performing any maintenance or inspection.
- Inspect Float Switch: Regularly check the float switch for any obstructions, debris, or signs of wear. Ensure it moves freely.
- Clean Intake/Filter: Periodically remove any debris, dirt, or sediment that may have accumulated around the pump's intake or filter area. A clogged intake can reduce pump efficiency and lead to premature failure.
- Check for Damage: Inspect the power cord, discharge pipe, and pump housing for any visible damage. Replace damaged components immediately.
- Winterization (if applicable): If the pump is installed in an area subject to freezing temperatures and will not be used, remove it from the sump pit, clean it thoroughly, and store it in a dry, frost-free location.
7. Troubleshooting
Refer to the following table for common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power to the pump Float switch obstructed or faulty Thermal overload tripped Motor failure | Check power supply and GFCI Clear obstructions, check float switch wiring Allow motor to cool, check for blockages Contact qualified service personnel |
| Pump runs continuously | Float switch stuck in 'on' position Check valve faulty or missing Discharge pipe leak | Clear obstructions, adjust float switch Install or replace check valve Inspect and repair discharge piping |
| Low or no water discharge | Clogged intake or discharge pipe Air lock in pump Impeller damaged or worn | Clean intake screen, clear discharge pipe Remove pump, clear air, re-install Contact qualified service personnel |
| Pump is noisy | Debris in impeller Pump not stable Worn bearings | Disconnect power, clear debris Ensure pump is on a level, stable surface Contact qualified service personnel |
8. Warranty and Support
This Acquaer 1/3 HP Pedestal Pump Model PEP033 comes with a one-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
The warranty does not cover damage resulting from improper installation, misuse, abuse, neglect, accident, or unauthorized repairs or modifications. Normal wear and tear are also not covered.
For warranty claims, technical support, or replacement parts, please contact the manufacturer or your authorized dealer with your proof of purchase and product model number (PEP033).
