1. Introduction
This manual provides instructions for the installation, operation, and maintenance of the Cutex Upper Looper, part number 405-6101-01C. This upper looper is designed for use with Babylock EF405 and EF405M overlock serger machines. Please read this manual thoroughly before attempting any installation or maintenance to ensure proper function and safety.
The upper looper is a critical component in your serger, responsible for forming the upper loop of the stitch. Proper installation and care are essential for consistent stitch quality and machine performance.
2. Safety Information
- Always unplug the serger machine from the power outlet before installing, removing, or performing any maintenance on the looper or any other machine part.
- Handle the looper with care. The tip can be sharp.
- Keep small parts away from children.
- If you are unsure about any step, consult a qualified technician or refer to your Babylock serger's main instruction manual.
3. Package Contents
Verify that your package contains the following item:
- 1 x Cutex Upper Looper (Part #405-6101-01C)
4. Setup and Installation
Follow these steps carefully to install the new upper looper into your Babylock EF405 or EF405M serger machine.
4.1. Preparation
- Unplug the serger machine from the power source.
- Open the front and side covers of your serger to access the looper area.
- Remove the needles from the machine to prevent accidental injury during installation.
- If replacing an old looper, carefully remove any threads that might be tangled around it.
4.2. Removing the Old Upper Looper (if applicable)
- Locate the screw(s) that secure the upper looper in place. These are typically small Phillips head screws.
- Using an appropriate screwdriver, carefully loosen and remove the screw(s).
- Gently slide the old upper looper out of its mounting bracket. Keep the old looper for comparison or disposal.
4.3. Installing the New Upper Looper
Refer to the image below for visual guidance during installation.

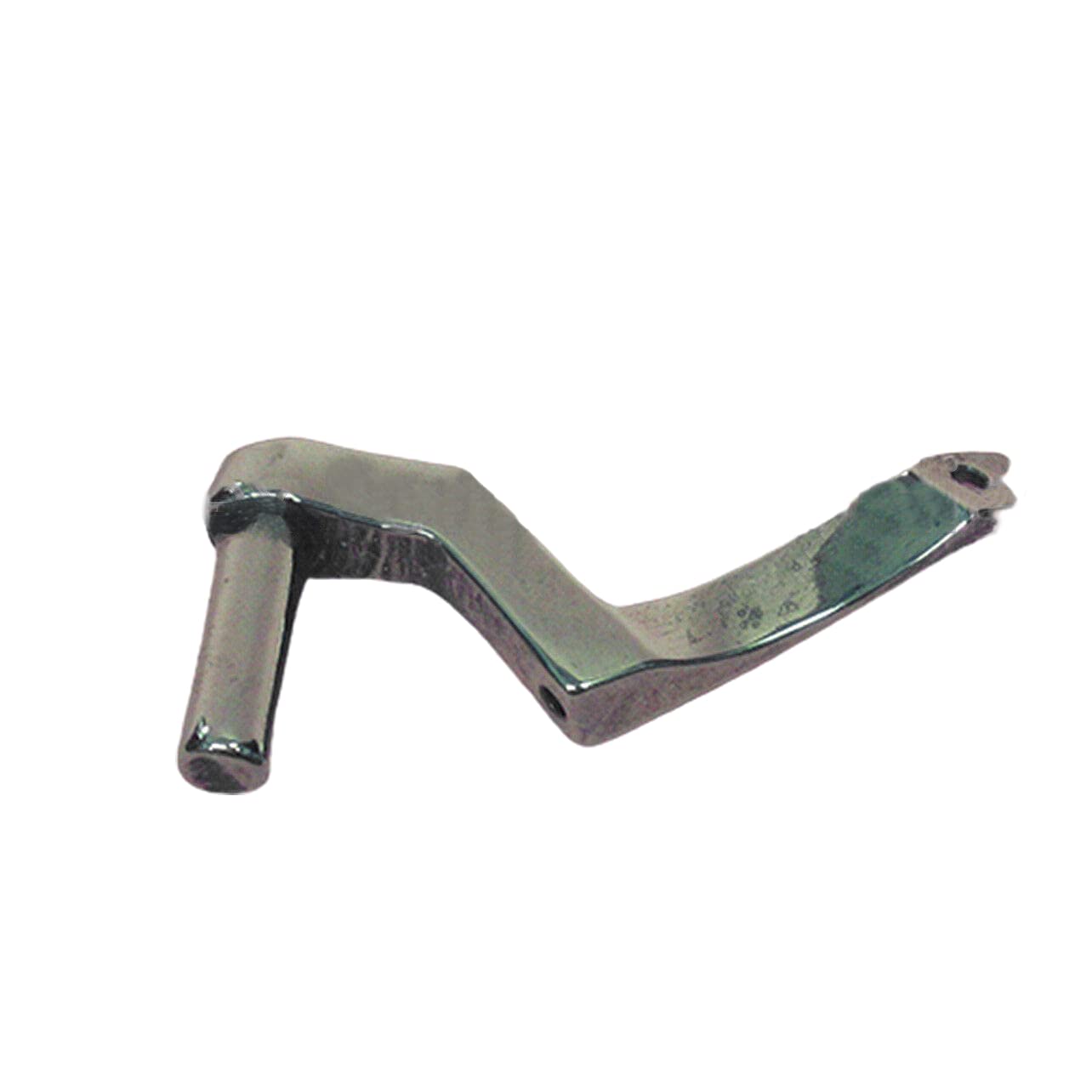

Figure 1: The Cutex Upper Looper 405-6101-01C. This image shows the looper itself, which is then installed into the serger machine. Ensure the looper is oriented correctly before insertion.
- Align the new Cutex Upper Looper (405-6101-01C) with the mounting bracket in your serger. Ensure the looper is facing the correct direction as indicated in your serger's manual or by the orientation of the old looper.
- Slide the looper into position until it sits flush against the mounting surface.
- Insert the screw(s) removed earlier and gently tighten them. Do not overtighten, as this can damage the looper or the machine. The looper should be held firmly in place without any wobble.
4.4. Post-Installation Check
- Manually turn the handwheel of your serger slowly to ensure the upper looper moves freely and does not collide with any other parts, especially the lower looper or needles.
- Reinstall the needles and re-thread your machine according to your Babylock serger's manual.
- Close the machine covers.
- Plug in the machine and perform a test stitch on a scrap piece of fabric to verify proper operation.
5. Operating the Looper (General Use)
The Cutex Upper Looper 405-6101-01C functions as an integral part of your Babylock EF405/EF405M serger's stitching mechanism. Once correctly installed, it works in conjunction with the lower looper and needles to create the overlock stitch.
For detailed instructions on threading your serger, adjusting tension, and operating your machine for various stitch types, please refer to the comprehensive instruction manual provided with your Babylock EF405 or EF405M serger machine.
6. Maintenance
Regular maintenance of your upper looper and serger machine will ensure longevity and optimal performance.
- Cleaning: Periodically, with the machine unplugged, use a small brush or lint remover to clear any lint or thread fragments that may accumulate around the looper and its mounting area.
- Inspection: Regularly inspect the tip of the upper looper for any signs of bending, burrs, or damage. A damaged looper can cause skipped stitches or thread breakage. If damage is observed, replace the looper.
- Lubrication: Refer to your serger's main manual for specific lubrication points and schedules. The looper itself typically does not require separate lubrication, but the mechanisms it interacts with might.
7. Troubleshooting
If you encounter issues after installing the new upper looper, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Skipped Stitches | Incorrect looper installation, bent looper tip, improper threading, incorrect needle. |
|
| Thread Breakage (Upper Looper Thread) | Rough edges on looper, incorrect tension, poor quality thread, looper collision. |
|
| No Stitch Formation | Looper not threaded, looper incorrectly installed, severe damage. |
|
For further troubleshooting, consult your Babylock EF405/EF405M serger's comprehensive instruction manual or contact customer support.
8. Specifications
| Part Number: | 405-6101-01C |
| Brand: | Cutex |
| Compatibility: | Babylock EF405, Babylock EF405M Overlock Serger Machines |
| Type: | Upper Looper |
9. Warranty Information
This Cutex product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please retain your proof of purchase for warranty claims.
For detailed warranty information, please contact Cutex customer support or refer to the warranty documentation included with your purchase.
10. Customer Support
If you have any questions regarding the installation, operation, or maintenance of your Cutex Upper Looper 405-6101-01C, please contact our customer support team.
- Website: Visit the Cutex Store on Amazon
- Email: Refer to the contact information provided on the Cutex website or packaging.
- Phone: Refer to the contact information provided on the Cutex website or packaging.
When contacting support, please have your product model number (405-6101-01C) and purchase details ready.
