1. Product Overview
The Hunter I-Beam SS Pop-Up Sprinkler is designed for efficient and reliable lawn and garden irrigation. This model features a durable stainless steel riser and offers versatile sector adjustment for precise watering. It is engineered for long-term performance in various landscape applications.
Key Features:
- Vandalism protected decoupling mechanism
- Stainless Steel Riser for durability
- Part-circle and full-circle operation in one model
- Sector adjustment from 50° to 360°
- Quick & Easy sector lock mechanism
- Water-lubricated transmission
- Automatic sector return
Figure 1: Hunter I-Beam SS Pop-Up Sprinkler, showing the overall unit.
2. Setup and Installation
Proper installation is crucial for the optimal performance of your Hunter I-Beam SS Pop-Up Sprinkler. Ensure all connections are secure and the sprinkler is positioned correctly for desired coverage.
2.1 Pre-Installation Checks
- Verify that your water pressure is within the recommended operating range of 2.5 to 7 bar (250 to 700 Kpa).
- Ensure you have the necessary tools, including a shovel, pipe cutters, PVC cement/primer (if applicable), and a sprinkler adjustment tool.
2.2 Installation Steps
- Digging the Trench: Dig a trench from your main water line to the desired sprinkler location. The trench should be deep enough to allow the top of the sprinkler to be flush with the ground when installed.
- Connecting to Water Line: Connect the sprinkler to your irrigation piping. The sprinkler features a BSP inlet. Ensure a watertight seal.
- Positioning the Sprinkler: Place the sprinkler in the trench. The top of the sprinkler should be level with the ground surface to prevent tripping hazards and ensure proper pop-up and retraction.
- Backfilling: Carefully backfill the trench, ensuring no debris enters the sprinkler head.
Figure 2: Bottom view of the sprinkler, showing the BSP inlet for water connection.
Figure 3: Disassembled view of the sprinkler, showing the casing and the pop-up riser assembly with spring.
3. Operation and Adjustment
The Hunter I-Beam SS Pop-Up Sprinkler allows for precise adjustment of its watering arc to suit your landscape needs.
3.1 Setting the Arc (Sector Adjustment)
- The sprinkler's sector can be adjusted from 50° to 360° (full circle).
- To adjust the arc, rotate the upper section of the sprinkler head. The Quick & Easy sector lock mechanism ensures the setting remains stable.
- The sprinkler features an automatic sector return, meaning it will return to its set arc after each cycle.
Figure 4: Top view of the sprinkler head, indicating the area for sector adjustment.
3.2 Nozzle Selection and Installation
The sprinkler is compatible with 12 available jets (nozzles). These are typically color-coded for easy identification of flow rates and spray patterns. Ensure the correct nozzle is installed for your specific watering requirements.
Figure 5: An assortment of color-coded nozzles, used to customize the sprinkler's spray pattern and flow.
4. Maintenance
Regular maintenance ensures the longevity and efficient operation of your sprinkler system.
- Cleaning: Periodically inspect the sprinkler head for debris such as grass clippings, dirt, or sand that may impede rotation or spray pattern. Clean the filter screen if accessible.
- Nozzle Inspection: Check nozzles for clogs or damage. Replace damaged nozzles to maintain optimal performance.
- Winterization: In regions subject to freezing temperatures, it is essential to properly winterize your irrigation system, including the sprinklers, to prevent freeze damage. Consult a local irrigation professional if unsure.
5. Troubleshooting
Refer to the following common issues and solutions for your Hunter I-Beam SS Pop-Up Sprinkler.
| Problem | Possible Cause | Solution |
|---|---|---|
| Sprinkler does not pop up or retract fully. | Low water pressure, debris in riser, damaged spring. | Check system water pressure. Clean debris from around the riser. Inspect for damage. |
| Uneven spray pattern or reduced distance. | Clogged nozzle, incorrect nozzle, low pressure. | Clean or replace the nozzle. Verify correct nozzle type. Check system pressure. |
| Sprinkler does not rotate or rotates intermittently. | Debris in the transmission, low water pressure. | Flush the system. Check water pressure. If problem persists, the transmission may require service. |
| Water leaks from the base of the sprinkler. | Loose connection, damaged seal, cracked casing. | Tighten connections. Inspect and replace seals if necessary. Replace the sprinkler if casing is cracked. |
6. Specifications
Detailed technical specifications for the Hunter I-Beam SS Pop-Up Sprinkler Model NA547.
| Specification | Detail |
|---|---|
| Model Number | NA547 |
| Dimensions (L x W x H) | 10.24 x 2.17 x 2.17 inches (26.0 x 5.5 x 5.5 cm) |
| Weight | 15.3 ounces |
| Material | Plastic (body), Stainless Steel (riser) |
| Sector Adjustment | 50° to 360° |
| Nozzle Exit Angle | 25° |
| Minimum Recommended Pressure | 2.5 bar (250 Kpa) |
| Operating Pressure Range | 2.5 to 7 bar (250 to 700 Kpa) |
| Flow Rate | 0.82 to 7.24 m³/hr (13.6 to 120.2 L/min) |
| Precipitation Rate | Approx. 15 mm/hr |
| Casting Distance | 8.5 to 11.9 meters |
| Inlet Thread | BSP (British Standard Pipe) |

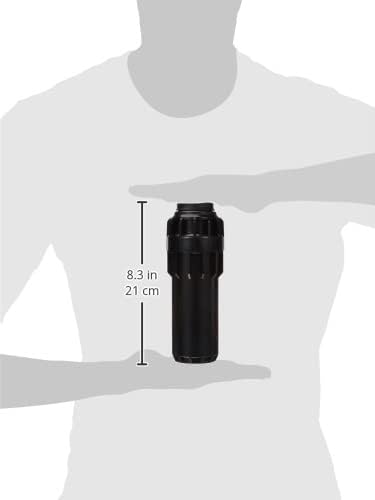

Figure 6: Visual representation of the sprinkler's dimensions for scale.
7. Warranty Information
The Hunter I-Beam SS Pop-Up Sprinkler comes with a 5-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, please refer to the official Hunter website or contact customer support.
8. Support and Contact
For further assistance, technical support, or to purchase replacement parts, please contact Hunter customer service or visit their official website.
- Official Website: www.hunterindustries.com
- Hunter Store on Amazon: Visit the Hunter Store
