Phlizon 1200W LED Plant Grow Light User Manual

1. Introduction

The Phlizon 1200W LED Plant Grow Light is designed to provide full spectrum lighting for indoor plant cultivation, suitable for both vegetative and flowering stages. This manual provides essential information for the proper setup, operation, and maintenance of your grow light, ensuring optimal growth for your plants.

Figure 1: Phlizon 1200W LED Plant Grow Light and accessories.

2. Key Features

• Quality Manufacturing: Products offer high-quality manufacturing from our own factory, ensuring superior quality and reliability.
• Energy Efficient: Compared to MH / HPS lamps, this LED light generates less heat, is more energy-saving, and results in lower electricity bills. The 1200W LED grow light has an actual power of 240 Watts and can replace 1200W HPS/MH.
• Double Cooling Fans: Equipped with double cooling fans to extend the light's lifespan.
• Dual Switch System: Features separate Veg and Bloom switches for different growth stages.
• Full Spectrum: Provides a comprehensive light spectrum including universal blue, red, IR, UV, and white LEDs, mimicking natural sunlight for optimal plant growth.

3. Setup and Installation

Follow these steps for proper setup and installation of your grow light:

1. Unpacking: Carefully unpack the grow light unit and all included accessories. Verify that all components are present: the LED grow light, power cord, adjustable rope hanger, and hanging wires.
2. Mounting: Use the provided hanging kit to suspend the light securely above your plants. Adjust the height according to the plant's current growth stage and specific light intensity requirements. Refer to the 'Light Coverage and Performance' section for recommended hanging heights.
3. Power Connection: Connect the power cord to the grow light and then plug it into a suitable power outlet. Ensure the outlet meets the voltage requirements of the light (100-240V).
4. Daisy Chain Function (Optional): This light supports daisy-chaining multiple units. To connect multiple lights, plug the output of one light into the input of the next using a compatible power cord. Ensure the total wattage of all connected lights does not exceed the capacity of your electrical circuit.

Figure 2: Daisy Chain Functionality for connecting multiple units.

4. Operating Instructions

The Phlizon 1200W LED Grow Light features a double switch system to provide optimized light spectrums for different plant growth stages.

• Veg Switch: This switch activates the blue and white LEDs. It is specifically designed for the seedling and young vegetative growth stages. For these stages, you can use the Veg switch only.
• Bloom Switch: This switch activates the red and white LEDs. For the flowering/blooming stage, both the Veg and Bloom switches should be used together to provide a comprehensive and balanced spectrum essential for flower and fruit development.

Figure 3: Three Modes of Lighting for different plant stages.

Recommended Light Cycles and Heights

Adjust the light height and switch settings according to the plant's growth stage for optimal results:

Figure 4: All Stages Plant Growth Guide.

5. Light Coverage and Performance

The Phlizon 1200W grow light provides uniform light coverage, which is crucial for healthy and consistent plant development. The optimal core coverage area for this 1200W model is approximately 3x3ft at a 24-inch height.

PPFD (Photosynthetic Photon Flux Density) Map: The following maps illustrate the light intensity at various heights, indicating the amount of photosynthetically active radiation (PAR) reaching your plants. Higher PPFD values indicate greater light intensity available for photosynthesis.

Figure 5: PH-D12 PPFD (Photosynthetic Photon Flux Density) Map.

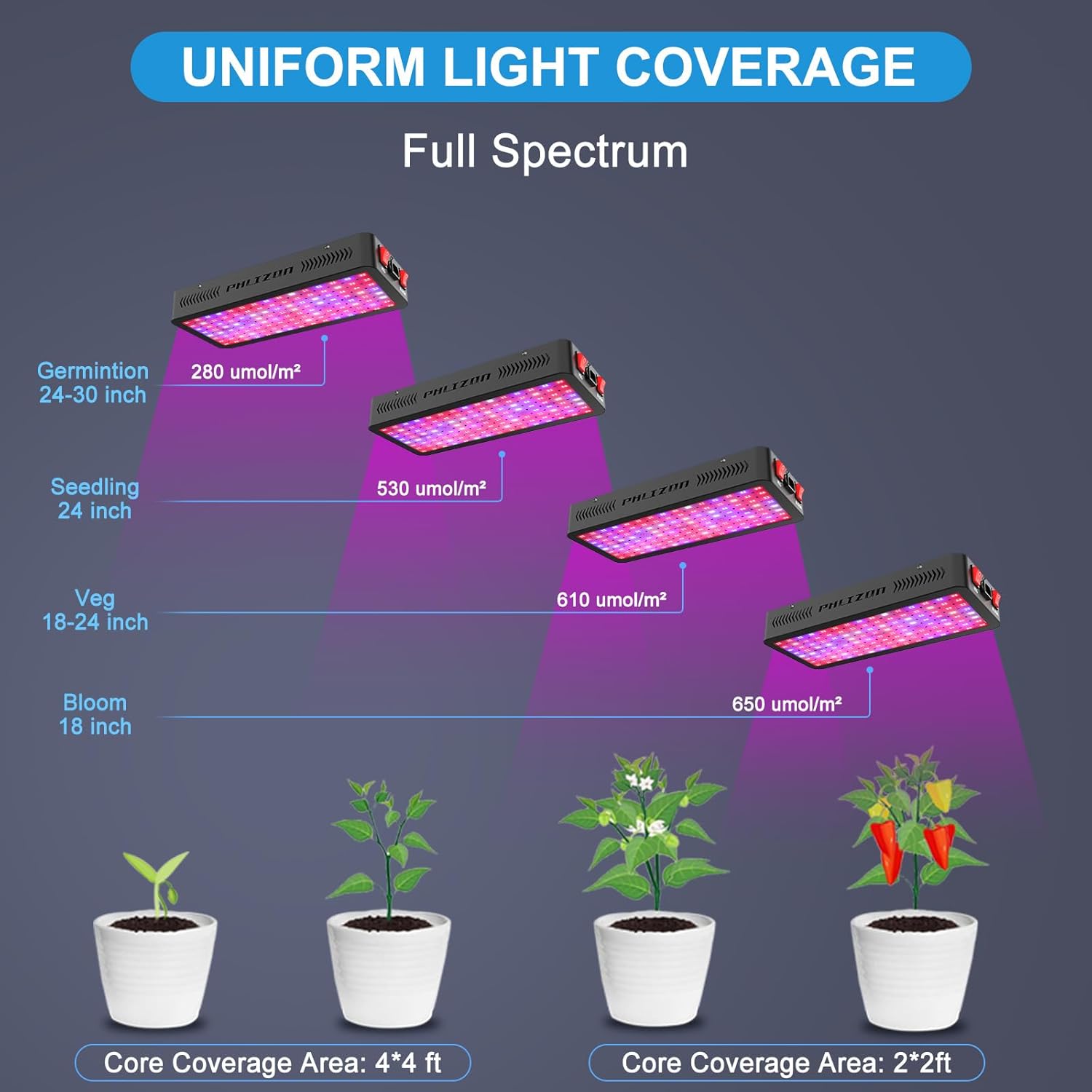

Figure 6: Uniform Light Coverage and Core Coverage Area.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Phlizon LED Grow Light.

• Cleaning: Periodically wipe the light's surface and LED lenses with a soft, dry cloth to remove dust and debris. Ensure the light is unplugged from the power source before cleaning.
• Fan Checks: Inspect the cooling fans regularly for any obstructions (e.g., dust buildup) or unusual noises. Keep the fan vents clear to ensure proper airflow and prevent overheating.
• Cable Inspection: Routinely check all power cords and hanging wires for any signs of wear, fraying, or damage. Replace immediately if any damage is found to prevent electrical hazards.

7. Troubleshooting

If you encounter issues with your Phlizon LED Grow Light, refer to the following common troubleshooting steps before contacting support:

• Light Not Turning On:
  • Verify the power cord is securely plugged into both the light unit and a functional power outlet.
  • Check if the power outlet is functional by plugging in another device.
  • Ensure both the 'Veg' and 'Bloom' switches on the light are in the 'ON' position if you intend to use both, or at least one is 'ON'.
• Dim or Uneven Light Output:
  • Confirm the light is positioned at the recommended height for the current growth stage (refer to Section 4).
  • Clean the LED lenses to remove any dust or residue that might be obstructing light output.
• Overheating:
  • Ensure the cooling fans are operating correctly and are not obstructed by dust or debris.
  • Provide adequate ventilation in your growing area to dissipate heat effectively.
  • Verify the ambient temperature in the growing environment is within acceptable limits for LED grow lights.

8. Specifications

Detailed technical specifications for the Phlizon 1200W LED Plant Grow Light:

Figure 7: Product Parameters Overview.

9. Warranty and Support

Phlizon is committed to providing quality products and excellent customer service. If you have any questions, concerns, or require technical assistance with your LED grow light, please do not hesitate to contact Phlizon customer support.

Refer to the product packaging or the official Phlizon website for the most current contact information and detailed warranty policy. Phlizon aims to provide a completely satisfying reply to any inquiries.
