Introduction
The Jebao FA-2000F submersible fountain pump is designed for various water garden applications, including fountains, waterfalls, hydroponics, and aquaponics. This pump offers reliable performance with energy-efficient magnetic drive technology. It is suitable for both fresh and marine water environments.
Key Features
- Fixed ceramic shaft rotor for quiet and durable operation.
- Oil-free magnetic drive for versatile water garden applications.
- Reliable performance at a budget-friendly price.
- Includes adapters for easy connection to flexible tubing.
Safety Information
Please read and understand all safety instructions before operating this pump. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always disconnect the pump from the power supply before handling, cleaning, or performing any maintenance.
- Do not operate the pump if the power cord or plug is damaged.
- Ensure the pump is fully submerged in water during operation. Running the pump dry will cause damage and void the warranty.
- This pump is designed for continuous submersion. Do not use it out of water.
- Connect the pump to a properly grounded outlet protected by a Ground Fault Circuit Interrupter (GFCI).
- Do not lift or carry the pump by its power cord.
- Keep children and pets away from the pump and water feature during operation.
- Ensure the electrical supply matches the voltage rating on the pump label.
Package Contents
Verify that all items are present in the package:
- Jebao FA-2000F Submersible Fountain Pump
- Hose Adapters (various sizes)
- Owner's Manual (this document)
Image: Contents of the Jebao FA-2000F pump package, including the pump, power cord, various hose adapters, and the owner's manual.
Setup Instructions
1. Placement
- Place the pump on a stable, level surface at the bottom of your pond, fountain, or reservoir.
- Ensure the pump is fully submerged in water. The water level should always be above the pump's intake.
- Avoid placing the pump directly in heavy sludge or debris, as this can clog the intake and reduce performance.
2. Connecting Hoses
- Select the appropriate hose adapter from the included accessories that matches the diameter of your tubing.
- Thread the chosen adapter onto the pump's outlet nozzle. Hand-tighten only; do not overtighten.
- Attach your flexible tubing securely to the barbed end of the adapter. A hose clamp (not included) may be used for a more secure connection, especially for high-pressure applications.
Image: The Jebao FA-2000F pump shown with a hose adapter securely attached to its water outlet.
Operating Instructions
- Ensure the pump is fully submerged in water and all connections are secure.
- Plug the pump's power cord into a properly grounded electrical outlet with GFCI protection.
- The pump will begin to operate immediately. Observe the water flow to ensure it is functioning correctly.
- Regularly check the water level to prevent the pump from running dry.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your pump.
1. Regular Cleaning
- Disconnect Power: Always unplug the pump from the electrical outlet before performing any maintenance.
- Remove from Water: Carefully remove the pump from the water.
- Clean Intake Screen: Remove any debris, leaves, or algae from the pump's intake screen. A soft brush or running water can be used.
- Access Impeller: Depending on the model, you may need to remove a cover to access the impeller chamber. Gently remove the impeller and clean it thoroughly, along with the impeller shaft, to remove any mineral deposits or debris.
- Rinse: Rinse all components with clean water.
- Reassemble: Reassemble the pump, ensuring all parts are correctly seated.

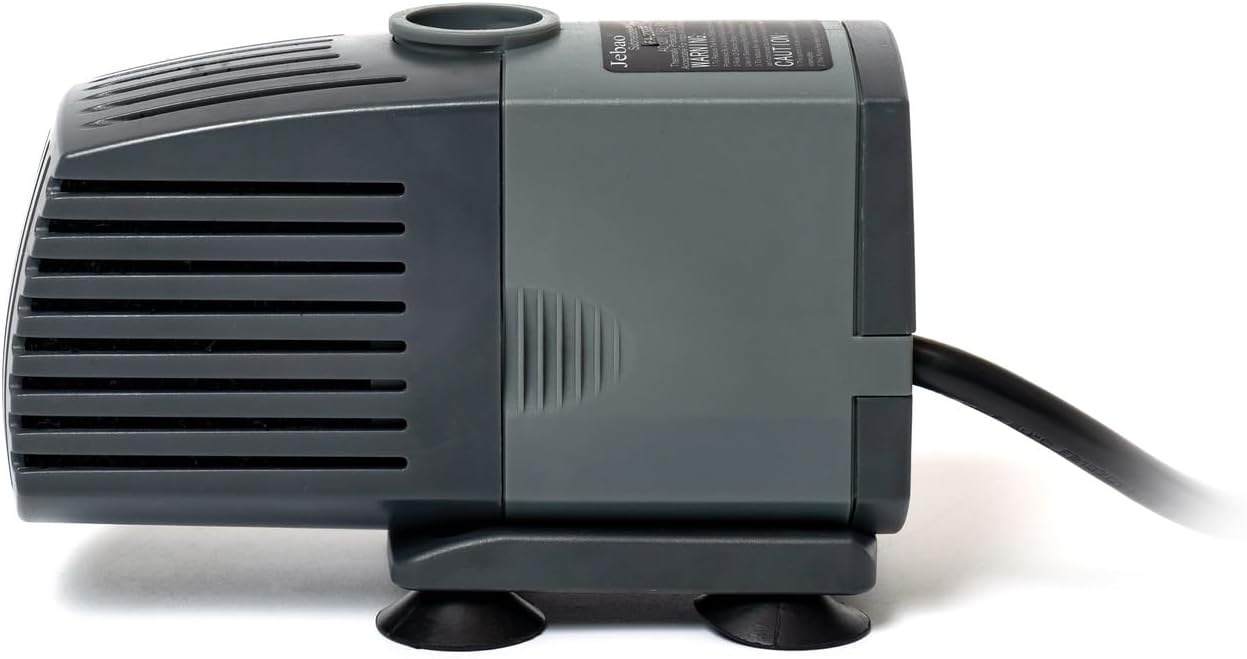

Image: Side profile of the Jebao FA-2000F pump, highlighting the intake area which requires regular cleaning.
2. Winterization (for outdoor use)
- In freezing climates, remove the pump from the water before temperatures drop below freezing.
- Clean the pump thoroughly as described above.
- Store the pump in a frost-free location, preferably submerged in a bucket of clean water to keep seals moist.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not run | No power; Clogged impeller; Damaged impeller/motor | Check power supply and GFCI; Clean impeller and housing; Inspect for damage, replace if necessary. |
| Reduced water flow | Clogged intake screen; Kinked or blocked tubing; Low water level | Clean intake screen; Clear tubing obstruction; Ensure pump is fully submerged. |
| Excessive noise/vibration | Debris in impeller; Pump not stable; Running dry | Clean impeller; Ensure pump is on a stable surface; Check water level. |
Specifications
| Specification | Detail |
|---|---|
| Brand | Jebao |
| Model Number | FA-2000F |
| Maximum Flow Rate | 530 GPH (8.83 Gallons Per Minute) |
| Power Source | AC power |
| Material | Ceramic (shaft) |
| Product Dimensions | 6 x 4 x 3 inches |
| Item Weight | 2.18 pounds |
| Included Components | Water pump, hose adapters |
Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Jebao website. Keep your proof of purchase for any warranty claims.
