Vento Uragano 54-inch Indoor Chrome Ceiling Fan User Manual

1. Introduction

Thank you for choosing the Vento Uragano 54-inch Indoor Chrome Ceiling Fan. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.

The Vento Uragano is designed for indoor use in bedrooms and living rooms, featuring a chrome finish, five yellow blades, and convenient remote control operation.

2. Important Safety Information

WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these guidelines:

• Turn off power at the circuit breaker or fuse box before installation or servicing.
• All wiring must be in accordance with national and local electrical codes. Consult a qualified electrician if you are unsure about wiring procedures.
• Ensure the installation site can support the fan's weight (approximately 20-30 lbs).
• Do not operate the fan with damaged blades or housing.
• Keep hands, clothing, and other objects clear of the fan blades when the fan is operating.
• This fan is for indoor use only. Do not expose to water or excessive humidity.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, contact Vento customer support.

• Motor Housing Assembly
• Ceiling Mounting Bracket
• Downrod and Canopy
• 5 Fan Blades (Yellow)
• Blade Attachment Hardware
• Remote Control with Wall Mount
• Receiver Unit
• Hardware Pack (screws, wire nuts, washers)
• Instruction Manual (this document)

4. Setup and Installation

Before you begin: Ensure power is OFF at the circuit breaker. Gather necessary tools: screwdriver, wire strippers, ladder, and electrical tape.

4.1 Mounting the Bracket

Attach the ceiling mounting bracket to the outlet box using the screws provided. Ensure the bracket is securely fastened and can support the fan's weight. The outlet box must be listed for fan support.

4.2 Assembling the Fan

1. Feed the electrical wires from the motor assembly through the downrod.
2. Secure the downrod to the motor housing with the provided pin and clip.
3. Carefully lift the fan assembly and hang it on the mounting bracket hook.

4.3 Wiring Connections

Connect the fan's wires to the household wiring according to the diagram in your separate wiring guide (if provided) or standard electrical practices. Typically, this involves connecting:

• Green/Bare copper wire (Ground) to household ground wire.
• White wire (Neutral) to household neutral wire.
• Black wire (Live/Hot) to household live wire.

Ensure all connections are secure with wire nuts and electrical tape.

4.4 Attaching Blades

Attach each of the five yellow fan blades to the blade holders using the screws and washers provided. Then, attach the blade holders to the motor housing. Ensure all screws are tightened securely.

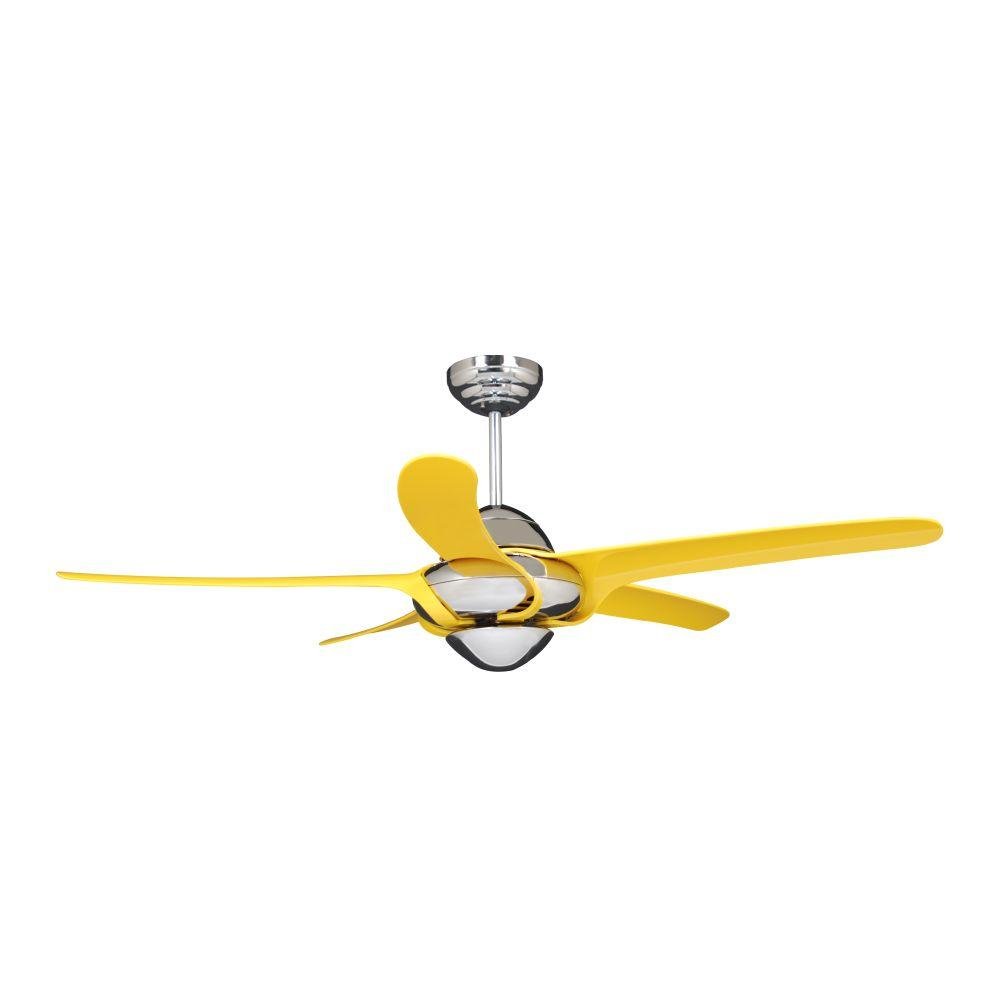

Image 1: The Vento Uragano 54-inch ceiling fan fully assembled, showcasing its chrome motor housing and five yellow blades. This image illustrates the fan's complete appearance after installation.

4.5 Securing the Canopy

Slide the canopy up against the ceiling and secure it to the mounting bracket with the provided screws. Ensure no wires are pinched.

5. Operating Instructions

Your Vento Uragano ceiling fan is operated via the included remote control.

5.1 Remote Control Functions

• ON/OFF Button: Press to turn the fan on or off.
• Fan Speed Buttons (1-3): Select desired fan speed (1=Low, 2=Medium, 3=High).
• Light Button (if applicable): Press to turn the fan light on or off. (Note: This model description does not specify a light kit, refer to your specific model for light functionality).
• Reverse Function Button: Changes the direction of blade rotation for summer (downward airflow) or winter (upward airflow) operation.

Install 2 AAA batteries (not included) into the remote control, observing polarity.

5.2 Seasonal Operation

• Summer Mode: Blades rotate counter-clockwise, pushing air downward to create a cooling breeze.
• Winter Mode: Blades rotate clockwise, drawing air upward to circulate warm air near the ceiling. Use this mode at a low speed.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your Vento Uragano ceiling fan.

• Cleaning: Dust the fan blades and motor housing periodically with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
• Blade Balance: If the fan wobbles, check that all blade screws are tight. A balancing kit (sold separately) can be used to correct persistent wobbling.
• Motor Lubrication: The fan motor is permanently lubricated and does not require additional oiling.
• Tighten Fasteners: Periodically check all screws and fasteners on the fan and mounting hardware to ensure they are secure.

Always turn off power to the fan at the circuit breaker before performing any cleaning or maintenance.

7. Troubleshooting

Before attempting any repairs, ensure the power is turned off at the circuit breaker.

8. Specifications

• Model: Uragano
• Brand: Vento
• Fan Design: Ceiling Fan
• Size: 54 inches
• Number of Blades: 5
• Blade Color: Yellow
• Finish Type: Chrome (motor housing)
• Material: Metal
• Indoor/Outdoor Usage: Indoor only
• Room Type: Bedroom, Living Room
• Power Source: Corded Electric
• Control Method: Remote Control
• Mounting Type: Ceiling Mount

9. Warranty and Support

Vento products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Vento website. Keep your proof of purchase for warranty claims.

For technical support, replacement parts, or general inquiries, please contact Vento customer service. Contact information can typically be found on the Vento website or on the product packaging.

Online Support: www.vento.com/support (Example link, replace with actual if known)
