1. Product Overview
The ICEPURE 5 Micron 10x4.5 inch Whole House Sediment String Wound Water Filter is designed to provide effective filtration for your entire home's water supply. This filter utilizes advanced technology and high-quality materials to reduce various impurities, ensuring cleaner water for household use.
Image 1: Two ICEPURE 5 Micron 10x4.5 inch whole house sediment string wound water filters, model PPW10BB.
Key Features:
- Authoritative Certifications: Made with food-grade, lead-free, 100% Polypropylene material. Meets European Food Grade Regulation EC-1935/2004, BPA-Free, and Australian Water Mark standards.
- Excellent Filtration Effect: Employs Advanced Trilobal Fabrication technology for a larger filter area and stronger dirt-holding capacity. Effectively removes rust, silt, sands, colloids, sediment, iron, particles, and odor.
- Long Service Life: High-performance filter with exceptional dirt-holding capacity and 5-micron filtration, lasting up to 3 times longer than standard sediment filters.
- High Standards: Manufactured using US technology and teams. Features an overall molding process for solid quality, compression resistance, and drop resistance. Each filter undergoes 5 inspection and testing stages.
- Compatible Models: Fits standard 10" x 4.5" heavy-duty filter housings, compatible with models such as American Plumber W10-PR, W15-PR, Culligan HD-950, GE GXWH30C, GXWH35F, GXWH-40L, GXWH-30C, HDSFI, GXWH-35F, GNWH-38F, Aqua-Pure AP801, HF45-10BLBK10PR, Pentek 10", Whirlpool WHCF-WHPLBB, and Waterite Excelpure PL10B30.
Image 2: High-efficiency filtration process, showing how tap water is purified through 25-micron and 5-micron stages.
Image 3: Visual representation of contaminants removed by the filter.
Image 4: Illustration of the high-grade, safe materials used in the filter construction.
Image 5: Comparison highlighting the ultra-high density and superior performance of ICEPURE filters.
2. Setup and Installation
This filter is designed for easy installation into compatible 10" x 4.5" whole house filter housings. No specialized professional tools are typically required for installation, ensuring a leak-free and exact fit.
Installation Steps:
- Turn off the main water supply to your house.
- Relieve pressure from the filter housing by opening a nearby faucet.
- Unscrew the filter housing sump using a filter wrench.
- Remove the old filter cartridge and dispose of it properly.
- Clean the filter housing sump and inspect the O-ring for any damage. Lubricate the O-ring with food-grade silicone grease if necessary.
- Insert the new ICEPURE 5 Micron 10x4.5 inch filter cartridge into the housing, ensuring it is seated correctly.
- Screw the filter housing sump back onto the cap, hand-tightening it securely. Do not overtighten.
- Slowly turn on the main water supply, checking for any leaks.
- Flush the system by running water from a nearby faucet for a few minutes to remove any air or loose carbon fines (if applicable to your system).

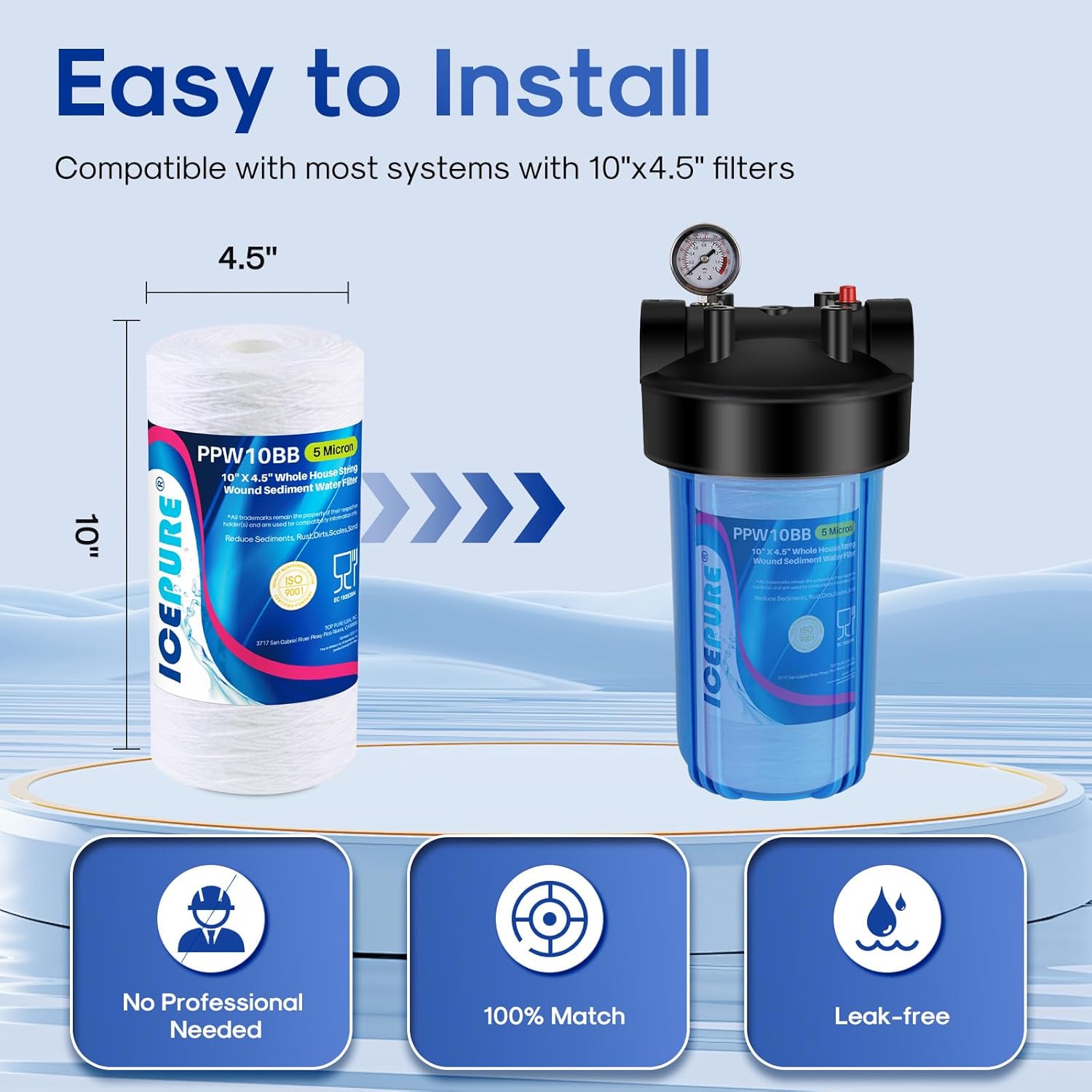

Image 6: Easy installation guide for the ICEPURE filter.
Installation Video:
Video 1: This video demonstrates the general installation and functionality of an ICEPURE whole house water filter, showcasing its benefits and ease of use.
3. Operating Instructions
Once installed, the ICEPURE sediment filter operates continuously as part of your whole house water filtration system. It works by physically trapping sediment and other particulate matter as water flows through it.
General Operation:
- The filter requires no active user input during normal operation.
- Ensure the filter housing is properly sealed to prevent leaks.
- Monitor water pressure. A noticeable drop in water pressure can indicate that the filter is becoming clogged and requires replacement.
Image 7: Applications of filtered water throughout a home.
Image 8: Filtered water in a kitchen setting.
4. Maintenance
Regular replacement of your sediment filter is crucial to maintain optimal water quality and system performance.
Filter Replacement:
- It is recommended to replace the ICEPURE 5 Micron 10x4.5 inch sediment filter every 3 to 6 months or after filtering approximately 30,000 gallons, depending on your water quality and usage.
- For detailed replacement steps, refer to the 'Setup and Installation' section.
Image 9: Filter replacement cycle and cost-effectiveness.
5. Troubleshooting
If you encounter issues with your water filtration system, consider the following common troubleshooting steps:
Common Issues and Solutions:
- Reduced Water Flow/Pressure: This is typically a sign that the filter cartridge is clogged with sediment and needs to be replaced.
- Leaks from Filter Housing: Ensure the filter housing is tightened correctly and the O-ring is properly seated and lubricated. Inspect the O-ring for cracks or damage and replace if necessary.
- Visible Sediment in Water: If you notice sediment after filter replacement, ensure the new filter is installed correctly and the system was flushed adequately. If the problem persists, the filter may be damaged or the micron rating might be too high for your specific water conditions.
6. Specifications
Detailed specifications for the ICEPURE 5 Micron 10x4.5 inch Whole House Sediment String Wound Water Filter (Model: PPW10BB).
| Specification | Detail |
|---|---|
| Brand | ICEPURE |
| Model Number | PPW10BB (Compatible with GE GNWH38F, GE GXWH30C, GE GXWH35F, GE GXWH40L) |
| Material | Food-Grade Material, Lead-Free Material (100% Polypropylene) |
| Product Dimensions | 4.5"D x 4.5"W x 10"H |
| Item Weight | 2.87 Pounds |
| Micron Rating | 5 Micron |
| External Testing Certification | RoHS, NSF, WQA, EC-1935/2004, BPA-Free, Australian Water Mark |
| Product Benefits | Removes impurities and protects pipes with a large filter area and high dirt-holding capacity |
| Recommended Replacement | 3 to 6 months or 30,000 gallons |
| Manufacturer | ICEPURE |
| Date First Available | August 2, 2017 |
7. Warranty and Support
For specific warranty information and customer support, please refer to the product packaging or contact ICEPURE directly through their official website or customer service channels. Keep your purchase receipt for warranty claims.
Contact Information:
- Online Support: Visit the official ICEPURE website for FAQs and support resources.
- Customer Service: Refer to the contact details provided on your product packaging.
Additional Information:
Video 2: This video provides an overview of ICEPURE 10" x 2.5" and 10" x 4.5" whole house water filters, highlighting their features and benefits.
