1. Introduction
This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your Kimberly-Clark Professional Aquarius Rolled Hand Towel Dispenser, Model 7375. Designed for high-traffic washrooms, this dispenser promotes hygiene through controlled single-sheet dispensing and a smooth, easy-to-clean design. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of the product.
Figure 1: Front view of the Aquarius Rolled Hand Towel Dispenser.
2. Safety Information
Observe the following safety precautions during installation and use:
- Ensure the dispenser is securely mounted to a suitable wall surface to prevent accidental falls.
- Keep the dispenser away from direct water spray or excessive humidity unless specifically designed for such environments.
- Do not attempt to modify the dispenser. Use only compatible Kimberly-Clark Professional rolled hand towels.
- Keep the key out of reach of children.
- Dispose of packaging materials responsibly.
3. Package Contents
Verify that all items are present in the package:
- 1 x Aquarius Rolled Hand Towel Dispenser (White)
- Mounting hardware (screws and wall anchors)
- 1 x Dispenser Key
4. Specifications
| Feature | Detail |
|---|---|
| Brand | Kimberly-Clark |
| Model Number | 7375 |
| Material | Metal, Plastic |
| Colour | White |
| Mounting Type | Wall Mount |
| Item Weight | 2.7 Kilograms (2 kg 700 g) |
| Product Dimensions | 42L x 31.5W Centimeters |
| Compatible Towels | Scott rolled hand towels (e.g., 86224) |
| Dispensing System | Controlled single sheet dispensing |
5. Setup & Installation
5.1 Wall Mounting
The dispenser is designed for wall mounting. Follow these steps for secure installation:
- Select a suitable location on a sturdy wall, ensuring adequate clearance for operation and maintenance.
- Open the dispenser using the provided key.
- Mark the desired drilling points on the wall using the dispenser's mounting holes as a template.
- Drill holes at the marked points. Insert the wall anchors if required for your wall type.
- Align the dispenser with the drilled holes and secure it firmly to the wall using the provided screws.
- Ensure the dispenser is level and stable before proceeding.
5.2 Loading the Hand Towel Roll
Proper loading of the towel roll is crucial for correct dispensing. Refer to Figure 2 for visual guidance.
Figure 2: Dispenser with towel partially dispensed.
Figure 3: Loading a new roll into the dispenser.
- Open the dispenser cover using the key.
- Remove any remaining towel core or empty roll.
- Place the new rolled hand towel into the dispenser, ensuring it sits correctly on the internal rollers. The paper should feed from the bottom of the roll.
- Feed the leading edge of the towel paper into the dispensing mechanism slot. Ensure it passes through the rollers.
- Pull a small amount of paper through the dispensing slot until it is visible at the bottom opening of the dispenser.
- Close the dispenser cover and lock it with the key.
6. Operation
The Aquarius dispenser provides controlled single-sheet dispensing for enhanced hygiene and reduced waste.
Figure 4: User pulling a single sheet of paper towel.
- Locate the dispensed towel sheet at the bottom of the dispenser.
- Grasp the exposed sheet firmly and pull downwards to dispense a single portion.
- The dispenser will automatically cut the sheet and prepare the next one for use.
Note: Users only touch the product they use, which helps to enhance hygiene.
7. Maintenance
Regular cleaning ensures the dispenser remains hygienic and functions correctly.
- Cleaning: The dispenser features a sleek and smooth rounded design with no dirt traps, allowing for quick and easy one-wipe cleaning. Use a soft cloth dampened with a mild, non-abrasive cleaning solution. Avoid harsh chemicals or abrasive scrubbers.
- Refilling: Monitor the towel level through the transparent viewing window on the front of the dispenser. Replace the roll when it is empty or nearly empty to ensure continuous supply.
- Inspection: Periodically check the internal mechanisms for any obstructions or wear. Ensure the rollers are clean and free of debris.

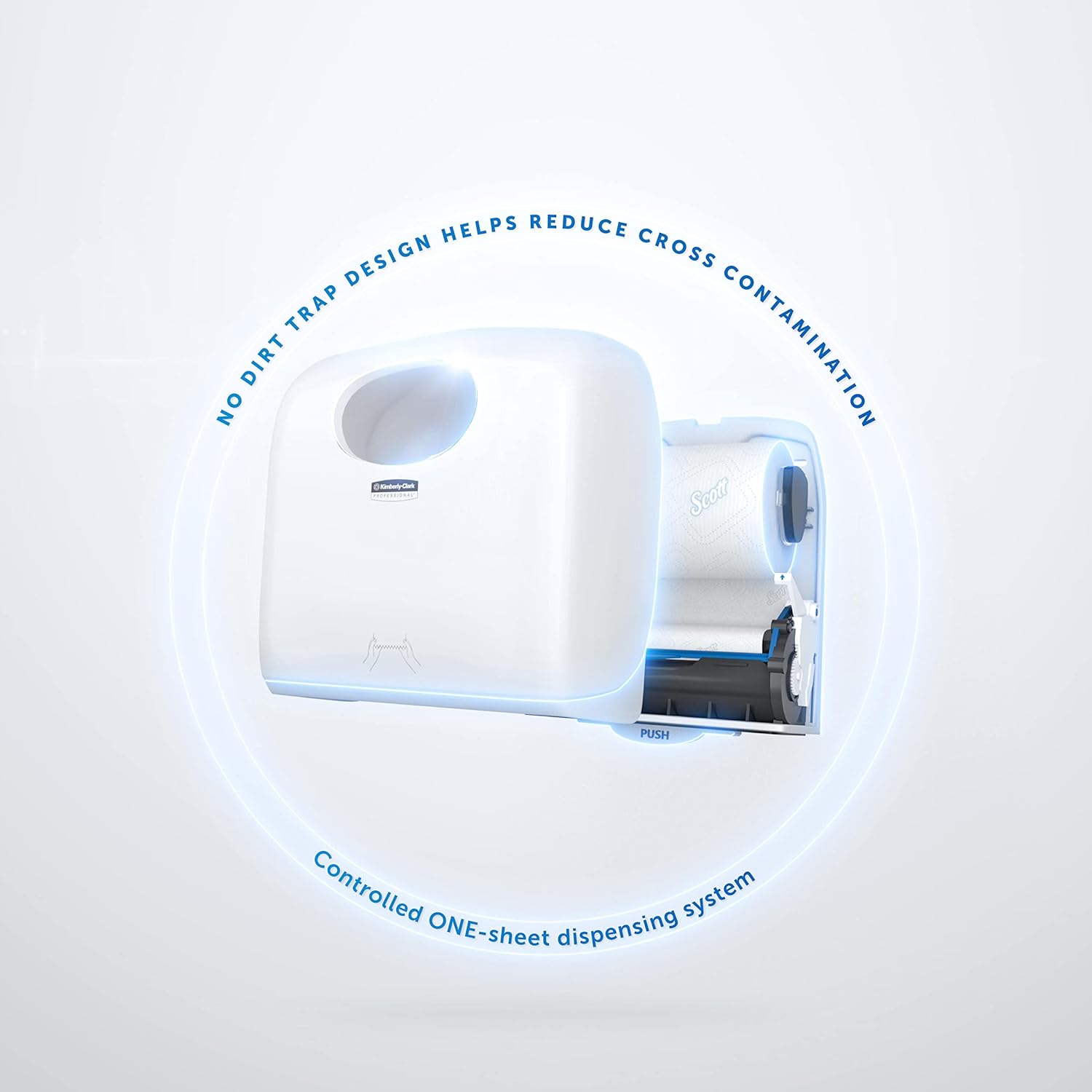

Figure 5: Dispenser design highlighting no dirt traps and controlled dispensing.
8. Troubleshooting
If you encounter issues with your dispenser, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Towel not dispensing | Roll incorrectly loaded or empty. | Open dispenser, check roll alignment, or replace empty roll. Ensure paper is fed through the mechanism. |
| Paper jams | Incorrect paper type or foreign object. | Open dispenser, remove jammed paper and any obstructions. Ensure only compatible Scott rolled hand towels are used. |
| Towel not visible at bottom | Paper not fed far enough or retracted. | Open dispenser and manually feed the paper through the mechanism until it is visible. Some models may have a "push" button to advance the paper if it retracts too far. |
| Dispenser cover not closing | Obstruction or misaligned roll. | Check for any obstructions preventing the cover from closing. Ensure the towel roll is seated correctly and not protruding. |
9. Warranty & Support
For warranty information or technical support, please contact Kimberly-Clark Professional customer service. Refer to the product packaging or the official Kimberly-Clark Professional website for contact details specific to your region.
Manufacturer: Kimberly-Clark Professional®
Importer/Packer: KIMBERLY-CLARK HYGIENE PRODUCTS PRIVATE LIMITED BLDG. NO. A1, PLOT NO. P5, VIL. KHALUMBRE, CHAKAN MIDC, PHASE II, TAL. KHED, PUNE – 410501.
