Introduction
This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Cambro PCUHH615 Pro Cart Ultra Hot Food Pan Carrier. Please read this manual thoroughly before using the product to ensure proper function and longevity.
Safety Information
- Always ensure the unit is placed on a stable, level surface before loading or operating.
- Connect the unit only to a grounded electrical outlet with the specified voltage (110V).
- Do not immerse the unit in water or spray directly with water for cleaning.
- Keep the power cord clear of hot surfaces and away from traffic areas to prevent tripping hazards.
- Do not operate the unit if the power cord or plug is damaged. Contact qualified service personnel.
- Use caution when handling hot food pans and accessing the heated compartments.
Product Overview
The Cambro PCUHH615 Pro Cart Ultra is a high-capacity, insulated food pan carrier designed for maintaining hot food temperatures during transport and holding. It features two independently heated compartments and robust construction for commercial use.

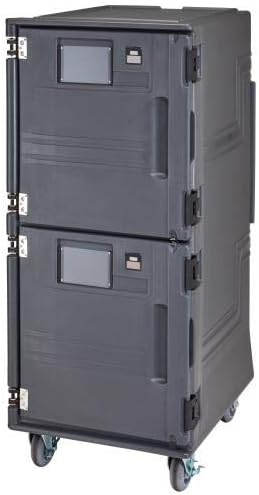

This image displays the Cambro PCUHH615 Pro Cart Ultra Hot Food Pan Carrier. It is a tall, gray, insulated unit designed for transporting hot food, featuring two distinct heated compartments, each with its own door and temperature display. The unit is equipped with four heavy-duty casters for mobility.
Key Features:
- Capacity: 16 full-size sheet pans or 32 full-size 2.5-inch deep steam pans.
- Construction: Polyethylene exterior, polyurethane insulation, stainless steel hinges, and adjustable universal rails.
- Heating: Heated top and lower compartments, preset to 150°F to 165°F (65.5°C to 73.9°C).
- Temperature Retention: Holds temperature for 4 hours or more when unplugged.
- Monitoring: Solar digital thermometer for internal temperature monitoring.
- Mobility: Two 6-inch heavy-duty swivel casters with brakes (front) and two heavy-duty rigid casters (rear).
- Door Design: Gasket-free door opens 270°, secured by 4-inch nylon latches.
- Power: 5-15P 9 ft power cord, 110V/4.6A/529W/60Hz/1-Ph.
Setup
- Unpacking: Carefully remove the unit from its packaging. Inspect for any shipping damage.
- Caster Check: Ensure all four casters are securely attached. The two swivel casters with brakes should be at the front for maneuverability and stability.
- Placement: Position the cart on a flat, stable surface in a well-ventilated area. Engage the brakes on the front swivel casters to prevent movement.
- Power Connection: Uncoil the 9 ft power cord from its holder. Plug the 5-15P plug into a dedicated 110V, 60Hz, 1-phase grounded electrical outlet.
- Initial Cleaning: Before first use, wipe down all interior and exterior surfaces with a damp cloth and mild detergent. Rinse and dry thoroughly.
Operating Instructions
- Preheating: With the unit plugged in, allow approximately 30-45 minutes for the compartments to reach the preset holding temperature of 150°F to 165°F (65.5°C to 73.9°C). The solar digital thermometer will display the internal temperature.
- Loading Food: Open the doors by disengaging the nylon latches. Carefully slide hot food pans onto the adjustable stainless steel universal rails. Ensure pans are fully seated.
- Closing Doors: Close the doors firmly and engage the nylon latches to secure them. This ensures optimal temperature retention.
- Monitoring Temperature: Periodically check the solar digital thermometer to confirm the internal temperature is within the desired range.
- Transport: When transporting, ensure doors are securely latched. Disengage caster brakes. Use the integrated handles for pushing. Re-engage brakes once the cart is in its desired location.
- Unplugged Holding: The unit is designed to hold temperatures for 4 hours or more when unplugged, provided the doors remain closed.
Maintenance
- Daily Cleaning:
- Unplug the unit and allow it to cool completely before cleaning.
- Wipe down interior and exterior surfaces with a soft cloth or sponge using a mild, non-abrasive detergent.
- Rinse with a clean, damp cloth and dry thoroughly to prevent water spots and mildew.
- Clean the adjustable rails and door latches.
- Caster Maintenance: Periodically check casters for debris and ensure they roll freely. Lubricate swivel casters if necessary.
- Power Cord Care: Inspect the power cord regularly for any signs of damage. Store the cord in its designated holder when not in use.
- Storage: Store the unit in a clean, dry area when not in use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not heating | Not plugged in; power outage; faulty outlet; internal component failure. | Check power cord connection. Verify power to the outlet. If issues persist, contact service. |
| Temperature too low | Doors not latched properly; unit overloaded; insufficient preheating time. | Ensure doors are securely latched. Do not overload. Allow adequate preheating time. |
| Casters not rolling smoothly | Debris in casters; brakes engaged; lack of lubrication. | Clear debris from casters. Disengage brakes. Lubricate casters if needed. |
Specifications
| Model | PCUHH615 |
| Product Dimensions | 28 in (W) x 36.5 in (Depth) x 66 in (H) (71.12 cm W x 92.71 cm D x 167.64 cm H) |
| Material | Polyethylene (exterior), Polyurethane (insulation), Stainless Steel (hinges, frame, rails), Nylon (latches) |
| Capacity | 16 full-size sheet pans or 32 full-size 2.5-inch deep steam pans |
| Preset Temperature | 150°F to 165°F (65.5°C to 73.9°C) |
| Temperature Retention | 4+ hours (unplugged) |
| Power Requirements | 110V / 4.6A / 529W / 60Hz / 1-Ph |
| Power Cord | 9 ft (2.74 m) with 5-15P plug |
| Item Weight | 286 Pounds (129.73 kg) |
| Number of Wheels | 4 (2 swivel with brake, 2 rigid) |
Warranty and Support
For warranty information or technical support, please refer to the official Cambro website or contact Cambro customer service directly. Keep your purchase receipt for warranty claims.
Cambro Contact Information:
- Website: www.cambro.com
- Refer to product packaging or the official Cambro website for specific contact numbers and email addresses.
