1. Introduction
This manual provides essential instructions for the safe and efficient operation of your Concise Home Portable Electric Clothes Dryer. Please read it thoroughly before initial use and retain it for future reference.
The portable electric clothes dryer is designed to assist in drying and sanitizing textiles and various garments, particularly in cold, humid, or rainy climates. It allows clothes to dry on hangers, which helps prevent wrinkles, similar to the effect of a steam iron. When not in use, the unit can also serve as a portable wardrobe.
2. Product Components
Familiarize yourself with the components of your clothes dryer:
- Main Host Unit: The heating and fan component.
- Support Legs: Three solid aluminum alloy legs for stability.
- Frame Poles: Vertical poles that form the internal structure.
- Top Clothes Rack: For hanging garments on hangers.
- Second Floor Hanger with Hooks: For smaller items like socks or underwear.
- Fabric Cover: The outer enclosure that retains heat.
- Timer Knob: To set drying duration.
- Filter: Located at the air intake to protect the host unit.

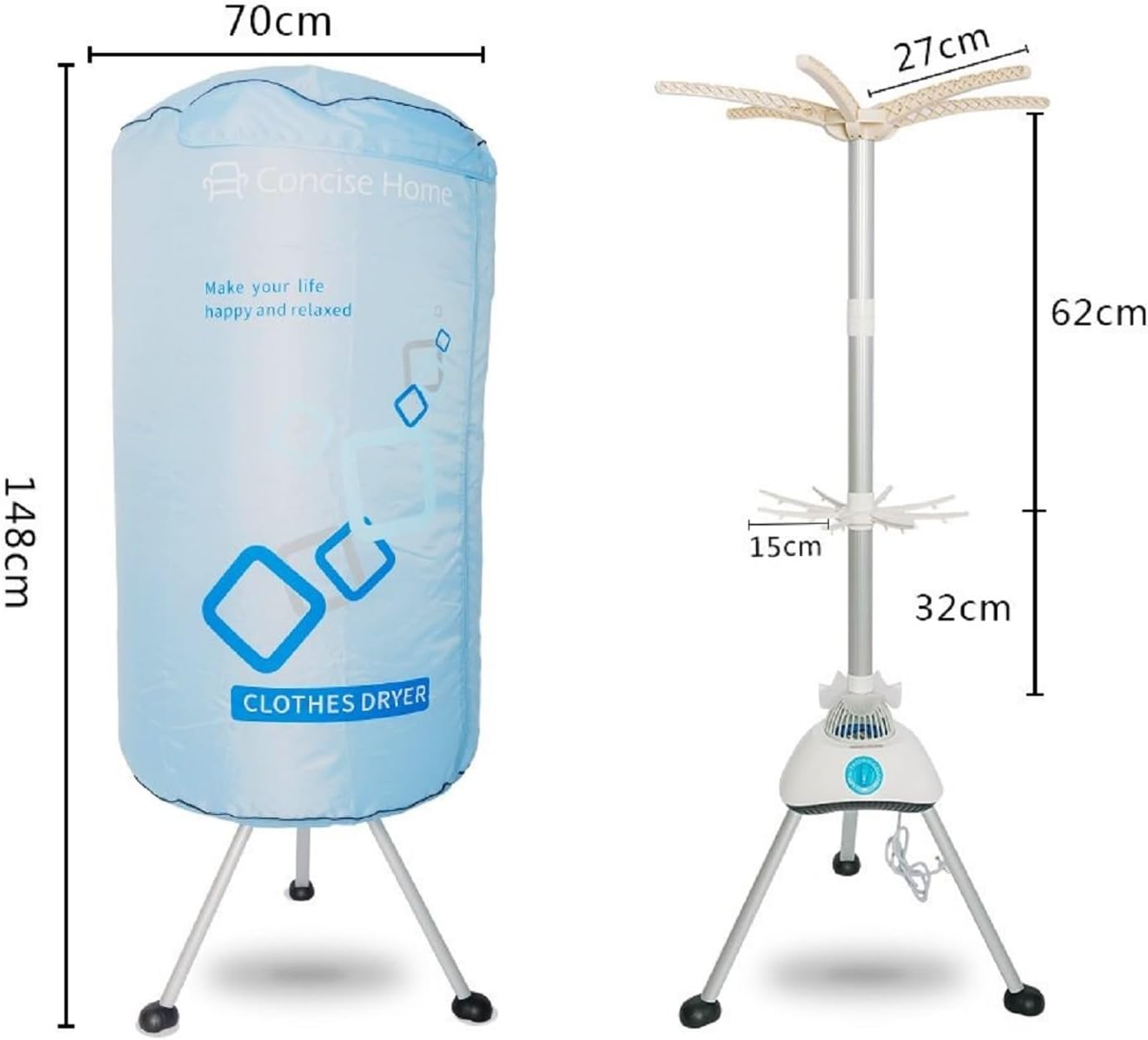

Image 2.1: Overall view of the Concise Home Portable Electric Clothes Dryer, showing its assembled form and internal frame with key dimensions (70cm width, 148cm height).

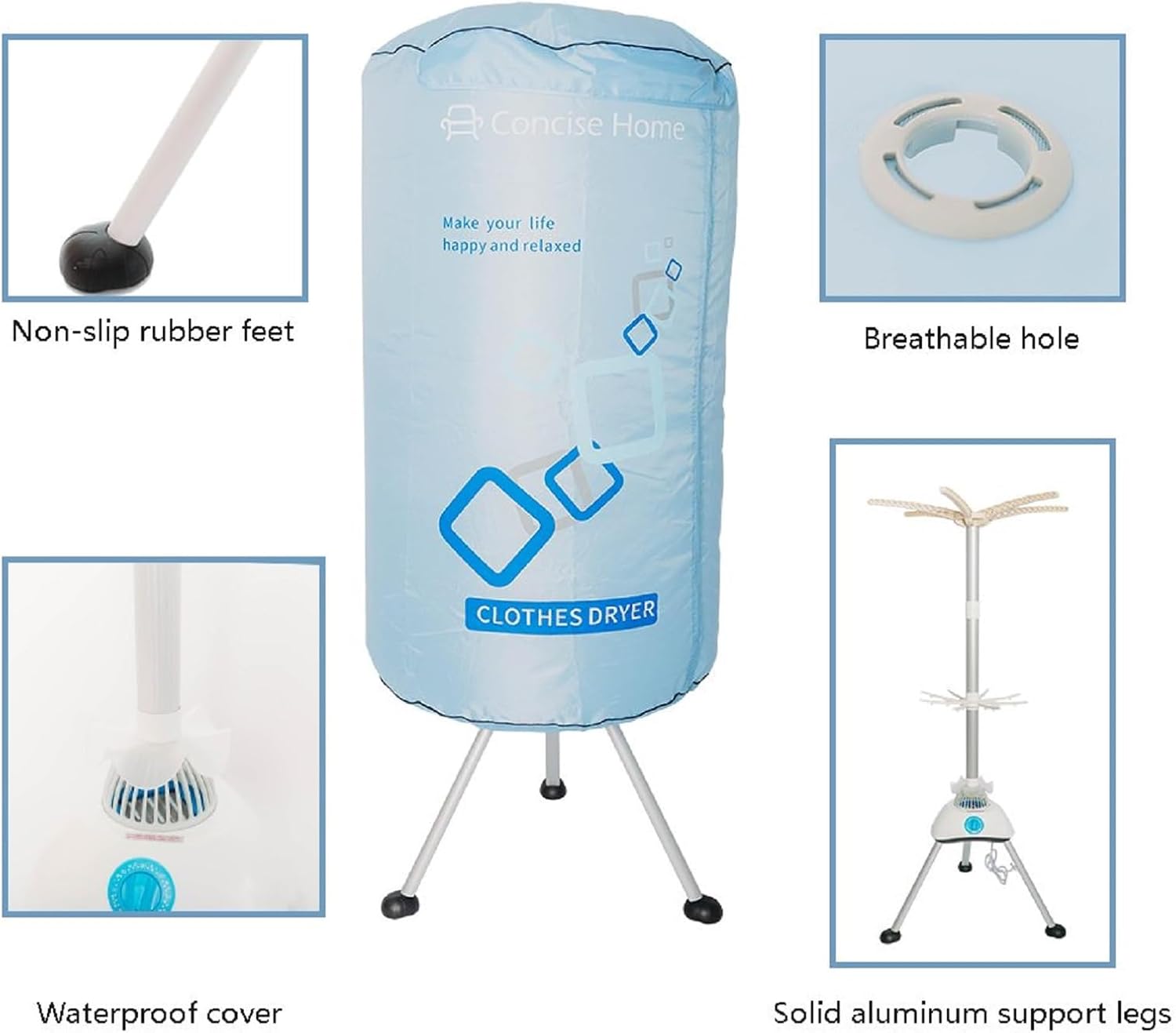

Image 2.2: Close-up views highlighting features such as non-slip rubber feet, a breathable hole for air circulation, the waterproof cover over the host unit, and the solid aluminum support legs.
3. Setup and Assembly
The dryer features simple assembly and disassembly for convenience and space-saving storage.
- Assemble the Base: Attach the three solid aluminum alloy support legs to the main host unit. Ensure they are securely locked into place. The non-slip rubber feet should be facing downwards.
- Install Frame Poles: Insert the vertical frame poles into the designated slots on the host unit and connect them to form the internal structure.
- Attach Racks: Place the top clothes rack onto the upper part of the frame. If desired, install the intermediate pylon with hooks for smaller items. The top pylon can support up to 24 hangers.
- Position Fabric Cover: Drape the fabric cover over the assembled frame, ensuring the zipper aligns correctly for easy access. The host unit is equipped with a waterproof cover to prevent water ingress and ensure safe operation.
Image 3.1: Views of the internal structure, including the top clothes rack, non-slip clothes rack, second-floor hanger with small hooks, and foldable second-floor pylons for versatile hanging options.
4. Operating Instructions
Follow these steps for effective drying:
- Load Garments: Hang your clothes on hangers and place them on the internal racks. Ensure clothes are evenly distributed and do not exceed the maximum capacity of 10kg. Avoid overcrowding to allow for proper air circulation.
- Close Cover: Zip up the fabric cover completely to create an enclosed drying environment. The zipper features an anti-scalding design for safety.
- Set Timer: Plug the dryer into a suitable power outlet. Turn the timer knob to select the desired drying duration, up to 180 minutes. The dryer will begin operation automatically.
- Drying Process: The dryer circulates warm air to dry your garments. For heavily loaded items or dense fabrics like jeans, longer drying times (e.g., 180 minutes) may be required.
- Completion: Once the set time elapses, the dryer will automatically shut off. Carefully open the cover and remove your dry clothes.
Image 4.1: Diagram illustrating the warm air circulation pattern within the dryer, ensuring efficient and even drying of garments.
Image 4.2: Close-up of the main host unit, showing the timer knob for setting drying duration (up to 180 minutes) and the air intake with its protective filter.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your dryer.
- Filter Cleaning: The dryer is equipped with a filter to protect the host unit from dust and hair. Regularly check and clean this filter to maintain efficient air intake and prevent blockages. A clean filter ensures clean air circulation and optimal drying performance.
- Exterior Cleaning: Wipe down the exterior of the fabric cover and host unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the host unit in water.
- Storage: When not in use, the dryer can be easily disassembled for compact storage, saving floor space.
6. Safety Information
Your safety is paramount. Observe the following precautions:
- Electrical Safety: The dryer is CE certified and uses a VED authenticated European two-pin plug. Ensure the power outlet is compatible and properly grounded. Do not use if the power cord is damaged.
- Overheat Protection: The machine includes an internal thermostat and fuse. In case of abnormal temperature detection, the dryer will automatically shut down and cut off power to ensure your safety. Allow the unit to cool before attempting to restart.
- Water Protection: The host unit is provided with a waterproof cover to prevent water from entering the machine, ensuring safe operation. Do not operate the dryer in excessively wet environments or allow water to splash directly onto the host unit.
- Anti-Scalding Design: The zipper of the fabric cover is designed to prevent scalding. Exercise caution when opening the cover immediately after a drying cycle as hot air may escape.
- Placement: Always place the dryer on a stable, level surface. Do not block the air intake or exhaust vents during operation.
- Capacity: Do not overload the dryer beyond its 10kg capacity. Overloading can hinder performance and pose a safety risk.
- Children and Pets: Keep children and pets away from the dryer during operation.
7. Troubleshooting
Refer to this section for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dryer does not start | No power; Timer not set; Overheat protection activated. | Check power connection; Set timer; Allow unit to cool down if it shut off due to overheating. |
| Clothes not drying completely | Overloaded; Insufficient drying time; Poor air circulation; Dirty filter. | Reduce load; Increase drying time; Ensure clothes are not overcrowded; Clean the air filter. |
| Unusual noise during operation | Loose components; Obstruction in fan. | Check that all parts are securely assembled; Ensure no foreign objects are near the fan intake. |
| Dryer shuts off unexpectedly | Overheat protection activated. | This is a safety feature. Unplug the unit, allow it to cool for at least 30 minutes, then check for blocked vents or overloaded conditions before restarting. |
8. Specifications
Key technical details for the Concise Home CH-0009 Portable Electric Clothes Dryer:
- Brand: Concise Home
- Model Number: CH-0009
- Power: 1000 Watts
- Capacity: 10 Kilograms
- Dimensions (L x W x H): 70 x 70 x 148 cm
- Weight: 2.98 Kilograms
- Material: Plastic, Aluminum
- Features: Waterproof, Timer (up to 180 minutes), Overheat Protection (Thermostat, Fuse), CE/VED Certified.
9. Warranty and Support
For information regarding warranty coverage, technical support, or spare parts availability, please refer to the retailer where you purchased the product or visit the official Concise Home website. Please have your model number (CH-0009) and purchase date ready when contacting support.
