1. Introduction
This manual provides essential information for the proper installation, maintenance, and troubleshooting of the GOWE 2TR-FE Cylinder Head, model GWE-20002357. This cylinder head is designed for specific Toyota 2TR-FE engines found in models such as HILUX, INNOVA, FORTUNER, TACOMA, and HIACE. Adherence to these instructions is crucial for optimal performance and longevity of the engine component.
Important: Installation of this component requires specialized knowledge and tools. It is highly recommended that installation be performed by a certified automotive technician.
2. Safety Information
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when working on engine components.
- Ensure the vehicle is properly supported on jack stands and the battery is disconnected before beginning any work.
- Allow the engine to cool completely before handling any components to prevent burns.
- Handle all engine fluids (oil, coolant) with care and dispose of them responsibly according to local regulations.
- Refer to the vehicle manufacturer's service manual for specific torque specifications and procedures.
- Keep children and pets away from the work area.
3. Package Contents
Upon unpacking, verify that all components are present and undamaged. The package should contain:
- GOWE 2TR-FE Cylinder Head (Model GWE-20002357)
- (Note: Gaskets, bolts, and other ancillary components may be sold separately. Please check your order details.)

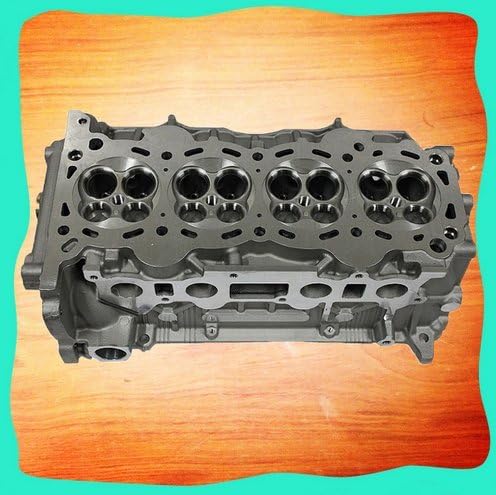

Figure 1: Top view of the GOWE 2TR-FE Cylinder Head, illustrating the valve seats and port design.
4. Installation
The installation of a cylinder head is a complex procedure that requires precision and adherence to manufacturer specifications. The following steps are general guidelines; always consult the specific service manual for your vehicle model.
- Preparation: Ensure the engine block surface is meticulously clean, flat, and free of any debris or old gasket material. Inspect the block for any damage or cracks.
- Gasket Placement: Carefully place a new cylinder head gasket onto the engine block, ensuring correct orientation. Use only new, high-quality gaskets.
- Cylinder Head Placement: Gently lower the GOWE cylinder head onto the engine block, aligning it with the dowel pins and gasket. Avoid scratching or damaging the mating surfaces.
- Head Bolt Installation: Install new cylinder head bolts. Never reuse old head bolts as they are typically torque-to-yield and stretch during initial installation.
- Torquing Procedure: Follow the vehicle manufacturer's specified torque sequence and specifications precisely. This usually involves multiple stages of torquing and angle turns. Incorrect torquing can lead to head gasket failure or cylinder head warpage.
- Component Reassembly: Reinstall all associated components, including camshafts, valves, rocker arms, intake manifold, exhaust manifold, fuel system, cooling system, and electrical connections. Ensure all connections are secure and torqued to specification.
- Fluid Refill: Refill the engine with the correct type and amount of engine oil and coolant. Bleed the cooling system to remove any air pockets.

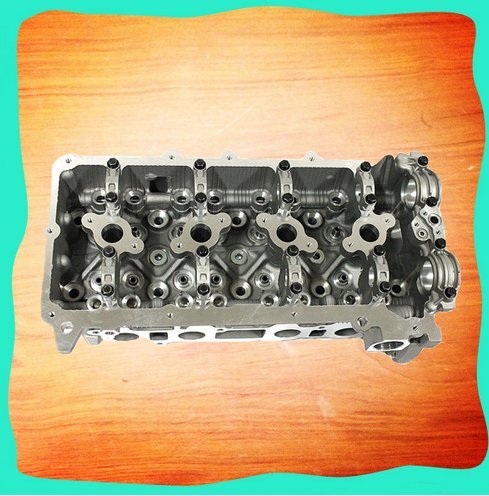

Figure 2: Side view of the GOWE 2TR-FE Cylinder Head, highlighting the exhaust side and various mounting points.
5. Initial Engine Start-up and Checks
After installation, perform the following checks before and during the initial engine start-up:
- Pre-Start Inspection: Double-check all fluid levels, electrical connections, vacuum lines, and hose clamps. Ensure no tools or foreign objects are left in the engine bay.
- Initial Start: Start the engine and allow it to idle. Monitor for any unusual noises, vibrations, or warning lights.
- Leak Detection: Visually inspect for any oil, coolant, or fuel leaks around the cylinder head and associated components.
- Temperature Monitoring: Observe the engine temperature gauge. Ensure the engine reaches operating temperature without overheating. The cooling fan should activate as expected.
- Idle Stability: Check for stable idle speed and smooth engine operation.
- Test Drive: After confirming no immediate issues, perform a short test drive, gradually increasing load and speed, while continuing to monitor engine performance and temperature.
6. Maintenance
Proper maintenance of the engine system is vital for the longevity of the cylinder head and overall engine health. While the cylinder head itself requires no specific routine maintenance beyond proper installation, adherence to the vehicle manufacturer's recommended service schedule is critical.
- Oil Changes: Regularly change engine oil and filter according to the vehicle manufacturer's recommendations. Use the specified oil type and viscosity.
- Coolant System: Maintain the correct coolant level and ensure the cooling system is free of leaks. Flush and replace coolant at recommended intervals.
- Valve Clearance: If your engine requires periodic valve clearance adjustments, ensure these are performed by a qualified technician.
- Spark Plugs: Replace spark plugs at recommended intervals to ensure efficient combustion and prevent excessive heat buildup.
- Timing Components: Ensure timing belts or chains and their tensioners are inspected and replaced as per the vehicle's service schedule.
Figure 3: Detailed view of the GOWE 2TR-FE Cylinder Head, illustrating the combustion chambers and valve train area.
7. Troubleshooting
If you experience issues after cylinder head installation, consider the following common problems and their potential causes. Always consult a qualified mechanic for diagnosis and repair.
| Symptom | Possible Cause | Action |
|---|---|---|
| Coolant Leak | Improperly torqued head bolts, damaged head gasket, warped cylinder head surface, loose hose clamps. | Inspect for visible leaks. Re-check head bolt torque (if applicable and safe). Replace gasket if damaged. Consult technician for surface flatness check. |
| Oil Leak | Damaged valve cover gasket, camshaft seal leak, improper sealant application. | Identify source of leak. Replace faulty gaskets or seals. Ensure proper sealant application. |
| Engine Overheating | Air in cooling system, low coolant level, faulty thermostat, clogged radiator, water pump failure, head gasket failure. | Bleed cooling system. Check coolant level. Inspect cooling system components. Head gasket failure requires professional diagnosis. |
| Loss of Engine Power / Misfire | Incorrect valve timing, bent valves, worn valve seats, poor compression due to head gasket or valve issues. | Perform compression test. Check valve timing. Professional diagnosis is required for internal head issues. |
8. Specifications
| Attribute | Detail |
|---|---|
| Brand | GOWE |
| Manufacturer Part Number | GWE-20002357 |
| ASIN | B073M2PMW9 |
| Date First Available | June 2, 2019 |
| Engine Compatibility | Toyota 2TR-FE Engine |
| Vehicle Compatibility | Toyota HILUX, INNOVA, FORTUNER, TACOMA, HIACE |
| OEM Part Numbers (Reference) | 11101-75200, 11101-75240 |
9. Warranty and Support
GOWE products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your purchase or visit the official GOWE website. For technical support or inquiries, please contact GOWE customer service through the vendor's contact information provided at the point of purchase.
For additional resources and product information, you may visit the GOWE Store on Amazon.
