KUBERG Cross Hero Electric Dirt Bike User Manual

Introduction

Welcome to the KUBERG Cross Hero Electric Dirt Bike user manual. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your electric dirt bike. Please read this manual thoroughly before operating the bike to ensure proper usage and to maximize its lifespan.

The KUBERG Cross Hero is designed for young riders aged 6 to 12 years, offering a powerful yet controlled riding experience. It features a robust design, advanced suspension, and reliable braking systems for various terrains.

Safety Guidelines

Always prioritize safety when operating the KUBERG Cross Hero. Failure to follow these guidelines may result in serious injury or damage to the bike.

• Always wear appropriate safety gear, including a helmet, eye protection, gloves, and protective clothing.
• Ensure the rider is within the recommended age range (6-12 years) and weight limit (up to 100 kg).
• Operate the bike only in designated and safe areas, away from public roads and traffic.
• Perform a pre-ride inspection before each use, checking brakes, tires, and battery level.
• Do not operate the bike under the influence of alcohol or drugs.
• Adult supervision is highly recommended for young riders.

Setup and Assembly

Your KUBERG Cross Hero Electric Dirt Bike comes partially assembled. Follow these steps for initial setup:

1. Unpacking: Carefully remove all components from the packaging. Verify that all included parts, such as the charger and owner's manual, are present.
2. Handlebar Installation: Attach the handlebars securely to the steering column. Ensure all bolts are tightened to the manufacturer's specifications.
3. Wheel Inspection: Check that both wheels are properly seated and secured. Inspect tires for proper inflation and any damage.
4. Initial Charge: Before first use, fully charge the bike's battery. Connect the charger to the bike's charging port and then to a standard power outlet. The charging indicator will show when charging is complete.
5. Brake Adjustment: Test the hydraulic disc brakes and adjust them if necessary to ensure optimal stopping power. Refer to the detailed brake adjustment section in the full owner's manual for precise instructions.

Figure 1: The KUBERG Cross Hero Electric Dirt Bike. This image shows the overall design of the bike, highlighting its robust frame and suspension system, essential for understanding assembly points.

Operating Instructions

Operating the KUBERG Cross Hero is straightforward, but understanding its features is key to a safe and enjoyable ride.

Starting the Bike

1. Ensure the battery is sufficiently charged.
2. Turn the main power switch to the "ON" position.
3. The bike is now ready for operation.

Riding Controls

• Throttle: The twist-grip throttle on the right handlebar controls acceleration. Apply gently to start moving.
• Brakes: The KUBERG Cross Hero is equipped with hydraulic disc brakes for reliable stopping power. The front brake lever is on the right handlebar, and the rear brake lever is on the left. Apply both brakes smoothly and simultaneously for effective stopping.
• Power Modes: The bike may feature multiple power modes (e.g., 30 "speeds" as per specifications, likely power levels). Consult the full owner's manual for details on how to switch between these modes to adjust speed and power output according to rider skill and terrain.

Figure 2: The KUBERG Cross Hero positioned on a dirt track. This image illustrates the bike's suitability for off-road environments, emphasizing its robust construction and knobby tires designed for challenging terrain.

Wi-Fi Connectivity (Optional)

The KUBERG Cross Hero is Wi-Fi compatible, allowing connection to a mobile phone for monitoring and control. A Wi-Fi adapter is sold separately.

• With the optional Wi-Fi adapter, you can connect your smartphone to the bike.
• Use the dedicated KUBERG app (if available) to access relevant information such as battery status, speed, and potentially adjust power settings.
• The Wi-Fi feature also supports a child monitoring function, providing parents with oversight of the bike's usage.

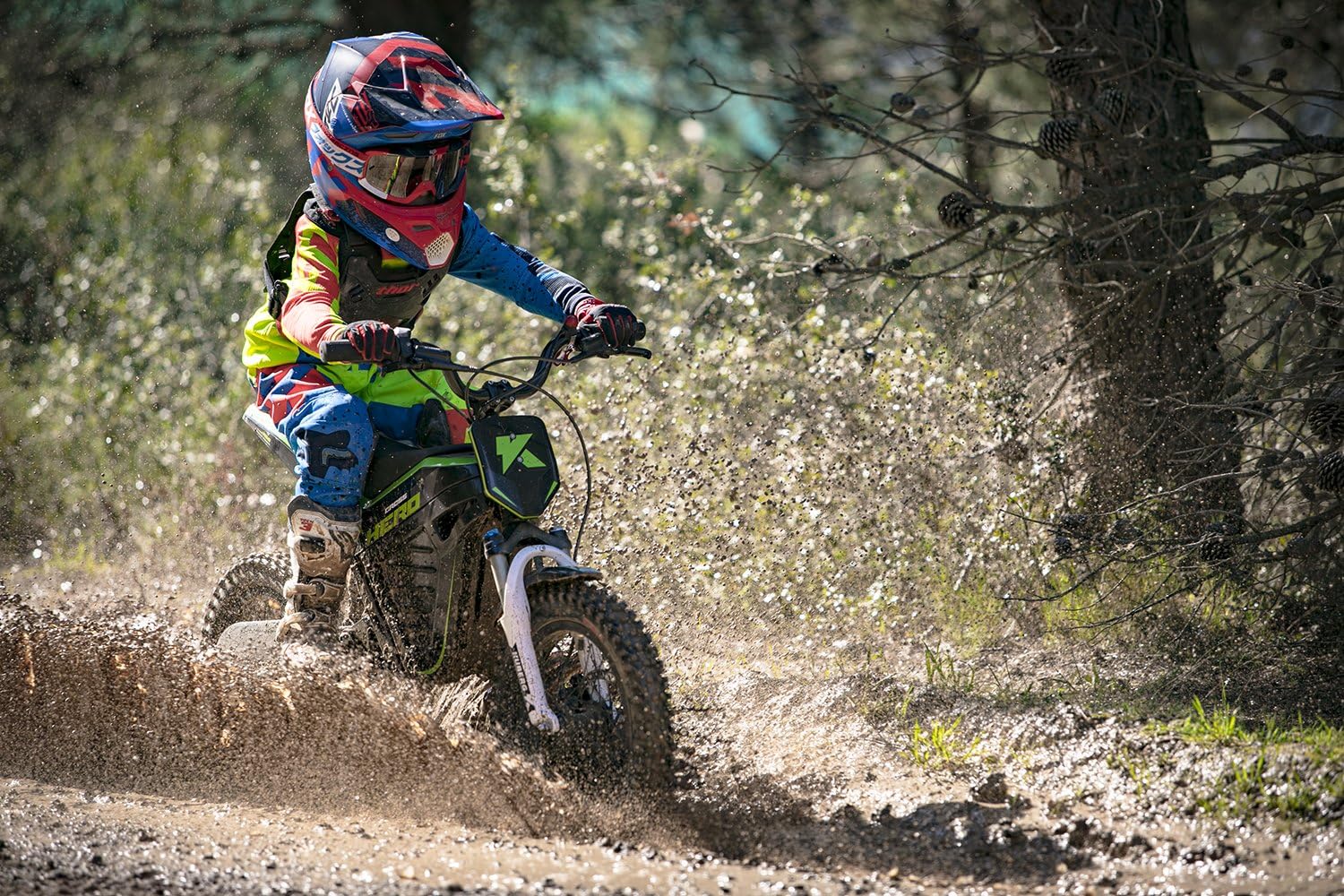

Figure 3: A young rider navigating the KUBERG Cross Hero through muddy terrain. This image demonstrates the bike's performance in challenging conditions and the importance of protective gear for the rider.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your KUBERG Cross Hero.

• Cleaning: After each ride, especially in muddy or dusty conditions, clean the bike with a damp cloth. Avoid high-pressure washing directly on electrical components.
• Battery Care:
  • Always fully charge the battery after each use.
  • If storing the bike for an extended period, charge the battery to approximately 50-70% and store in a cool, dry place. Recharge every 2-3 months to prevent deep discharge.
  • Use only the original KUBERG charger provided with the bike.
• Brake Inspection: Regularly check brake pads for wear and brake fluid levels. Ensure brake levers operate smoothly and provide firm stopping power.
• Tire Pressure: Maintain recommended tire pressure for optimal performance and safety. Check before each ride.
• Fastener Check: Periodically inspect all bolts and fasteners for tightness, especially on the handlebars, wheels, and suspension components.
• Suspension: The bike features fully adjustable air suspension. Refer to the detailed manual for instructions on adjusting the suspension for different rider weights and terrains.

Figure 4: A close-up view of the KUBERG Cross Hero's frame and a rider's leg, showing the "CROSS HERO" branding and the robust construction. This image highlights the durability of the bike's components, which benefit from regular cleaning and inspection.

Troubleshooting

This section addresses common issues you might encounter with your KUBERG Cross Hero. For more complex problems, contact KUBERG customer support.

Figure 5: A young rider standing beside the KUBERG Cross Hero on a dirt path, wearing full riding gear. This image emphasizes the importance of proper gear and pre-ride checks, which can help prevent many common issues.

Specifications

Detailed technical specifications for the KUBERG Cross Hero Electric Dirt Bike (Model: ASB-CRHERO001).

• Model: ASB-CRHERO001
• Brand: KUBERG
• Age Range: Child (6-12 years)
• Bike Type: Children's Electric Dirt Bike
• Motor Power: 3 kW
• Maximum Speed: Approximately 30 km/h (18.6 mph)
• Riding Time: Up to 2 hours (depending on terrain and riding style)
• Frame Material: Powder-coated Alloy Steel
• Maximum Load Capacity: Up to 100 kg (220 lbs)
• Brake Type: Hydraulic Disc Brakes (front and rear)
• Suspension: Fully adjustable air suspension (front and rear)
• Wheel Size: 63 cm (24.8 inches)
• Seat Height: 63 cm (24.8 inches)
• Dimensions (L x W x H): 115 x 27.5 x 45 cm (45.3 x 10.8 x 17.7 inches)
• Weight: 32.66 kg (72 lbs)
• Battery: 3 Product specific batteries (included)
• Charging: Rechargeable, charger included
• Connectivity: Wi-Fi compatible (adapter sold separately)
• Included Components: Charger, Owner's Manual

Warranty and Support

Warranty Information

KUBERG products are manufactured to high standards and undergo rigorous quality control. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official KUBERG website. The warranty typically covers manufacturing defects under normal use.

Customer Support

If you have any questions, require technical assistance, or need to report an issue with your KUBERG Cross Hero, please contact KUBERG customer support. You can usually find contact information on the official KUBERG website or in the full owner's manual.

For the most up-to-date information and support resources, please visit: www.kuberg.com
