Gamo Wild Cat Whisper IGT Pellet Air Rifle User Manual

Introduction

Welcome to the Gamo Wild Cat Whisper IGT Pellet Air Rifle manual. This guide provides essential information for the safe and effective use of your air rifle. The Gamo Wild Cat Whisper IGT features Inert Gas Technology (IGT) for smoother cocking and consistent power, along with Whisper noise dampening technology. This model is available in .177 and .22 caliber and includes a 4x32mm scope for enhanced accuracy.

Safety Information

Always prioritize safety when handling any air rifle. Failure to follow these guidelines can result in serious injury or death.

• Always treat the air rifle as if it is loaded.
• Never point the air rifle at anything you do not intend to shoot.
• Keep your finger off the trigger until your sights are on the target and you are ready to fire.
• Always wear appropriate eye protection when handling or firing the air rifle.
• Be aware of your target and what is beyond it. Ensure a safe backstop.
• Store the air rifle unloaded and securely, away from children and unauthorized users.
• Familiarize yourself with and adhere to all local, state, and federal laws regarding air rifle ownership and use.
• Read this entire manual before operating the air rifle.

Package Contents

Verify that all items are present in your package:

• Gamo Wild Cat Whisper IGT Pellet Air Rifle
• 4x32mm Scope
• Scope Rings (for mounting)
• User Manual

Setup

Unpacking

Carefully remove all components from the packaging. Retain the packaging for future storage or transport. Inspect the air rifle and accessories for any visible damage.

Scope Mounting

The Gamo Wild Cat Whisper IGT includes a 4x32mm scope. Follow these steps to mount it:

1. Loosen the screws on the scope rings and attach the bottom halves to the rifle's dovetail rail.
2. Place the scope into the bottom halves of the rings.
3. Attach the top halves of the scope rings and lightly tighten the screws.
4. Adjust the scope's position for comfortable eye relief (the distance between your eye and the scope's eyepiece when aiming).
5. Ensure the scope's reticle is level.
6. Evenly tighten all scope ring screws, alternating between screws to ensure even pressure. Do not overtighten.

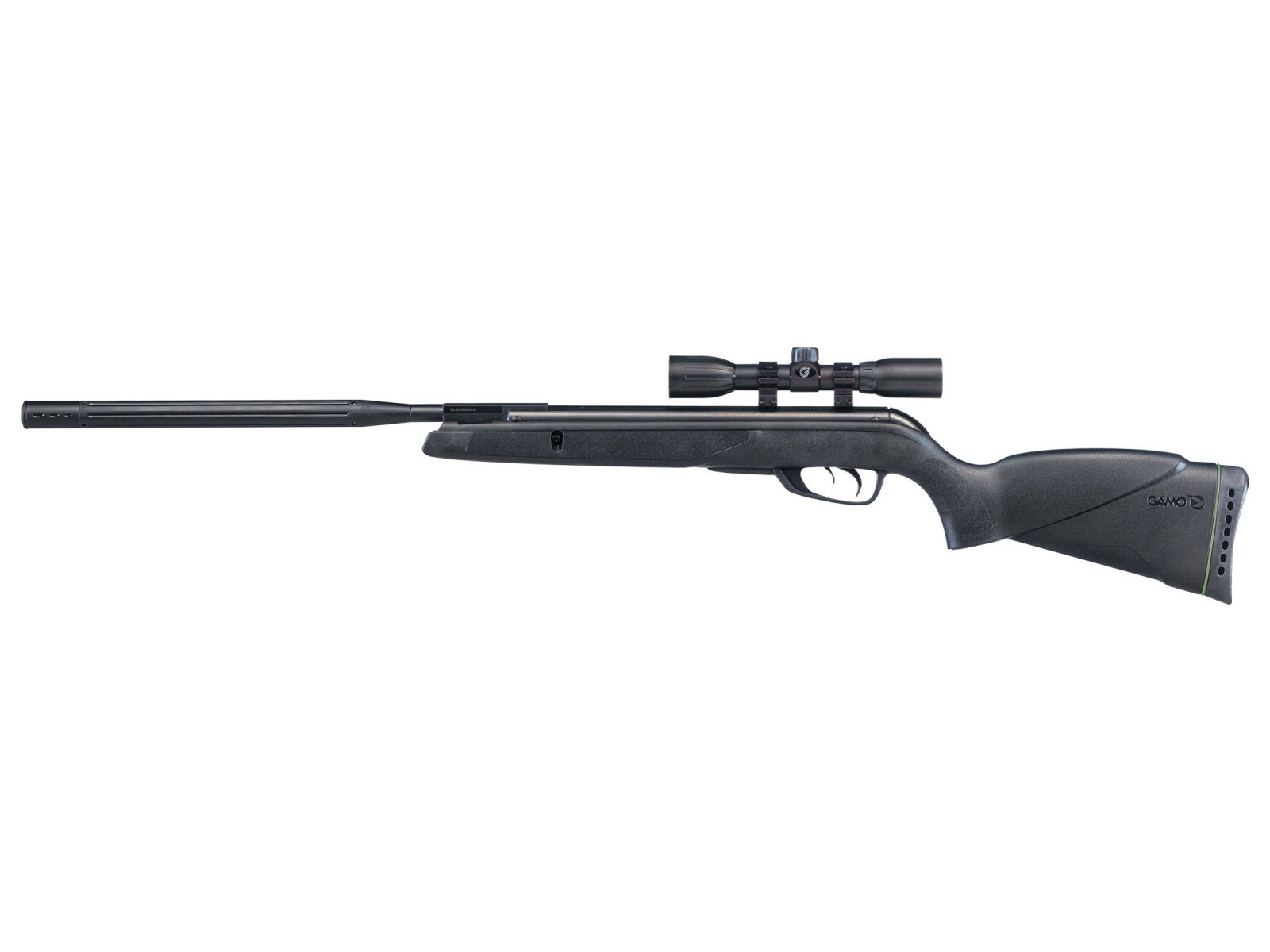

This image shows the Gamo Wild Cat Whisper IGT Pellet Air Rifle with the included 4x32mm scope properly mounted on the receiver.

Initial Inspection

Before first use, perform a thorough inspection of the rifle. Check for any loose screws, damaged parts, or obstructions in the barrel. Ensure the safety mechanism operates correctly.

Operating Instructions

Loading Pellets

1. Ensure the safety is engaged (ON).
2. Firmly grasp the barrel and break it downwards until the internal gas ram is fully compressed and the rifle is cocked. You will hear a distinct click.
3. Insert one .177 caliber pellet (or .22 caliber, depending on your model) into the breech, ensuring the skirt of the pellet is fully seated.
4. Return the barrel to its original position, ensuring it locks securely.

Cocking the Rifle

The Gamo Wild Cat Whisper IGT utilizes a break-barrel action. The rifle is automatically cocked when the barrel is fully broken downwards and then returned to its closed position.

Aiming and Firing

1. With the rifle cocked and loaded, aim at a safe and appropriate target.
2. Disengage the safety mechanism (OFF).
3. Align the scope's reticle with your target.
4. Gently squeeze the trigger to fire.
5. Immediately engage the safety after firing or if you do not intend to fire.

Safety Mechanism

The air rifle is equipped with a manual safety. Always engage the safety when the rifle is loaded and not ready to fire. Refer to the markings on the rifle for 'SAFE' and 'FIRE' positions.

Maintenance

Regular maintenance ensures the longevity and performance of your Gamo Wild Cat Whisper IGT air rifle.

Cleaning the Barrel

Regularly clean the barrel using appropriate cleaning pellets or a cleaning rod with patches. This removes lead residue and maintains accuracy. Clean the barrel every few hundred shots or if accuracy degrades.

Lubrication

Apply a small amount of silicone-based lubricant to moving parts, such as the pivot points of the barrel and the cocking linkage, as recommended by Gamo. Avoid petroleum-based oils on seals, as they can cause damage.

Storage

Store the air rifle in a cool, dry place, unloaded, and with the safety engaged. It is recommended to store it in a gun case for added protection against dust, moisture, and unauthorized access.

Troubleshooting

If you encounter issues with your air rifle, consult the following common troubleshooting tips:

• Inaccuracy:
  • Check scope mounts for tightness. Loose mounts are a common cause of inaccuracy.
  • Ensure the scope is properly zeroed.
  • Try different brands or weights of pellets, as air rifles can be particular about ammunition.
  • Inspect the barrel for obstructions or damage.
• Failure to Cock:
  • Ensure the barrel is fully broken downwards until the cocking mechanism engages with a distinct click.
  • Check for any obstructions preventing full barrel movement.
• Low Power/Velocity:
  • Ensure pellets are properly seated in the breech.
  • Inspect the breech seal for damage or wear. A damaged seal can cause air leaks.

If issues persist after attempting these troubleshooting steps, professional service may be required. Do not attempt to disassemble the air rifle beyond what is described in this manual.

Specifications

Warranty and Support

For detailed information regarding the warranty coverage for your Gamo Wild Cat Whisper IGT Pellet Air Rifle, please refer to the warranty card or documentation included with your purchase. This document outlines the terms, conditions, and duration of your product's warranty.

For technical assistance, service, or to inquire about replacement parts, please contact Gamo customer support. Contact details, including phone numbers and website information, are typically available on the manufacturer's official website or within your warranty documentation.
