Xiltek 72-inch 3-Door Commercial Beer Dispenser

Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Xiltek 72-inch 3-Door Commercial Beer Dispenser, Model XDD-24-72-HC. Please read all instructions carefully before using the appliance.

Image: Front view of the Xiltek 72-inch 3-Door Commercial Beer Dispenser with two tap towers.

Key Features

• Capacity: Accommodates three 1/2 barrel kegs, or two 1/2 barrel and two 1/4 barrel kegs, or two 1/2 barrel and three 1/6 barrel kegs.
• Dispensing: Features two double tap towers with forced air cooling for optimal beer temperature.
• Temperature Control: Oversized, factory-balanced refrigeration system maintains temperatures between 33°F to 38°F (0.5°C to 3.3°C).
• Construction: Durable stainless steel interior and wear-resistant black vinyl-on-steel exterior.
• Insulation: Foamed-in-place polyurethane insulation for energy efficiency.
• Doors: Three self-closing, locking doors for security and convenience.
• Refrigerant: Utilizes environmentally friendly R290 hydrocarbon refrigerant.
• Lighting: Standard LED light inside the cabinet.
• Maintenance: Easily accessible condenser coil for cleaning and preprogrammed digital controls with auto defrost.

Setup and Installation

1. Delivery Inspection

Upon delivery, it is crucial to inspect the unit for any potential carrier damage. Cut the white box straps and lift the box to thoroughly examine the appliance. If any damage is found, refuse the unit and do not sign the delivery paperwork. If no damage is present, sign off accepting the unit. Please note that commercial appliances are typically non-returnable once accepted, making this inspection vital.

2. Placement

• This appliance is rated for indoor usage only. Do not install outdoors.
• Ensure the unit is placed on a level, sturdy surface capable of supporting its weight (Net Weight: 331 lbs).
• Allow adequate clearance around the unit for proper ventilation, especially around the condenser coil located on the side.
• The carrier is responsible for curbside delivery only and cannot assist with moving the unit inside or installation. Arrange for additional personnel if needed for placement.

3. Electrical Connection

The unit is factory-wired and ready for connection to a 115V/60Hz/1 phase, 15 amp dedicated outlet. Ensure the electrical supply meets these requirements. The electrical cord length is 96 inches, and the plug type is NEMA 5-15P.

4. Initial Cleaning

Before first use, clean the interior and exterior surfaces with a mild detergent and warm water. Rinse thoroughly and dry. Ensure all components, including shelves and drip trays, are clean.

5. Leveling

Use a level to ensure the unit is perfectly level. Adjust the leveling feet as necessary to prevent door misalignment and ensure proper drainage.

6. Drip Tray and Drain

The unit features a built-in drip tray with a front-facing drain. Connect a 1/2" diameter barb to the drain for easy clean-up and proper disposal of spilled liquids.

Image: Diagram illustrating key features and components of the Xiltek Beer Dispenser, including cabinet construction, shelving, dispensing system, and refrigeration.

Operating Instructions

1. Power On

Once the unit is properly installed and connected to power, turn on the main power switch. The electronic control system will display the current internal temperature.

2. Temperature Setting

The unit is preprogrammed to maintain temperatures between 33°F and 38°F (0.5°C to 3.3°C). Adjust the temperature using the digital controls as needed. Allow several hours for the unit to reach the desired temperature before loading kegs.

3. Loading Kegs

• Open the self-closing doors. The doors are designed to stay open past 90 degrees for easy loading and self-close below 90 degrees to save energy.
• Carefully place the kegs inside the cabinet, ensuring they fit within the designated areas. The unit can hold various combinations of 1/2, 1/4, and 1/6 barrel kegs.
• Connect the included keg couplers to the kegs.
• Ensure all connections are secure to prevent leaks.

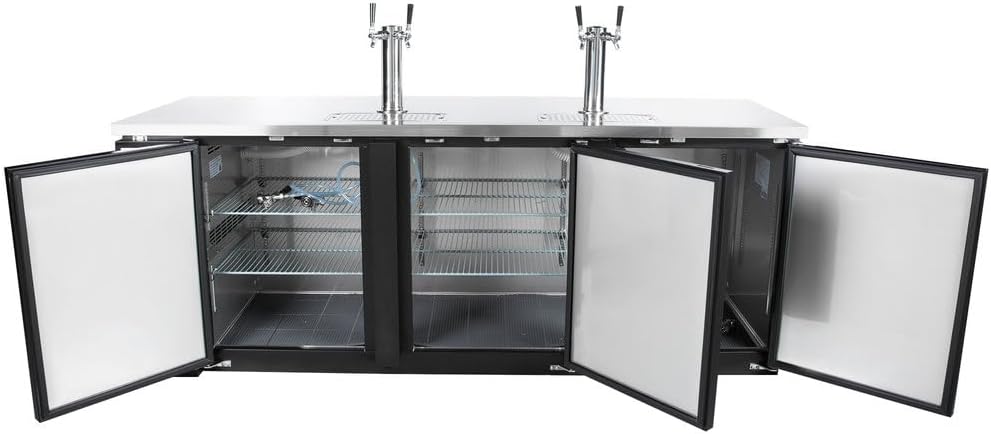

Image: Interior view of the Xiltek Beer Dispenser with all three doors open, revealing shelving and space for kegs.

4. Dispensing Beer

• The unit features two double tap towers with a 10.25-inch faucet height, suitable for various glass sizes.
• Ensure the CO2 tank (not included) is connected and properly regulated according to beer type specifications.
• Pull the tap handles to dispense beer.

Image: Close-up view of one of the stainless steel double tap towers.

Image: Two keg couplers with attached hoses, ready for connection to kegs.

5. Door Locks

The doors are equipped with locks for securing the contents. Use the provided keys to lock and unlock the doors as needed.

Image: Close-up of a door lock mechanism on one of the dispenser's doors, with keys inserted.

Maintenance

1. Regular Cleaning

• Interior: Clean the stainless steel interior regularly with a mild, non-abrasive cleaner and warm water. Wipe spills immediately to prevent staining.
• Exterior: Wipe the black vinyl-on-steel exterior with a damp cloth and mild detergent. Avoid abrasive cleaners that could damage the finish.
• Drip Tray: Empty and clean the drip tray frequently to maintain hygiene and prevent odors.
• Tap Towers and Lines: Follow industry best practices for cleaning beer lines and tap towers to ensure beer quality and prevent bacterial growth.

2. Condenser Coil Cleaning

The condenser coil is easily accessible for cleaning. Regularly clean the coil to ensure optimal cooling performance and energy efficiency. Dust and debris buildup can significantly reduce efficiency and lead to system strain. Use a brush or vacuum cleaner to remove accumulated dirt.

Image: Rear view of the Xiltek Beer Dispenser, showing the power cord and the area where the condenser coil is located for maintenance access.

3. Auto Defrost

The unit features an automatic defrost system, eliminating the need for manual defrosting. Ensure the drain line for defrost water is clear and unobstructed.

Troubleshooting

This section provides solutions to common issues. For problems not listed here or for complex repairs, please contact Xiltek customer support or a qualified service technician.

• Unit Not Cooling:
  • Check if the power cord is securely plugged into a dedicated 115V outlet.
  • Verify that the circuit breaker has not tripped.
  • Ensure the temperature setting is appropriate.
  • Clean the condenser coil if it is dirty.
  • Check if doors are closing properly and seals are intact.
• Excessive Noise:
  • Ensure the unit is level.
  • Check for any loose components or obstructions around the fan.
• Beer Not Dispensing or Foamy:
  • Verify CO2 tank pressure and connections.
  • Check if keg couplers are properly attached.
  • Ensure beer lines are clean and free of blockages.
  • Confirm the beer temperature is within the optimal range (33°F-38°F).
• Water Leaks:
  • Check the drip tray and its drain connection for blockages or improper installation.
  • Ensure the unit is level to allow proper drainage.

Specifications

Image: Detailed technical data table and plan views (front, side, top) of the Xiltek Beer Dispenser, including dimensions and electrical information.

Warranty Information

For detailed warranty information regarding your Xiltek 72-inch 3-Door Commercial Beer Dispenser, Model XDD-24-72-HC, please visit the official Xiltek website. Warranty terms and conditions may vary and are subject to change.

Customer Support

If you require further assistance, have questions not covered in this manual, or need to report an issue, please contact Xiltek customer support. Refer to the Xiltek website for current contact information, including phone numbers and email addresses.
