Introduction
Thank you for choosing the AYL Starlight 700 LED Lantern. This ultra-bright, water-resistant, and shock-proof lantern is designed for reliability and durability in various outdoor and emergency situations. With 1300 lumens of light output and up to 6 days of continuous power, it is an essential tool for camping, hiking, emergencies, hurricanes, and power outages. This manual provides important information for the safe and effective use of your lantern.
Safety Information
- Do not look directly into the LED light when it is on, as this may cause temporary vision impairment.
- Keep out of reach of children.
- Ensure batteries are inserted with correct polarity. Incorrect insertion can damage the device.
- Remove batteries if the lantern will not be used for an extended period to prevent leakage.
- Do not mix old and new batteries, or different types of batteries.
- Dispose of used batteries responsibly according to local regulations.
- Do not attempt to disassemble or modify the lantern, as this will void the warranty and may cause damage or injury.
Package Contents
- 1 x AYL Starlight 700 LED Lantern
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 4"L x 4"W x 7.2"H |
| Item Weight | 14.6 Ounces |
| Brightness | 1300 Lumens (4 COB LED bulbs) |
| Battery Type | 3 D batteries (not included) |
| Battery Life | Up to 144 hours (6 days) on a single set of fresh 3D batteries |
| Water Resistance Level | Water Resistant (IPX4) |
| Mounting Type | Tabletop Mount, Hanging Handle |
| Lighting Modes | Low, High, Flashing Strobe |
| Material | Plastic |
Setup
Battery Installation
- Ensure the lantern is turned off.
- Twist the bottom cap counter-clockwise to remove it.
- Insert three (3) D-size batteries into the battery compartment, ensuring correct polarity (+/-) as indicated inside the compartment.
- Align the protruding pole on the bottom cap with the corresponding hole in the battery compartment.
- While pushing the cap down, slowly and firmly turn the bottom cap clockwise until it is securely connected to the lantern.
Operating Instructions
Power On/Off and Lighting Modes

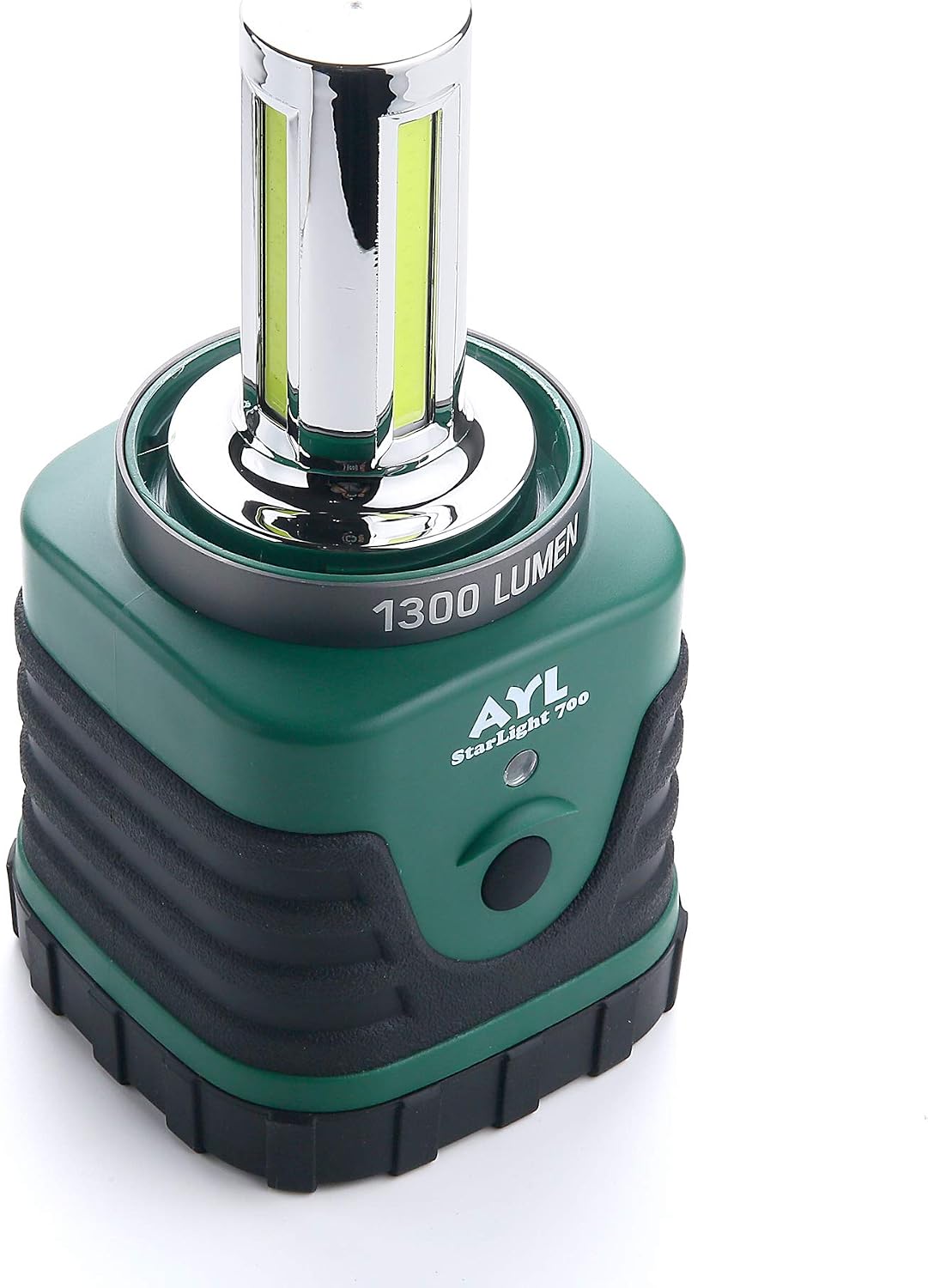

The lantern features a single power button to cycle through its lighting modes:
- First Press: Turns on the lantern in High brightness mode (1300 lumens).
- Second Press: Switches to Low brightness mode.
- Third Press: Activates the Flashing Strobe mode.
- Fourth Press: Turns the lantern Off.
Hanging and Placement
The lantern is equipped with a sturdy metal handle for easy carrying and hanging. The handle can be adjusted to allow the lantern to be hung from a branch, tent hook, or other suitable fixture. Its stable base also allows for tabletop placement.
Video Demonstration: AYL Starlight 700-1300LM LED Lantern - Unboxing & Review
Maintenance
Cleaning
Wipe the exterior of the lantern with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or internal components.
Storage
Store the lantern in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, remove the batteries to prevent potential leakage and damage to the device.
Troubleshooting
- Lantern not turning on: Check if batteries are inserted correctly with proper polarity. Ensure batteries are fresh and not depleted.
- Dim light: Replace batteries with a fresh set.
- Intermittent operation: Check battery connections for looseness or corrosion. Ensure the battery compartment cap is securely tightened.
Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official AYL website. Keep your proof of purchase for any warranty claims.
