Meike FC-100 LED Macro Ring Flash Light User Manual

Introduction

The Meike FC-100 LED Macro Ring Flash Light is designed for close-up, macro, medical, scientific, and forensic photography. It provides uniform illumination by positioning the light source directly around the camera lens, ensuring consistent lighting for detailed subjects. This manual provides instructions for the proper setup, operation, and maintenance of your FC-100 unit.

Image: The Meike FC-100 LED Macro Ring Flash Light mounted on a Nikon DSLR camera, demonstrating its use for macro photography of a butterfly.

Package Contents

Please check the package contents to ensure all items are present:

• FC-100 Macro LED Ring Flash Unit
• Control Unit
• Lens Adapter Rings (40.5mm, 52mm, 55mm, 58mm, 62mm, 67mm, 72mm, 77mm)
• User Manual (English)

Image: All components included in the Meike FC-100 package, laid out for inspection.

Product Overview and Features

Ring Flash Unit

• Highlight LED: Composed of 32 0.06W bright LED lamp beads for consistent illumination.
• Flexible Mounting: Attaches to various lens sizes using included adapter rings.

Control Unit

• LCD Screen: Displays current settings and operating modes.
• Simple Button Operation: Intuitive control panel for easy adjustments.
• Battery Compartment: Houses 4 AA batteries for power.
• Universal Hot Shoe Mount: Connects securely to most DSLR camera hot shoes.

Image: Detailed view of the FC-100, highlighting the LED array, battery compartment, and the user-friendly control panel.

Image: The control unit of the FC-100, showing the LCD display and the universal hot shoe mount for camera attachment.

Setup

1. Installing Batteries

1. Open the battery compartment cover on the control unit.
2. Insert 4 AA batteries (not included) according to the polarity indicators inside the compartment.
3. Close the battery compartment cover securely.

2. Attaching to Camera Hot Shoe

1. Slide the control unit's hot shoe mount onto your camera's hot shoe.
2. Tighten the locking ring or lever on the control unit to secure it to the camera.

3. Mounting the Ring Flash to Lens

1. Select the appropriate adapter ring (40.5mm, 52mm, 55mm, 58mm, 62mm, 67mm, 72mm, or 77mm) that matches your camera lens filter thread size.
2. Screw the chosen adapter ring onto the front filter thread of your camera lens.
3. Align the Meike FC-100 ring flash unit with the adapter ring. Press the ring lock button on the flash unit.
4. Place the ring flash onto the adapter ring, then release the lock button to secure the flash unit in place.

Image: Various lens adapter rings provided with the FC-100, ranging from 40.5mm to 77mm, for compatibility with different lens filter threads.

Operating Instructions

Power On/Off

Press the ON/OFF button on the control unit to power the flash on or off.

Operating Modes

The FC-100 offers four operating modes, selectable via the MODE button:

• Light Mode: Provides continuous LED illumination for constant lighting.
• Flash Mode: Functions as a traditional flash, emitting a burst of light when triggered by the camera.
• L (Left) Mode: Activates only the left half of the ring flash, creating directional lighting.
• R (Right) Mode: Activates only the right half of the ring flash, creating directional lighting.

The left and right flash functions can create a three-dimensional effect on the subject.

Adjusting Brightness/Power

Use the arrow buttons (< and >) on the control unit to adjust the brightness or flash power output. The LCD screen will display the current setting.

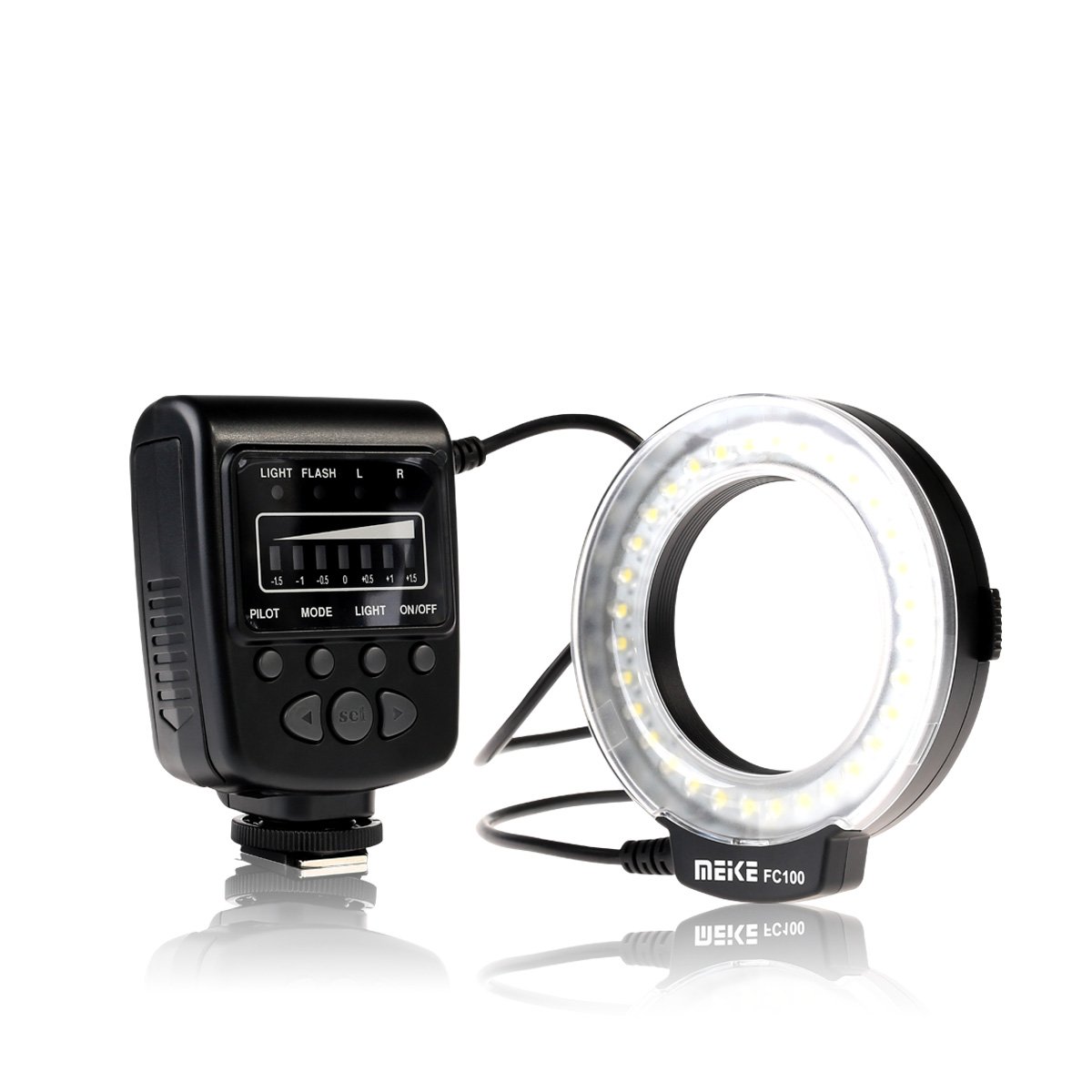

Image: Overview of the FC-100 control unit and ring flash, detailing the available operating modes and adjustment options.

Note: The optimal focal length for use is 50mm (35mm film format). A black corner may appear when using a wide-angle lens.

Compatibility

The Meike FC-100 LED Macro Ring Flash Light is compatible with a wide range of DSLR cameras featuring a universal hot shoe mount. Specific compatible models include:

Nikon Cameras:

• D7000, D5000, D5100, D3100, D3000, D3 Series, D700, D2 Series, D300 Series, D200, D90, D80s, D70 Series, D60, D50, D40 Series, F6.
• COOLPIX8800, COOLPIX8400, COOLPIX P5000, COOLPIX P5100, Coolpix P6000.

Canon Cameras:

• 5D, 5D Mark II, 7D, 1D/1Ds, 10D, 20D, 30D, 40D, 50D, 60D.
• EOS 300D (Rebel Digital), 350D (Rebel XT), 400D (Rebel XTi), 450D (Rebel XSi), 500D (Rebel T1i), 550D (Rebel T2i), 600D (Rebel T3i), 1100D (Rebel T3), 1000D (Rebel XS).
• PowerShot G12, G11, G10, G9, G7, G6, G5, G3, G2.

Other Compatible Models:

• FUJI: S5 Pro.
• Pentax, Olympus DSLR Cameras (with universal hot shoe).

Maintenance

• Keep the flash unit and control unit clean and dry. Use a soft, dry cloth to wipe surfaces.
• Avoid exposing the unit to extreme temperatures, humidity, or direct sunlight.
• Remove batteries if the unit will not be used for an extended period to prevent leakage.
• Handle adapter rings and the flash unit carefully to prevent damage to threads or LED components.

Troubleshooting

• Flash not firing or LEDs not lighting up:
  • Ensure batteries are correctly inserted and have sufficient charge.
  • Verify the control unit is securely mounted on the camera's hot shoe.
  • Check that the flash unit is properly attached to the lens adapter ring.
  • Confirm the unit is powered on and in the correct operating mode.
• Uneven illumination or dark corners:
  • Ensure the flash unit is centered on the lens.
  • Avoid using wide-angle lenses, as this can cause vignetting (dark corners). The optimal focal length is 50mm.
• Flash not syncing with camera:
  • Ensure the control unit is fully seated in the camera's hot shoe.
  • Check camera settings for external flash compatibility.

Specifications

Warranty and Support

For warranty information and technical support, please refer to the official Meike website or contact your retailer. Keep your purchase receipt as proof of purchase for warranty claims.
