Seamaid No(t)mad LED Color Pool Lamp Instruction Manual

1. Product Overview

The Seamaid No(t)mad LED Color Pool Lamp is a versatile, rechargeable, and magnetic lighting solution designed for swimming pools. It offers vibrant color illumination to enhance your pool environment. Its robust, water-resistant design ensures reliable performance in aquatic settings.

Key Features:

• Rechargeable Lithium-ion battery (3000mAh-5V)
• Magnetic attachment for easy installation on steel pool walls
• IP68 water resistance, submersible up to 1 meter
• Color-changing LED illumination (RGB)
• Up to 4 hours of autonomy on a full charge
• Compact and portable design

Figure 1: Front view of the Seamaid No(t)mad LED Color Pool Lamp.

2. Safety Information

Please read all safety instructions carefully before using the product to prevent injury or damage.

• Water Resistance: The lamp is IP68 rated, meaning it is protected against continuous immersion in water up to 1 meter. Ensure the charging port cover is securely closed before placing the lamp in water.
• Battery Safety: This product contains a Lithium-ion battery. Do not attempt to open, disassemble, or replace the battery. Avoid exposing the lamp to extreme temperatures (below -10°C or above +45°C) or direct sunlight for prolonged periods, as this may damage the battery or reduce its lifespan.
• Charging: Use only the provided USB-DC3.5 charging cable. Do not use the lamp while it is charging. Ensure the charging port is dry before connecting the cable.
• Disposal: Do not dispose of the product in household waste. It contains electronic components and a battery that must be recycled according to local regulations.
• Children: Keep out of reach of small children. This is not a toy.

3. Package Contents

Verify that all items are present in the package:

• 1x Seamaid No(t)mad LED Color Pool Lamp
• 1x USB-DC3.5 Charging Cable

4. Setup and Charging

4.1 Initial Charge

Before first use, fully charge the lamp. This ensures optimal battery performance and lifespan.

4.2 Charging Procedure

1. Locate the charging port on the lamp. Ensure it is clean and dry.
2. Open the protective cover of the charging port.
3. Connect the small end of the USB-DC3.5 charging cable to the lamp's charging port.
4. Connect the standard USB end of the cable to a compatible USB power adapter (not included) or a computer USB port.
5. The lamp will indicate charging status (e.g., an indicator light will illuminate or change color).
6. Once fully charged, disconnect the cable and securely close the protective cover of the charging port to maintain water resistance.

5. Installation

The Seamaid No(t)mad lamp features a magnetic base for easy attachment to steel pool walls.

1. Ensure the pool wall surface where you intend to place the lamp is clean and free of debris.
2. Carefully place the lamp against the steel pool wall. The strong magnet will hold it in position.
3. Adjust the lamp's position as needed.

For non-steel pools, the lamp can be placed on the pool floor or other suitable surfaces, but magnetic attachment will not be possible.

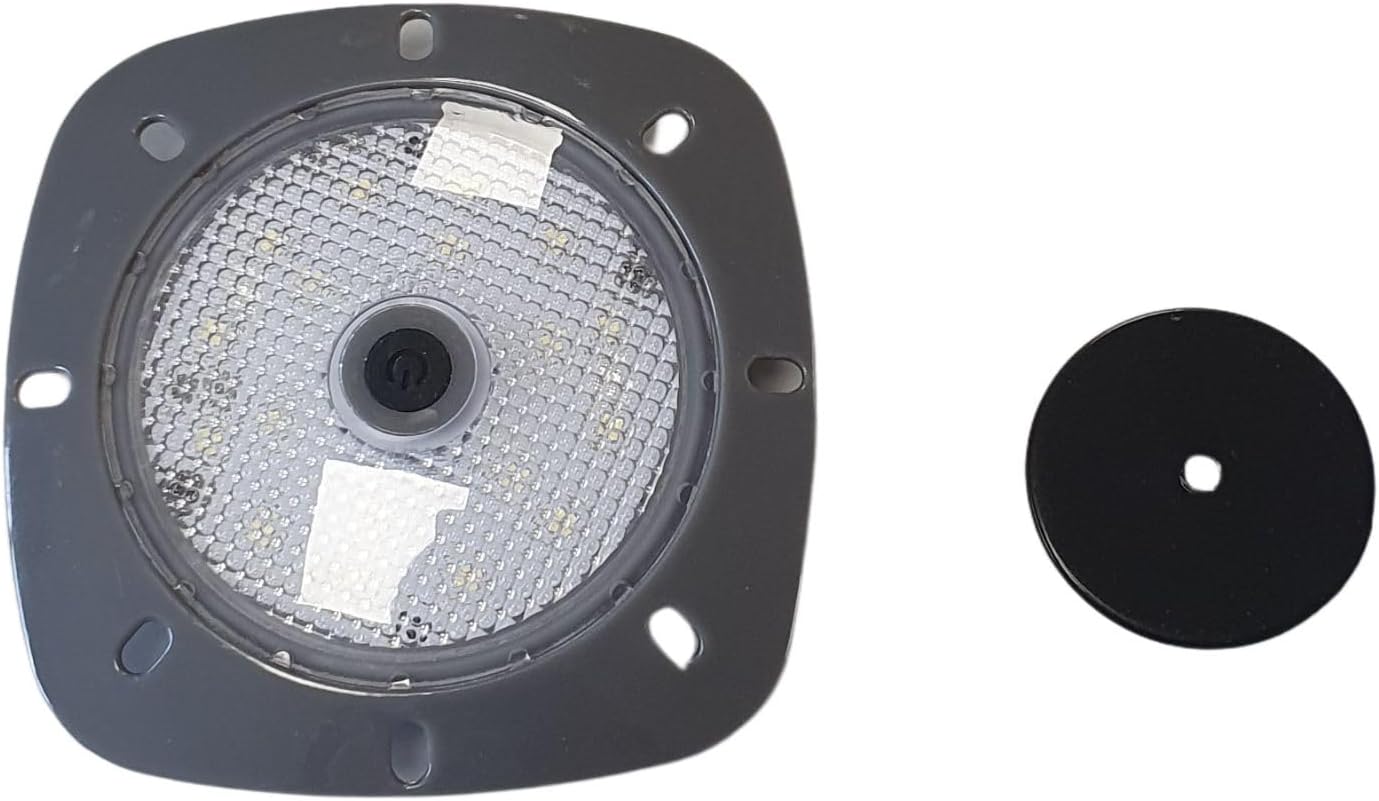

Figure 2: Back view of the lamp, highlighting the magnetic base for attachment.

6. Operation

The lamp is designed for simple operation with a single control button.

1. Power On: Press and hold the power button (usually located on the lamp body) for approximately 2-3 seconds until the light illuminates.
2. Change Color Modes: Once the lamp is on, short press the power button to cycle through the available color modes (e.g., red, green, blue, various color combinations, and possibly a color-changing sequence).
3. Power Off: Press and hold the power button again for approximately 2-3 seconds until the light turns off.

The lamp provides up to 4 hours of illumination on a full charge, depending on the selected color mode and intensity.

Figure 3: The Seamaid No(t)mad lamp providing colorful illumination in a swimming pool.

7. Maintenance

7.1 Cleaning

To clean the lamp, wipe it with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the lamp's finish or seals.

7.2 Battery Care and Storage

• For long-term storage, charge the lamp to approximately 50-70% capacity.
• Store the lamp in a cool, dry place, away from direct sunlight and extreme temperatures.
• Periodically recharge the lamp every 3-6 months during storage to prevent deep discharge, which can shorten battery life.
• Ensure the charging port cover is always securely closed when not charging, especially if storing near moisture.

8. Troubleshooting

If you encounter issues with your Seamaid No(t)mad lamp, refer to the following common solutions:

• Lamp not turning on:
  • Ensure the battery is charged. Connect the lamp to the charger for at least 30 minutes.
  • Press and hold the power button for the required duration (2-3 seconds) to activate.
• Lamp not charging:
  • Check if the USB cable is securely connected to both the lamp and the power source.
  • Try a different USB power adapter or port.
  • Ensure the charging port on the lamp is clean and free of debris.
• Water inside the lamp:
  • Immediately remove the lamp from water.
  • Do not attempt to use or charge the lamp.
  • Contact customer support for assistance. Water ingress can damage internal components and is not covered by standard water resistance if the seals were compromised or the charging port cover was not properly closed.

9. Specifications

Figure 4: Product packaging displaying key specifications and certifications.

10. Warranty and Support

Specific warranty details for the Seamaid No(t)mad LED Color Pool Lamp are not provided in this manual. Please refer to the retailer or manufacturer's official website for warranty information and terms of service.

For technical support, troubleshooting assistance, or inquiries regarding your product, please contact Seamaid customer service:

• Brand: Seamaid
• Website: www.seamaid-lighting.com (Based on information from product packaging image)
