Tefal Filtra Pro FR511170 Deep Fryer User Manual

1. Introduction

Thank you for choosing the Tefal Filtra Pro FR511170 Deep Fryer. This semi-professional deep fryer is designed to deliver excellent frying results with convenience and safety. Featuring a 3-liter oil capacity, 2400W power, a patented oil filtration system, and a cold zone, it ensures efficient cooking and easy maintenance. Please read this manual thoroughly before first use to ensure proper operation and to maximize the lifespan of your appliance.

2. Safety Instructions

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions carefully before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or heating unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off,” then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface.
• Never leave the deep fryer unattended during operation.
• Do not overfill the oil tank beyond the maximum fill line.
• Do not mix different types of oil.

3. Product Overview

The Tefal Filtra Pro FR511170 deep fryer is designed for ease of use and efficient frying. Below are the main components:

• Stainless Steel Housing
• Removable Heating Unit with Control Panel (Thermostat, Digital Timer)
• Removable Oil Tank (3L capacity)
• Frying Basket with Handle
• Lid with Viewing Window and Permanent Metallic Filter
• Patented Oil Filtration Mesh System

Image 3.1: The Tefal Filtra Pro FR511170 deep fryer, showcasing its stainless steel exterior, control panel with digital timer, and frying basket handle.

4. Setup

1. Unpacking: Carefully remove all packaging materials and components from the box. Ensure all parts are present and undamaged.
2. Initial Cleaning: Before first use, wash the removable oil tank, frying basket, and lid in warm soapy water. Rinse thoroughly and dry completely. The heating unit should only be wiped with a damp cloth; never immerse it in water.
3. Assembly: Place the oil tank securely into the main housing. Insert the heating unit into its designated slot on the back of the housing, ensuring it is properly seated. Place the frying basket inside the oil tank.
4. Placement: Position the deep fryer on a stable, flat, heat-resistant surface, away from walls and flammable materials. Ensure adequate ventilation around the appliance.
5. Adding Oil: Pour suitable frying oil into the oil tank, ensuring the oil level is between the MIN and MAX fill lines indicated inside the tank. Do not overfill.

5. Operating Instructions

1. Power Connection: Plug the power cord into a grounded electrical outlet. The digital timer display will illuminate.
2. Set Temperature: Use the adjustable thermostat knob on the control panel to select the desired frying temperature, ranging from 150°C to 190°C. The indicator light will turn on, signifying that the oil is heating.
3. Pre-heating: Allow the oil to pre-heat until the indicator light turns off, indicating the set temperature has been reached. This typically takes several minutes depending on the oil volume and desired temperature.
4. Prepare Food: While the oil is heating, prepare your food. Ensure food items are dry to prevent excessive splattering. For best results, do not overload the basket.
5. Frying: Carefully lower the frying basket containing the food into the hot oil. Close the lid. You can monitor the cooking process through the viewing window on the lid.
6. Set Timer: Use the digital timer to set the desired cooking duration. The timer will alert you when the cooking time is complete.
7. Remove Food: Once cooking is complete, carefully lift the frying basket and hook it onto the edge of the oil tank to allow excess oil to drain.
8. Serve: Transfer the fried food to a plate lined with paper towels to absorb any remaining oil before serving.
9. Switch Off: After use, turn the thermostat knob to the 'OFF' position and unplug the appliance from the power outlet.

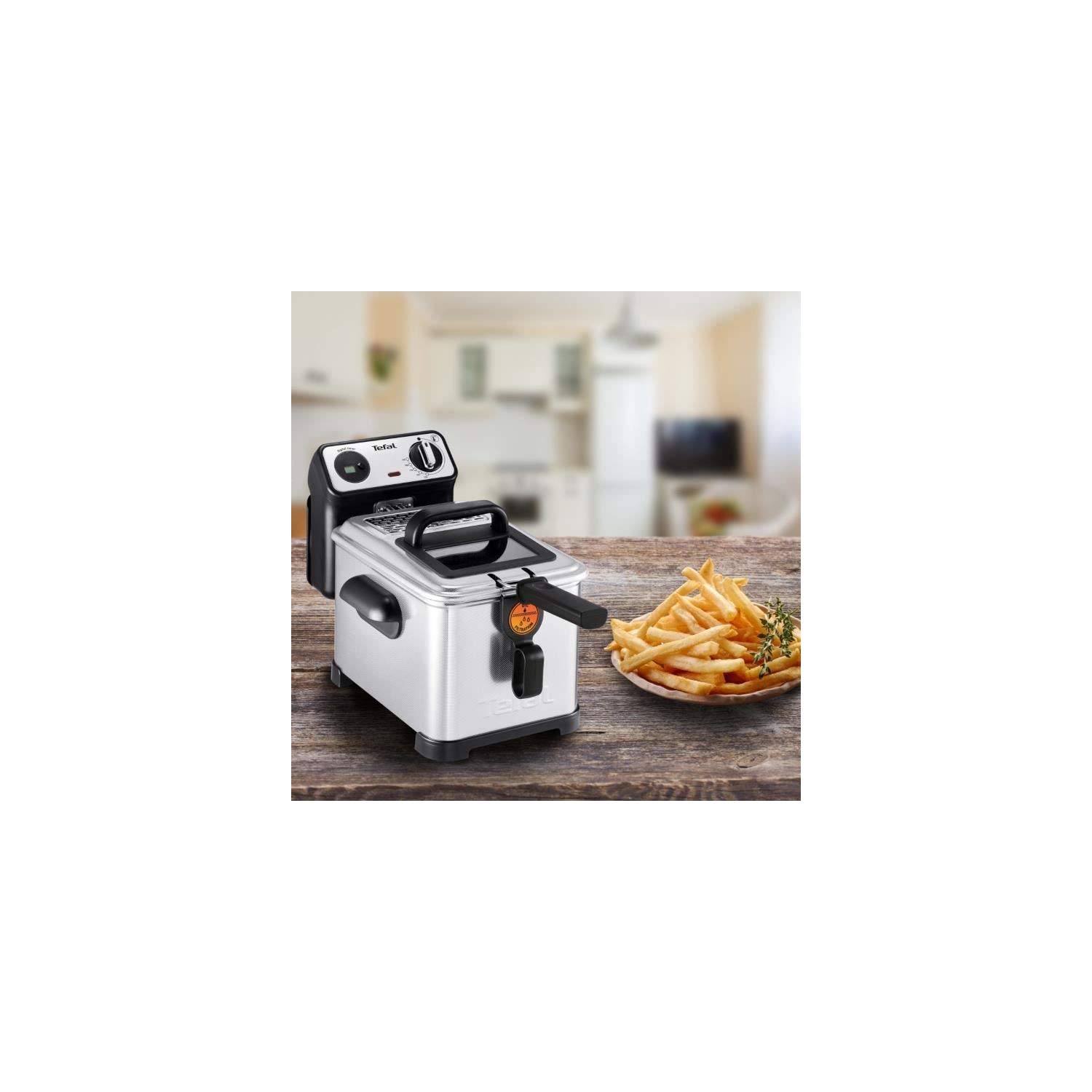

Image 5.1: The Tefal Filtra Pro deep fryer positioned on a wooden surface next to a bowl of freshly fried french fries, illustrating its use in a kitchen setting.

6. Oil Filtration System

The Tefal Filtra Pro features a patented oil filtration mesh system designed to keep your oil clean and extend its lifespan. After each frying session, allow the oil to cool down completely. Once cooled, the integrated mesh filter can be activated to filter out food residues from the oil. This process helps maintain oil quality, reduces odors, and ensures cleaner results for subsequent frying.

Image 6.1: A visual representation of the oil filtration system, highlighting its effectiveness in removing impurities for professional frying results.

7. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your deep fryer.

1. Cool Down: Always ensure the appliance is completely cool before attempting to clean it.
2. Disassembly: The Tefal Filtra Pro is fully disassemblable for easy cleaning. Carefully remove the heating unit, lid, frying basket, and oil tank from the main housing.
3. Dishwasher Safe Parts: All removable parts, including the oil tank, frying basket, and lid, are dishwasher safe.
4. Heating Unit: The heating unit (control panel and heating element) is NOT dishwasher safe and must NOT be immersed in water. Wipe it clean with a damp cloth and mild detergent, then dry thoroughly.
5. Housing: Wipe the exterior stainless steel housing with a damp cloth and mild detergent. Dry thoroughly.
6. Oil Storage: If you plan to reuse the oil, ensure it has been filtered using the patented system and store it in a clean, airtight container in a cool, dark place.
7. Reassembly: Reassemble all parts only when they are completely dry.

8. Troubleshooting

If you encounter issues with your Tefal Filtra Pro deep fryer, please consult the following common troubleshooting steps:

• Appliance not turning on:
  • Check if the power cord is securely plugged into a functional electrical outlet.
  • Ensure the heating unit is correctly seated in its slot. The appliance has a safety mechanism that prevents operation if the heating unit is not properly installed.
• Oil not heating:
  • Verify that the thermostat knob is set to a desired temperature and not to the 'OFF' position.
  • Check if the heating indicator light is on. If not, refer to the 'Appliance not turning on' steps.
• Excessive smoke during frying:
  • Ensure the oil level is not above the MAX fill line.
  • Check if the oil is old or contaminated. Replace with fresh oil if necessary.
  • Ensure food items are as dry as possible before placing them in the oil.
• Digital timer not working:
  • Ensure the appliance is powered on.
  • If the issue persists, try unplugging the appliance for a few minutes and then plugging it back in to reset the electronics.

If these steps do not resolve the issue, please contact Tefal customer support.

9. Specifications

10. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or visit the official Tefal website. In case of product malfunction or if you require technical assistance, please contact Tefal customer support. Keep your proof of purchase for warranty claims.

You can find more information and support on the official Tefal Brand Store.
