Introduction
This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Maxima Planetary Mixer 30L, model MPM30. Please read this manual thoroughly before operating the appliance and keep it for future reference.
Product Overview and Features
The Maxima Planetary Mixer MPM30 is a powerful and robust appliance designed for professional kitchen environments. It features a large 30-liter stainless steel mixing bowl and offers three distinct speed settings for versatile mixing tasks.

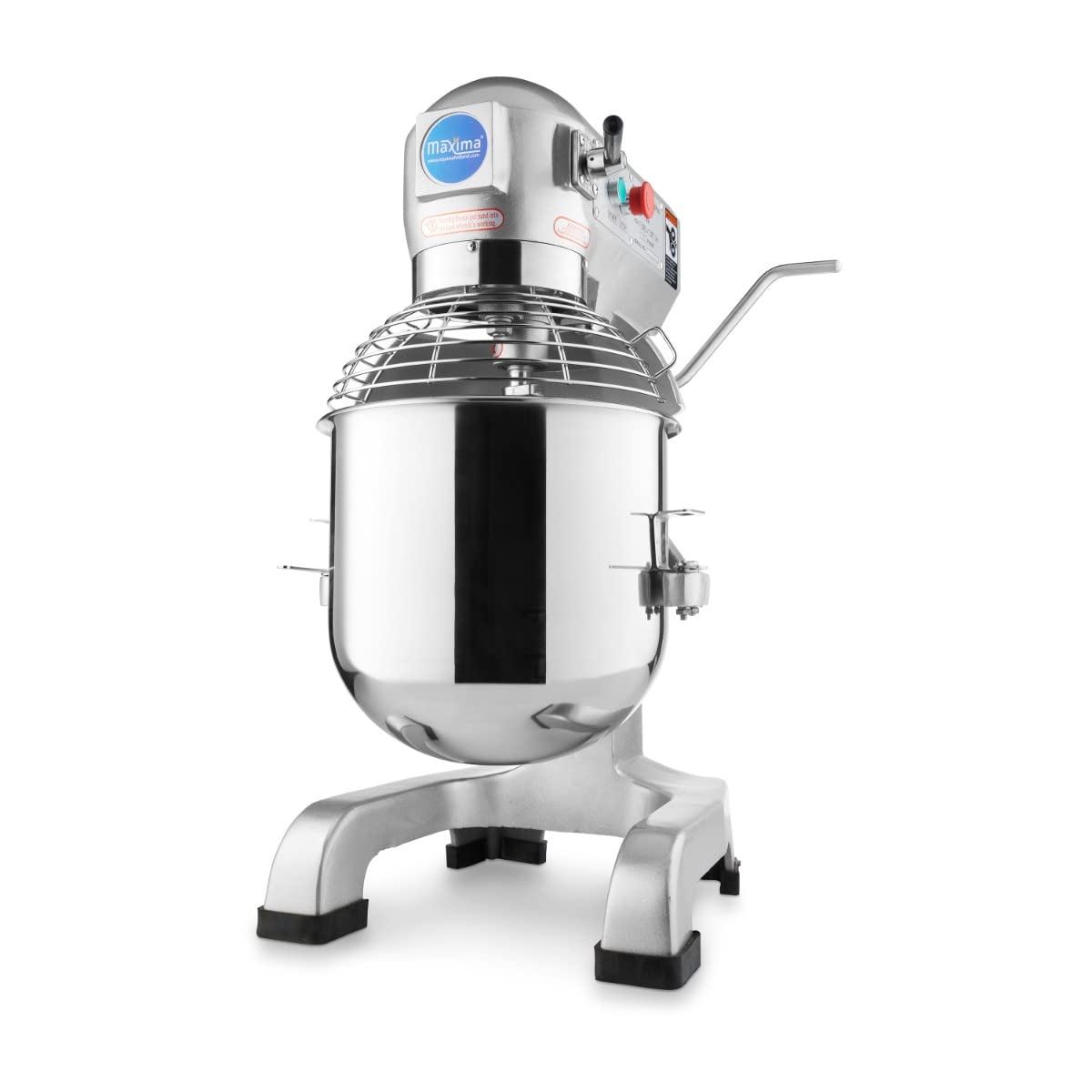

Figure 1: Front view of the Maxima Planetary Mixer 30L, showcasing its robust design and stainless steel bowl.
Key Features:
- Powerful planetary mixer, ideal for commercial kitchens.
- Safe to use due to safety switch and protective grid.
- Ideal for larger quantities of pizza and bread dough.
- Constructed from stainless steel and easy to clean.
- Robust stainless steel bowl with 30 L capacity.
- Three speed settings: 110, 200, and 420 RPM.
- Strong machine with high speed and durable metal gear transmission.
- Bowl lift with lever and safety switch.
- Stainless steel protective grid over the bowl.
- Separate Start and Stop buttons.
- Cast iron housing with scratch-resistant coating.
Safety Instructions
Always adhere to the following safety guidelines to prevent injury or damage to the appliance:
- Ensure the appliance is placed on a stable, level surface.
- Do not operate the mixer without the protective grid securely in place.
- Never insert hands or utensils into the bowl while the mixer is operating.
- Unplug the mixer before cleaning or performing any maintenance.
- Keep children and unauthorized personnel away from the operating mixer.
- Do not overload the mixer; adhere to the maximum dough capacities.
- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
Setup
- Unpacking: Carefully remove the mixer from its packaging. Inspect for any shipping damage. Report any damage immediately to the carrier and supplier.
Figure 2: The Maxima Planetary Mixer as it appears when unpacked, ready for initial setup.
- Placement: Place the mixer on a sturdy, level, and non-slip surface capable of supporting its weight (approximately 78 kg). Ensure adequate ventilation around the unit.
Figure 3: Dimensions of the Maxima Planetary Mixer, showing height (99cm), width (65cm), and depth (27cm) for proper placement.
- Power Connection: Connect the mixer to a grounded 230V/50Hz/1-phase power outlet. Ensure the power supply matches the appliance's requirements.
- Initial Cleaning: Before first use, clean all parts that will come into contact with food, including the mixing bowl, dough hook, flat beater, and wire whip, with warm soapy water. Rinse thoroughly and dry.
Figure 4: The three standard accessories included with the mixer: a stainless steel dough hook, a flat beater, and a wire whip.
Operating Instructions
Attaching the Bowl and Accessories:
- Lower the mixing bowl using the bowl lift lever.
- Place the 30L stainless steel bowl onto the bowl supports and secure it by rotating until it locks into place.
- Attach the desired accessory (dough hook, flat beater, or wire whip) by pushing it upwards onto the planetary shaft and rotating until it clicks into position.
- Raise the mixing bowl using the bowl lift lever until it is fully engaged.
- Ensure the protective grid is closed and securely latched.
Figure 5: The mixing bowl being attached to the mixer, demonstrating the secure locking mechanism.
Mixing Process:
- Add ingredients to the mixing bowl. Do not exceed the maximum capacities:
- Pizza dough: Max 15 kg dough (7.50 kg flour)
- Bread dough: Max 12 kg dough (6.00 kg wholemeal flour)
- Select the desired speed using the speed selector switch. The available speeds are 110 RPM (low), 200 RPM (medium), and 420 RPM (high).
- Press the START button to begin mixing.
- To stop the mixer, press the STOP button.
Figure 6: Close-up of the control panel, showing the green START button, red STOP button, and the speed selection dial.
Important: The mixer is equipped with safety switches. It will not operate if the bowl is not fully raised and locked, or if the protective grid is open.
Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Maxima Planetary Mixer.
Daily Cleaning:
- Always unplug the mixer from the power outlet before cleaning.
- Remove the mixing bowl and accessories. Wash them with warm water and a mild detergent. Rinse thoroughly and dry immediately to prevent water spots or corrosion.
- Wipe down the exterior of the mixer, including the cast iron housing and control panel, with a damp cloth. Do not use abrasive cleaners or immerse the main unit in water.
- Clean the protective grid with a brush and damp cloth.
Figure 7: The mixer with the bowl lowered, illustrating accessibility for cleaning the bowl and internal components.
Periodic Maintenance:
- Inspect the power cord for any signs of damage.
- Check that all moving parts operate smoothly.
- Ensure all safety mechanisms (bowl lift safety switch, protective grid safety switch) are functioning correctly.
- For any internal maintenance or repairs, contact qualified service personnel.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mixer does not start. | Not plugged in; power switch off; safety switch not engaged (bowl not raised/grid open). | Ensure power cord is securely plugged in. Check power switch. Ensure bowl is fully raised and protective grid is closed. |
| Motor sounds strained or stops during operation. | Overload (too much dough); incorrect speed for consistency. | Reduce batch size. Select a lower speed for thicker doughs. |
| Unusual noise during operation. | Accessory not properly attached; internal mechanical issue. | Ensure accessory is securely attached. If noise persists, discontinue use and contact service. |
Specifications
| Attribute | Value |
|---|---|
| Model | MPM30 |
| Article Number | 8719632120209 |
| Brand | Maxima |
| Dimensions (H x W x D) | 99 x 65 x 27 cm |
| Net Weight | 78 kg |
| Voltage | 230V / 50Hz / 1-phase |
| Wattage | 1100 W |
| Bowl Capacity | 30 Liters |
| Speeds | 3 (110, 200, 420 RPM) |
| Max Pizza Dough Capacity | 15 kg dough (7.50 kg flour) |
| Max Bread Dough Capacity | 12 kg dough (6.00 kg wholemeal flour) |
| Material | Stainless Steel, Cast Iron |
| Controls | Physical Buttons |
| Country of Origin | China |
Warranty and Support
Maxima Kitchen Equipment provides excellent customer care and support for its products. Should you have any questions or encounter issues with your Maxima Planetary Mixer, please contact our technical service department. Our specialists are available to assist you with all inquiries and problems related to your mixer.
For service and support, please refer to the contact information provided with your purchase or visit the official Maxima Kitchen Equipment website.
Manufacturer: Maxima Kitchen Equipment
